Today, let’s start tearing down the Huawei Nova 2s, which was just launched last week. The phone has a high appearance, and the smartphone is designed to appeal to young people.
First, remove the SIM card tray. The card tray is made of plastic material and is of good quality.
Then, remove the glass case on the back. The phone consists of three layers of materials, including a metal middle framework, a plastic cushion layer, and a glass case on the back. The cushion layer in the middle aims to prevent the metal middle framework from directly squeezing the glass when the phone is dropped. The Huawei Nova 2s’ cushion layer is fixed by screws, and it can’t be directly removed.
After taking out the glass case on the back, we can see many screws inside. The phone’s motherboard is connected to the vice board via FPC. It is easier to remove the back case since the fingerprint reader module is placed on the front.
Take out all BTB and FPC. Just be meticulous while removing the motherboard and vice board because both of them have been fixed by glue.

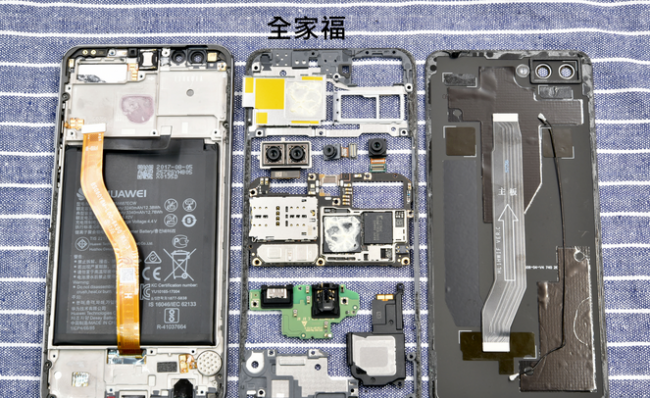

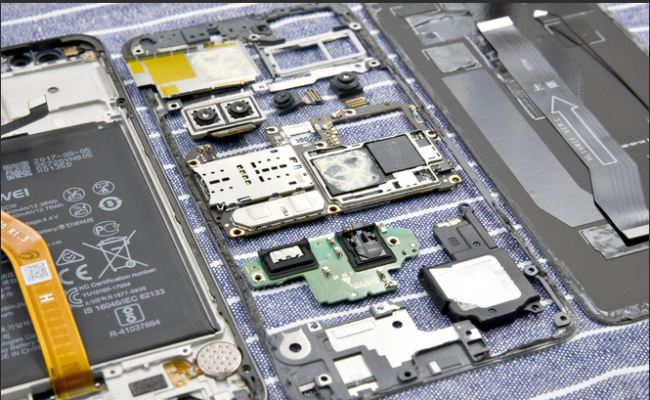

The phone’s internal structure, as a whole, is simple. Most components on the motherboard are covered by the shield cover and heat shield. I have taken out a piece of CPU inside. Two FPC colors differ from each other. The motherboard’s and vice board’s colors are also different.
