Acer Aspire E15 E5-571G Disassembly
In this guide, I’ll explain how to disassemble the Acer Aspire E15 E5-571G to remove and replace the battery, hard drive, keyboard, palm rest, WALN, RAM, cooling fan, speaker, and motherboard.
Looking for more guides? Follow us on Facebook for all the latest repair news.
Unlock and remove the battery.
Remove all screws from the bottom case.
Pull out the optical drive, but I found it was not a real optical drive. It was a bracket, just like a DVD drive. I do not understand why Acer does not install a real optical drive.
The optical drive bracket
Turn over the laptop, starting to pry up the palm rest with a guitar pick.
Insert the guitar picks between the palm rest and the base.
Open the palm rest, and be careful; the touchpad cable is still connected to the motherboard. Disconnect the touchpad cable.
The back of the palm rests, and you can access the touchpad and keyboard.
Under the palm rest, you can access the hard drive, wireless card, and cooling fan.
Disconnect the white cable, remove two screws securing the hard drive module, and you can remove the hard drive module.

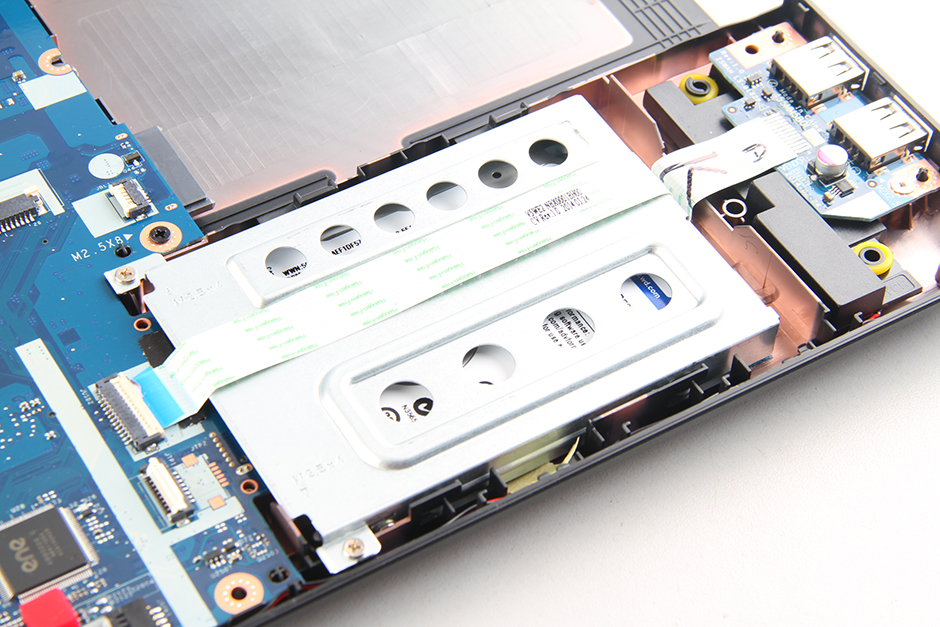

Here’s the hard drive module
Disconnect two wireless antenna cables and remove one screw securing the wireless card.
The wireless card model is T77H436.03 HL.
Remove two screws securing the cooling fan and disconnect the cooling fan cable.

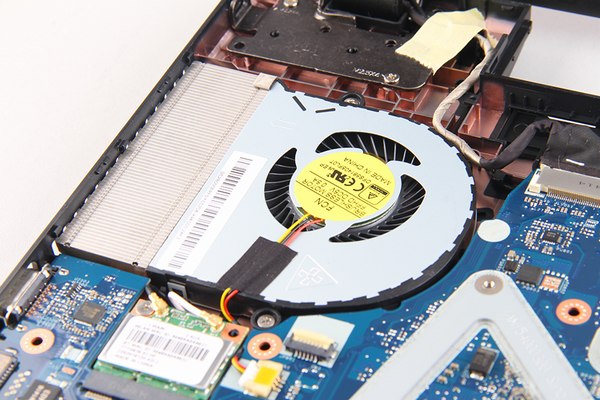

Aspire E15 E5-571G cooling fan comes from Foxconn.
Acer Aspire E5-571G motherboard, the laptop has two RAM slots, which means you can upgrade the RAM.
It comes with a Kingston 4GB PC3L-12800S RAM.
Heatsink
Bottom case
Intel® Core™ i5-5200U processor (3M Cache, up to 2.70 GHz)
For more guides, check out the Acer Aspire E5-571G device page.
