Acer Aspire V Nitro VN7-591G Disassembly

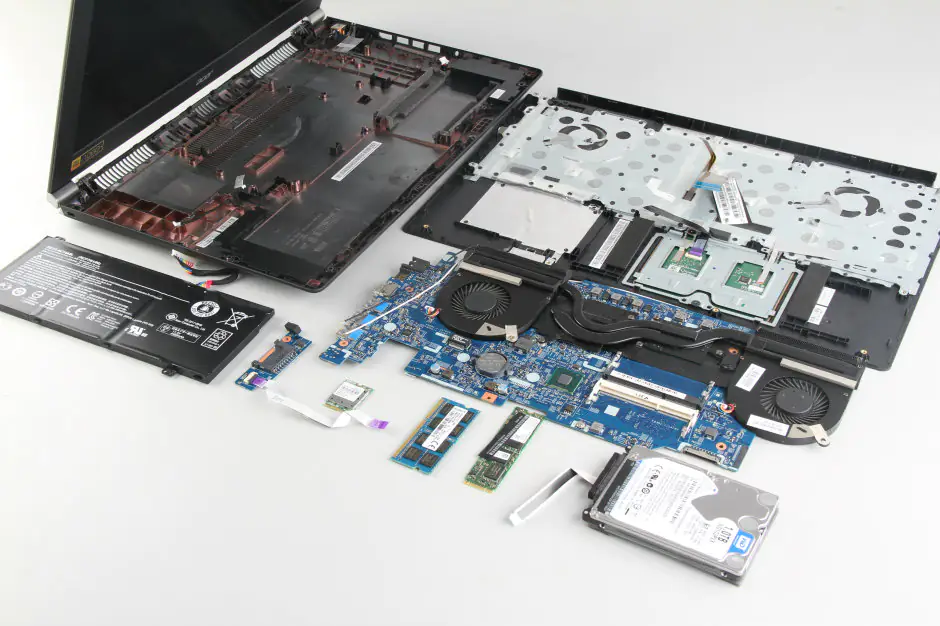

In this guide, I’ll explain how to disassemble the Acer Aspire V Nitro VN7-591G; I will remove the battery, RAM, wireless card, keyboard, palm rest, hard drive, cooling fan, and motherboard.
Looking for more guides? Follow us on Facebook for all the latest repair news.

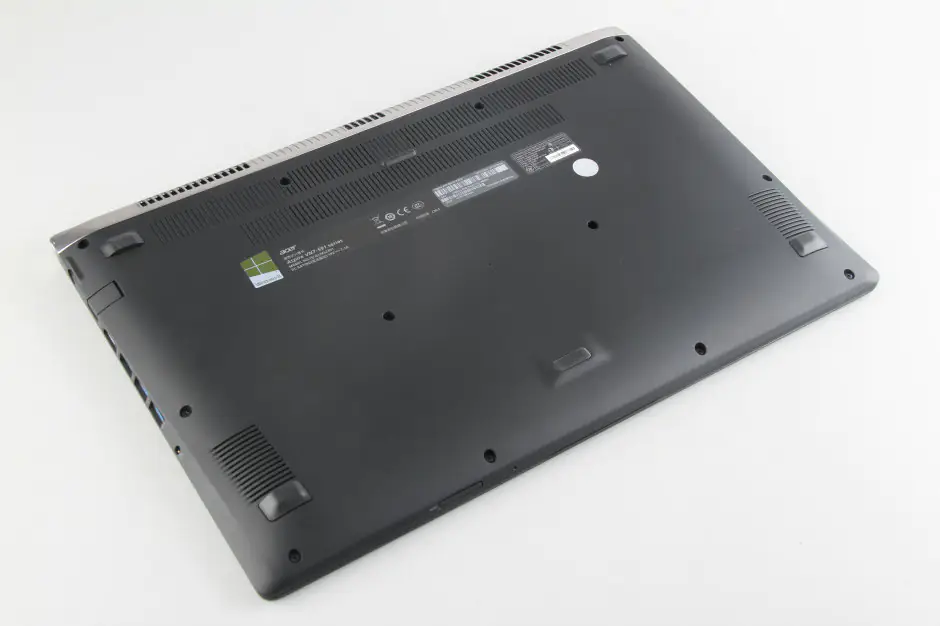

Remove all screws from the bottom case.

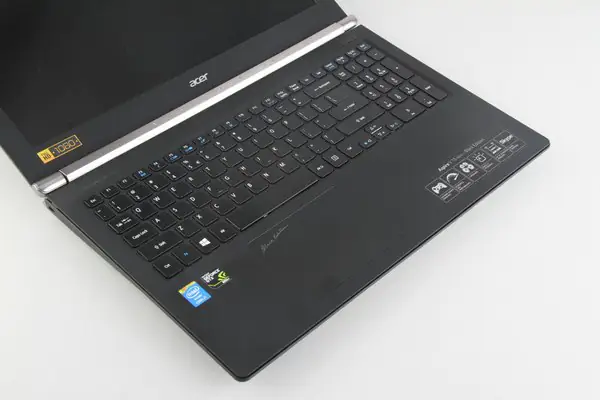

Flip over the laptop. Pry up the palm rest with a pry bar

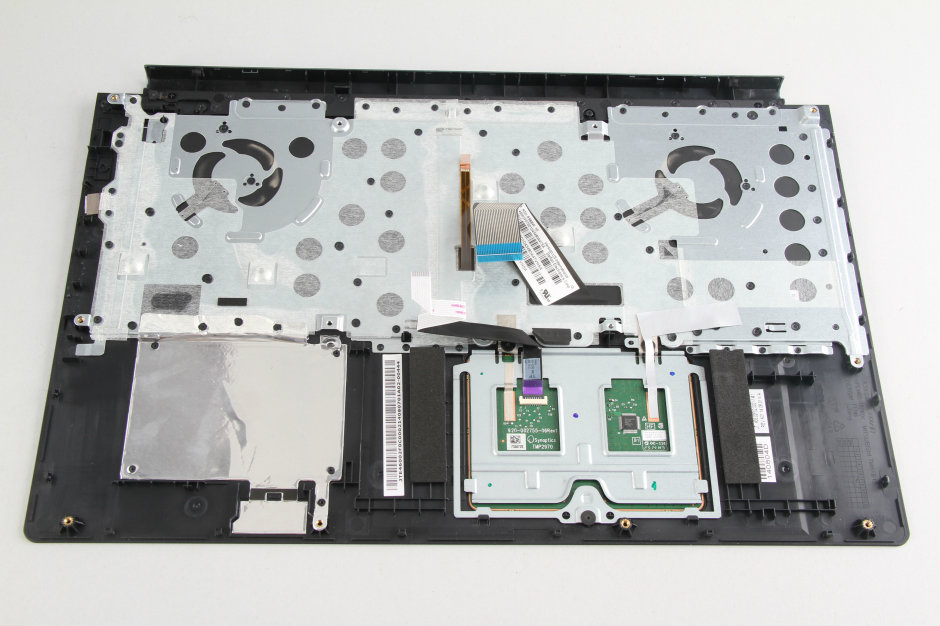

Lift up the palm rest. Disconnect the keyboard cable, backlit cable, and touchpad cable. Remove the palm rest.
When the Aspire VN7-591G palm rest is removed, replacing the keyboard was very easy.

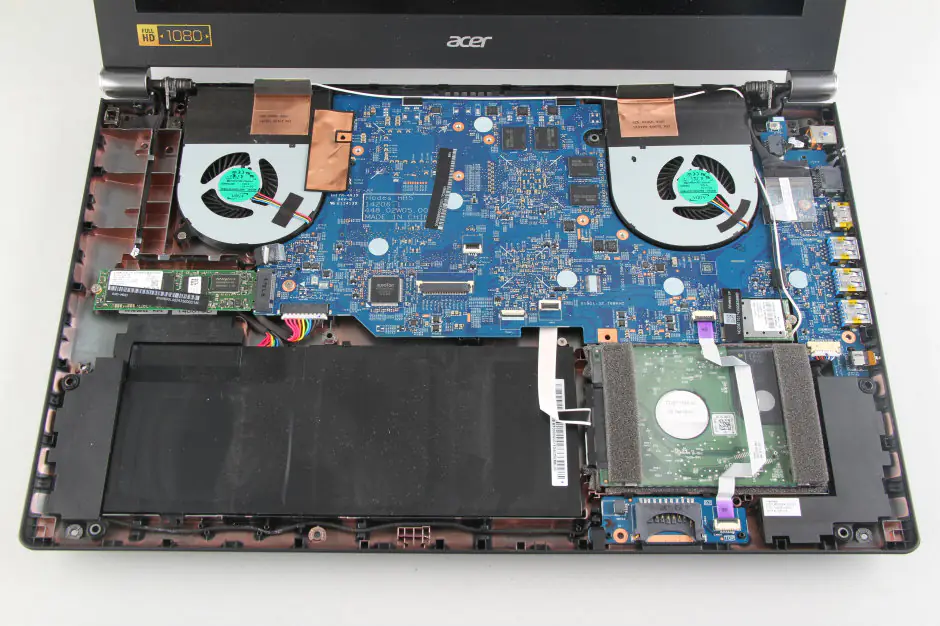

Under the palm rest, you can get access to the battery, SSD, hard drive, speakers, and cooling fan.
Acer Aspire VN7-591G comes with a Lite-on 60GB SSD. Remove the screw and take it away from its slot.

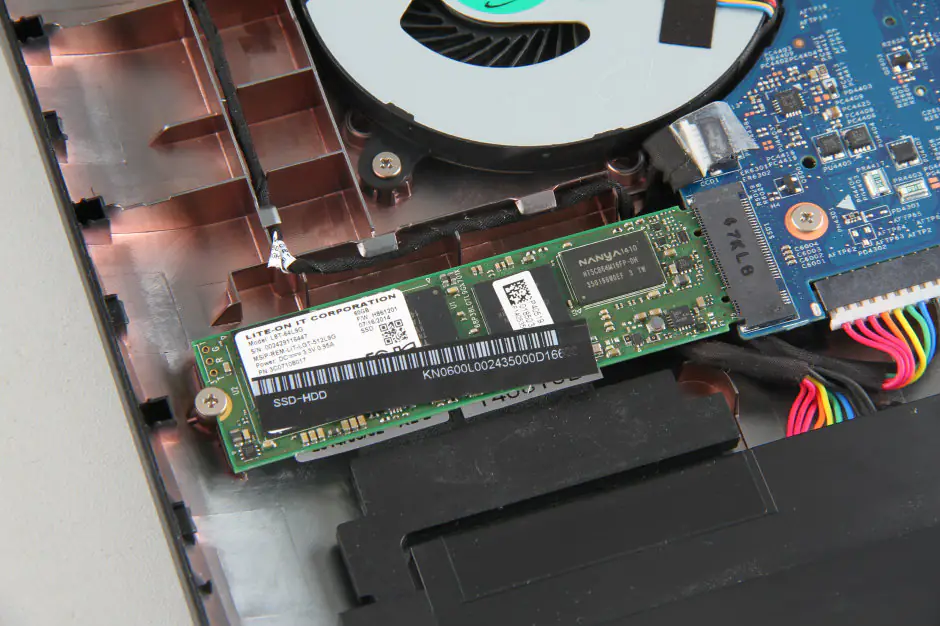

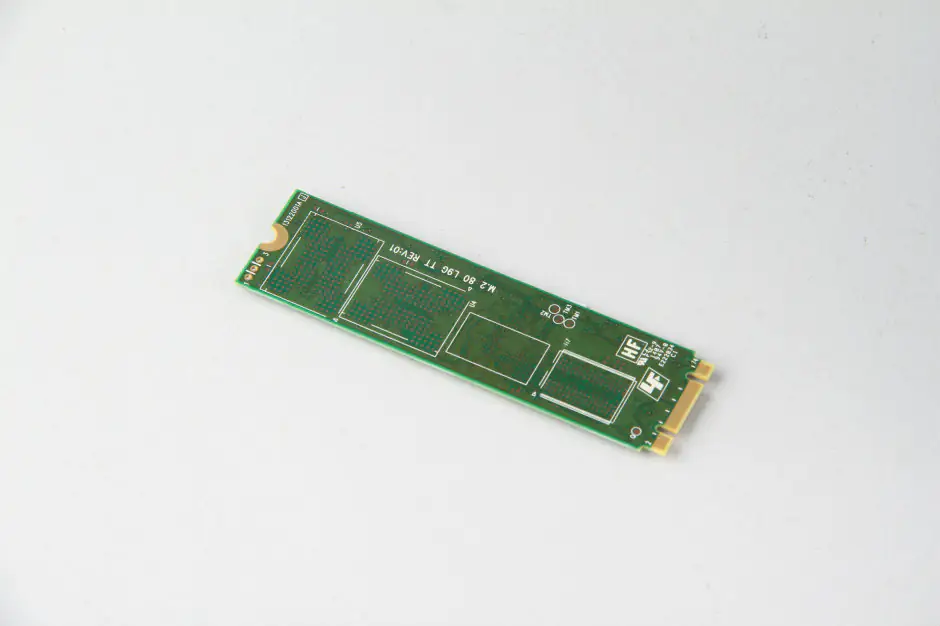

The Lite-on 60GB SSD
Remove the screws securing the battery. Disconnect the battery connector from the motherboard and remove the battery.

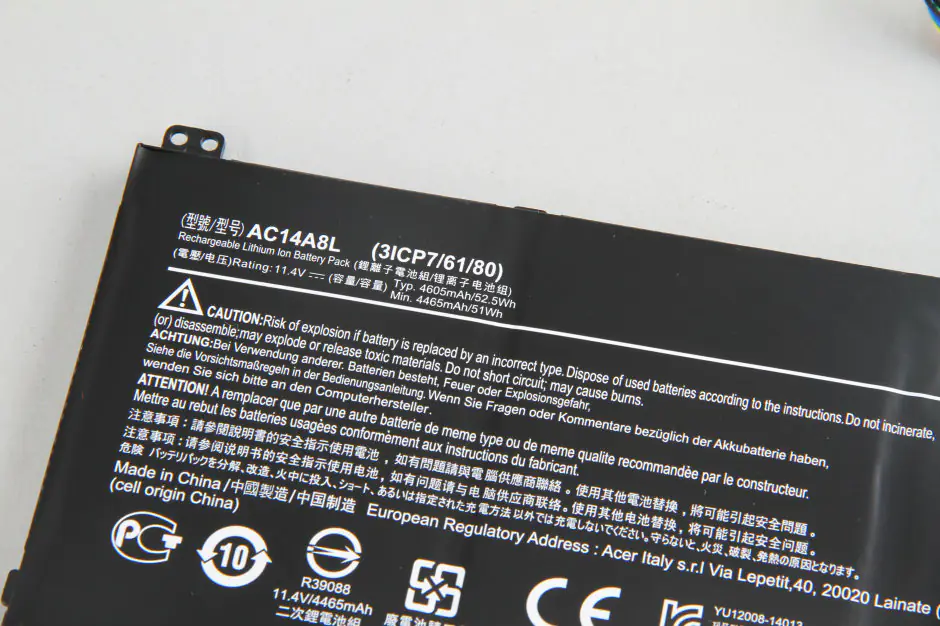

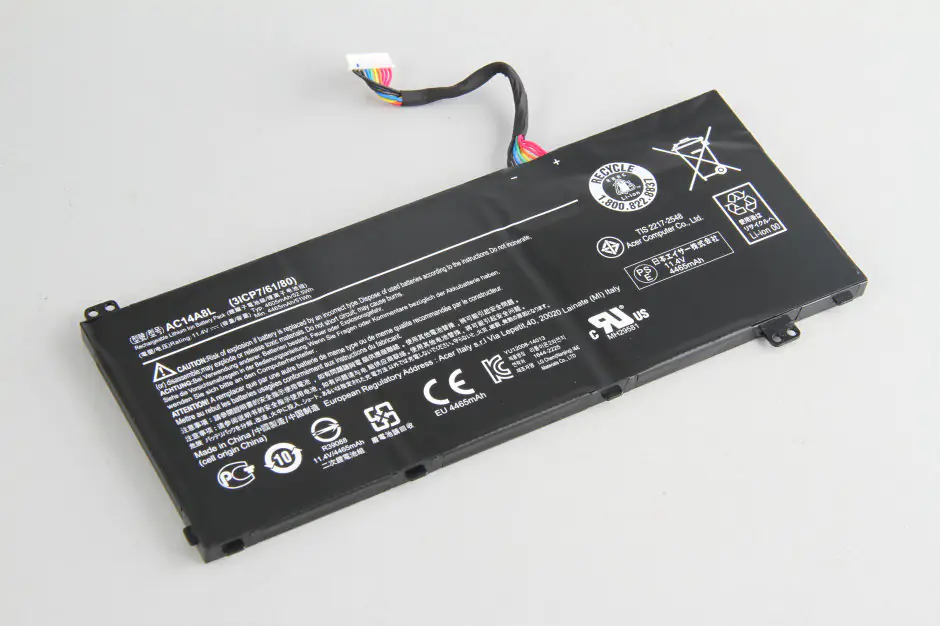

Acer Aspire VN7-591G comes with an 11.1v, 52.5wh Li-ion battery. Acer part number: AC14A8L.
Disconnect the card reader board cable from the motherboard. Remove the card reader board.

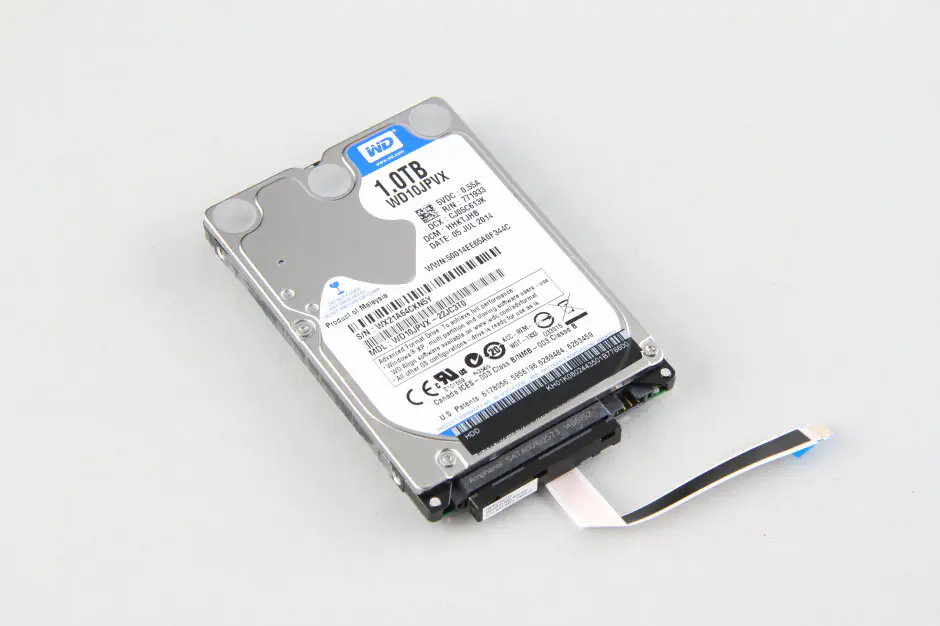

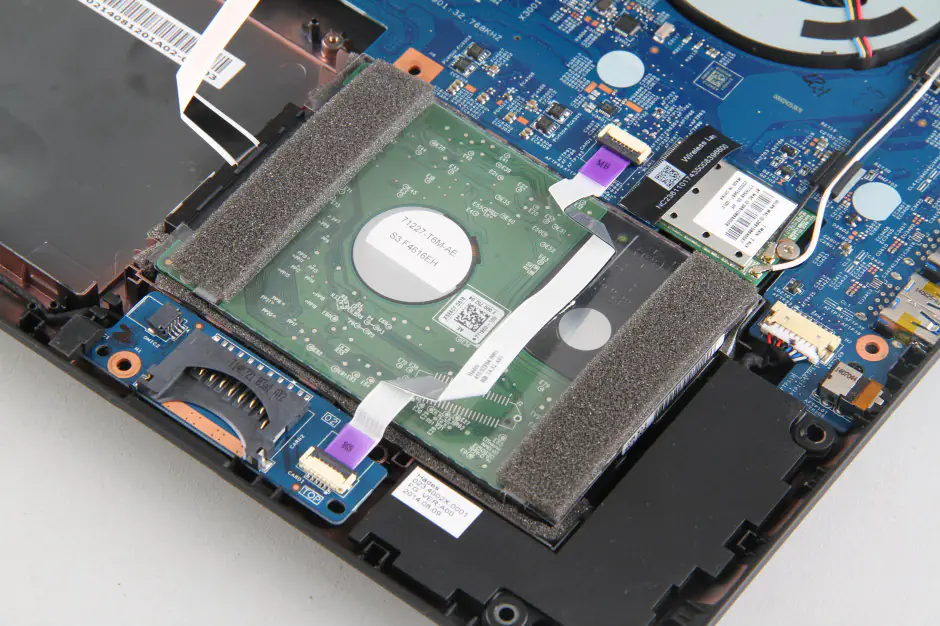

The Acer Aspire VN7-591G comes with a Western Digital 1TB hard drive.
The card reader board

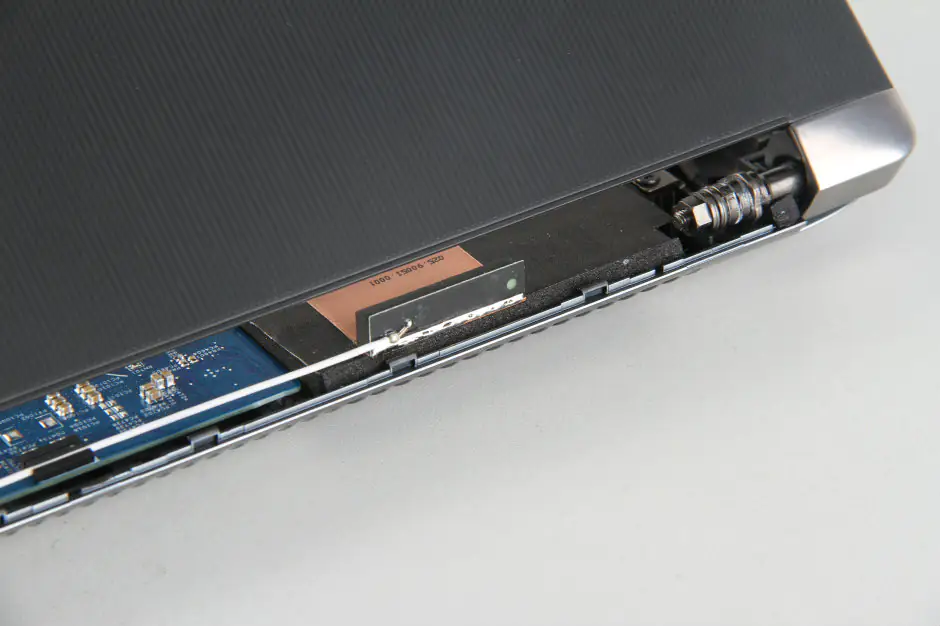

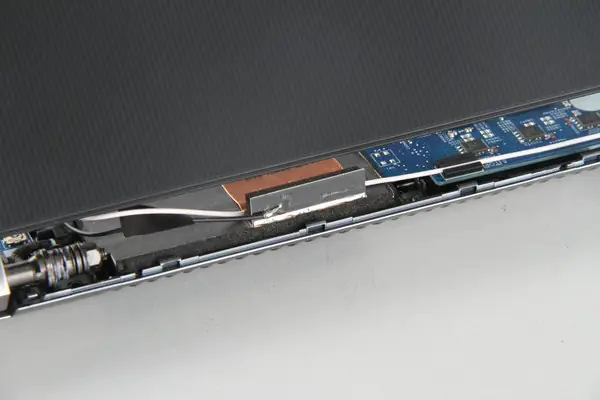

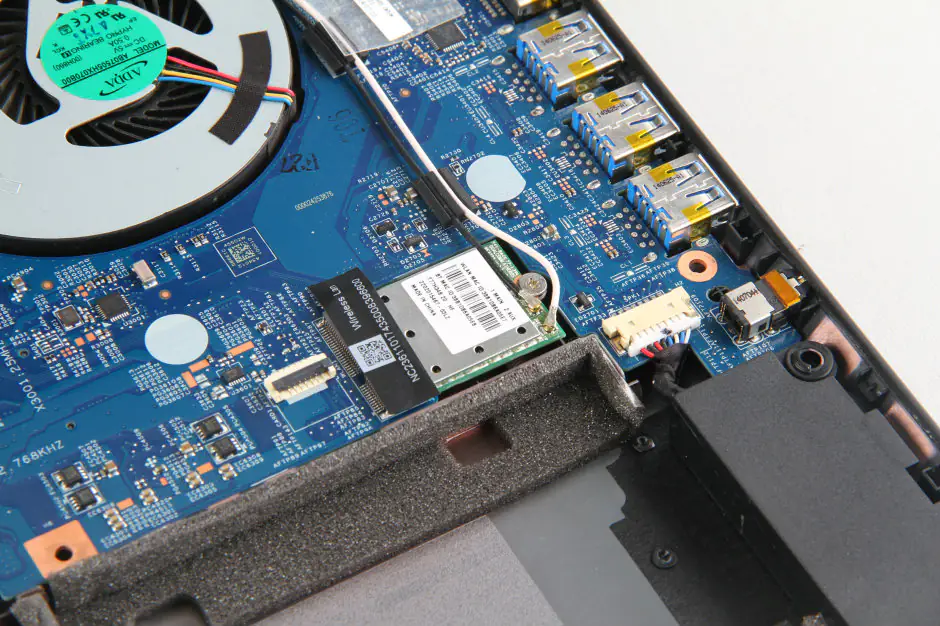

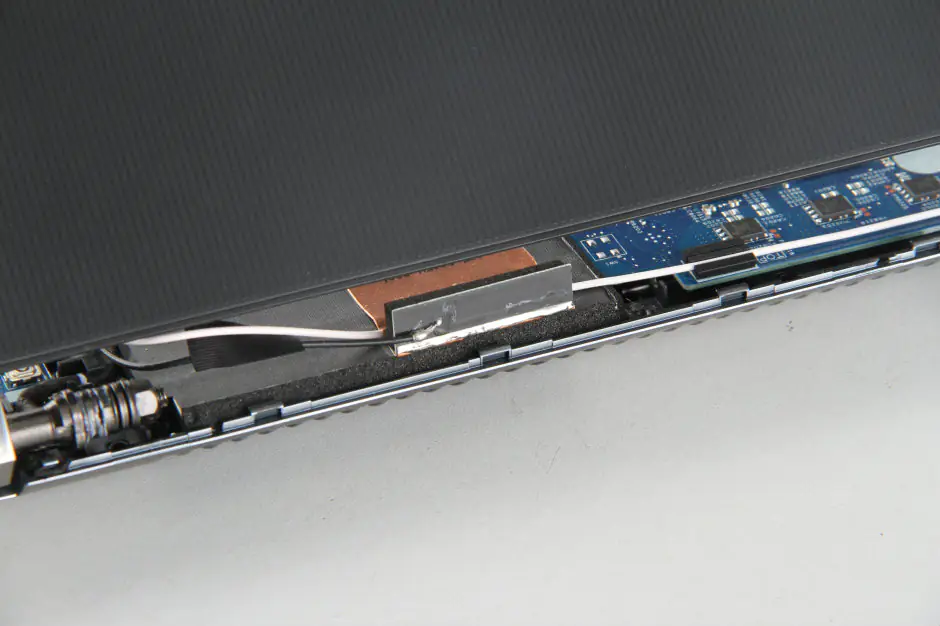

Disconnect two antenna cables and remove the screw securing the wireless card. Remove the wireless card.

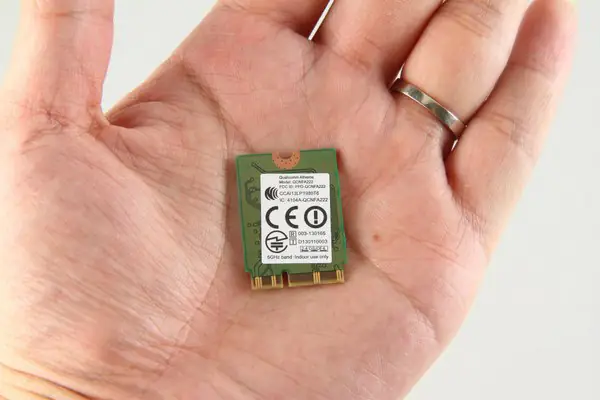

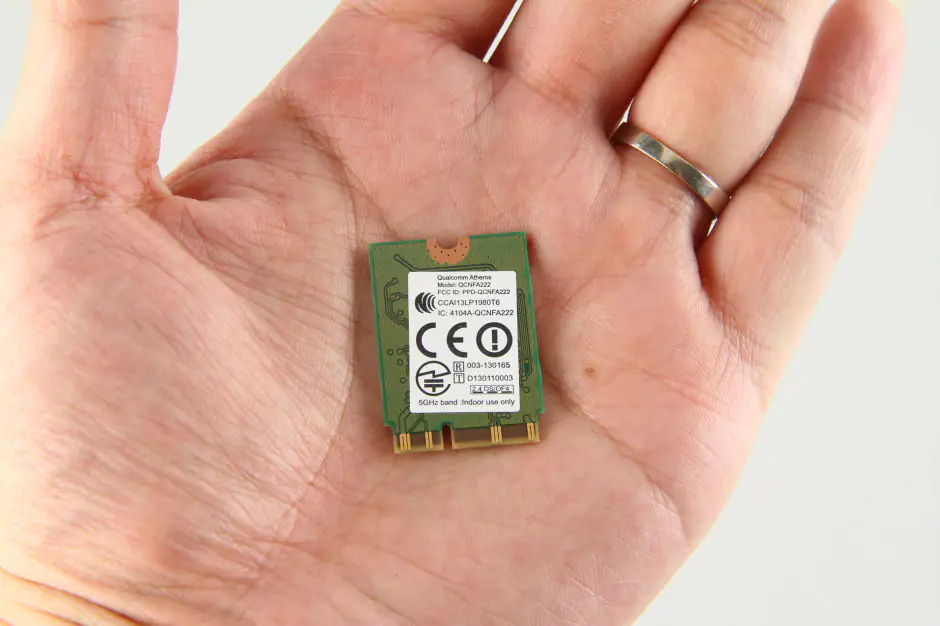

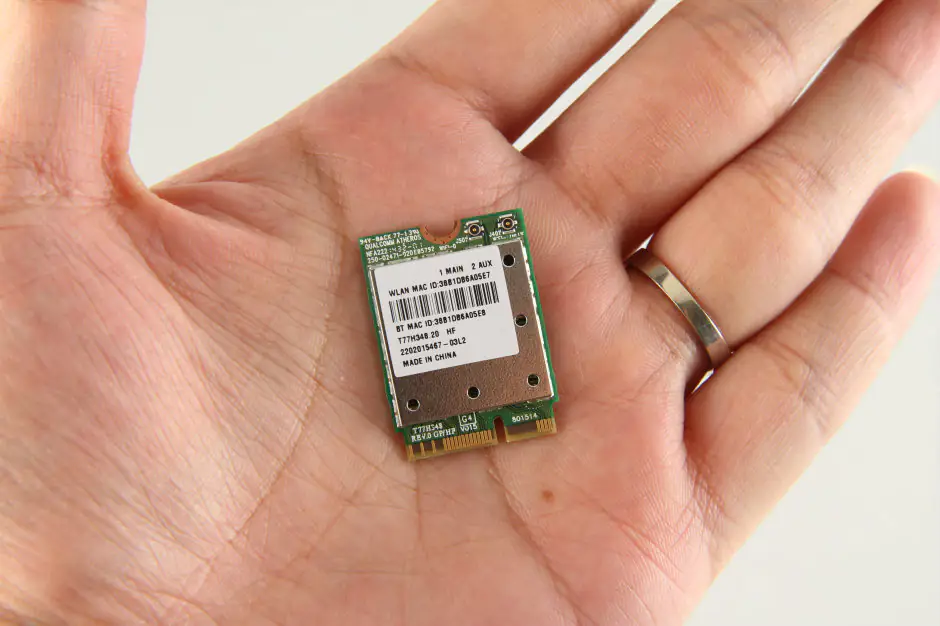

Qualcomm Atheros QCNFA222 wireless card
The Acer part number is T77H348.20 HF.

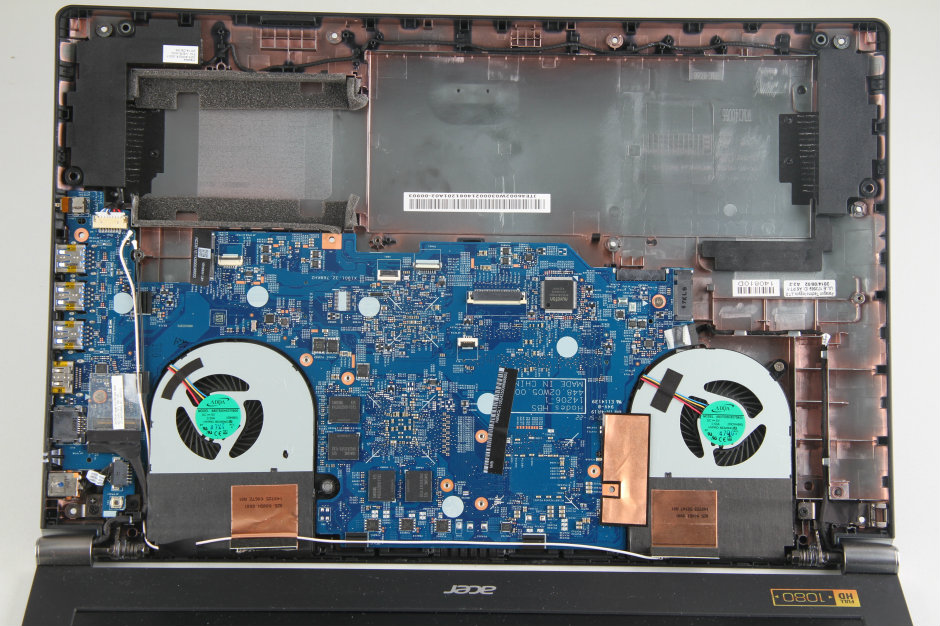

Disconnect the speaker cable. Remove the screws securing the motherboard.
Wireless card antenna cable

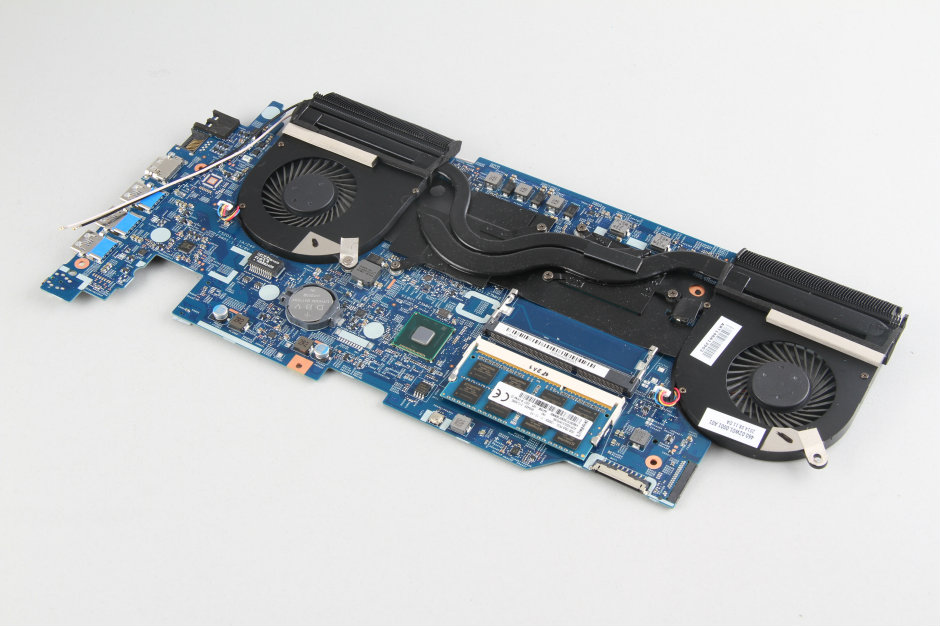

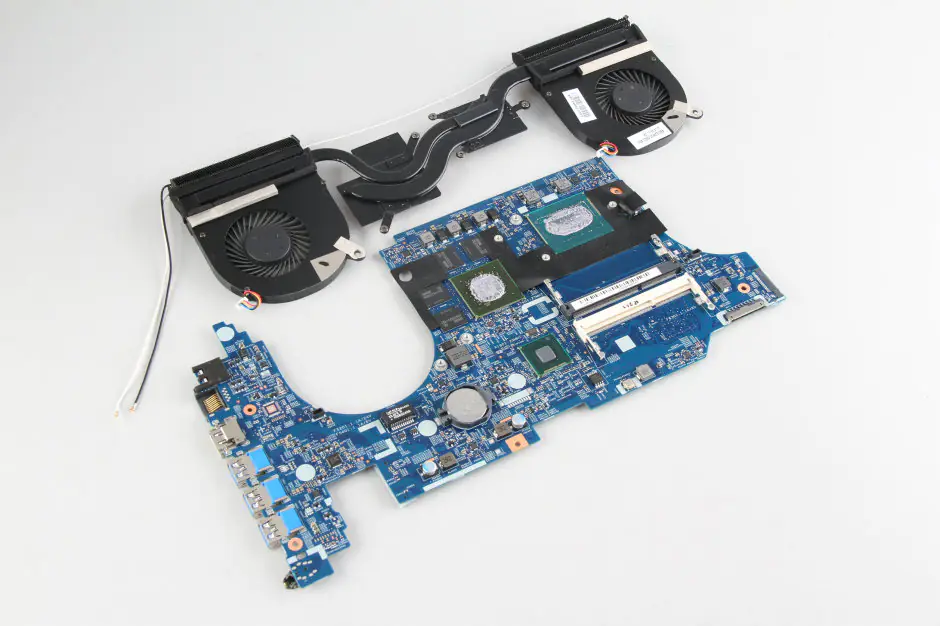

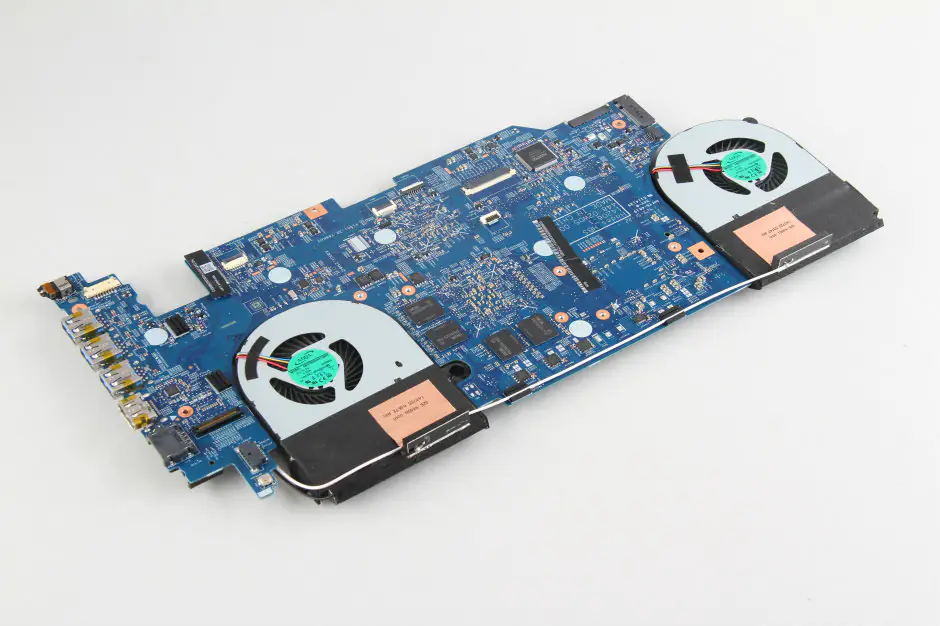

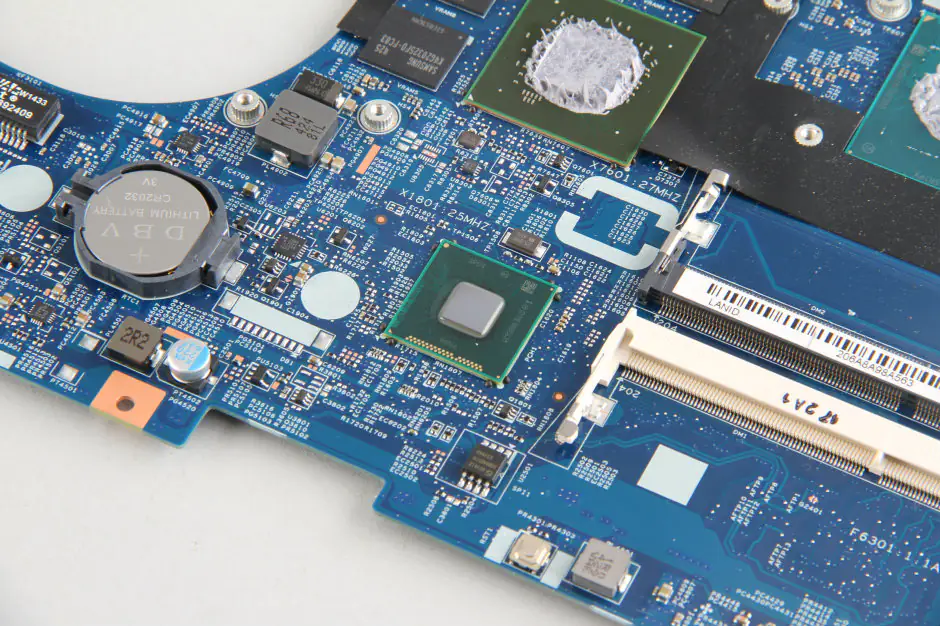

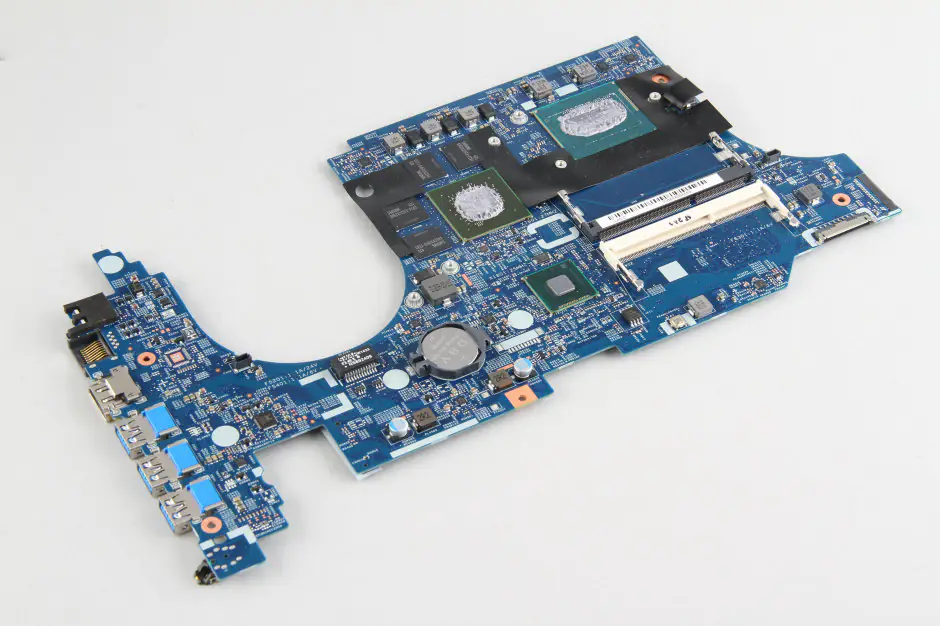

Acer Aspire VN7-591G motherboard and cooling fan

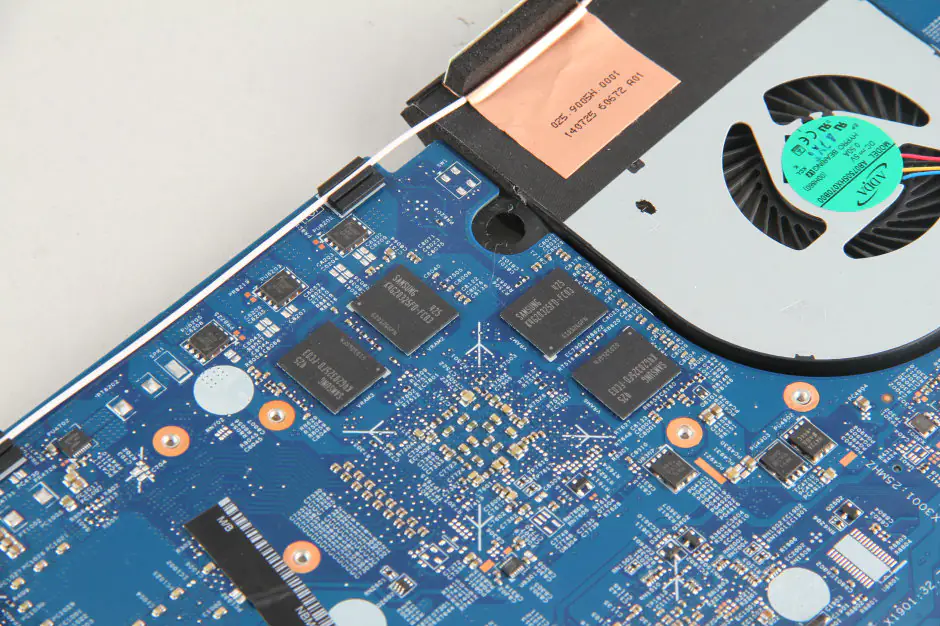

Four Samsung K4G10325FG-HC03 Graphics DDR SDRAM chips

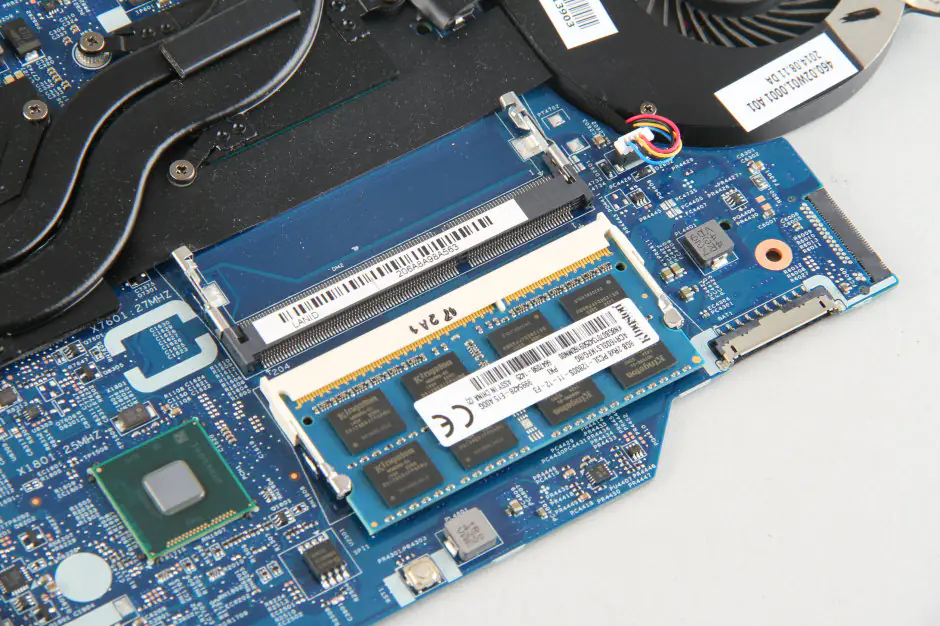

Acer Aspire VN7-591G has two RAM slots, but upgrading the RAM may not be very easy. To access the RAM slots, you must remove the motherboard.

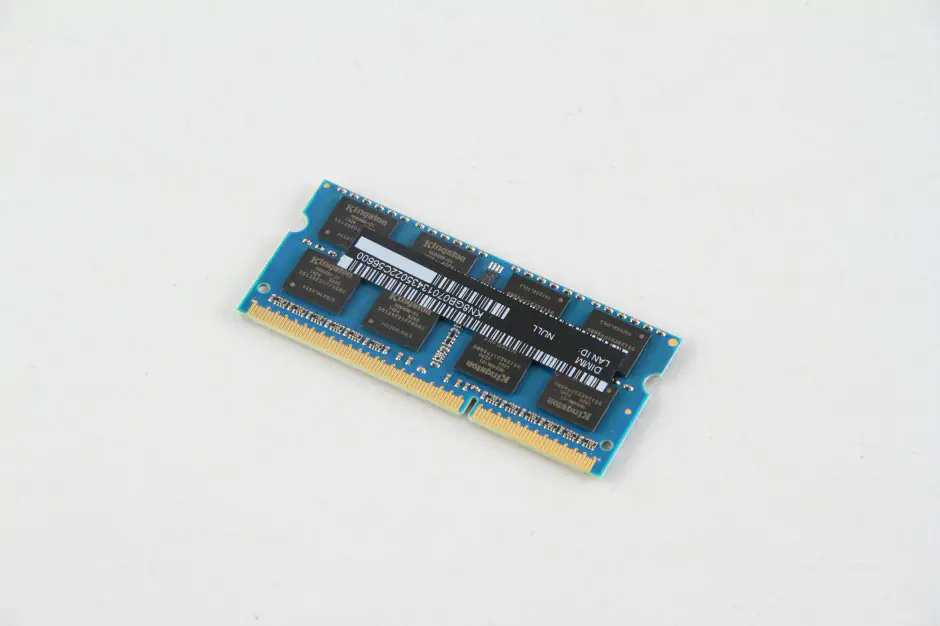

The Acer Aspire VN7-591G featured a Kingston 8GB PC3L-12800S RAM.
Remove all screws securing the heat sink and cooling fan.

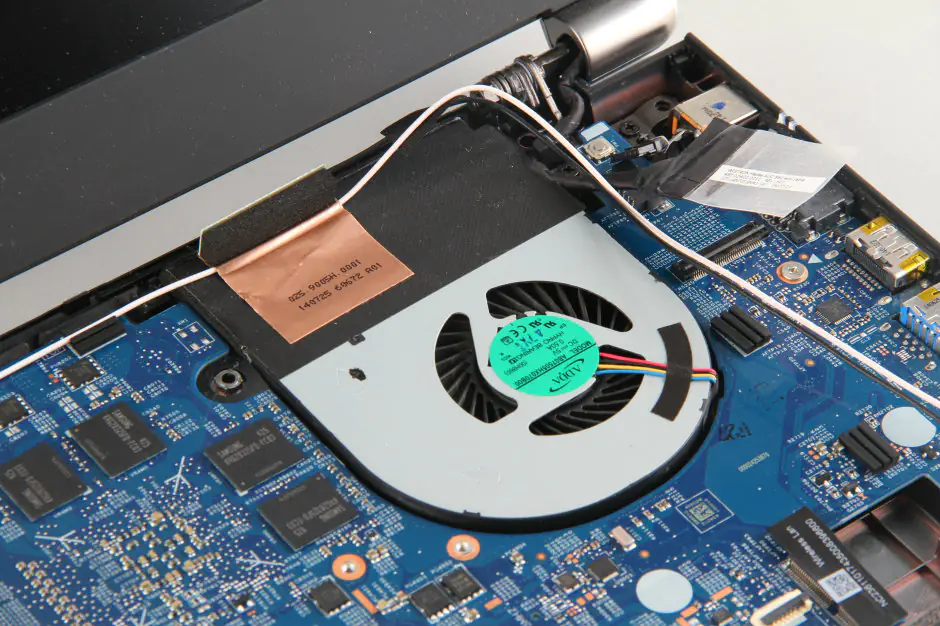

Disconnect the cooling fan cables from the motherboard.

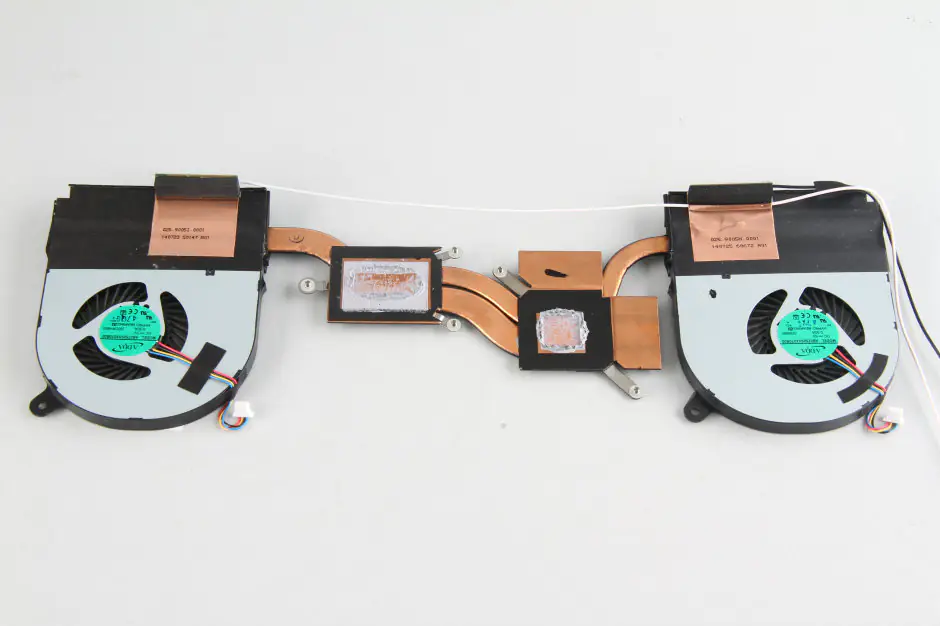

Acer Aspire VN7-591G heat sink and cooling fan assembly.

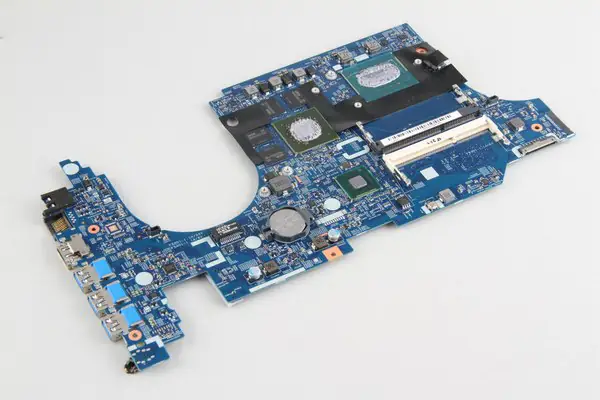

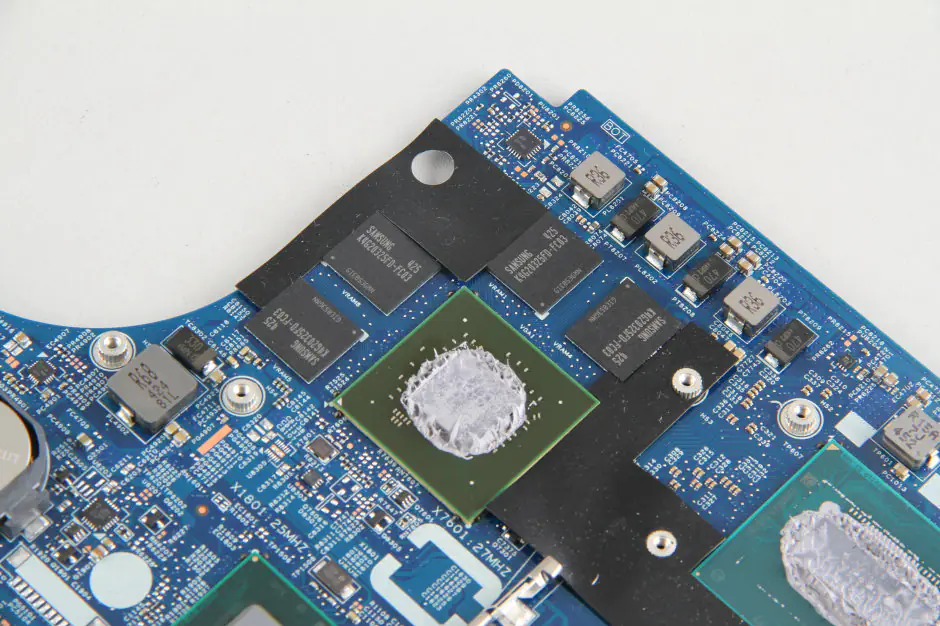

NVIDIA GeForce GTX 860M Graphics card and four Samsung K4G10325FG-HC03 Graphics DDR SDRAM chips
For more guides, check out the Acer Aspire VN7-591G device page.
