Acer Aspire V15 Nitro VN7-592G Disassembly
In this guide, I’ll explain how to disassemble the Acer Aspire V15 Nitro VN7-592G to remove the bottom case, SSD, cooling fan, hard drive, RAM, and motherboard.
Want to be the first to see inside the latest gadgets? Follow us on Facebook for the latest news from MyFixGuide.com.
Specification:
Windows 10 Home
Intel Core i7-6700HQ 2.60 GHz
15.6″ Full HD (1920 x 1080) 16:9 IPS
NVIDIA GeForce GTX 960M with 4 GB Dedicated Memory
8 GB, DDR4-2133 SDRAM
1 TB HDD
256GB SSD

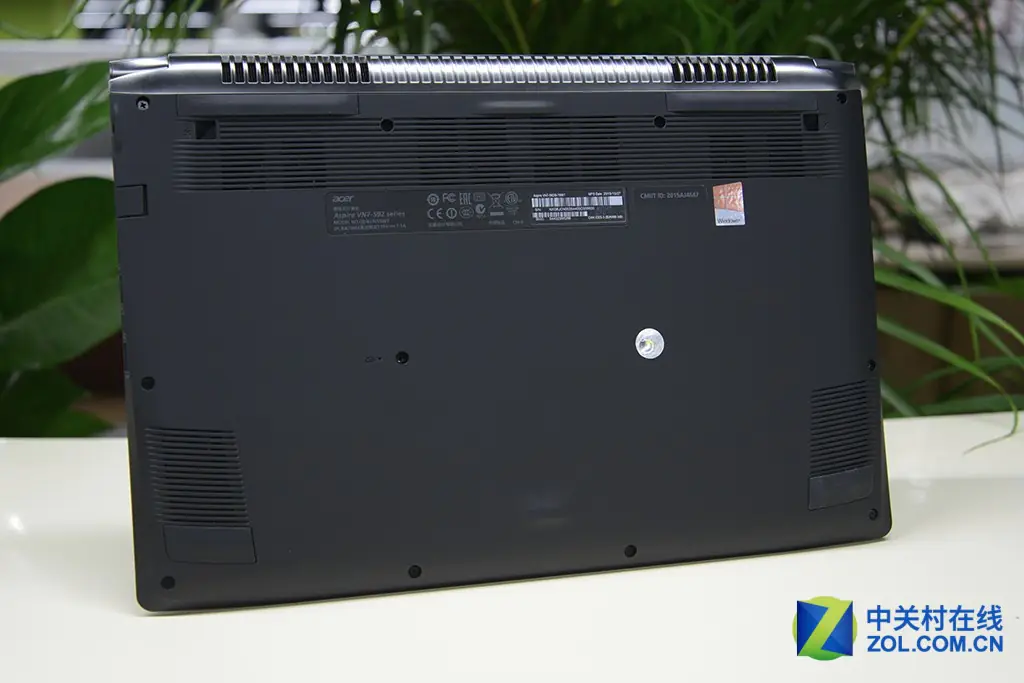

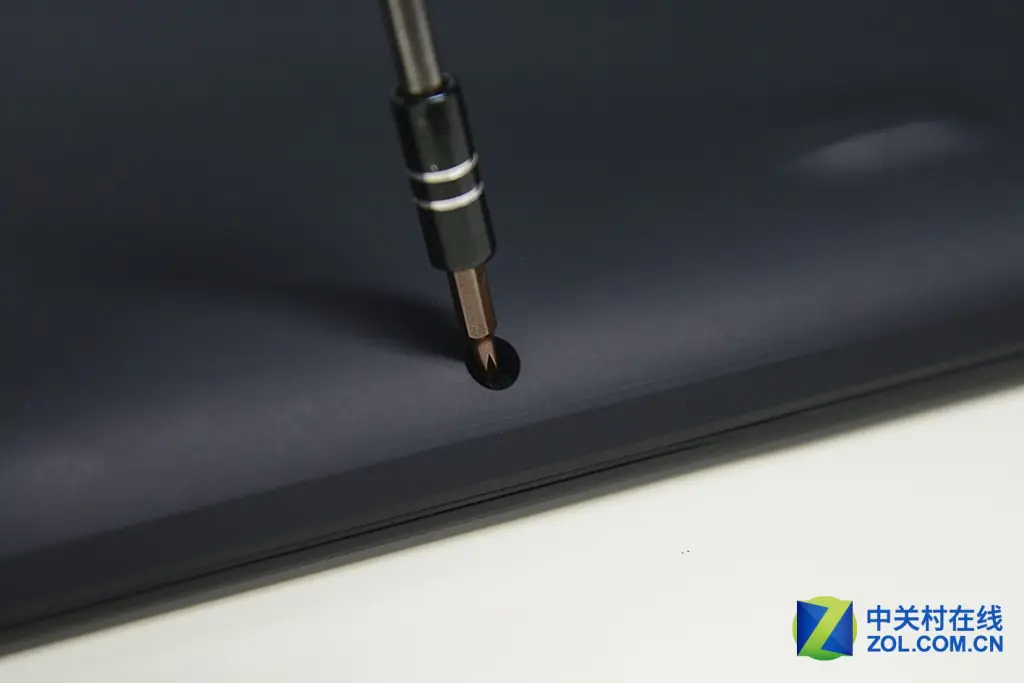

Remove twelve screws securing the bottom case. There is one screw was covered by a fragile sticker. If you damage it, you will void the warranty.

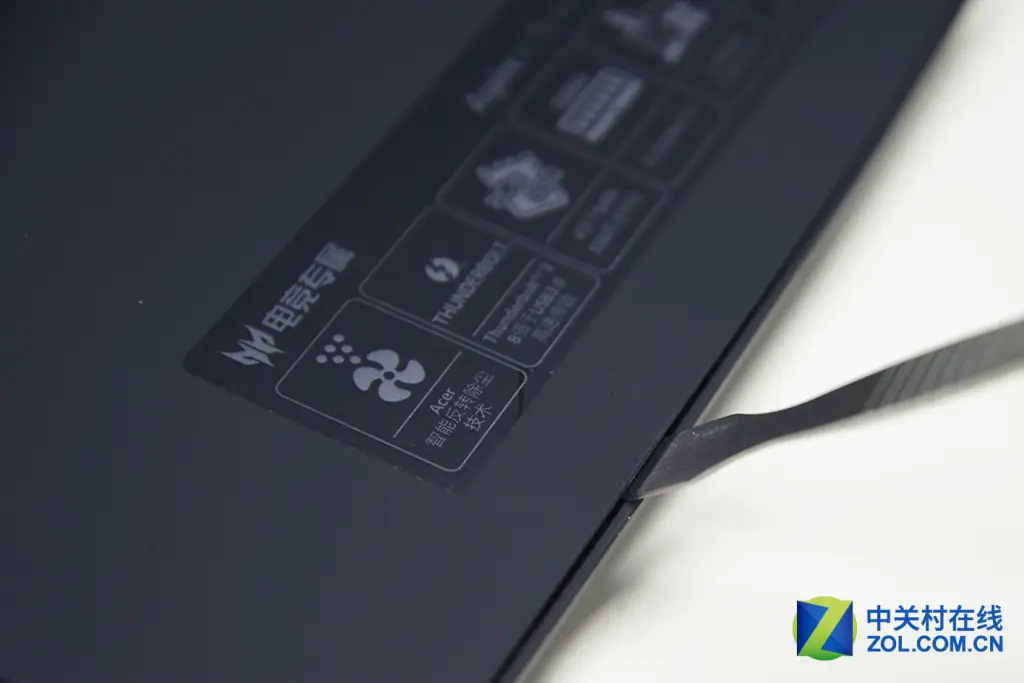

Now starting to pry up the palm rest with a crowbar.
Lift up the palm rest, be careful, there are three cables still connecting to the motherboard.

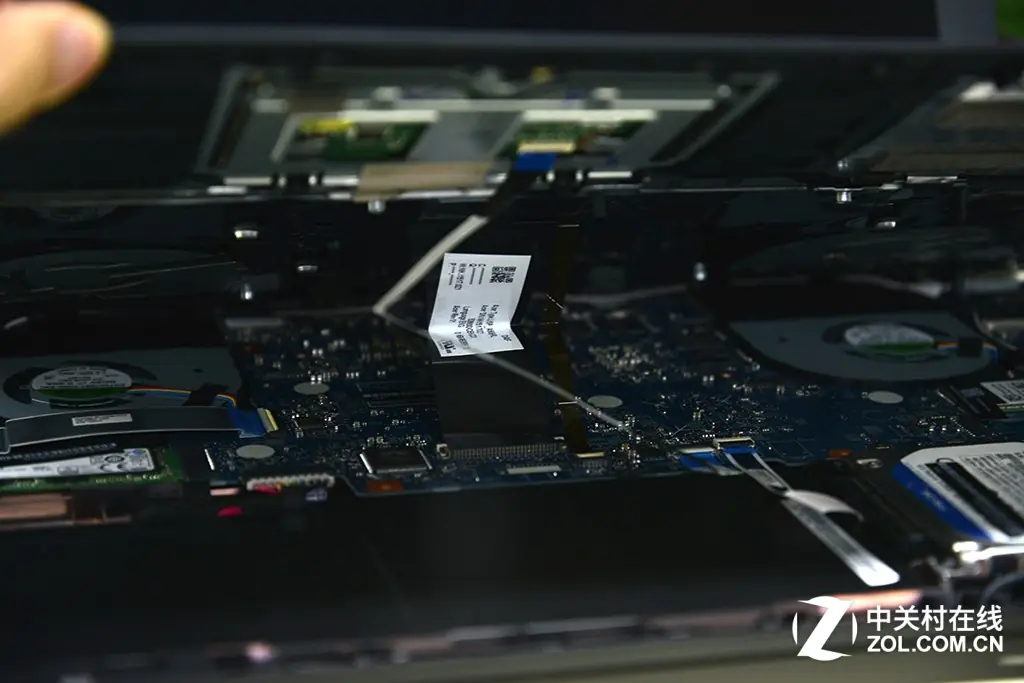

Disconnect the keyboard cable, backlit cable, and touchpad cable from the motherboard.
Now, you can remove the palm rest completely.

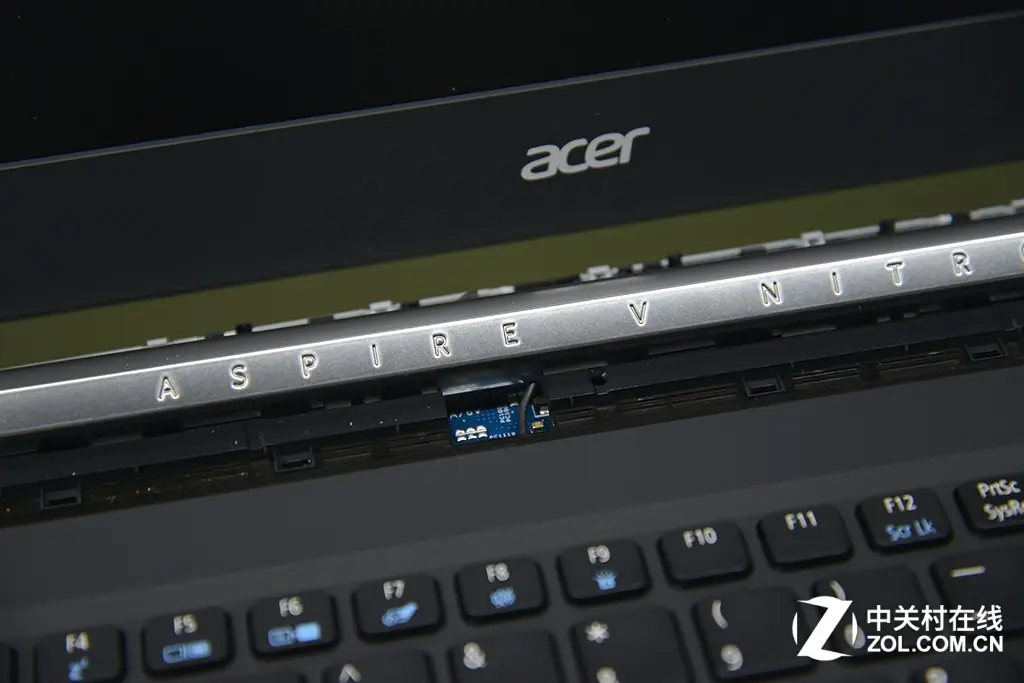

The lights are on top of the keyboard.
Before you touch any internal components, you should disconnect the battery.

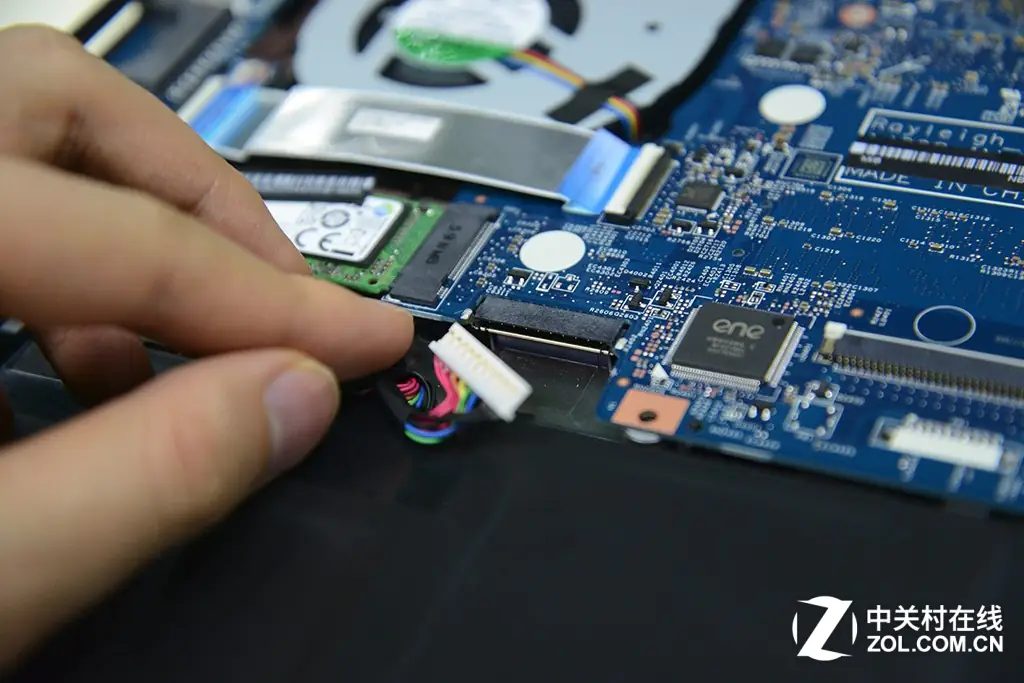

Disconnect the battery connector from the motherboard.

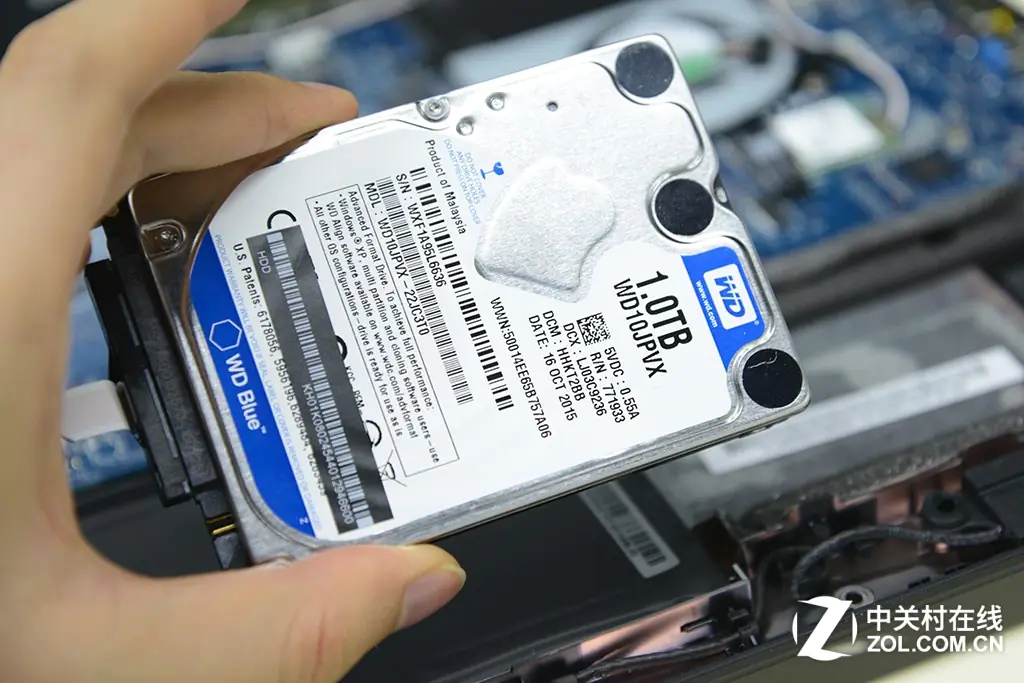

The Acer Aspire V15 Nitro VN7-592G comes with a Western Digital 1TB hard drive.

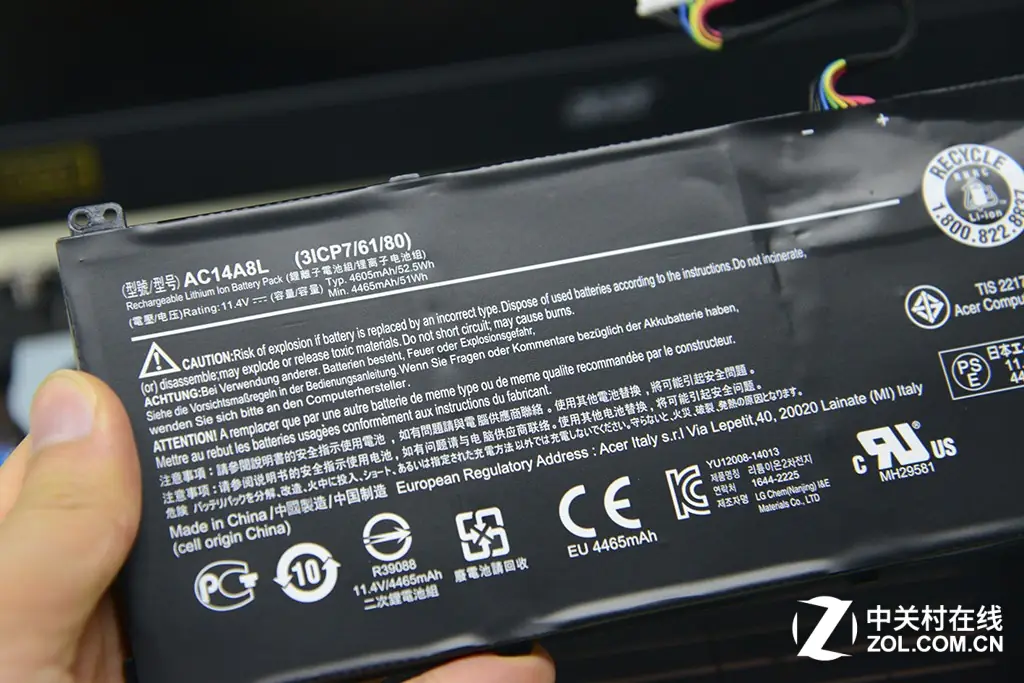

The Acer Aspire Nitro VN7-592G features an 11.4v 4605mah, 52.5wh Li-ion battery, and the Acer model is AC14A8L.

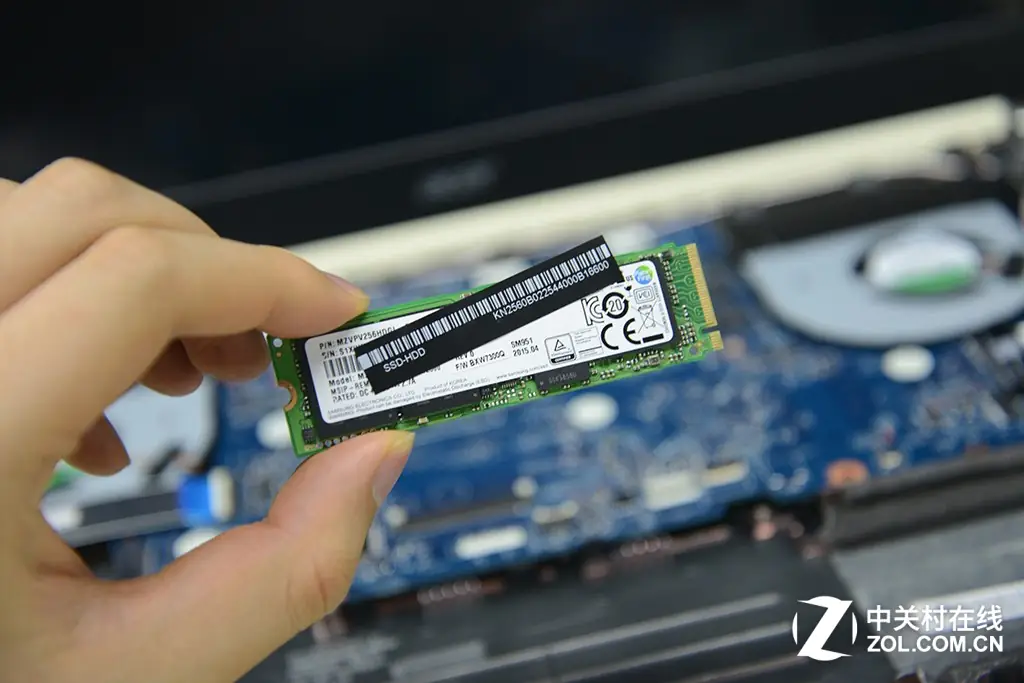

Samsung 256GB SM951 NVMe SSD

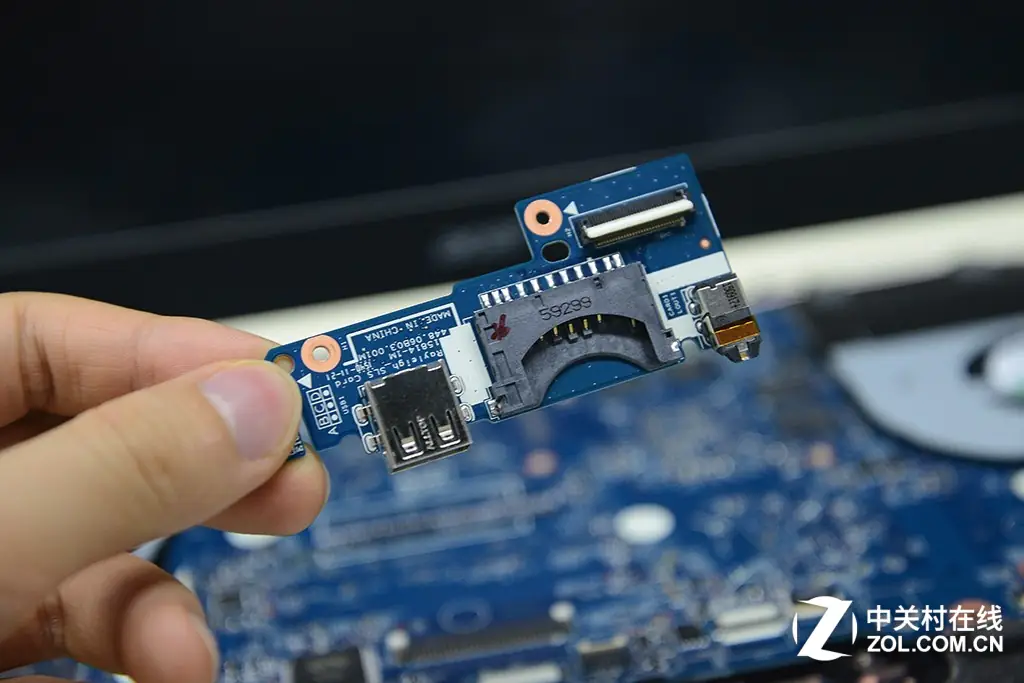

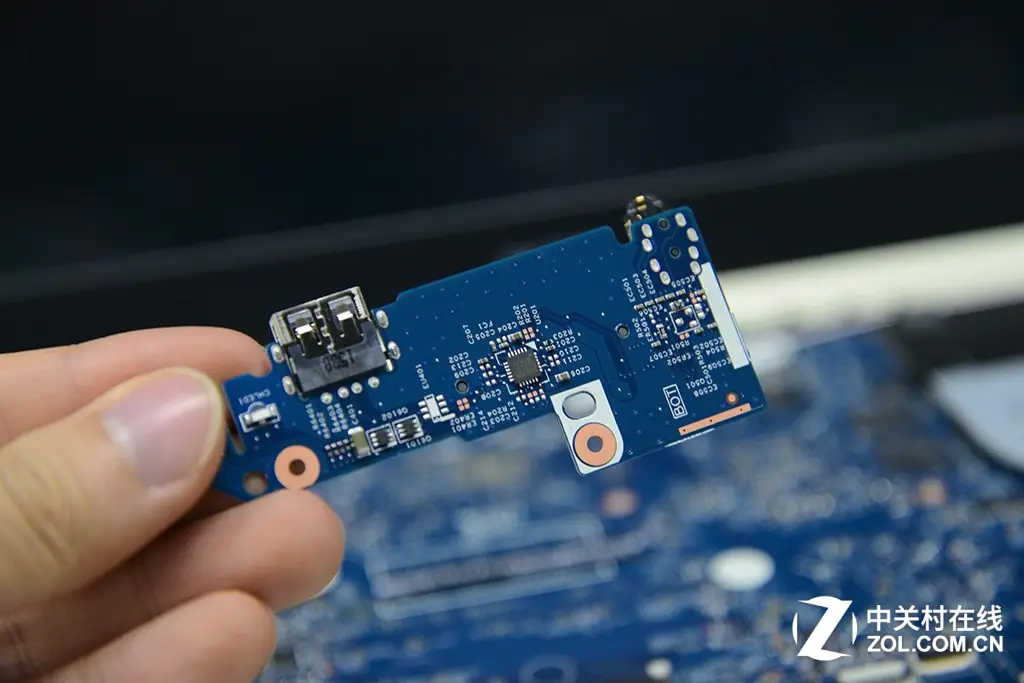

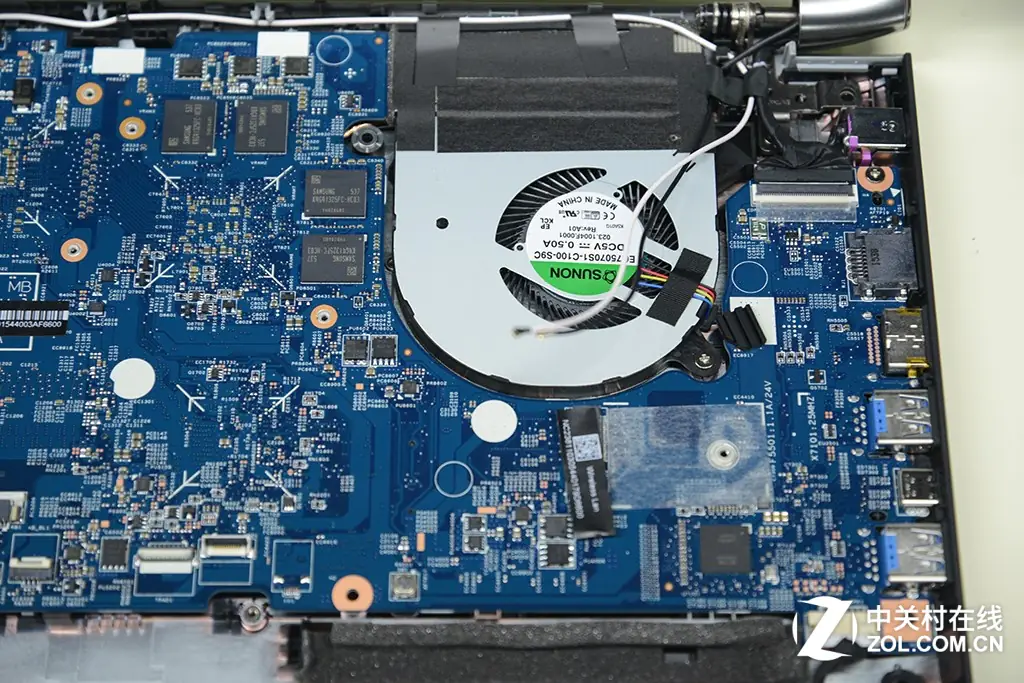

The board integrated a DC power jack, a USB port, and a card slot.

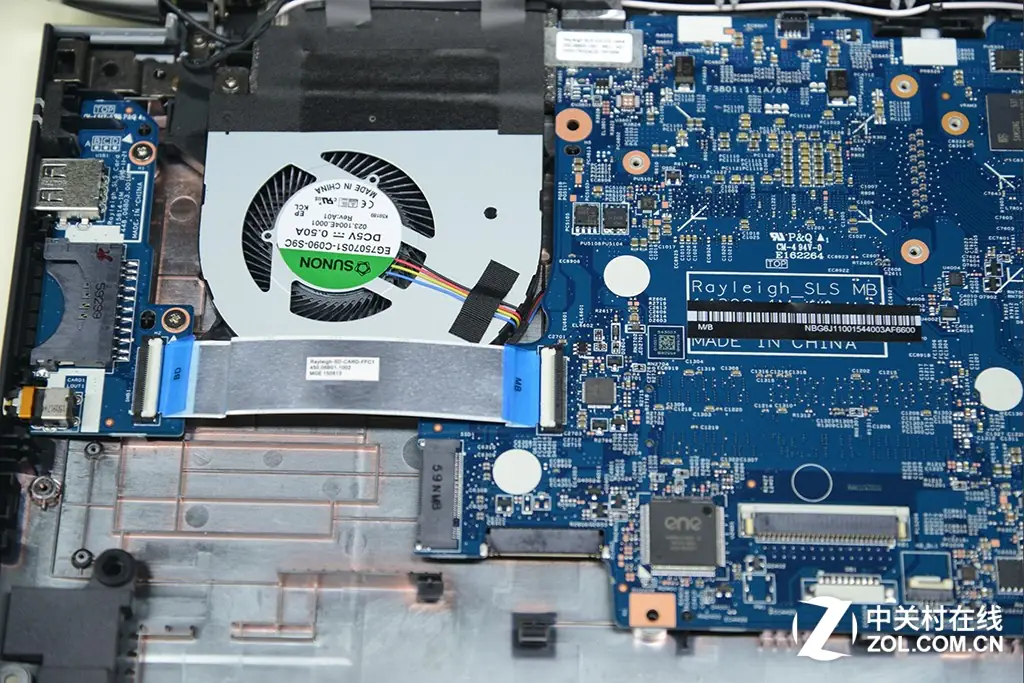

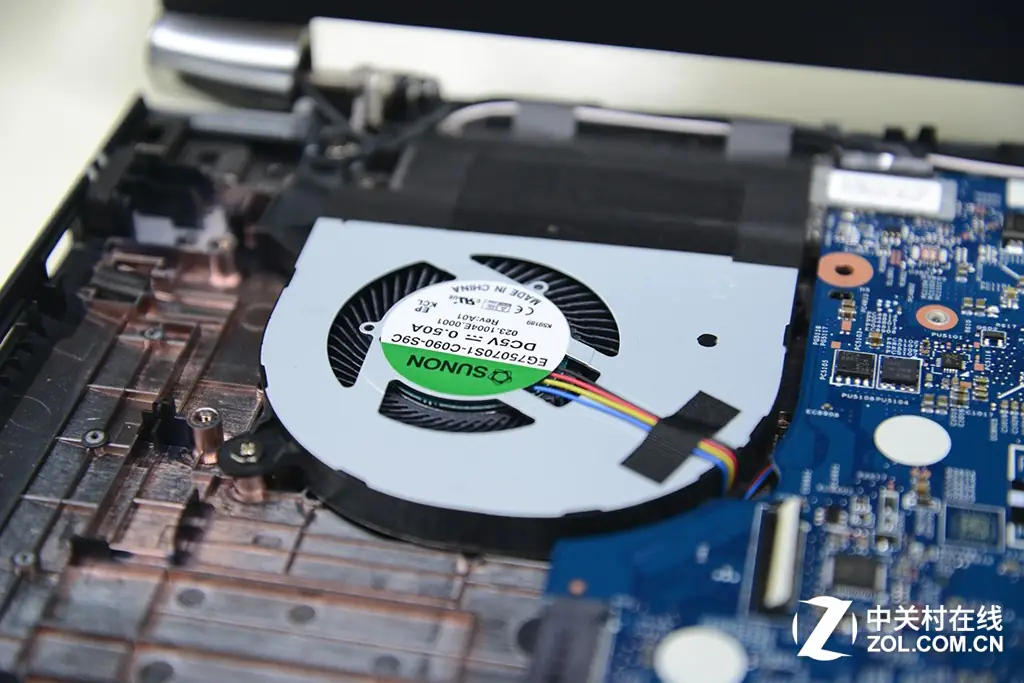

Acer Aspire V15 Nitro VN7-592G cooling fan
For more guides, check out the Aspire V15 Nitro VN7-592G device page.
Source: zol.com.cn
