Asus ZenFone 6 Disassembly

In this guide, I’ll explain how to disassemble the Asus ZenFone 6 to remove and replace the back cover, battery, camera, speaker, and motherboard.

Want to stay connected to MyFixGuide.com? Follow us on Facebook to check out the latest teardown news.

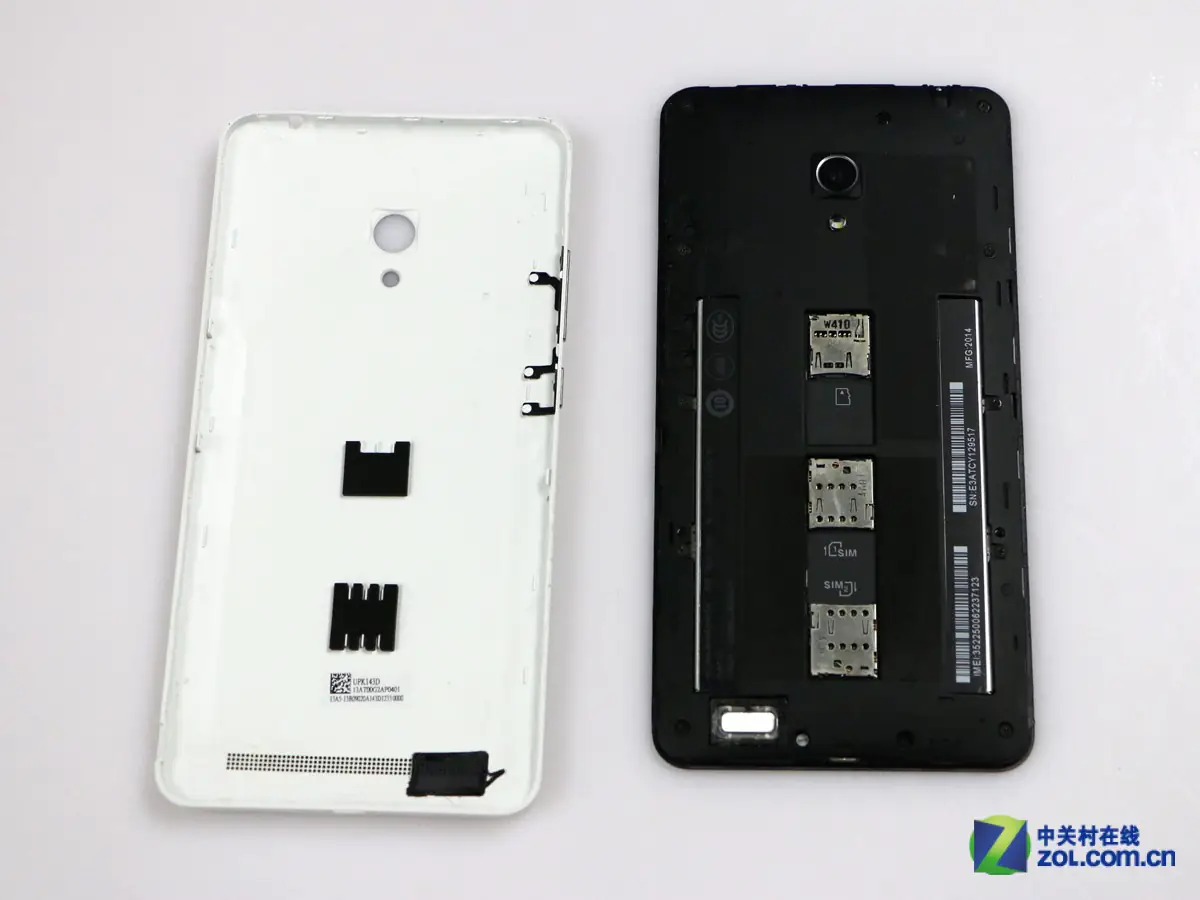

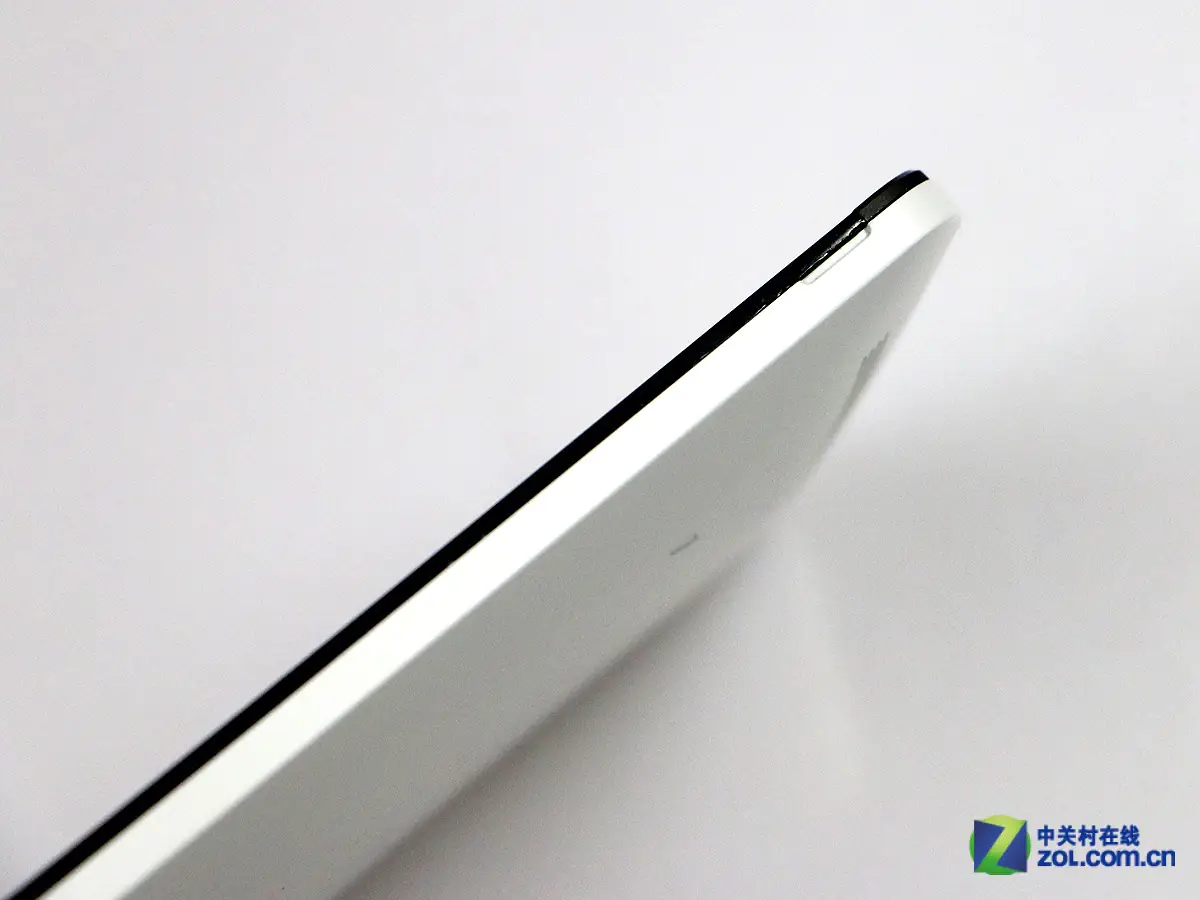

Asus ZenFone 6’s battery is non-removable, but the back cover can be removed.

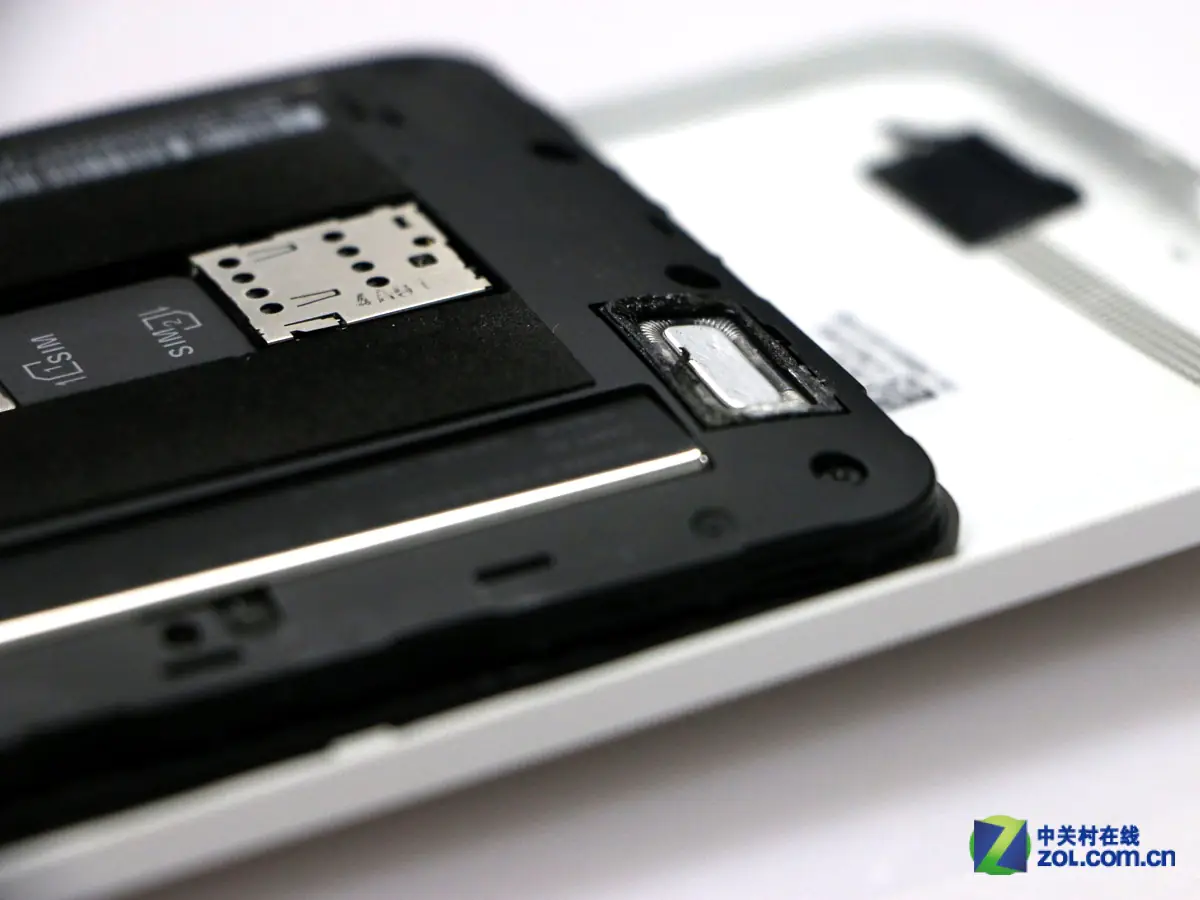

Asus ZenFone 6’s SIM card slot and Micro SD card slot are fixed on the battery.

Due to the slot design, replacing the battery will not be very convenient.

Here is the speaker.

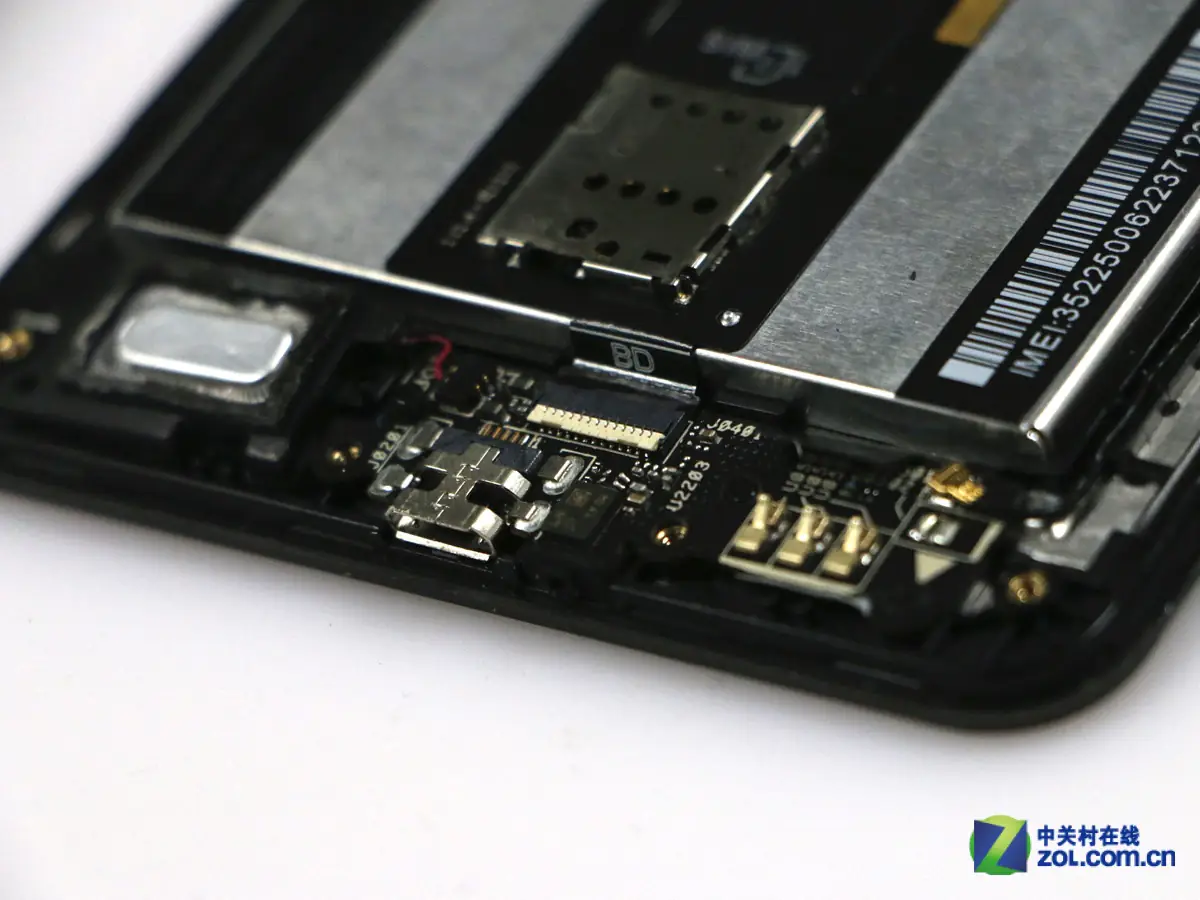

This is the bottom of the phone. You can see the ZenFone 6 USB port.

ZenFone 6 cable layout is quite reasonable.

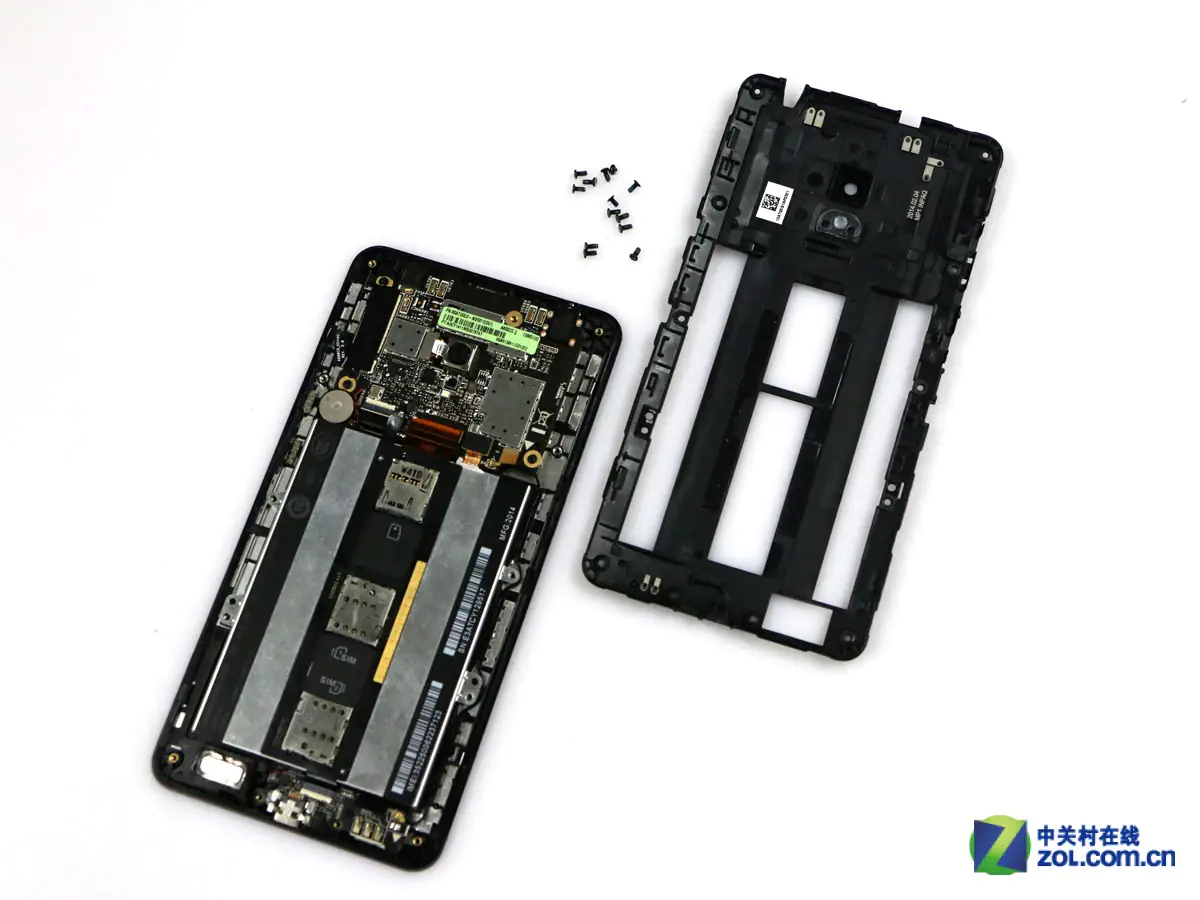

Remove thirteen screws and remove the middle frame. You can get access to the internal components.

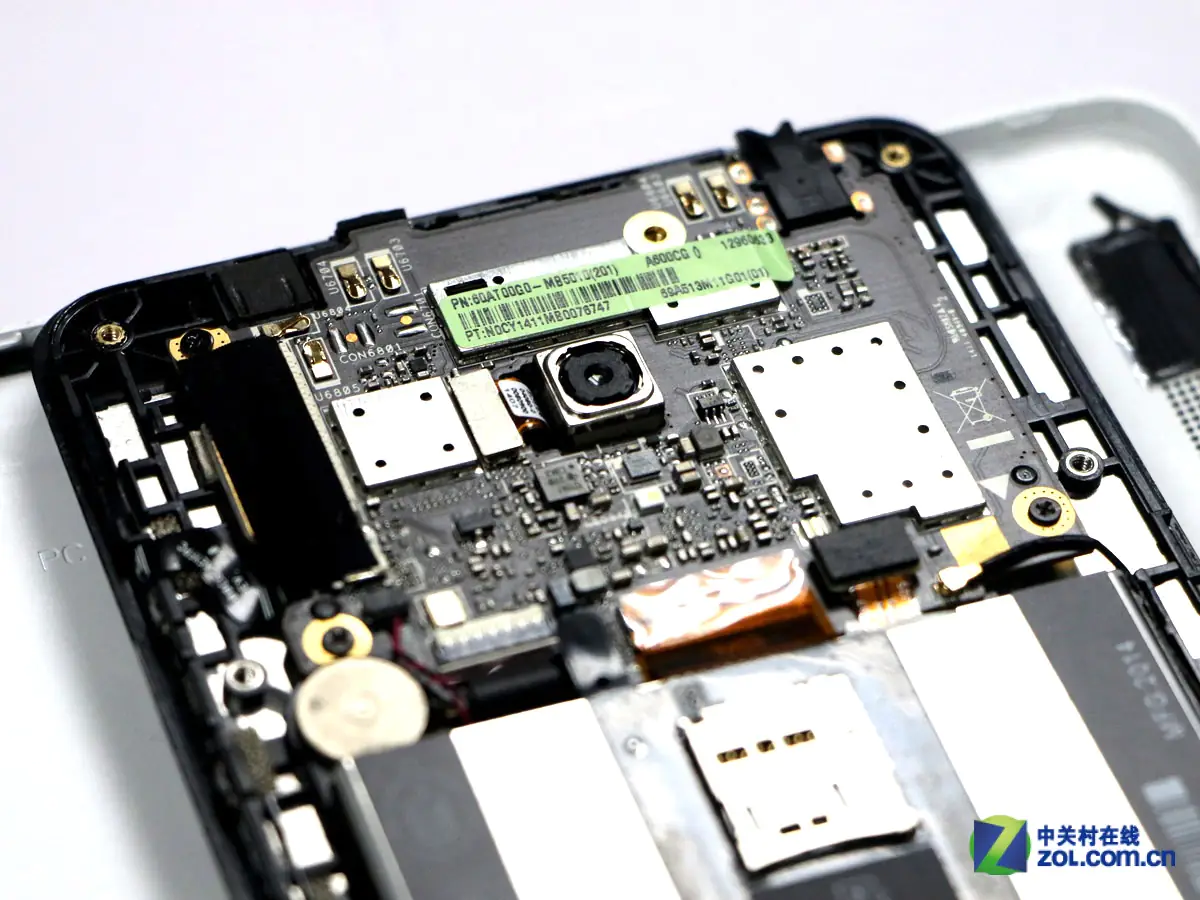

Rear camera

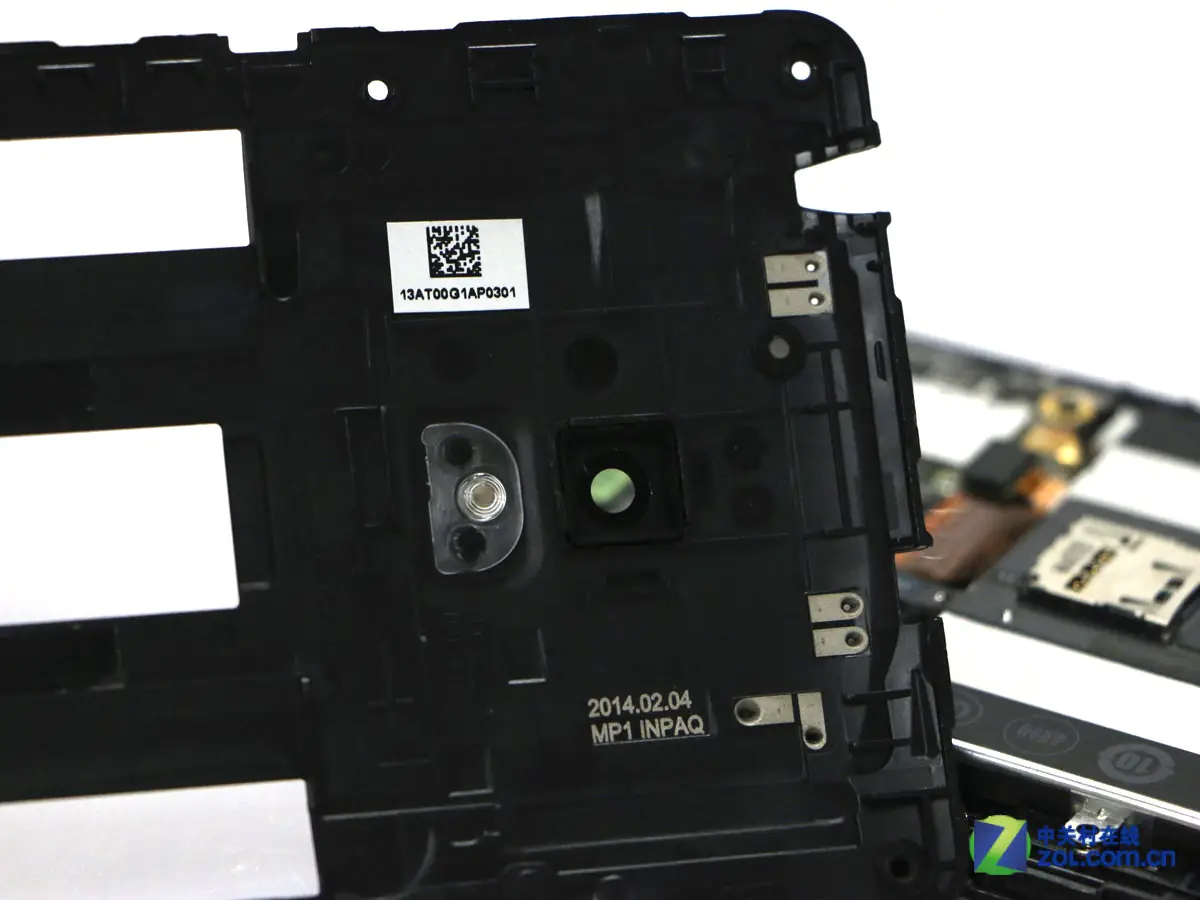

Middle frame

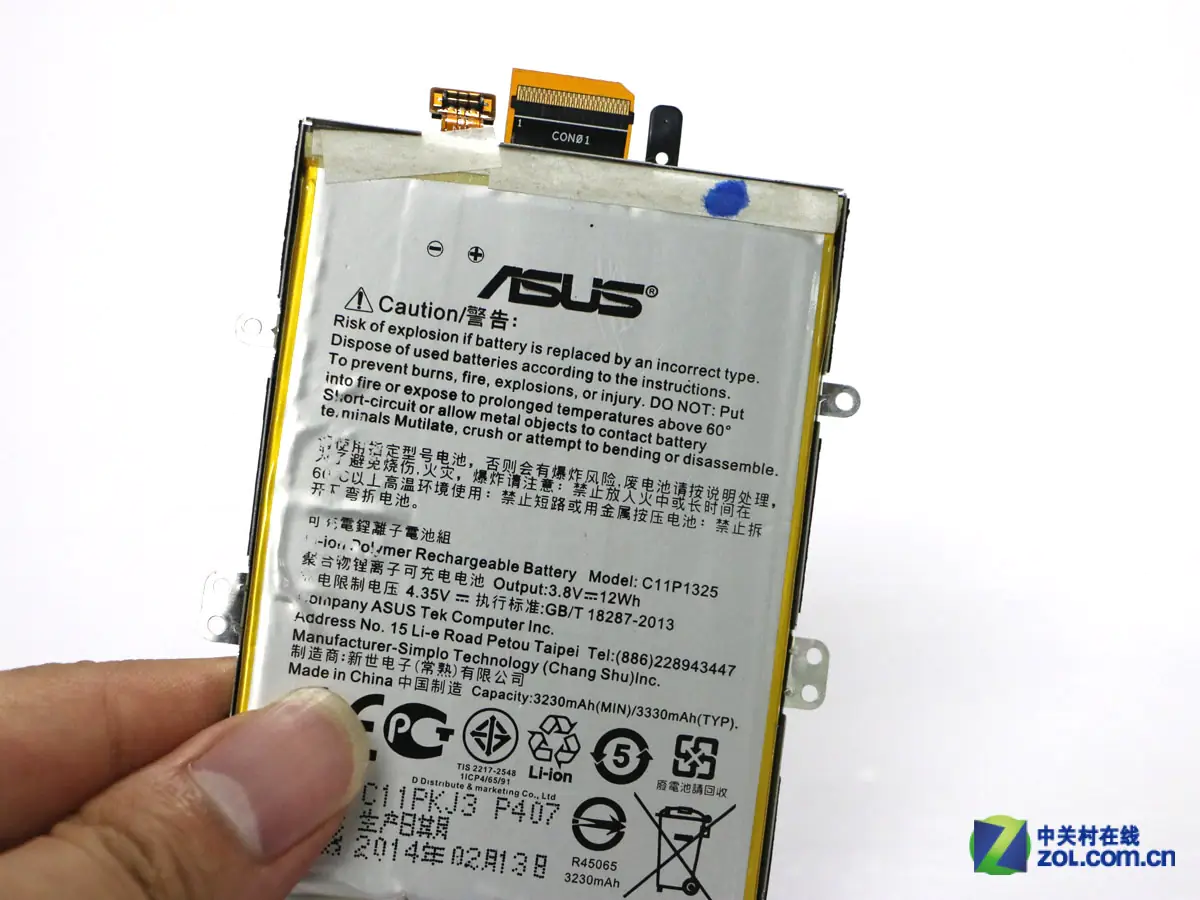

Disconnect the power cable from the motherboard and remove the battery.

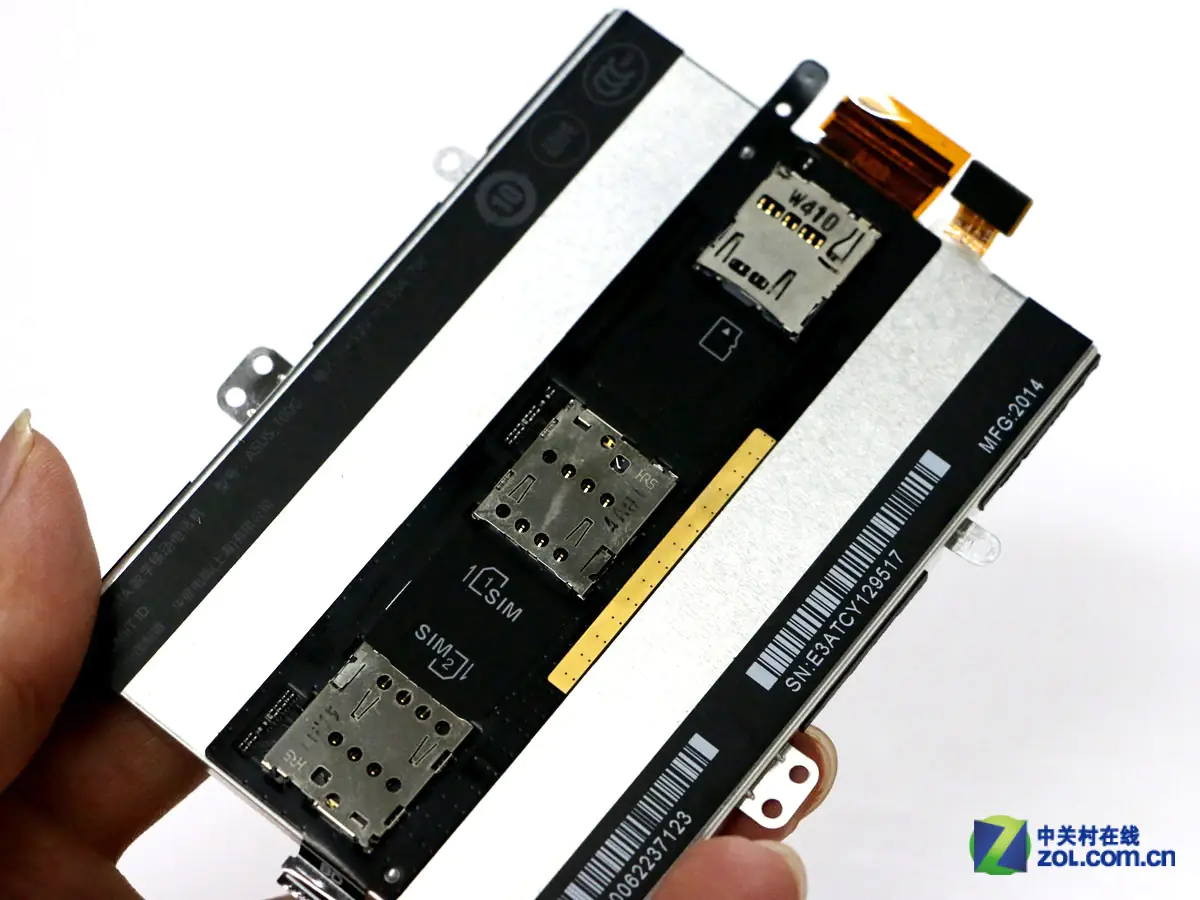

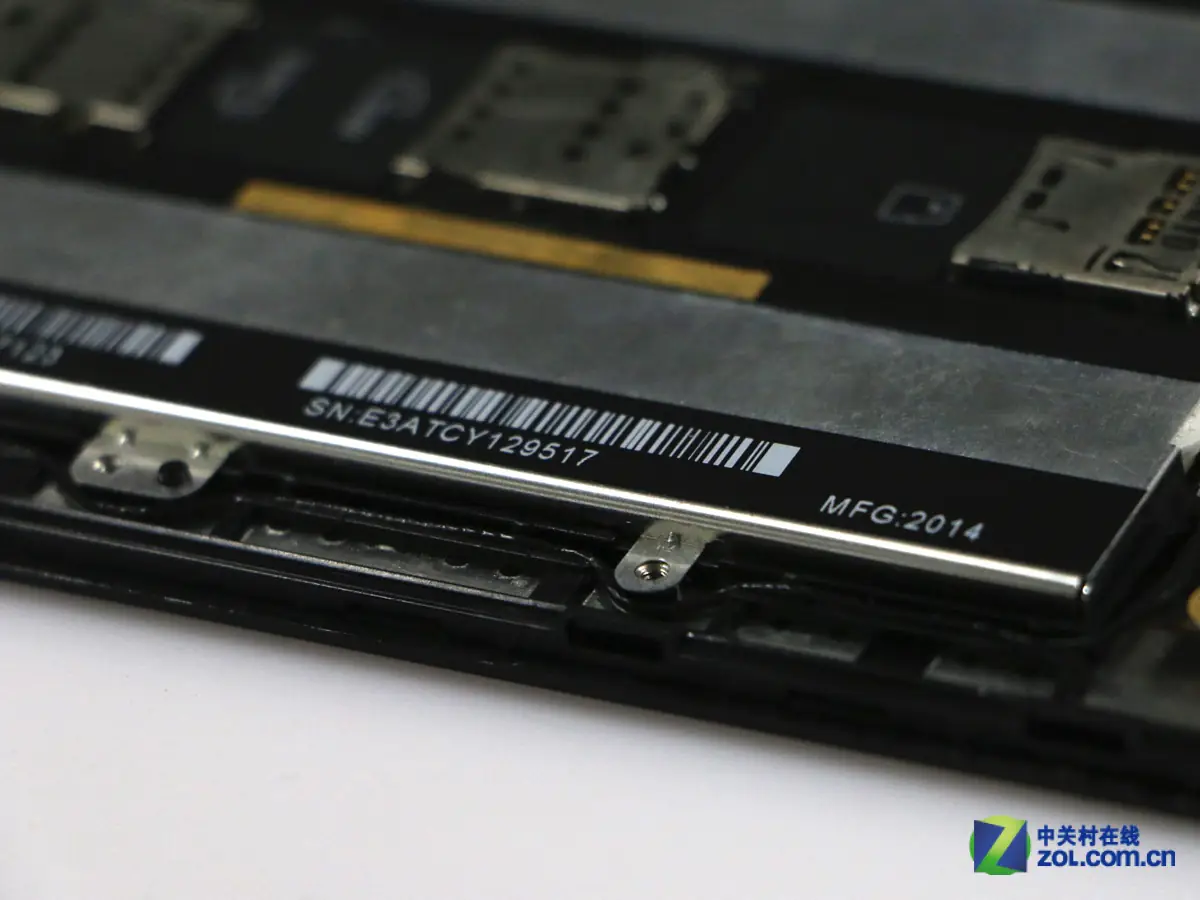

There is a metal plate on the battery. ZenFone 6’s card slot is fixed on the metal plate.

Remove three screws securing the motherboard.

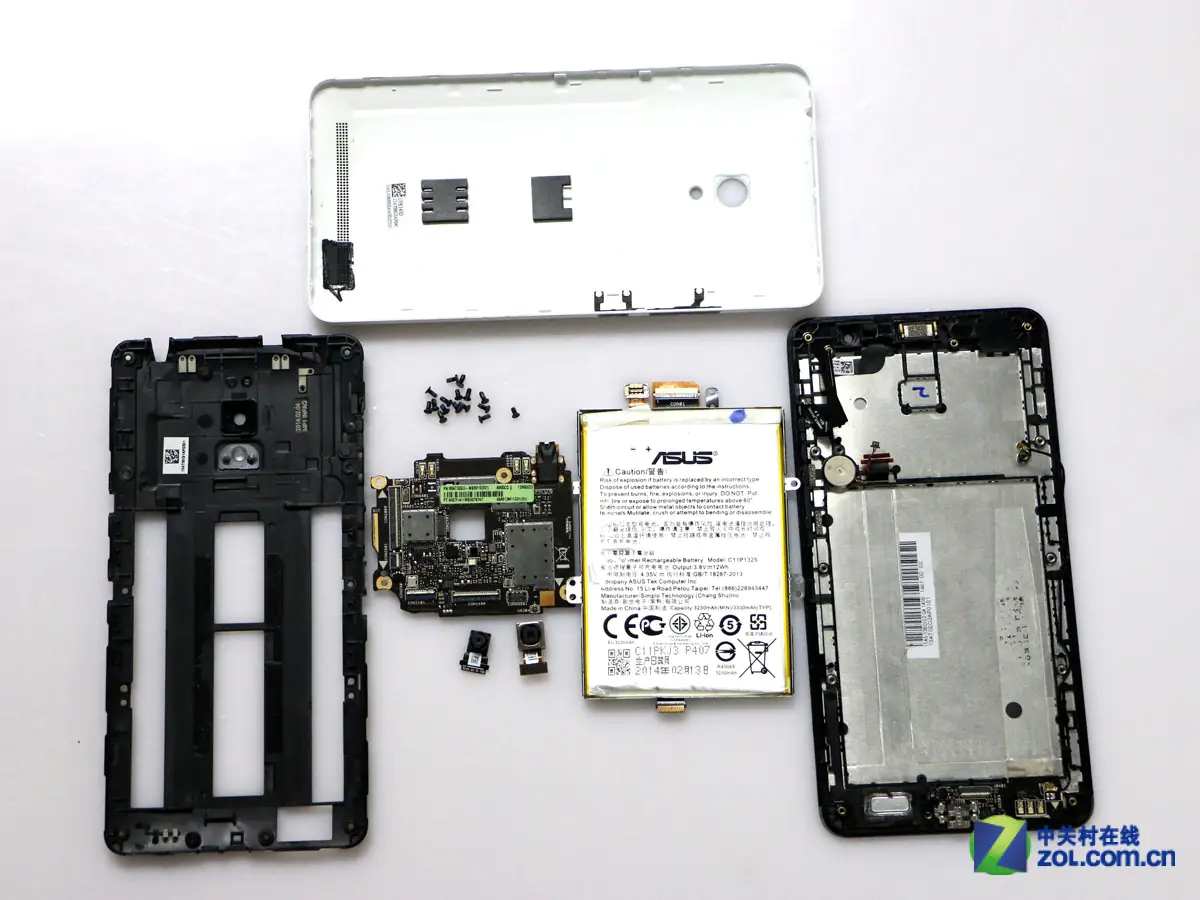

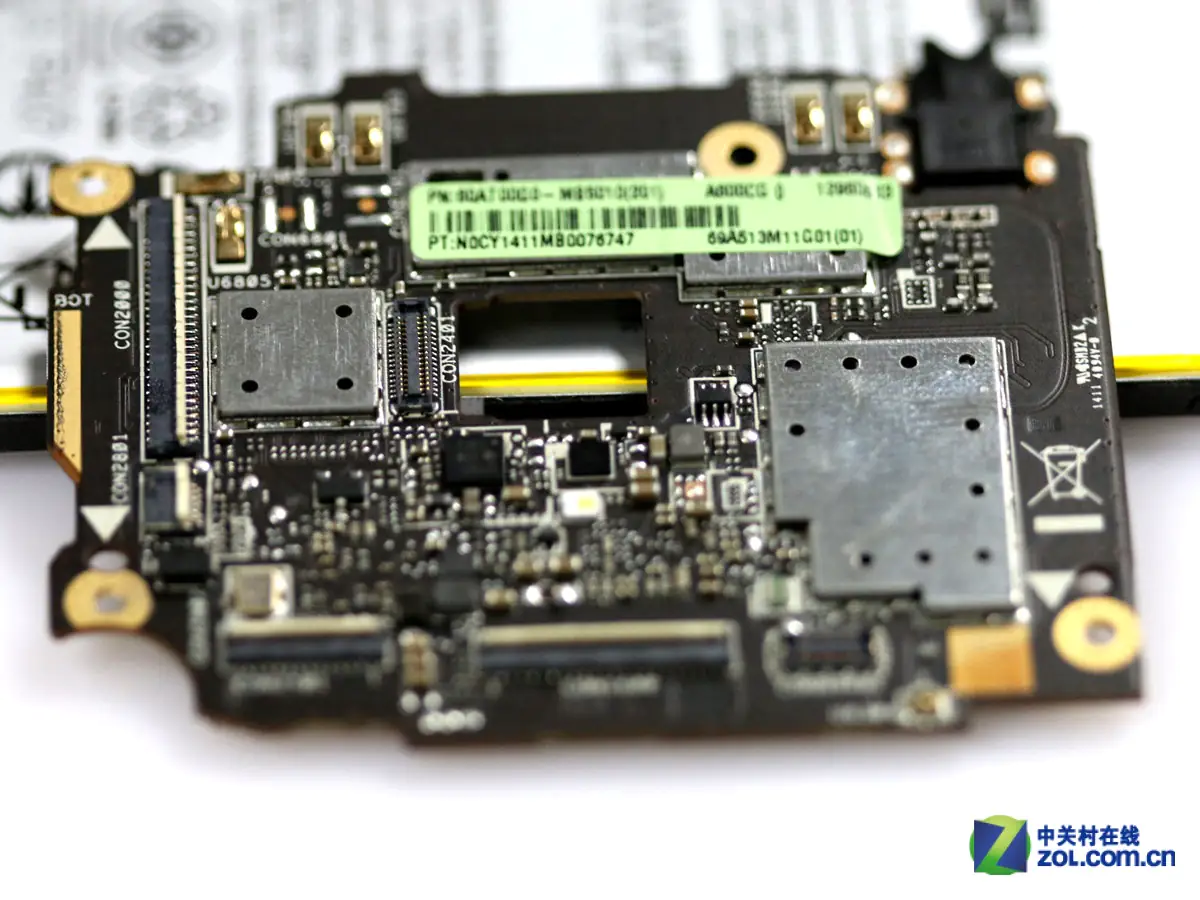

Disconnect remain cables. The motherboard can be removed.

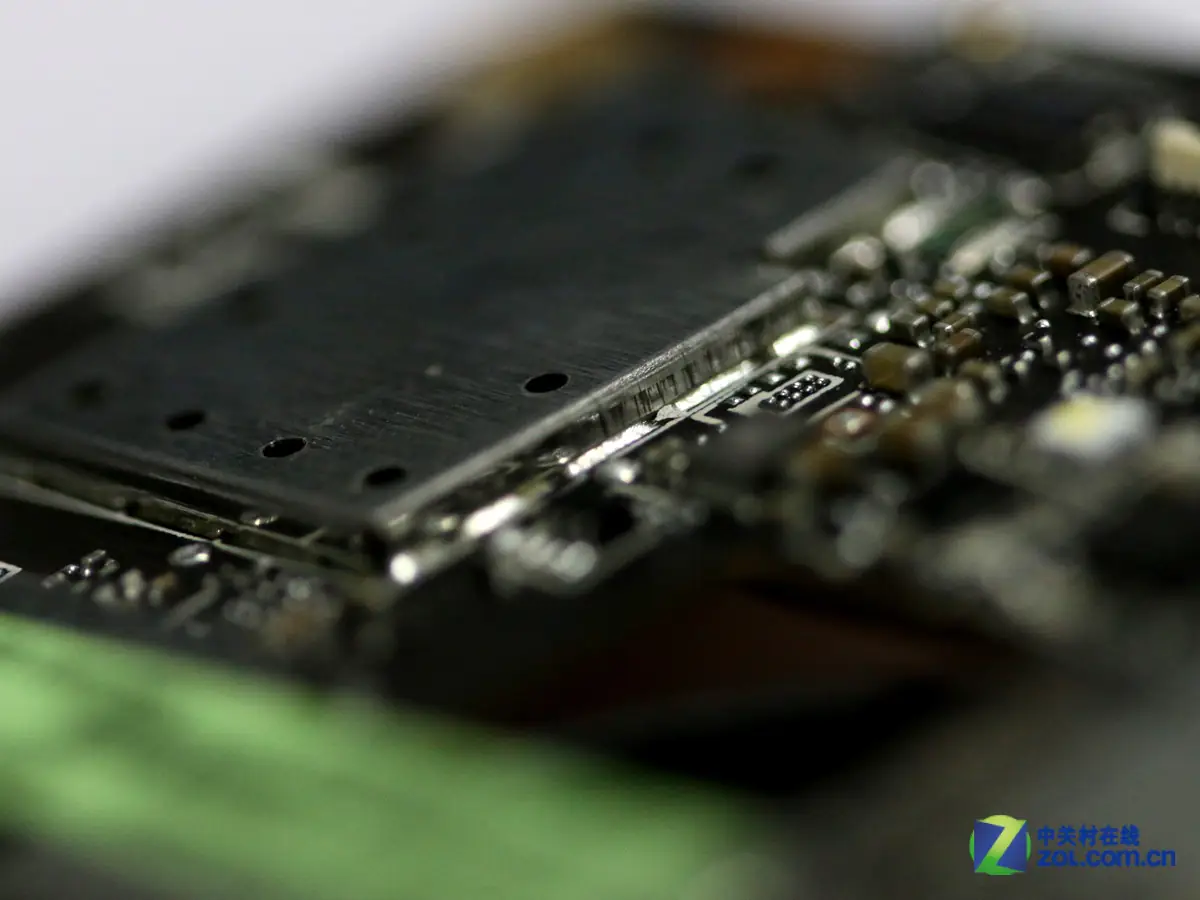

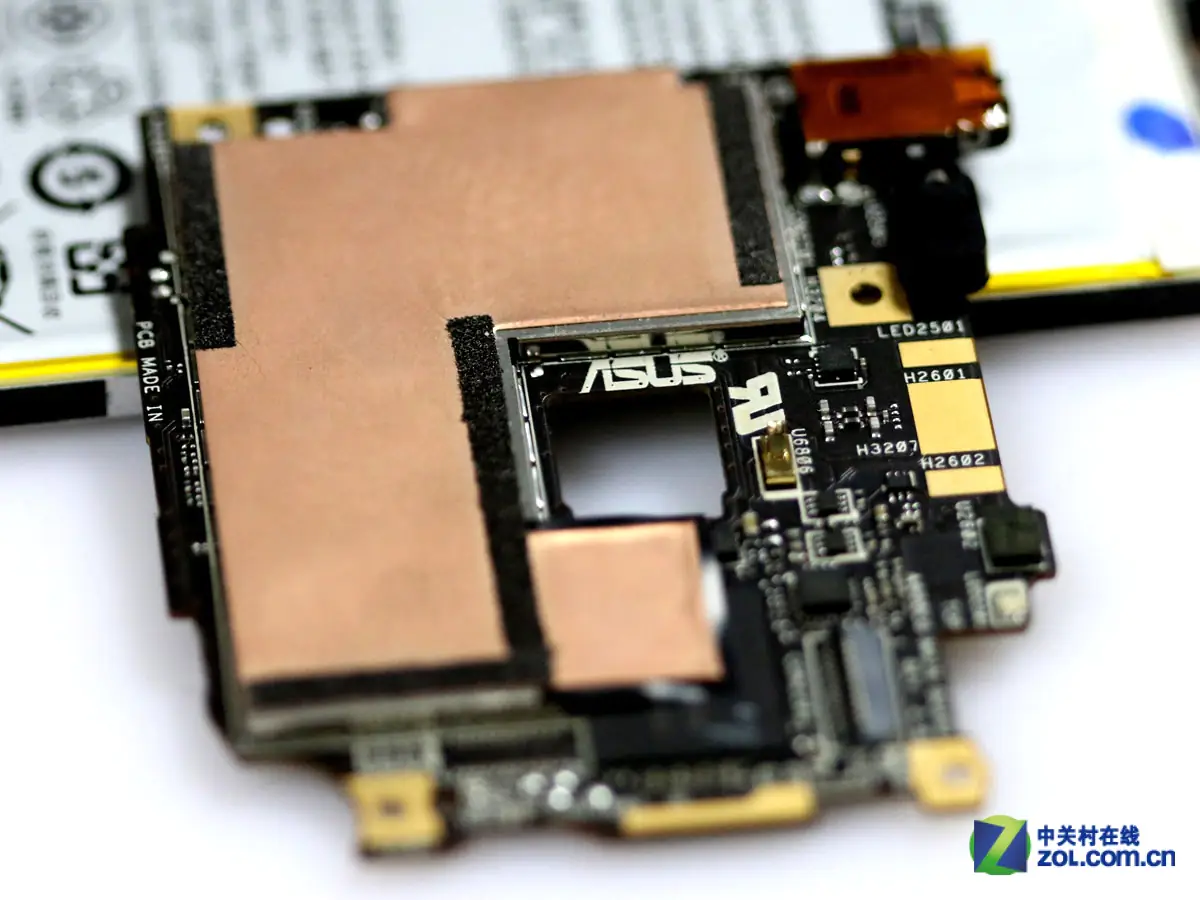

CPU heatsink

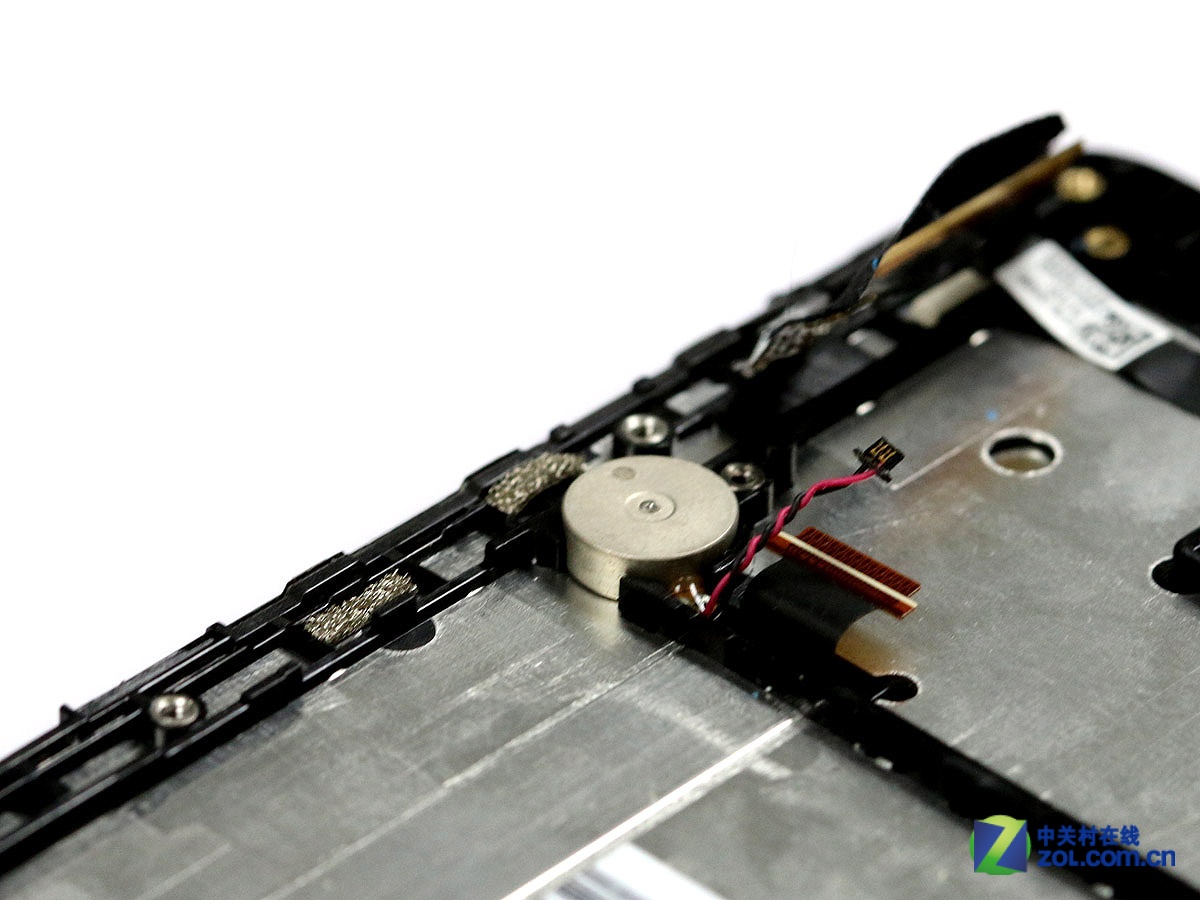

Vibrator

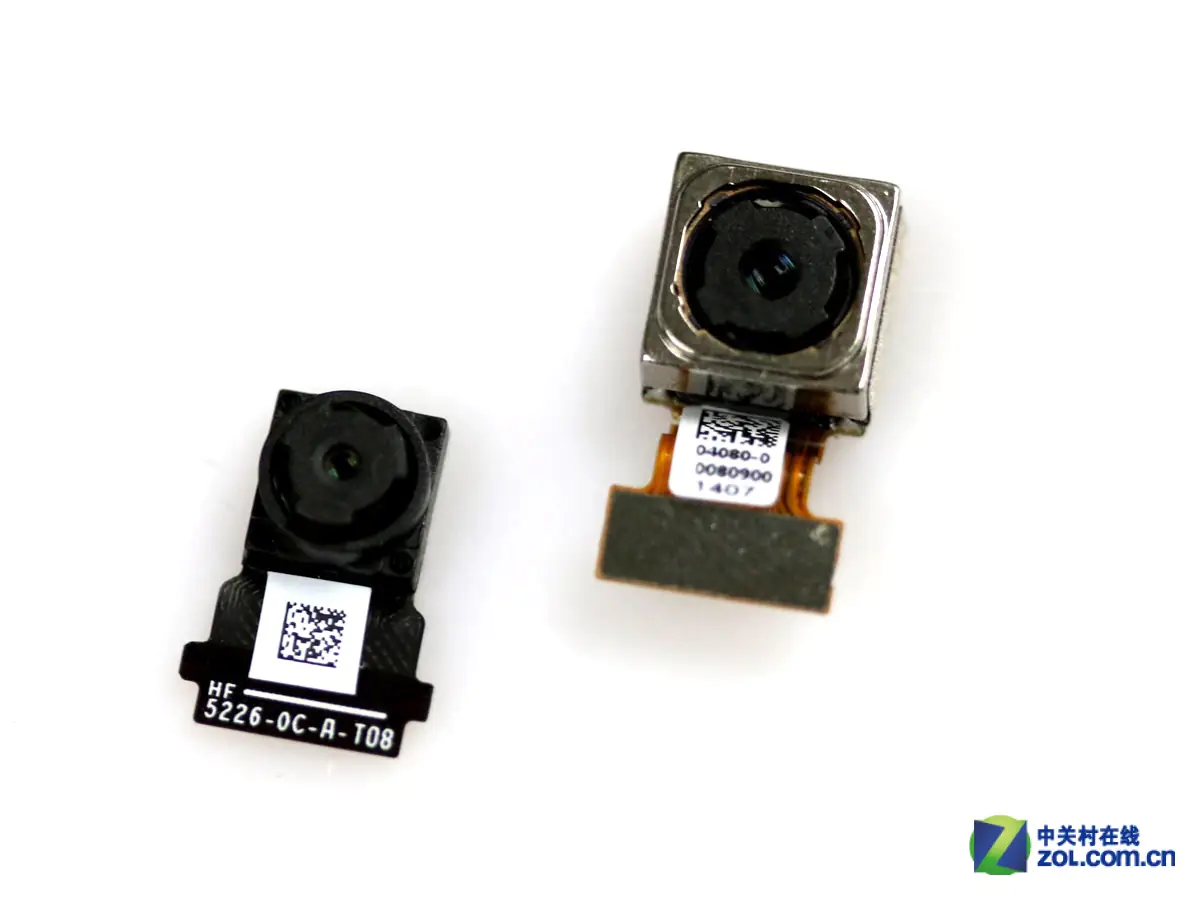

The front camera and rear camera

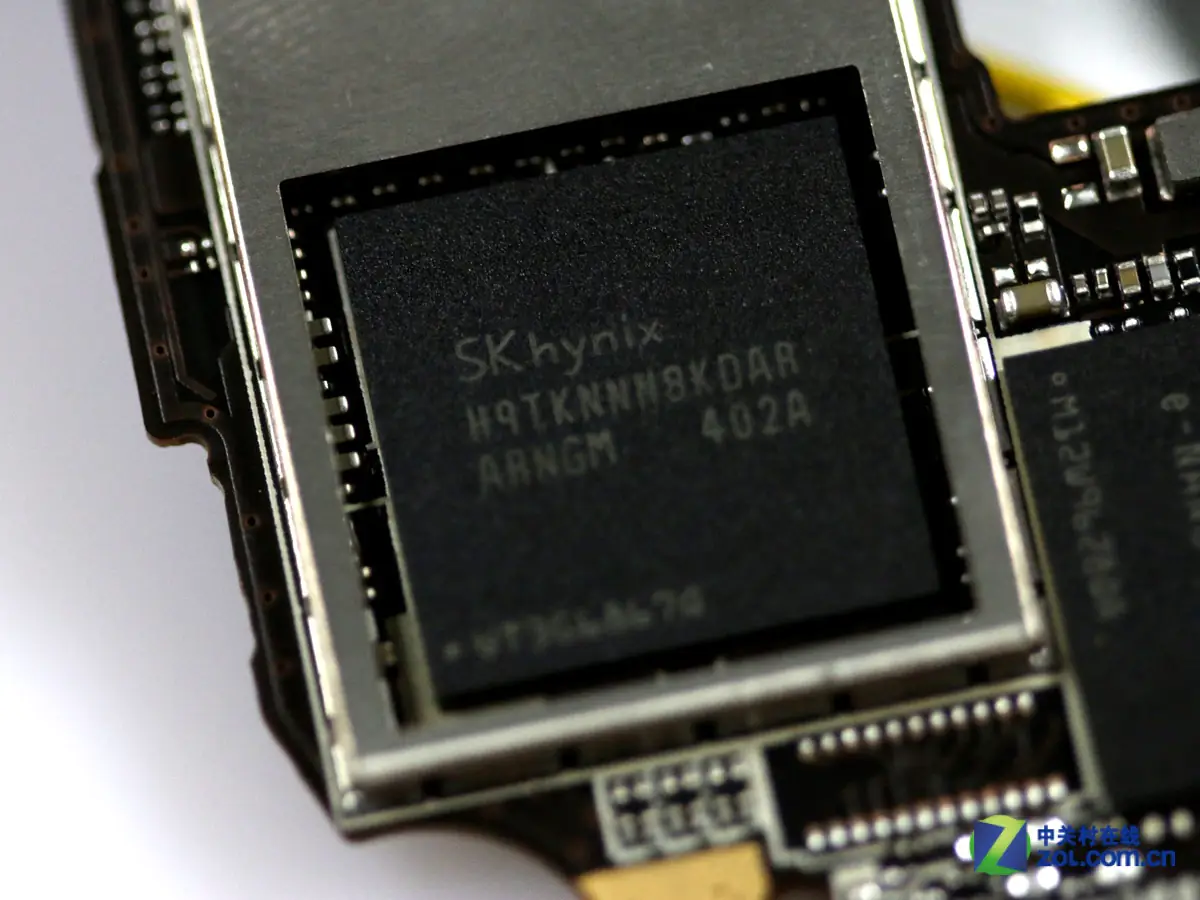

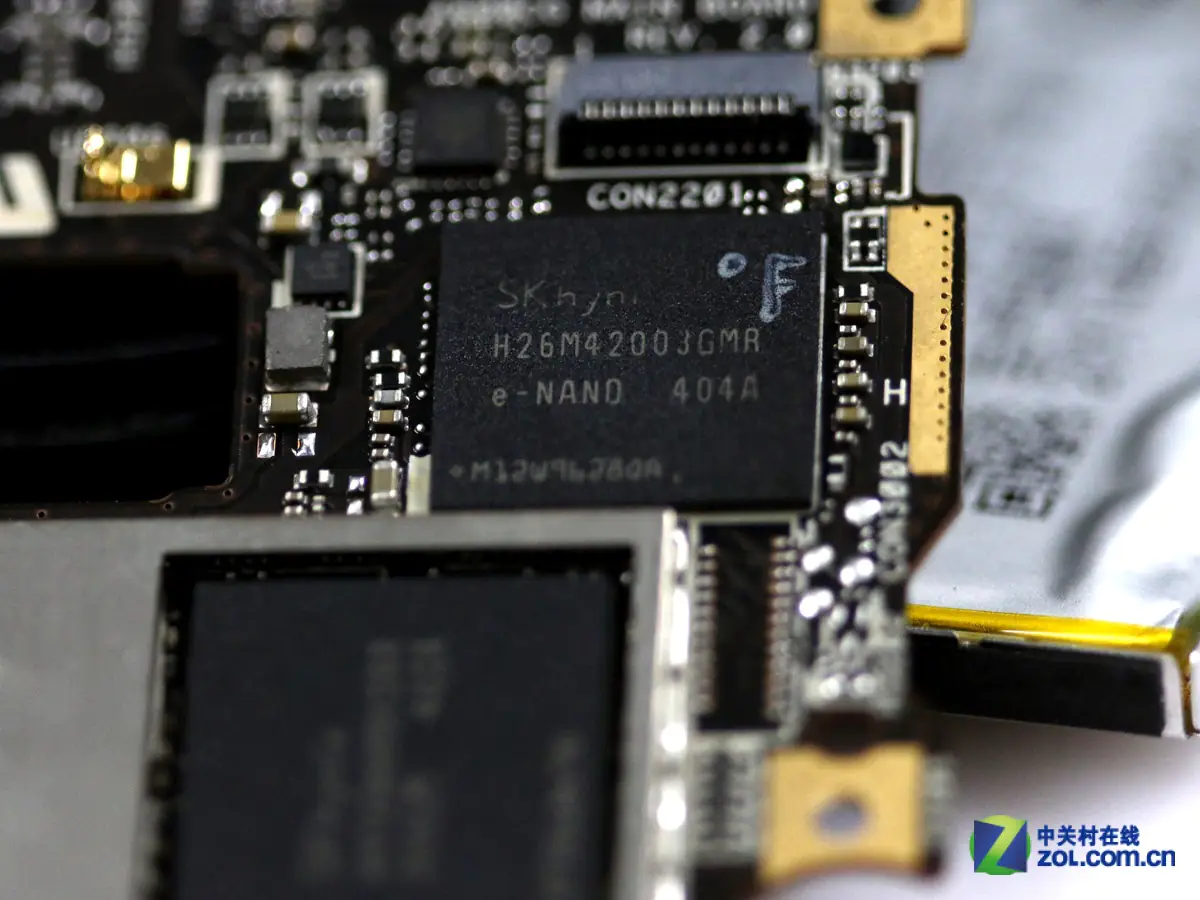

SK Hynix 8GB ROM

SK Hynix 1GB RAM

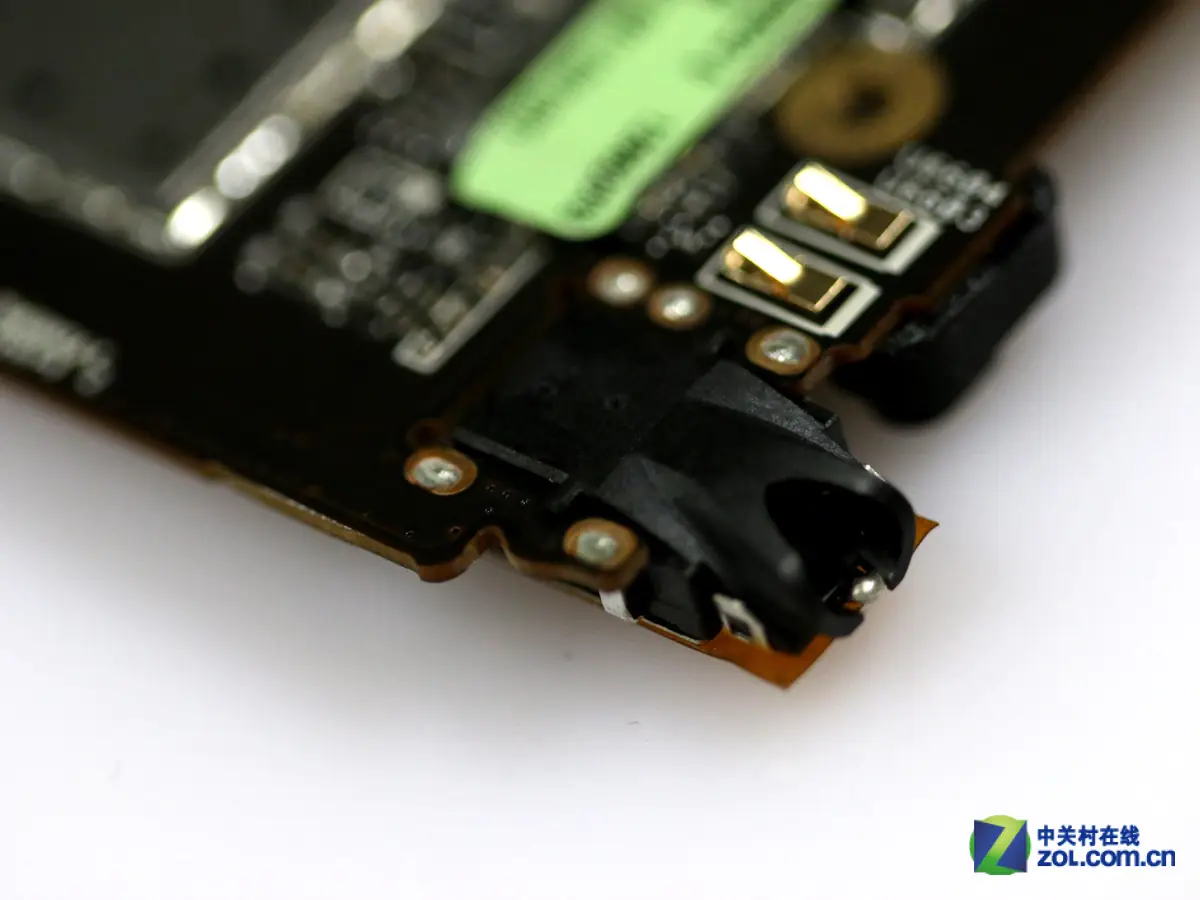

The 3.5mm headphone jack is welded on the motherboard.

For more guides, check out the Asus ZenFone 6 device page.

Via zol.com.cn
