Dell Inspiron 11-3147 Disassembly and SSD, RAM, HDD Upgrade Options
In this guide, I’ll explain how to disassemble the Dell Inspiron 11-3147 to remove and replace the battery, hard drive, RAM, touchpad, wireless card, heat sink, cooling fan, speaker, and motherboard.
Want to stay connected to MyFixGuide.com? Follow us on Facebook to check out the latest teardown news.
Step 1: Remove the bottom case
-

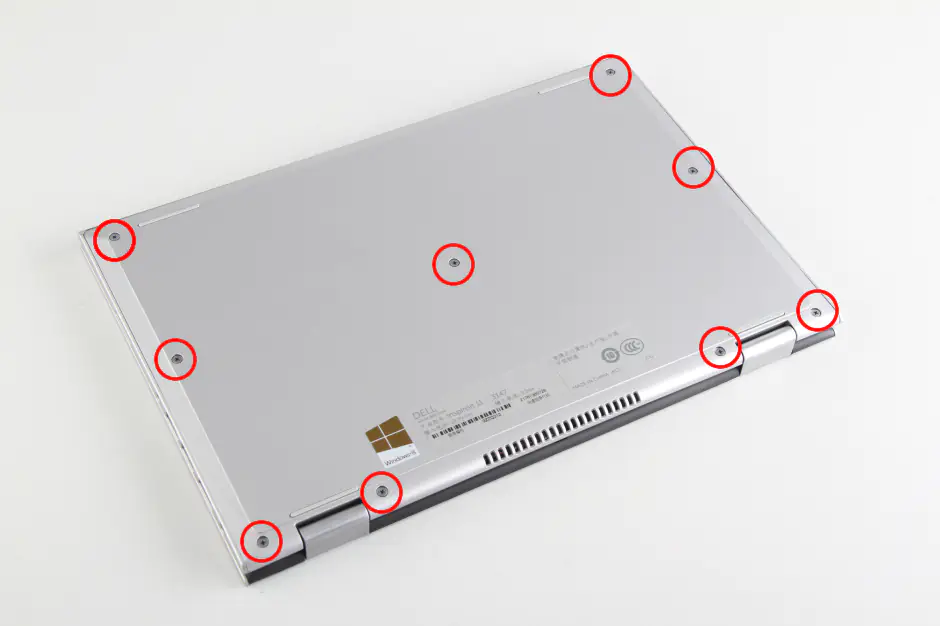

- Remove nine screws from the bottom case.
-
- Carefully remove the bottom case. You can use a guitar pick to pry up the case.
Step 2: Remove the battery
-

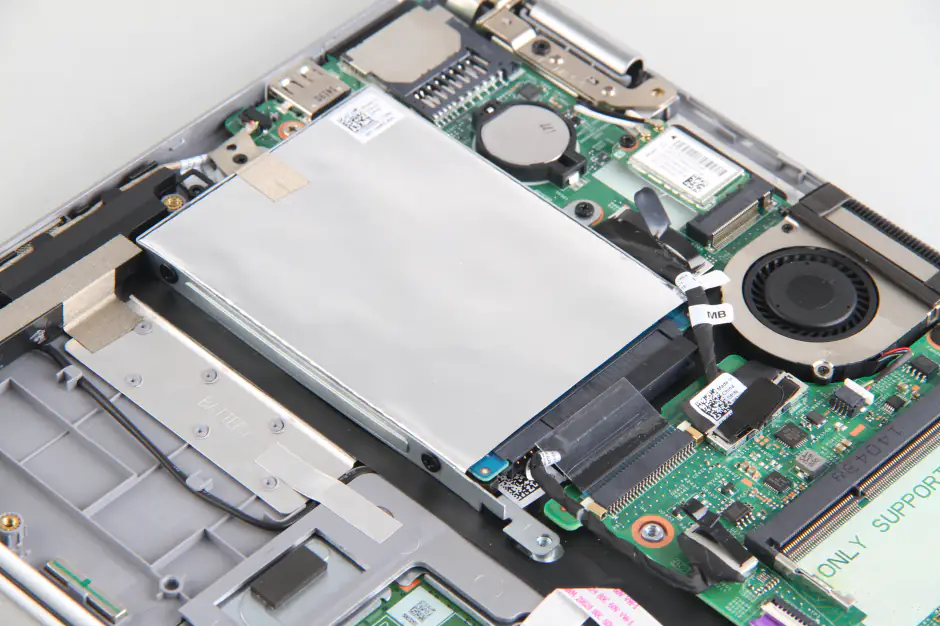

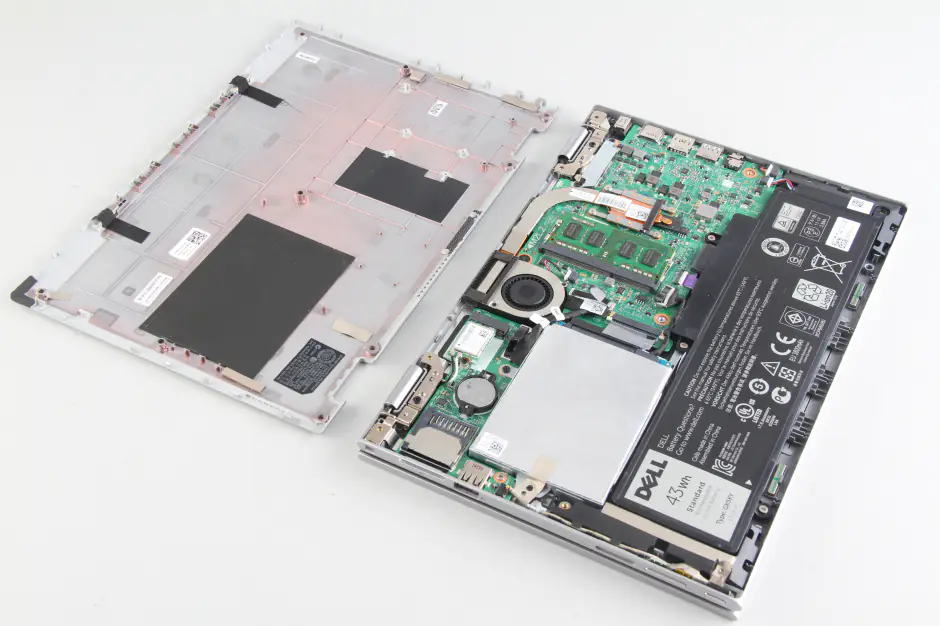

- Under the bottom case, you can find the hard drive, battery, RAM, wireless card, speakers, heat sink, and cooling fan.

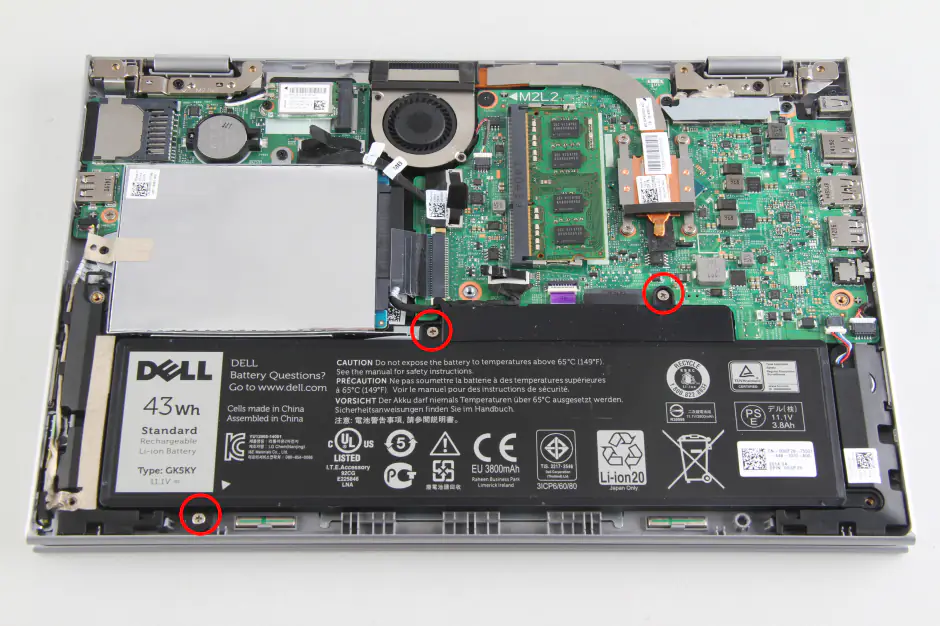

Remove three screws securing the battery. You can remove the battery.

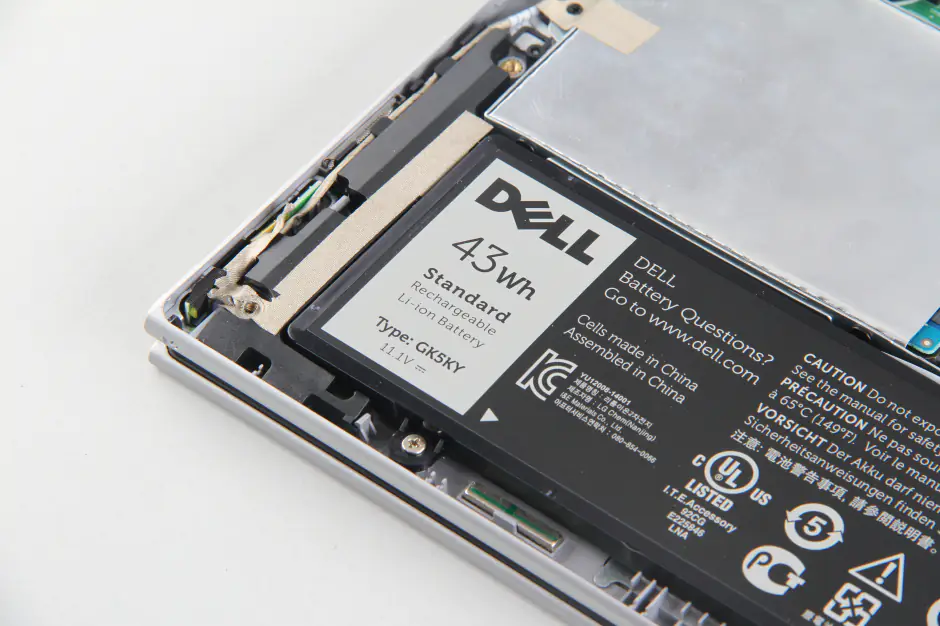

- The laptop uses an 11.1v, 43wh Li-ion battery with Dell P/N: GK5KY.

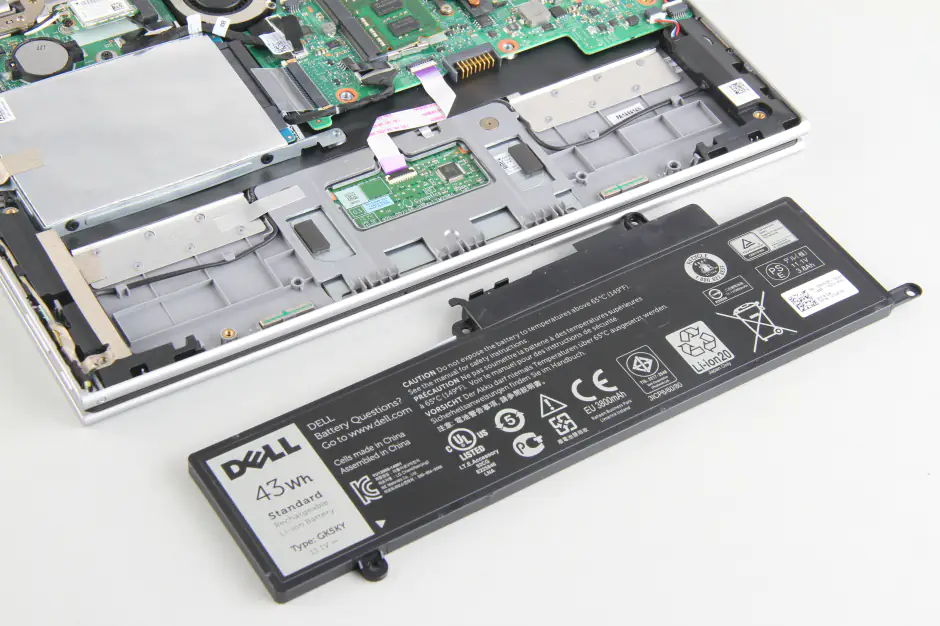

- The battery has been removed.
Step 3: Remove the RAM
-
- Separate the clips. The memory will pop up automatically. Take it away from its slot.
-

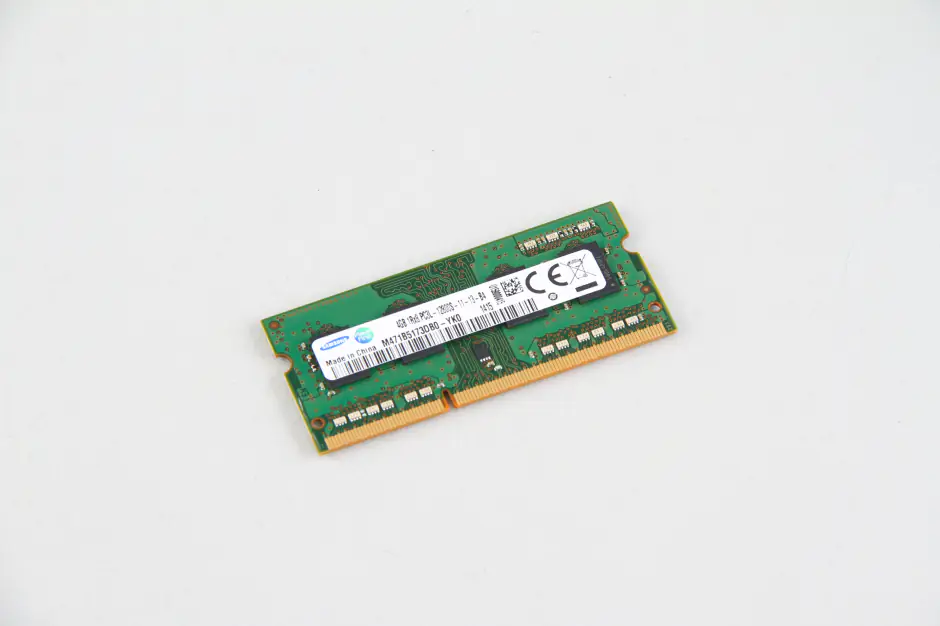

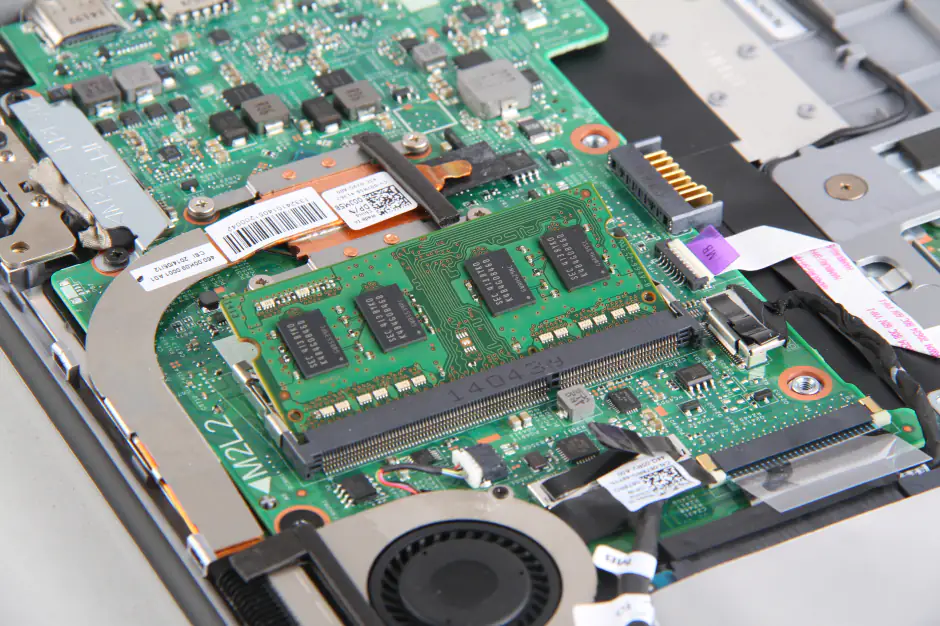

- It comes with a Samsung 4GB PC3L-12800S memory.
Step 4: Remove the hard drive module
-
- Remove the screws securing the hard drive module. Disconnect the SATA cable from the motherboard.

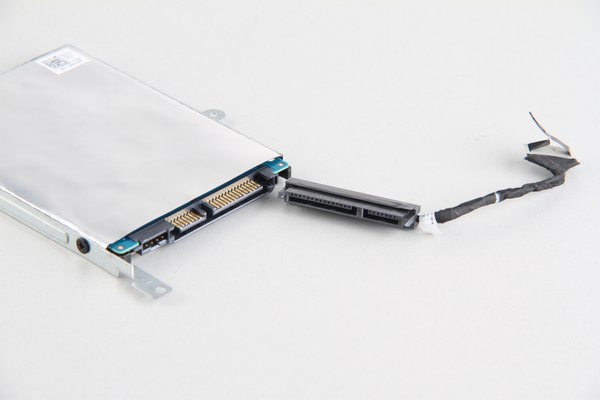

- The SATA cable

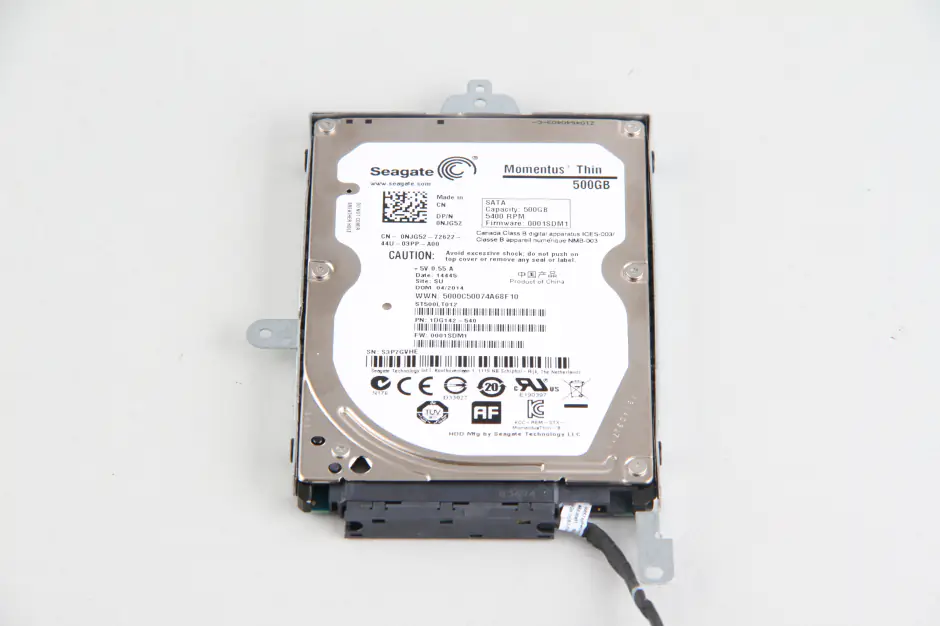

- The laptop featured a Seagate 500GB 5400 RPM hard drive.
Step 5: Remove the heat sink and cooling fan
-
- Remove four screws securing the heat sink. You can remove the heatsink/cooling fan module.
-

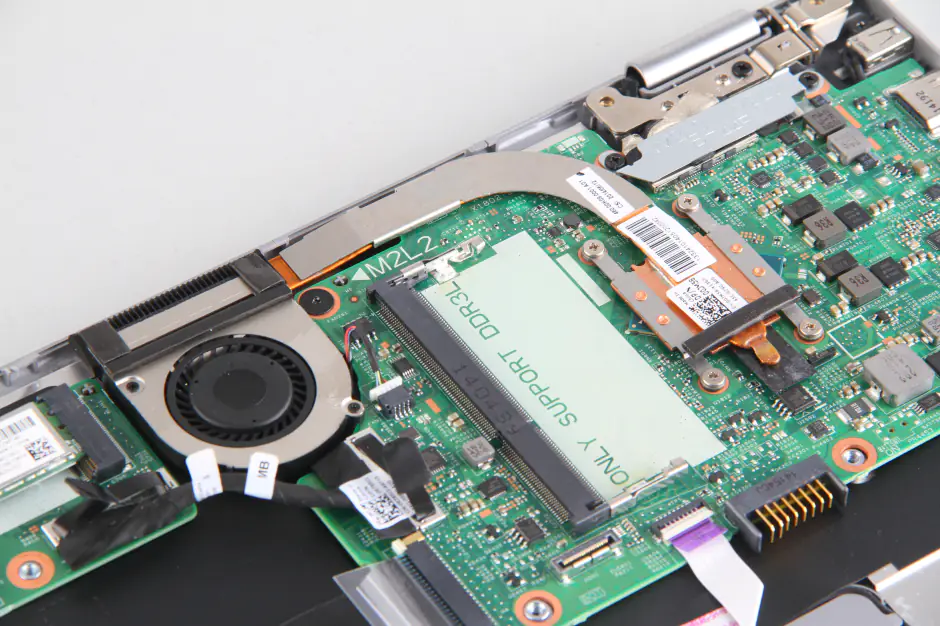

- Dell Inspiron 11-3147 heatsink/cooling fan module
Step 6: Remove the wireless card
-

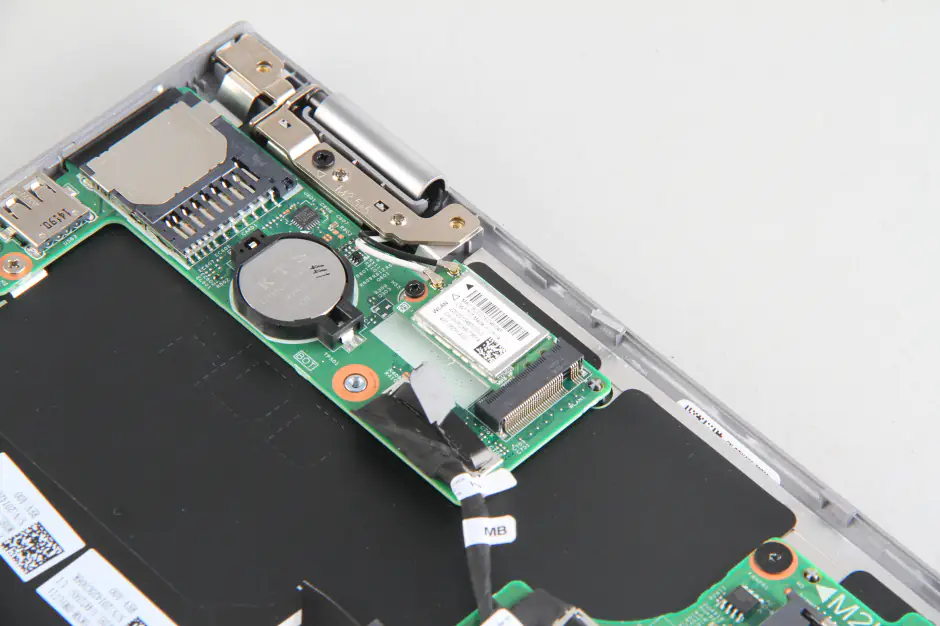

- Disconnect two antennas and remove one screw securing the wireless card. Take it away from its slot.
-
- the wireless card
Step 7: Remove the motherboard
-

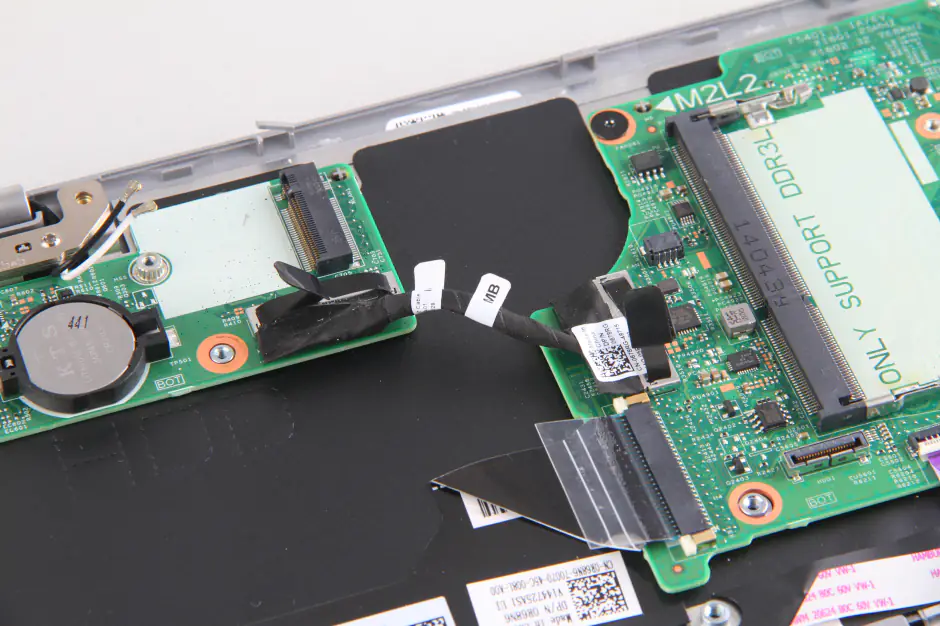

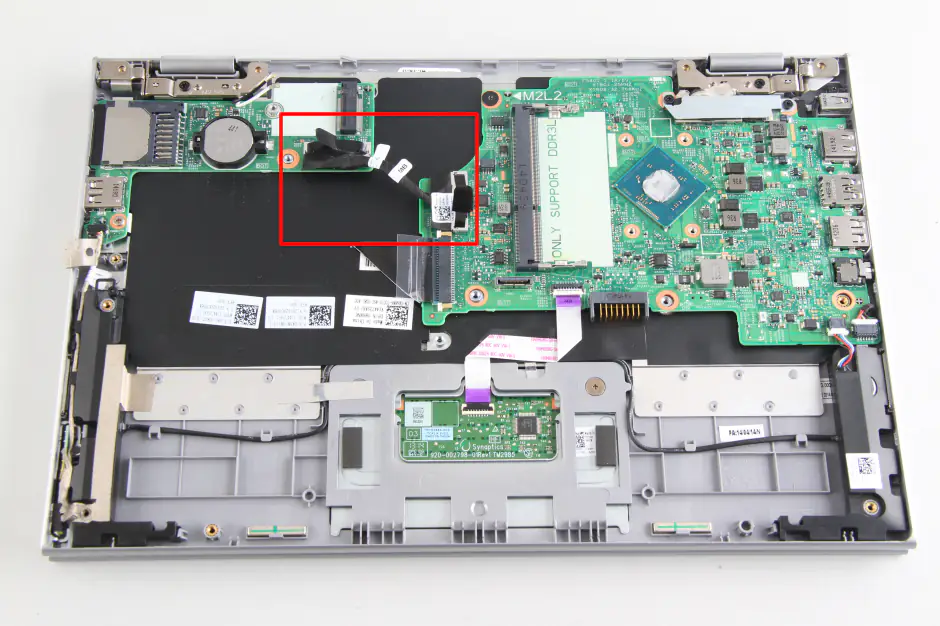

- The sub-board is connected to the motherboard via a cable.
-
- The cable, remove it.
-
- Disconnect the touchpad cable and speaker cable. Remove the screws securing the motherboard.
- Now, you can remove the motherboard.
-

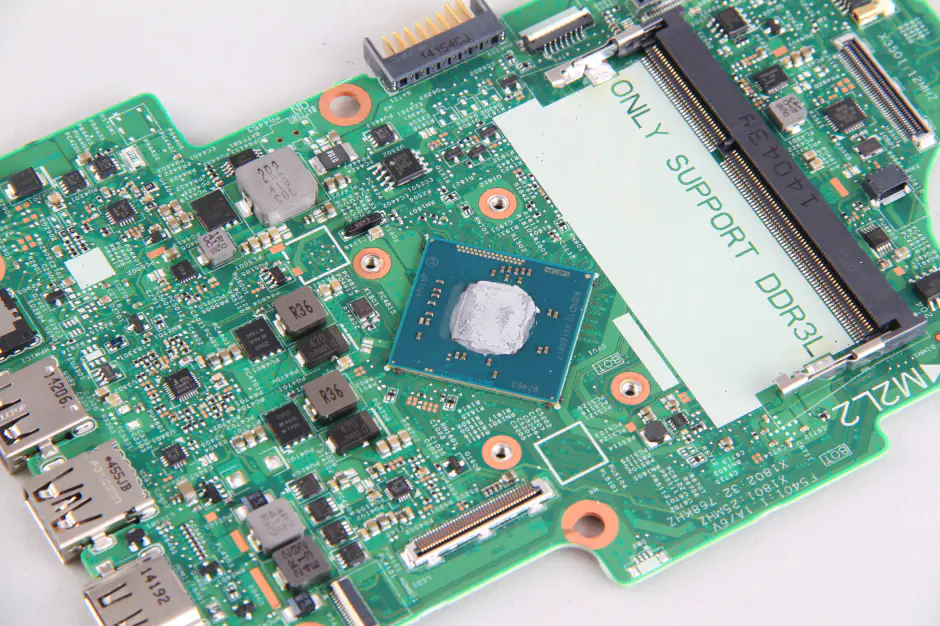

- The Intel processor
Step 8: Other details
-

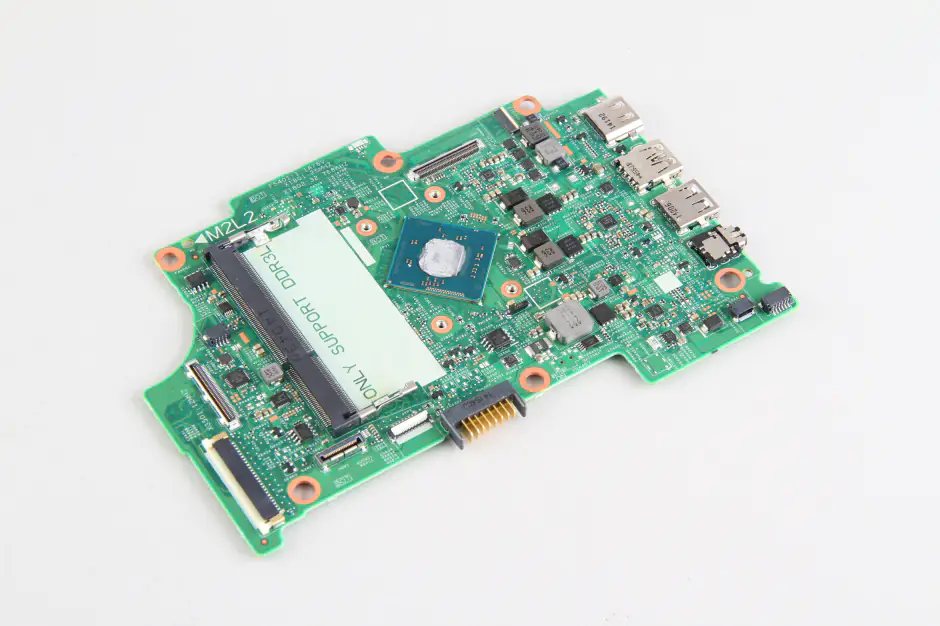

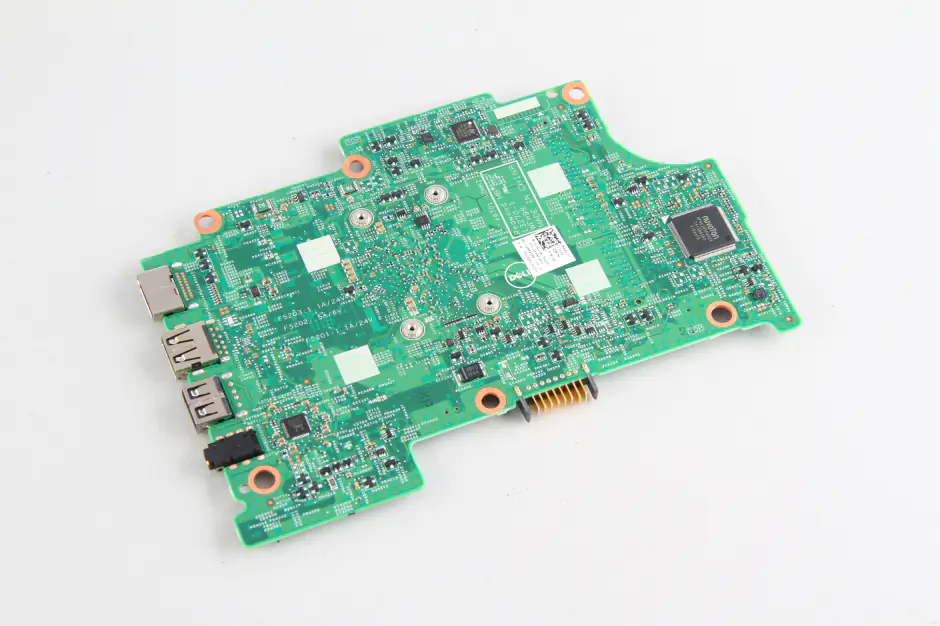

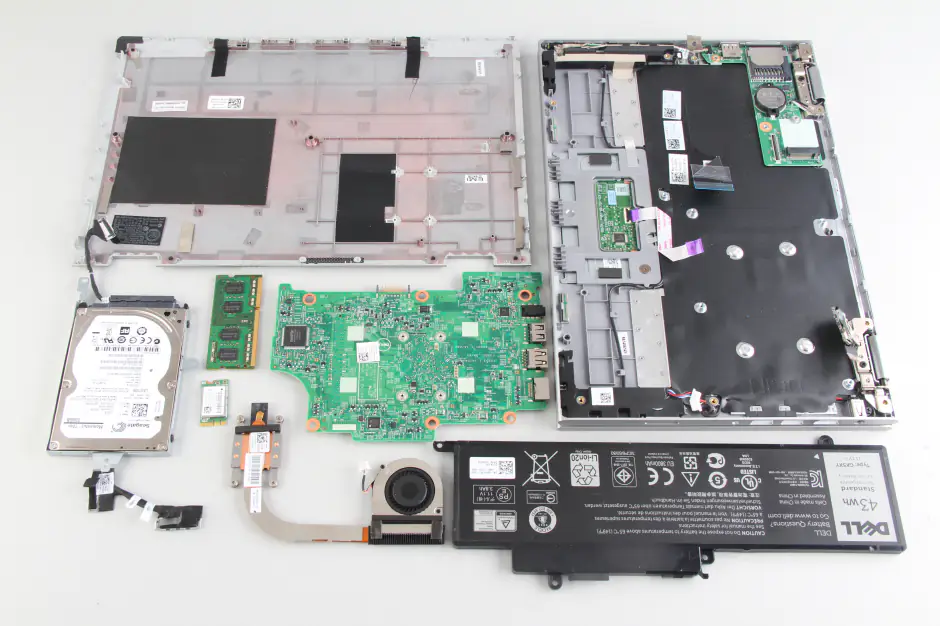

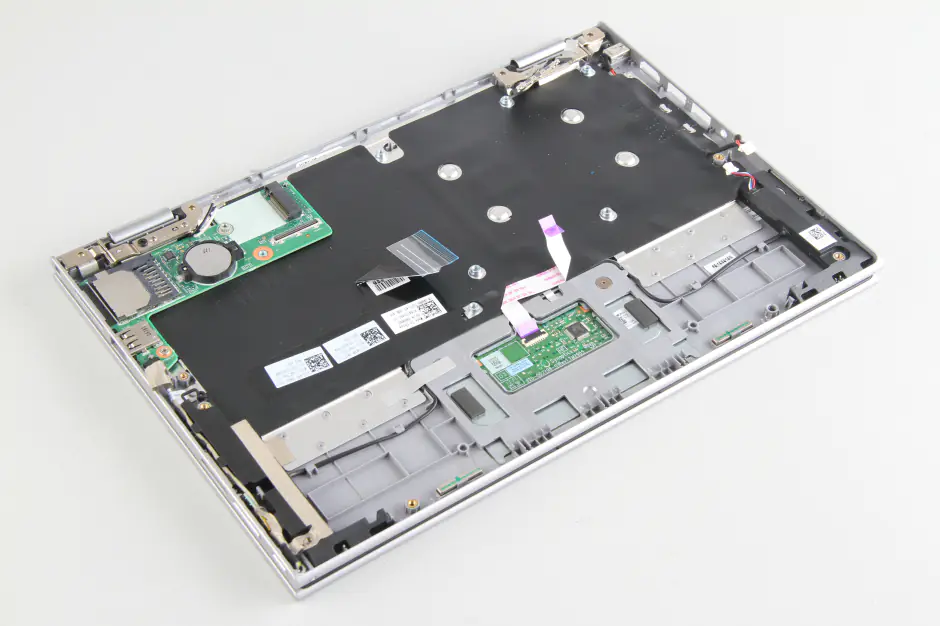

- The motherboard has been removed.
-

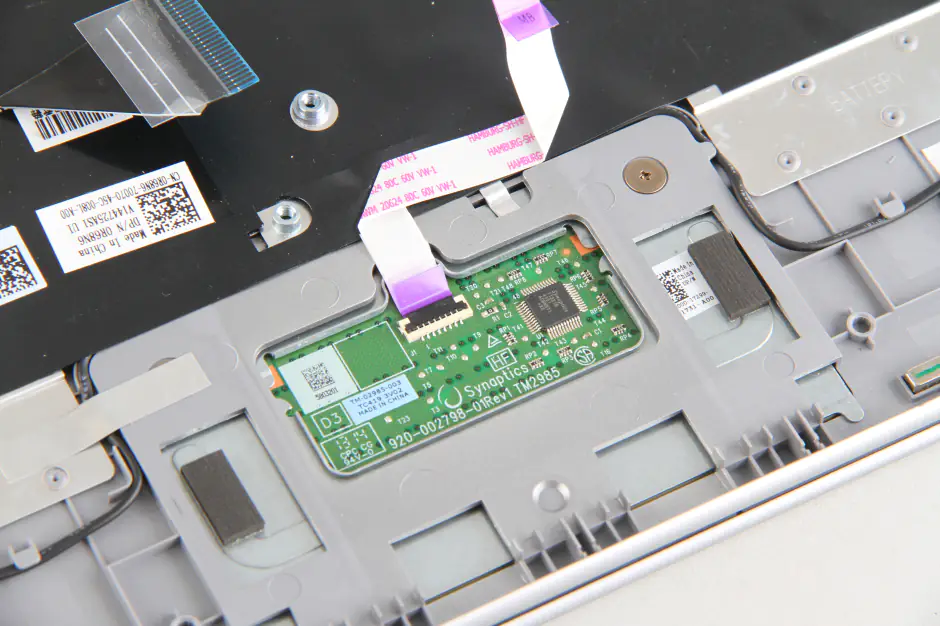

- touchpad
-

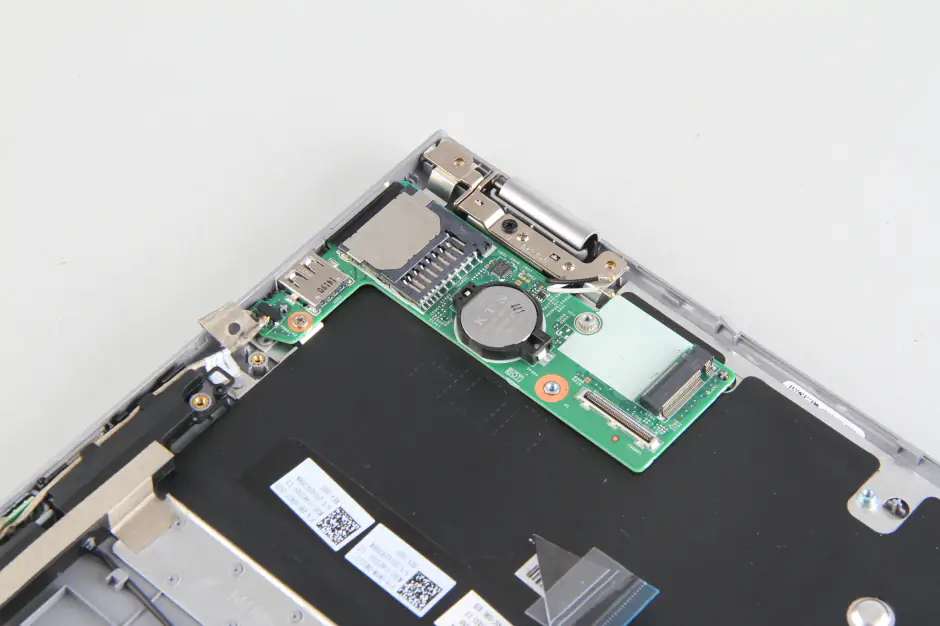

- the sub-board
-

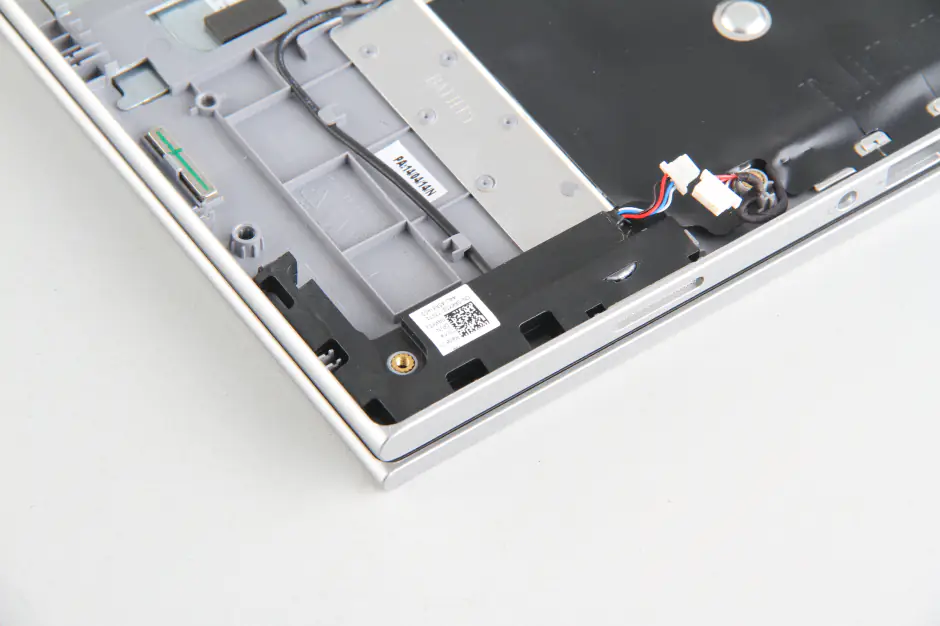

- the speaker
For more guides, check out the Dell Inspiron 11-3147 device page.
