Dell Inspiron 13 7000 7347 Disassembly and SSD, RAM, HDD Upgrade Options
In this guide, I’ll explain how to disassemble the Dell Inspiron 13 7000 7347. I will remove the battery, RAM, hard drive, wireless card, palm rest, heat sink, cooling fan, and motherboard.
Looking for more funny teardown? Follow us on Facebook for all the latest repair news.
-

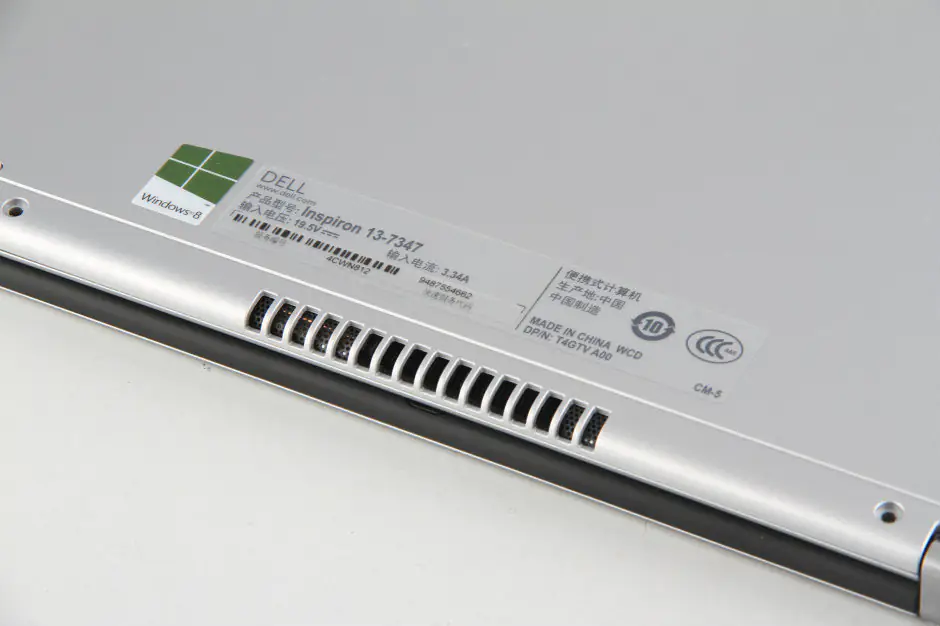

- Laptop model: Dell Inspiron 13-7347, P/N: T4GTV A00, made in China.
Step 1: Remove the bottom case
-
- Remove ten screws from the bottom case.
-
- Pry up and remove the bottom case.
-

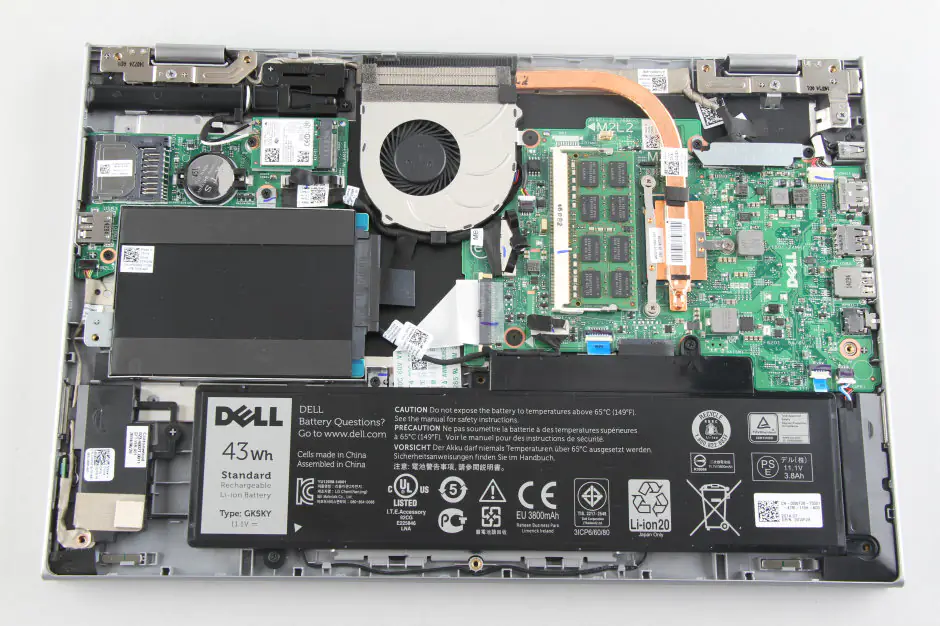

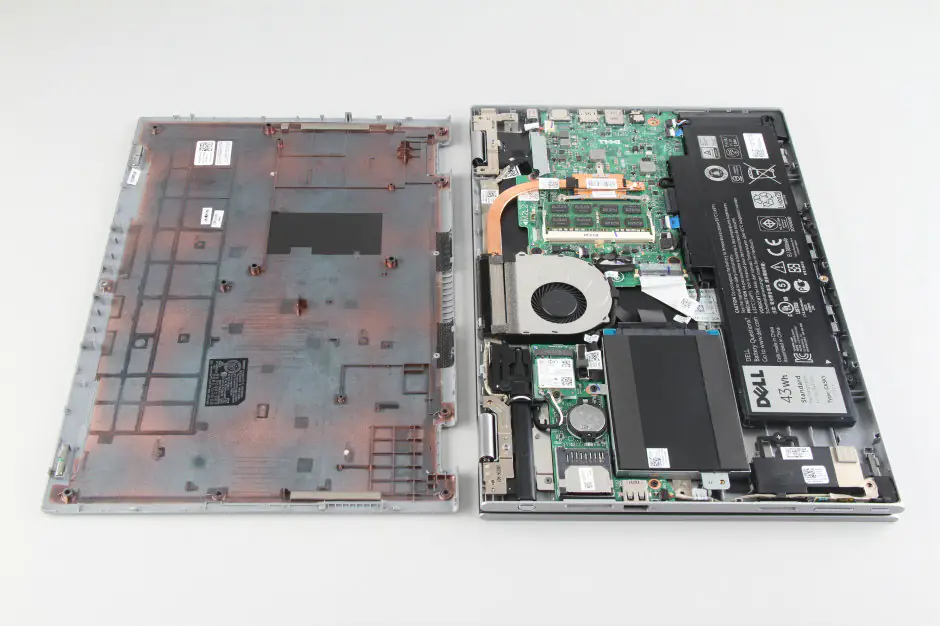

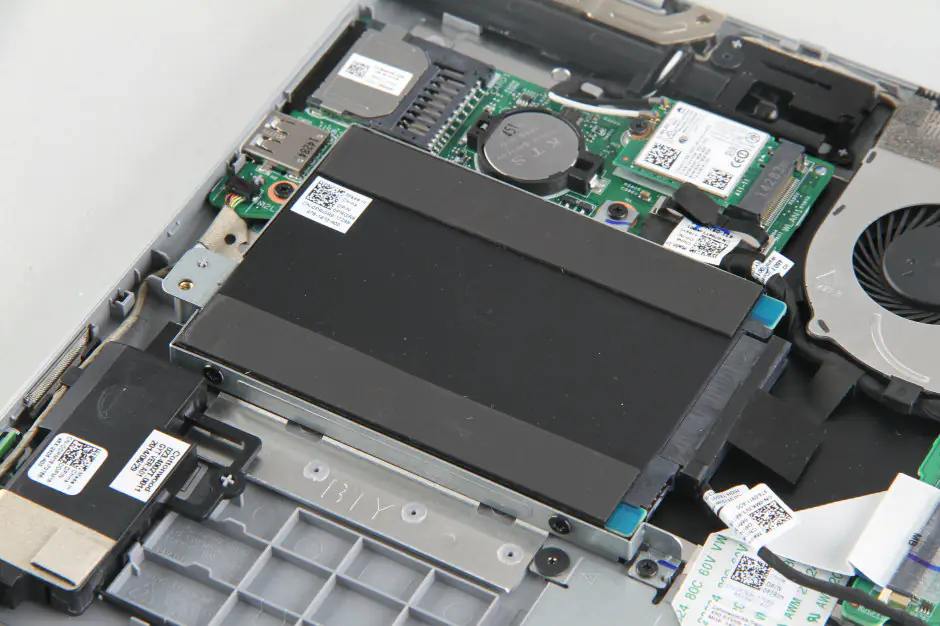

- After removing the bottom case, you can access the battery, hard drive, RAM, wireless card, speakers, heat sink, and cooling fan.
Step 2: Remove the battery
-
- Remove two screws securing the battery.

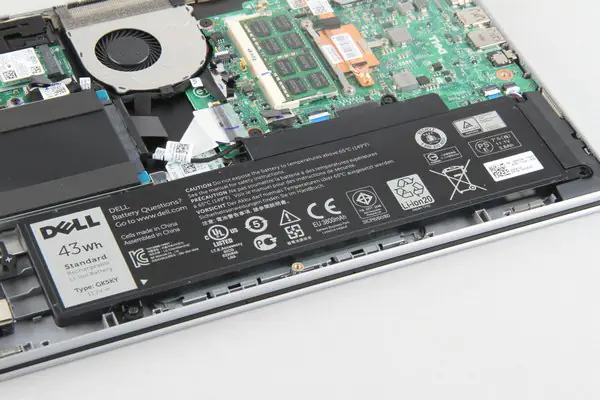

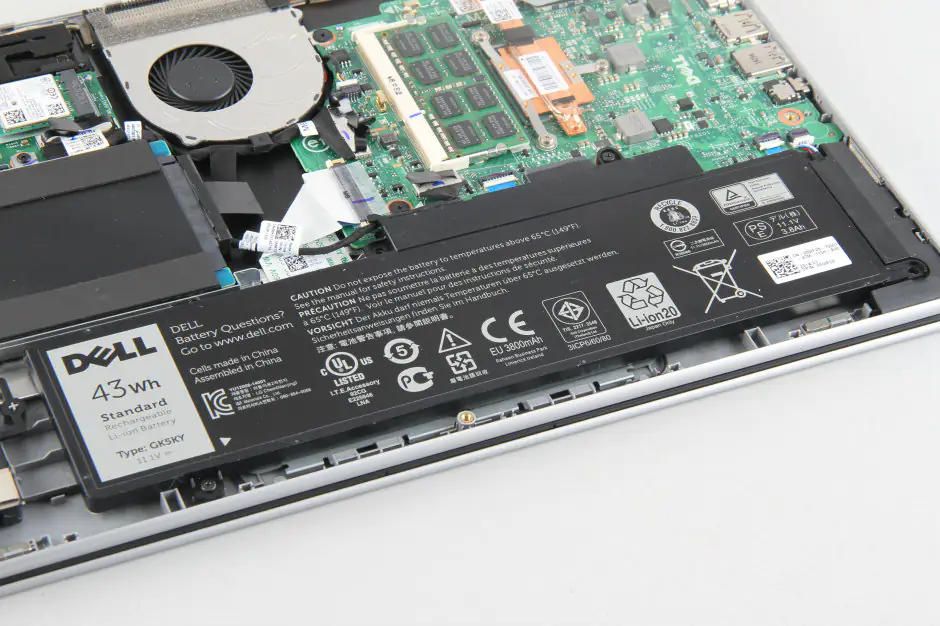

- Dell Inspiron 13-7347 comes with an 11.1v, 43wh Li-ion battery. Dell part number: GK5KY.
-

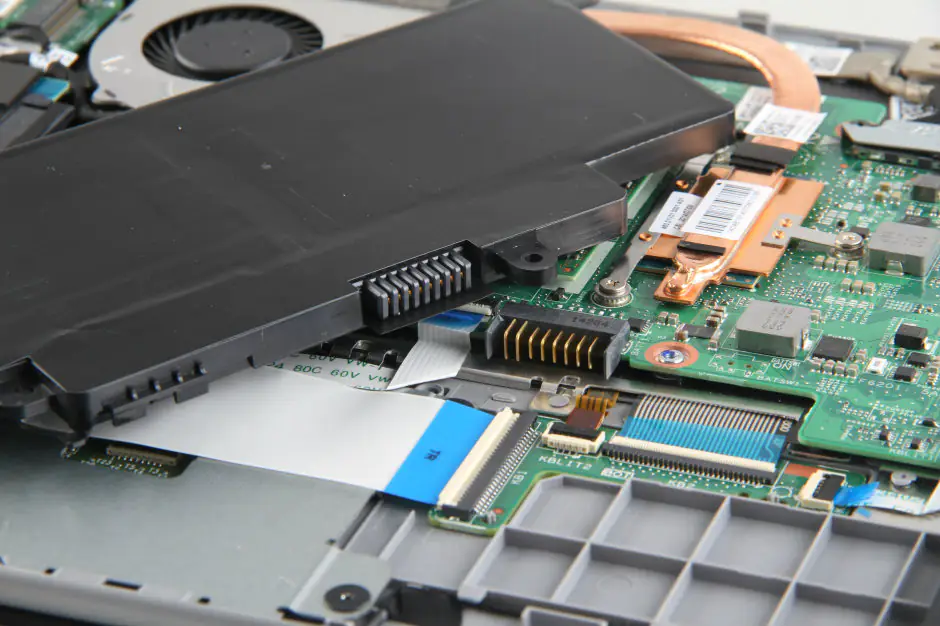

- Remove the battery
Step 3: Remove the touch stylus
-

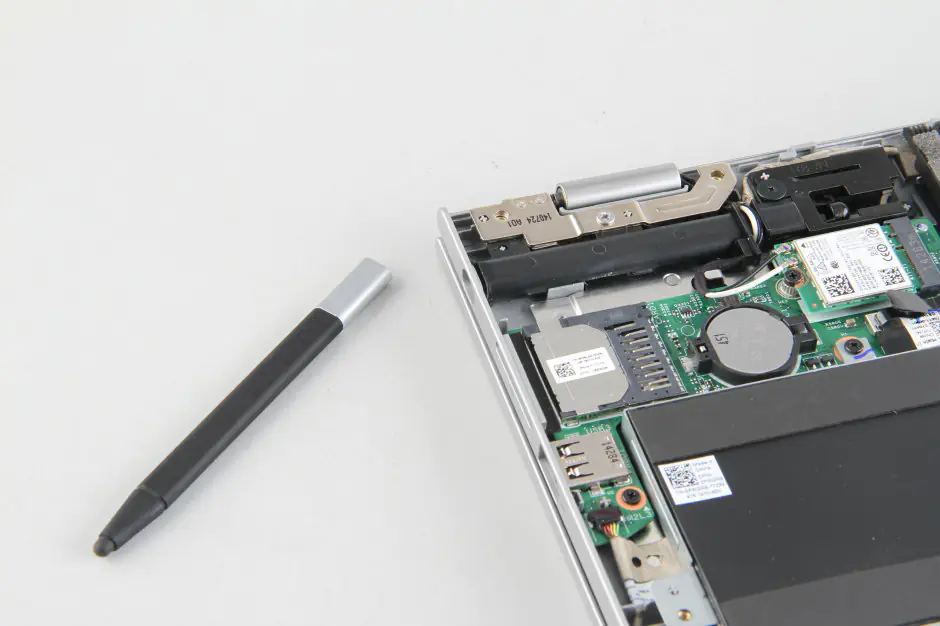

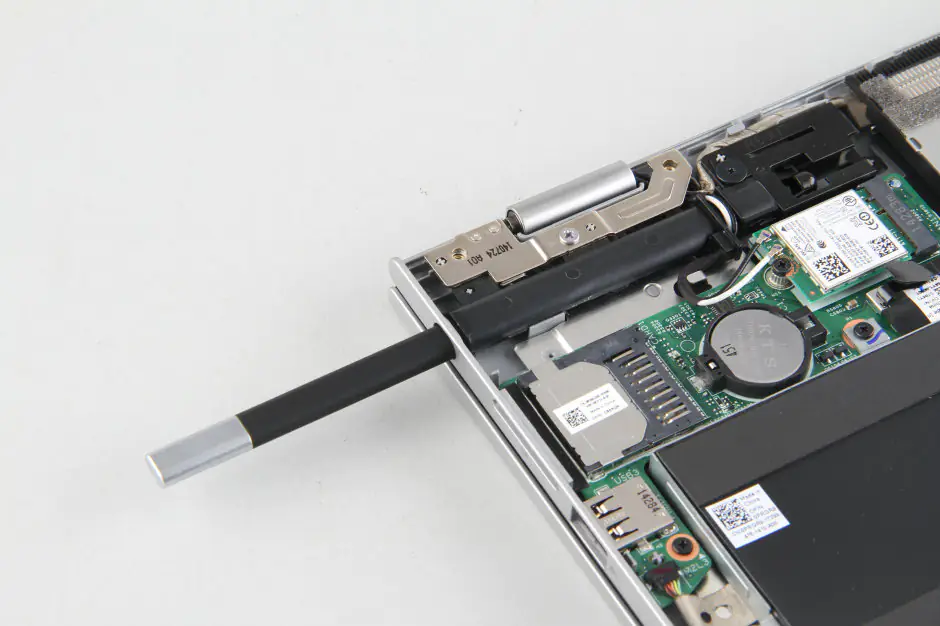

- Pull out the touch stylus.
Step 4: Remove the RAM
-

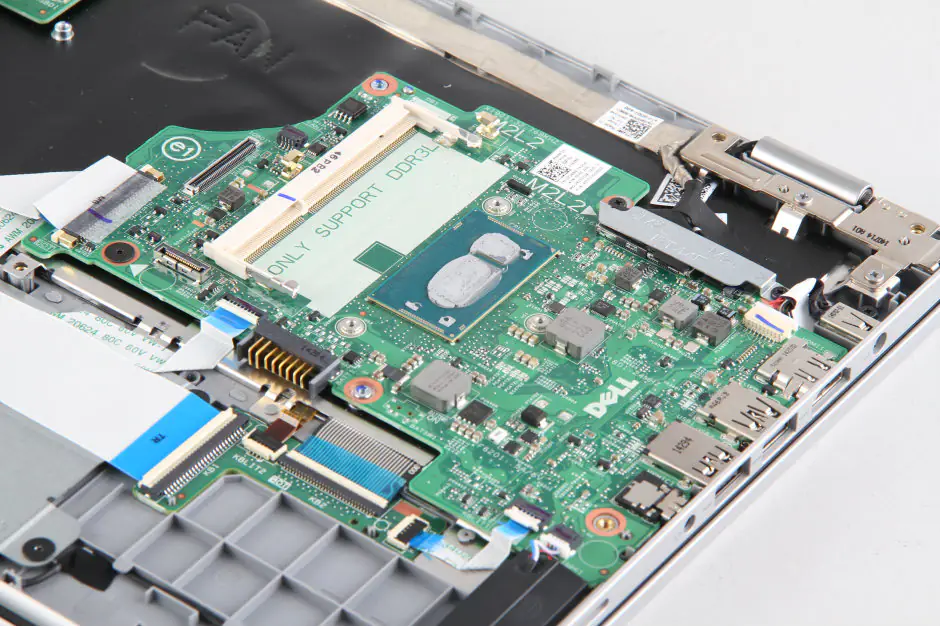

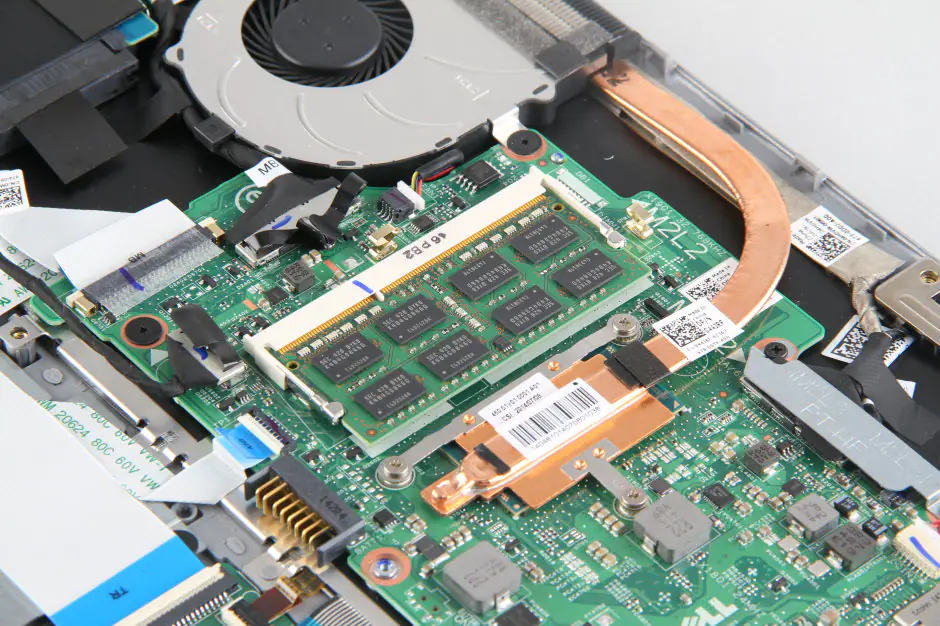

- Dell Inspiron 13-7347 only has one RAM slot.
-

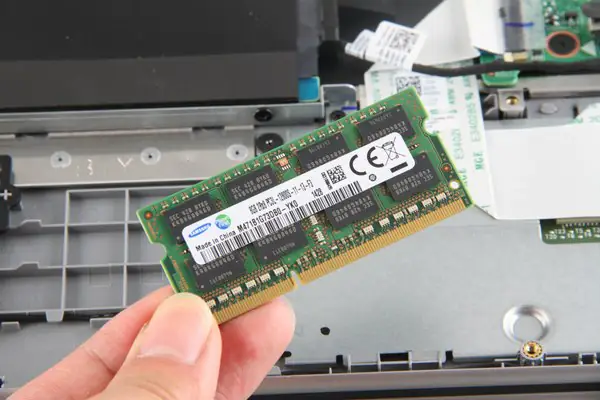

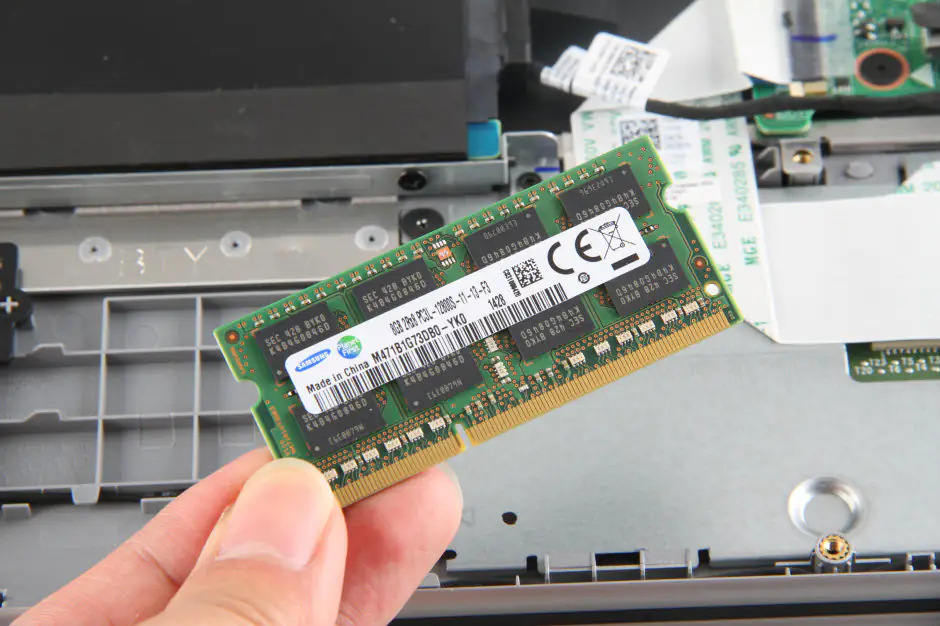

- The Dell Inspiron 13-7347 has a Samsung 8GB PC3L-12800s 1600MHz RAM.
Step 5: Remove the hard drive
-
- Remove the screws securing the hard drive, disconnect the SATA cable from the motherboard, and remove the hard drive.
-

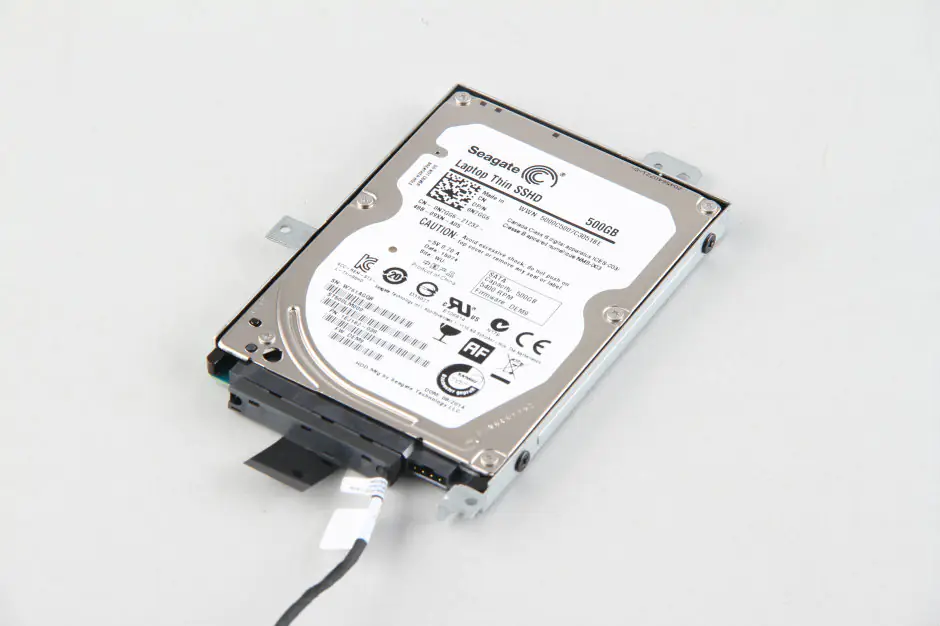

- Seagate 500GB 5400RPM hard drive
Step 6: Remove the wireless card
-

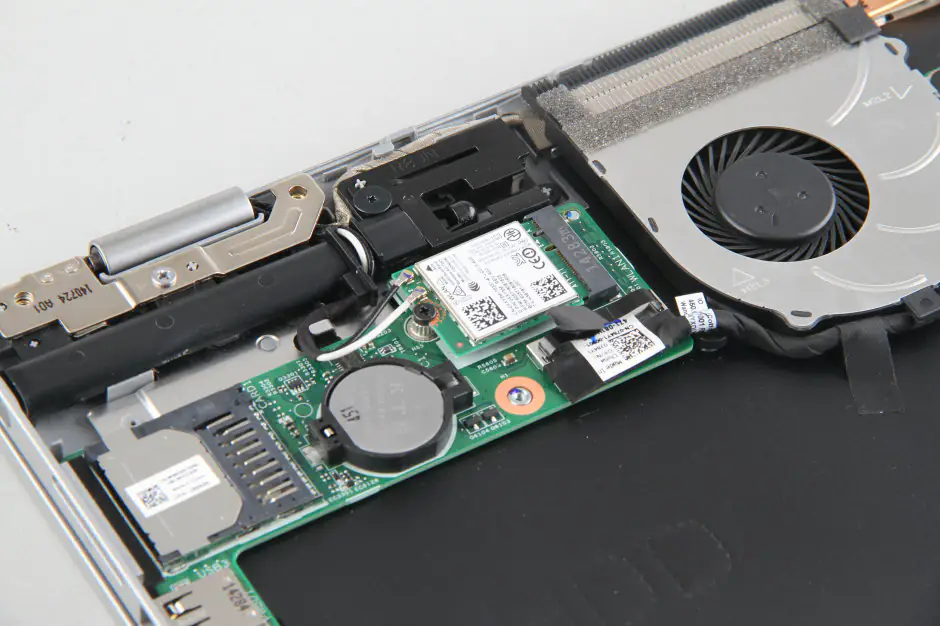

- Disconnect two antenna cables and remove one screw. You can remove the wireless card.
-

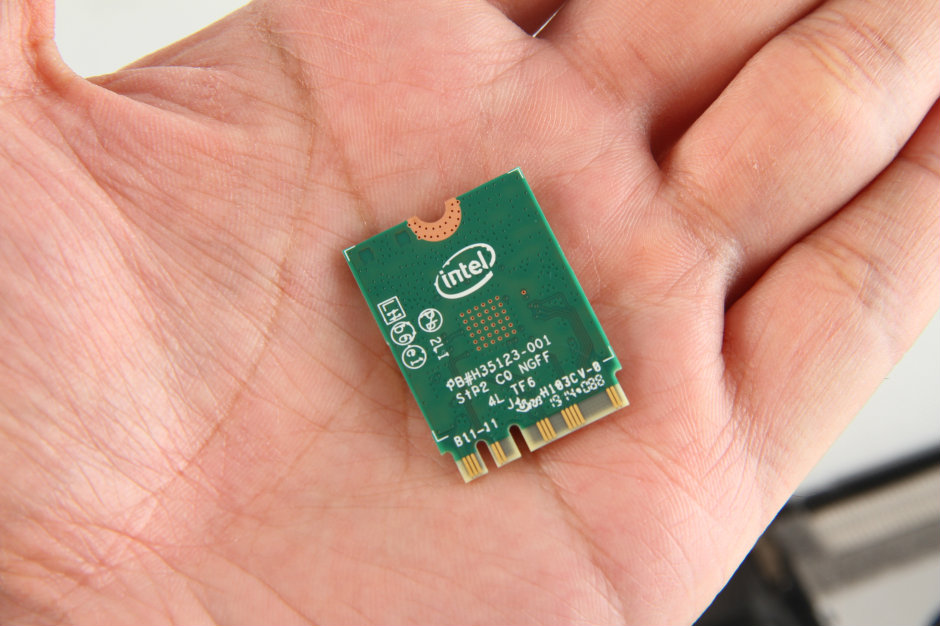

- The wireless card
Step 7: Remove the cable
-
- The little board connects to the motherboard via a cable.
- The cable

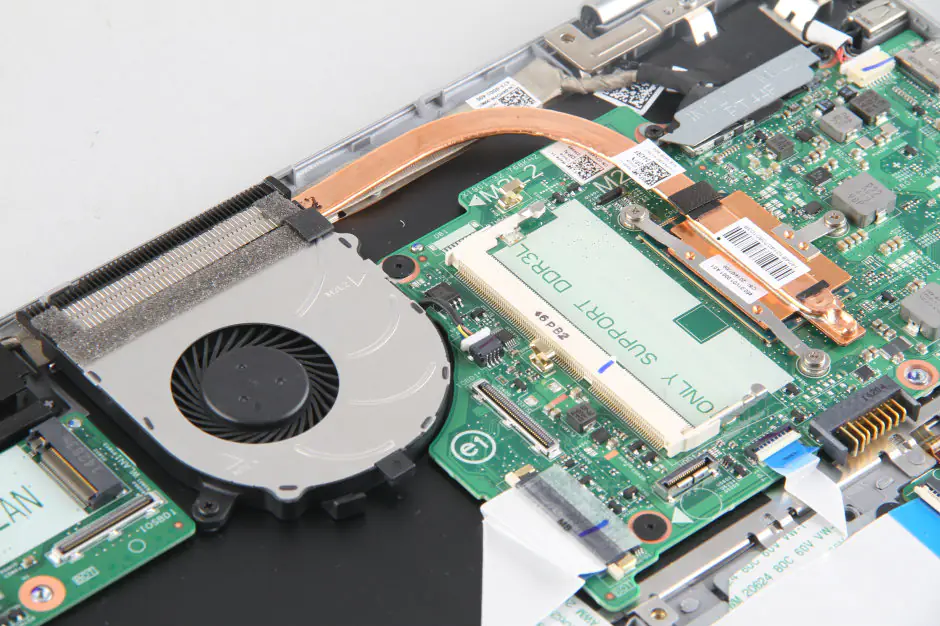

Step 8: Remove heat sink and cooling fan
-
- Remove two screws securing the cooling fan. Loosen three screws securing the heat sink.
-

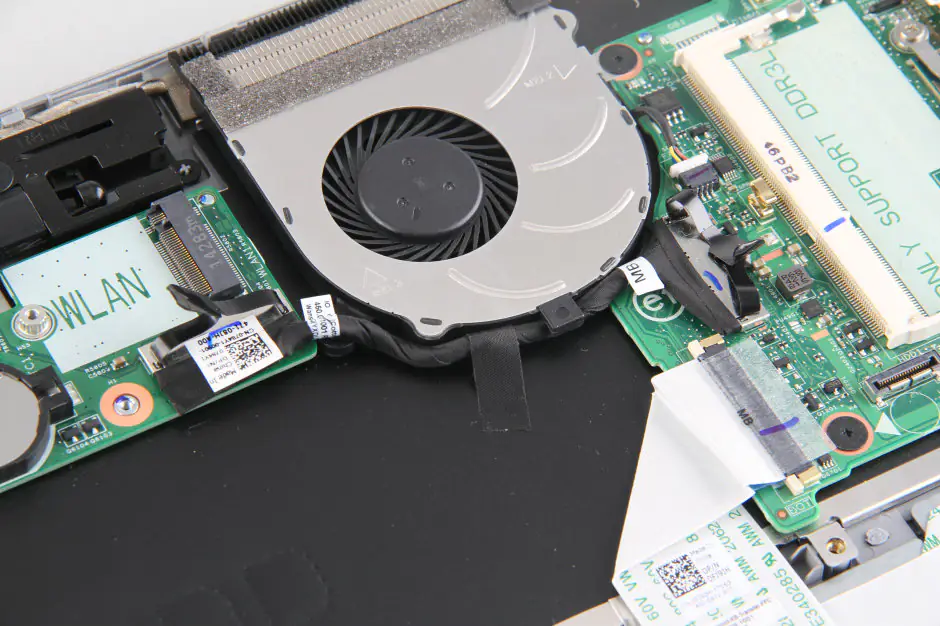

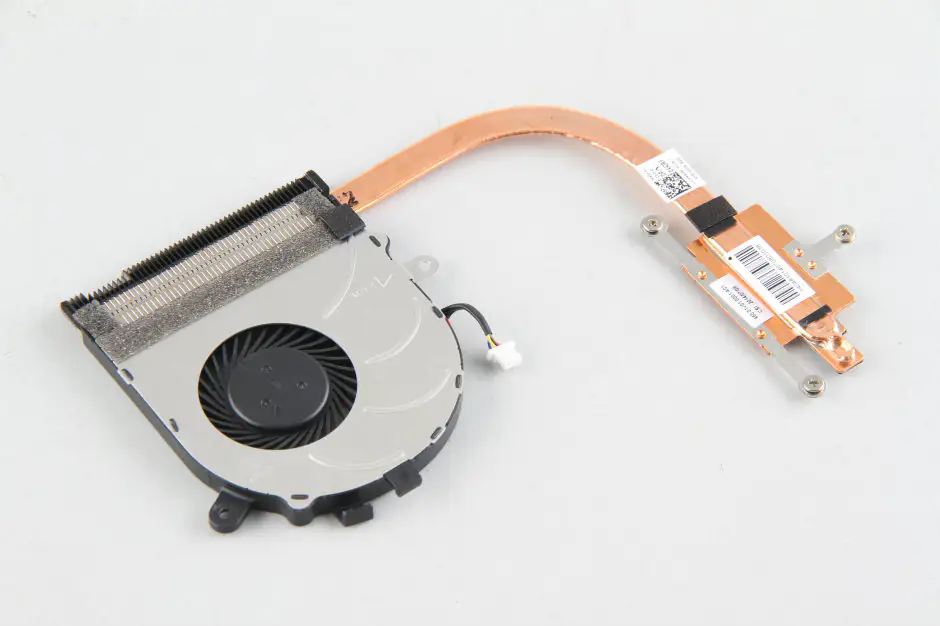

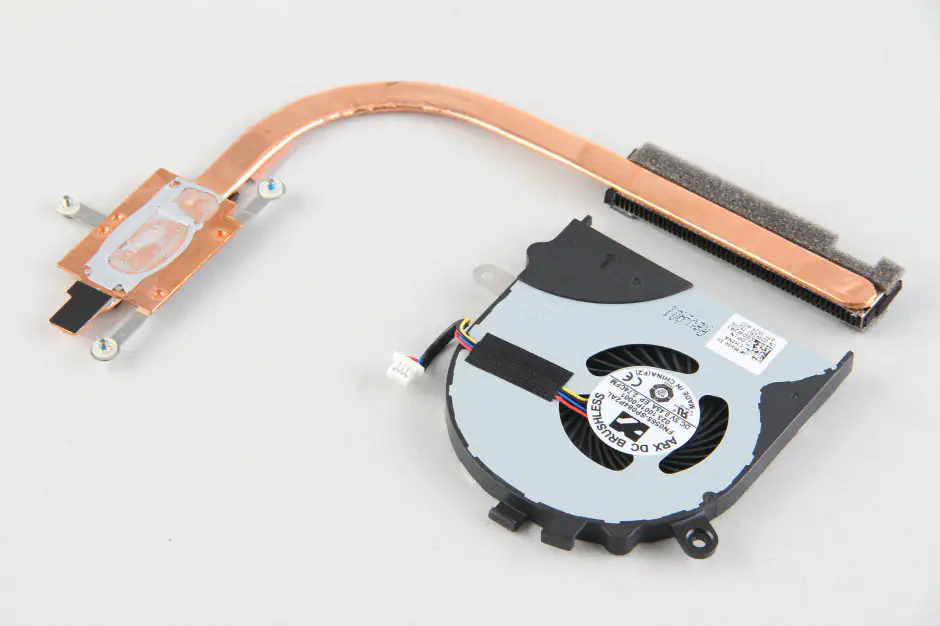

- The heat sink and cooling fan have been removed.

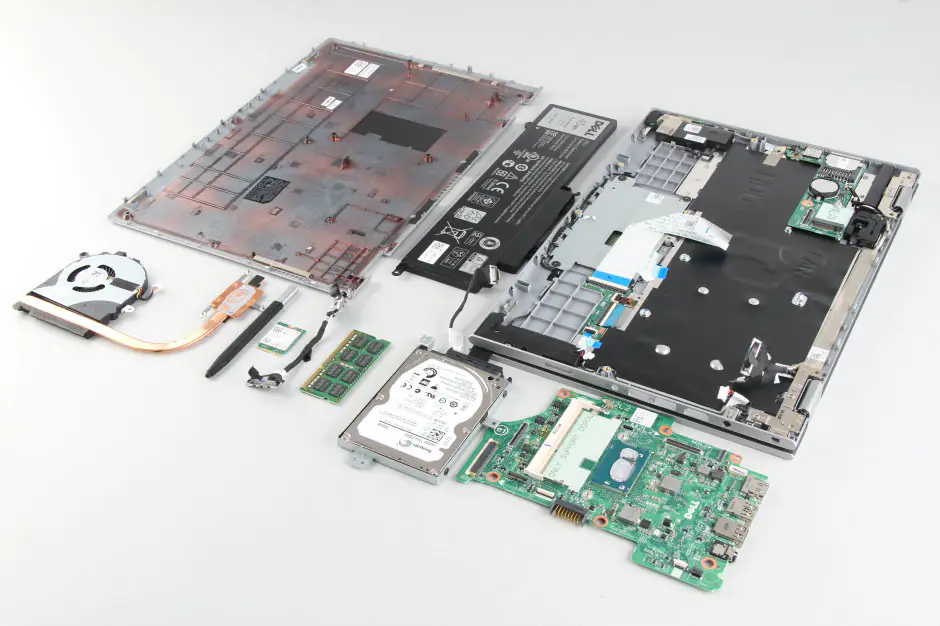

Step 9: Remove the motherboard
-

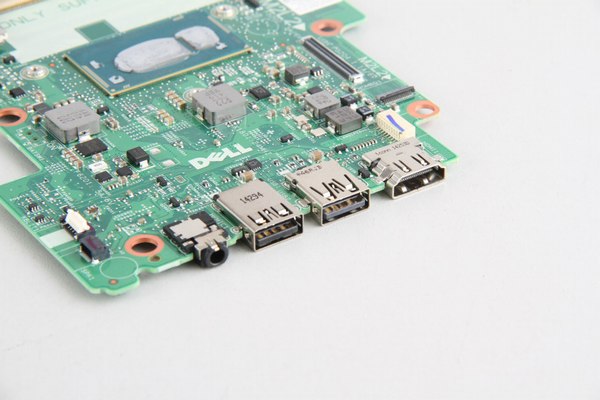

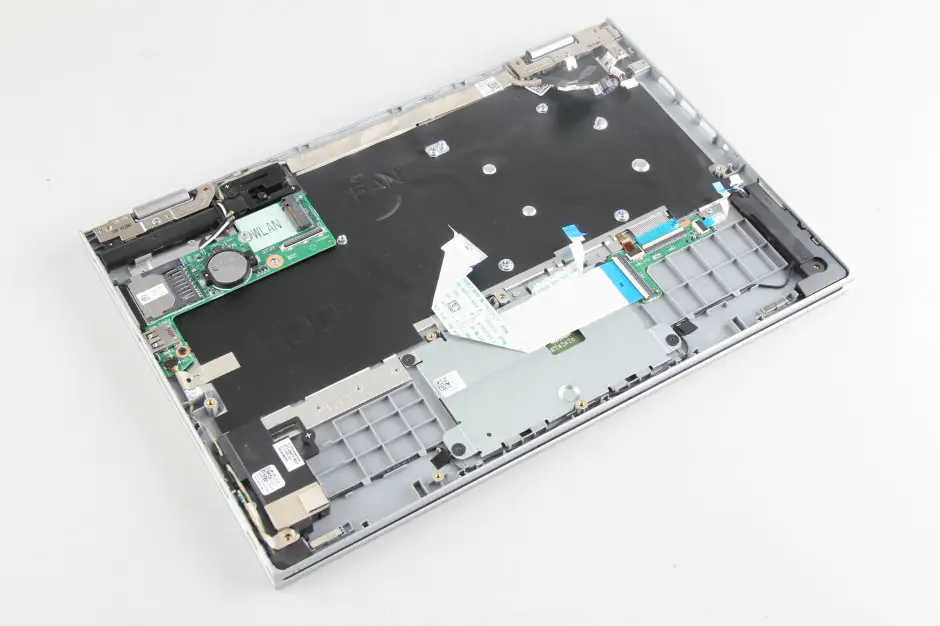

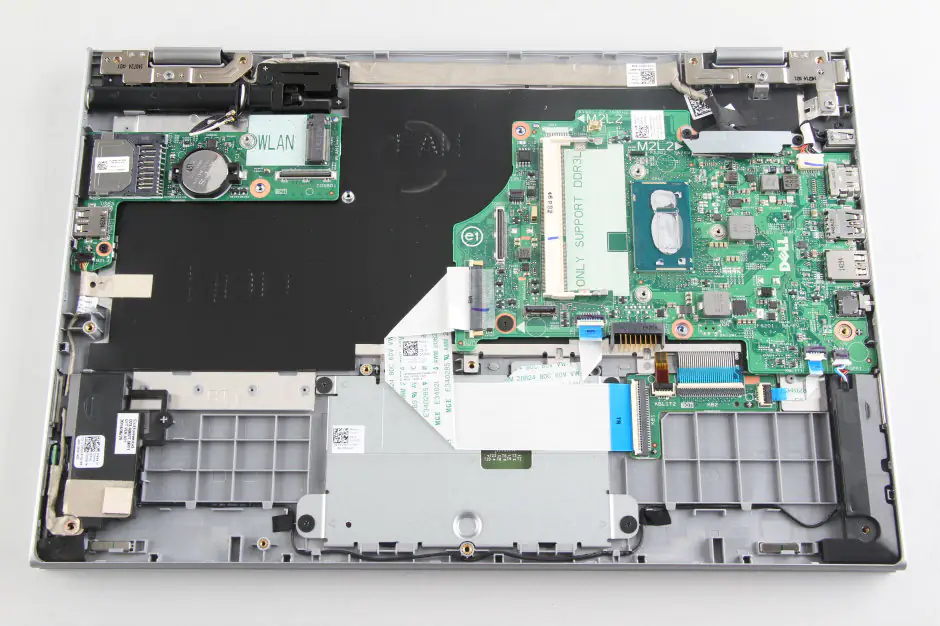

- Now, you can access the motherboard.
-

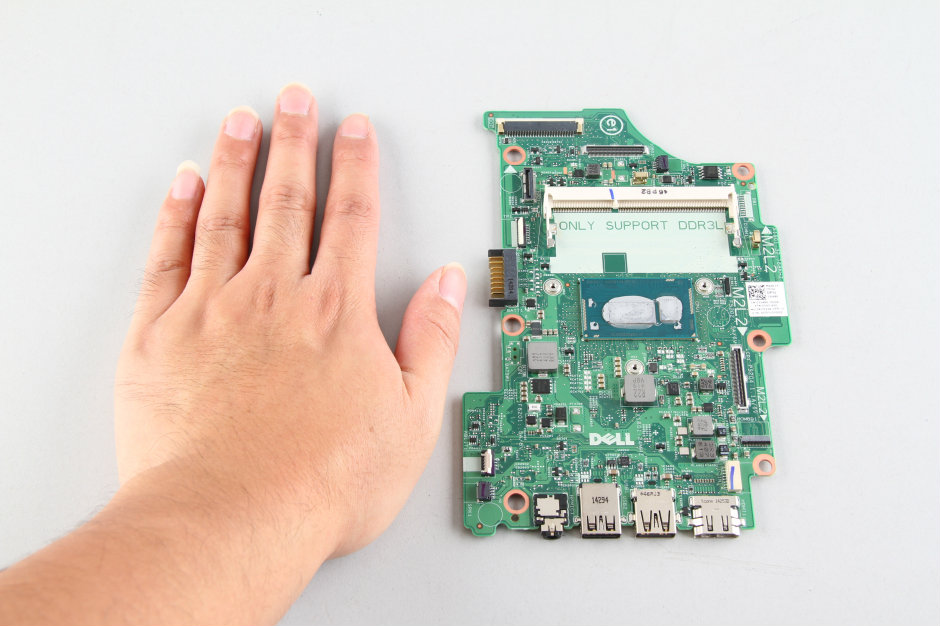

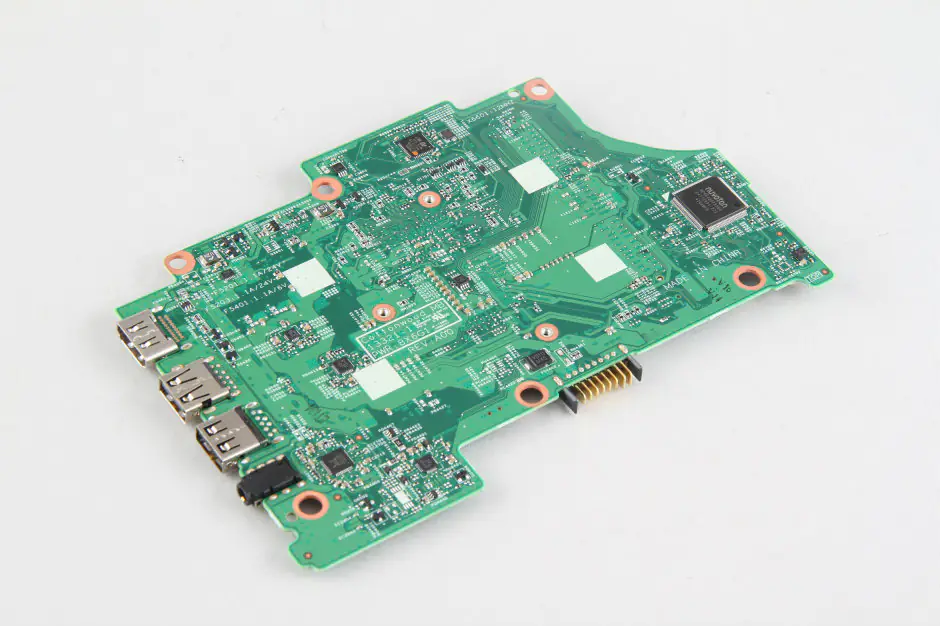

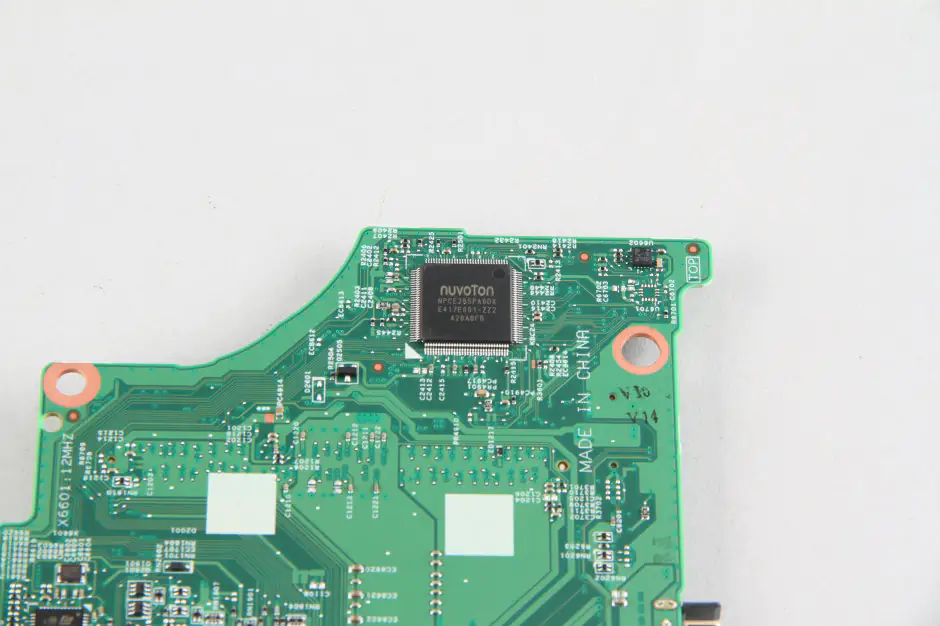

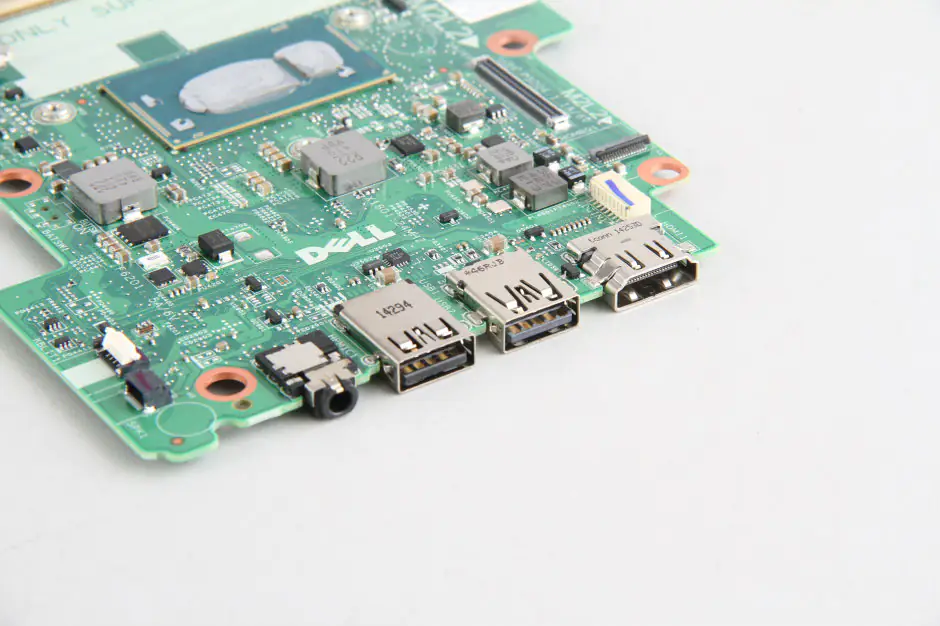

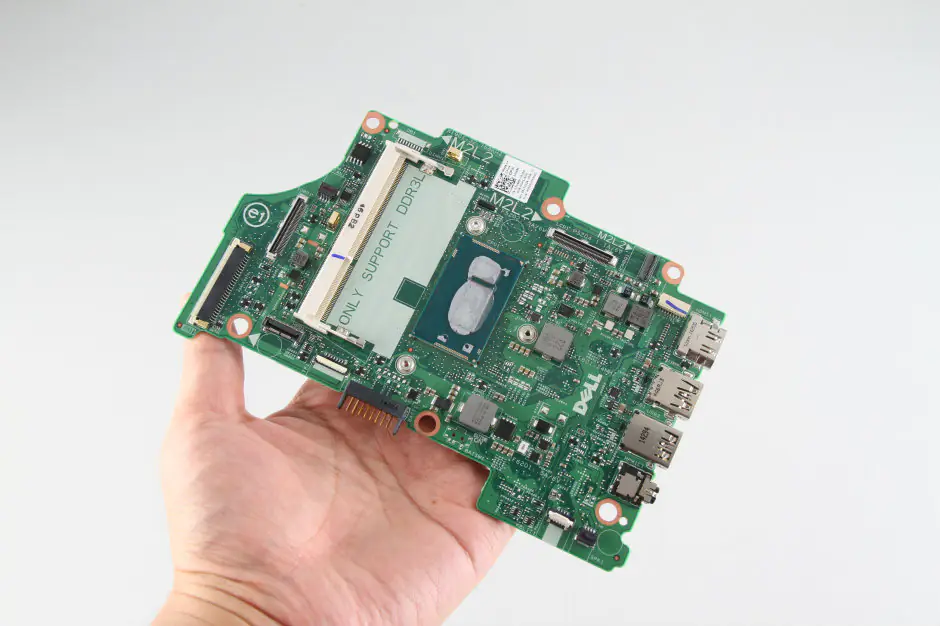

- The motherboard is very small.
