Lenovo Tab S8-50 Teardown

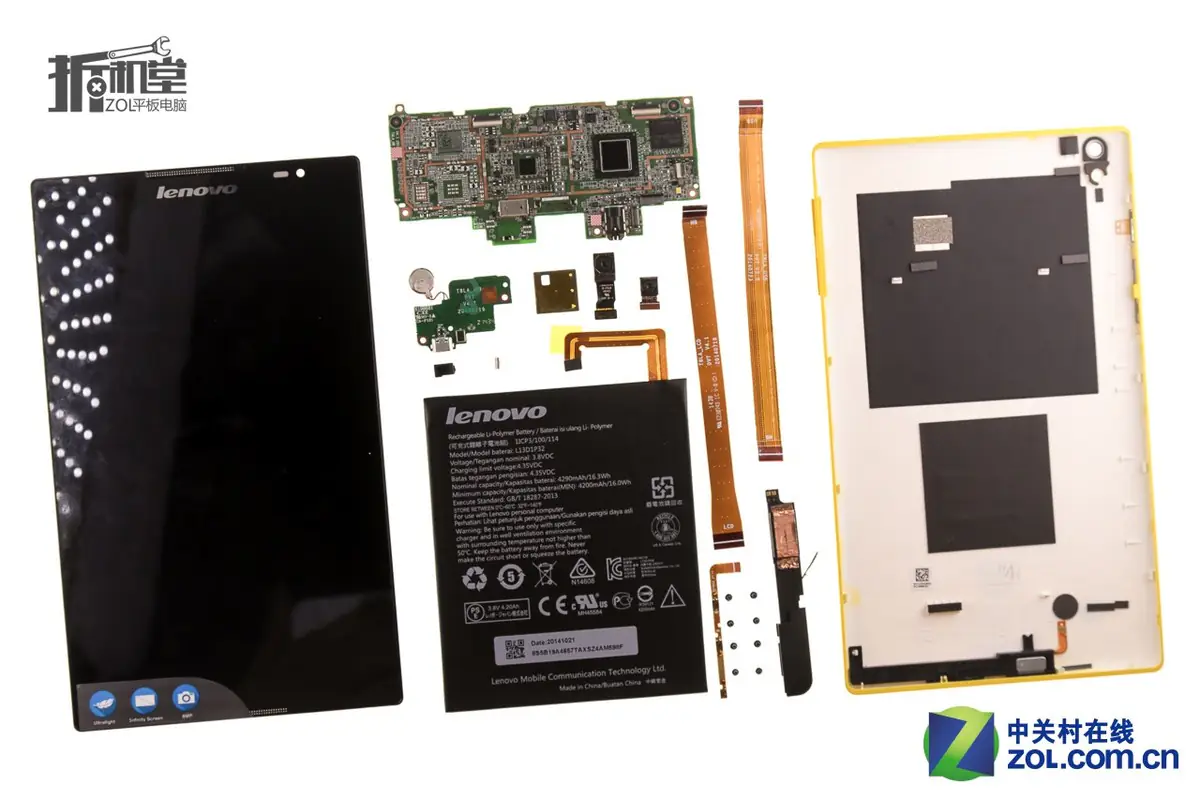

In this guide, I’ll explain how to disassemble the Lenovo Tab S8-50 to remove the back cover, battery, speaker, rear camera, front camera, and motherboard.
Want to keep in touch with us? Follow us on Facebook for more repair news.

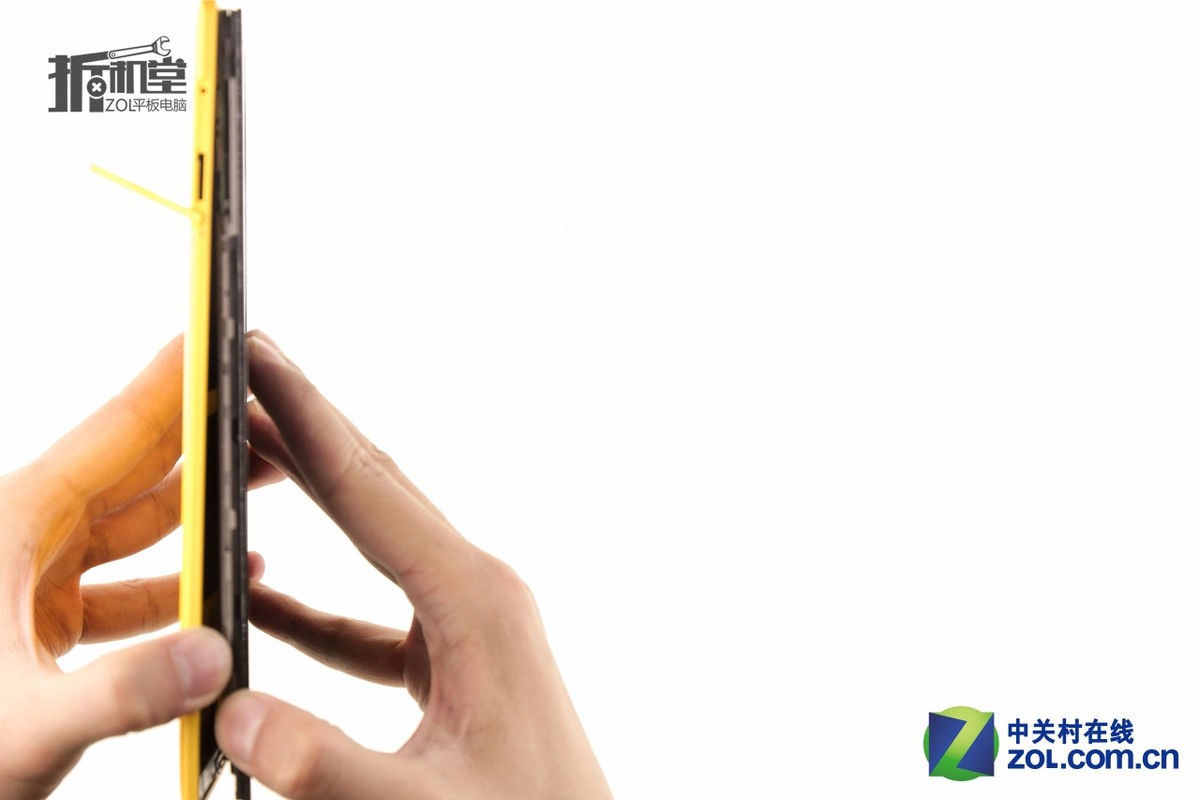

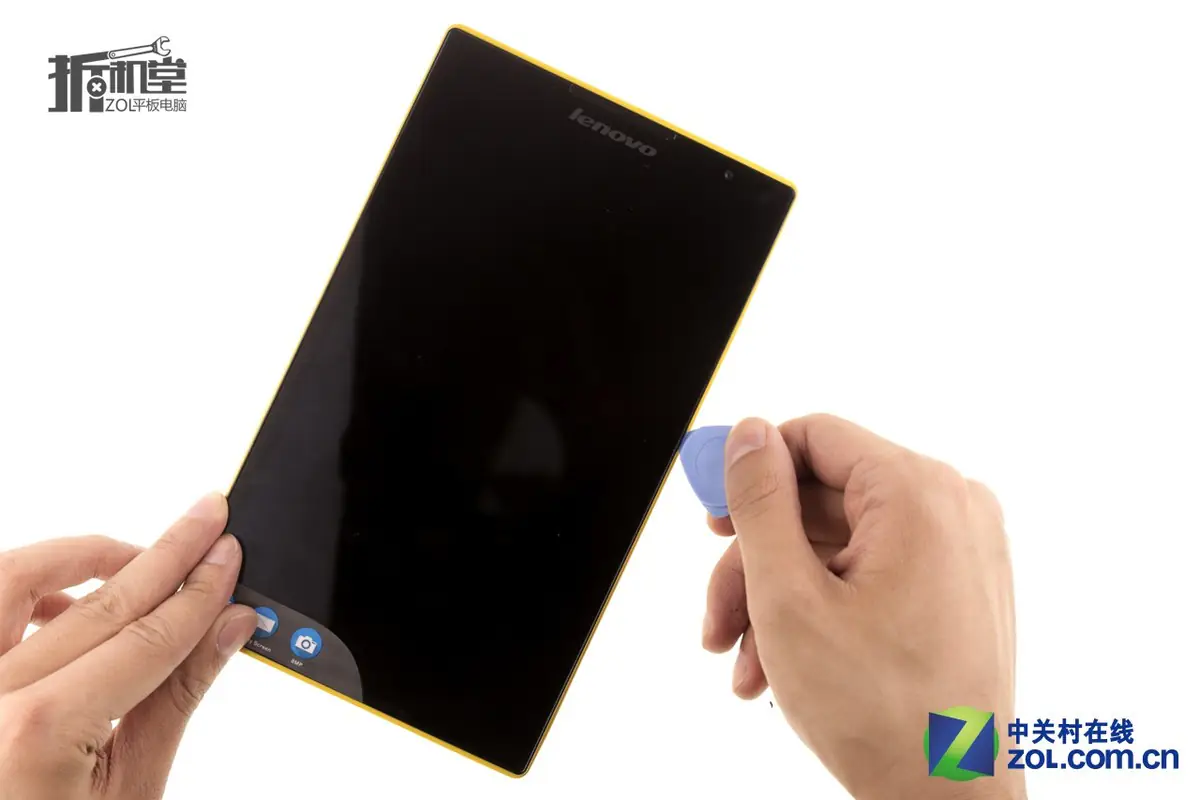

Pry up the back cover a little with a guitar pick.
Pry up the back cover with your fingernails.

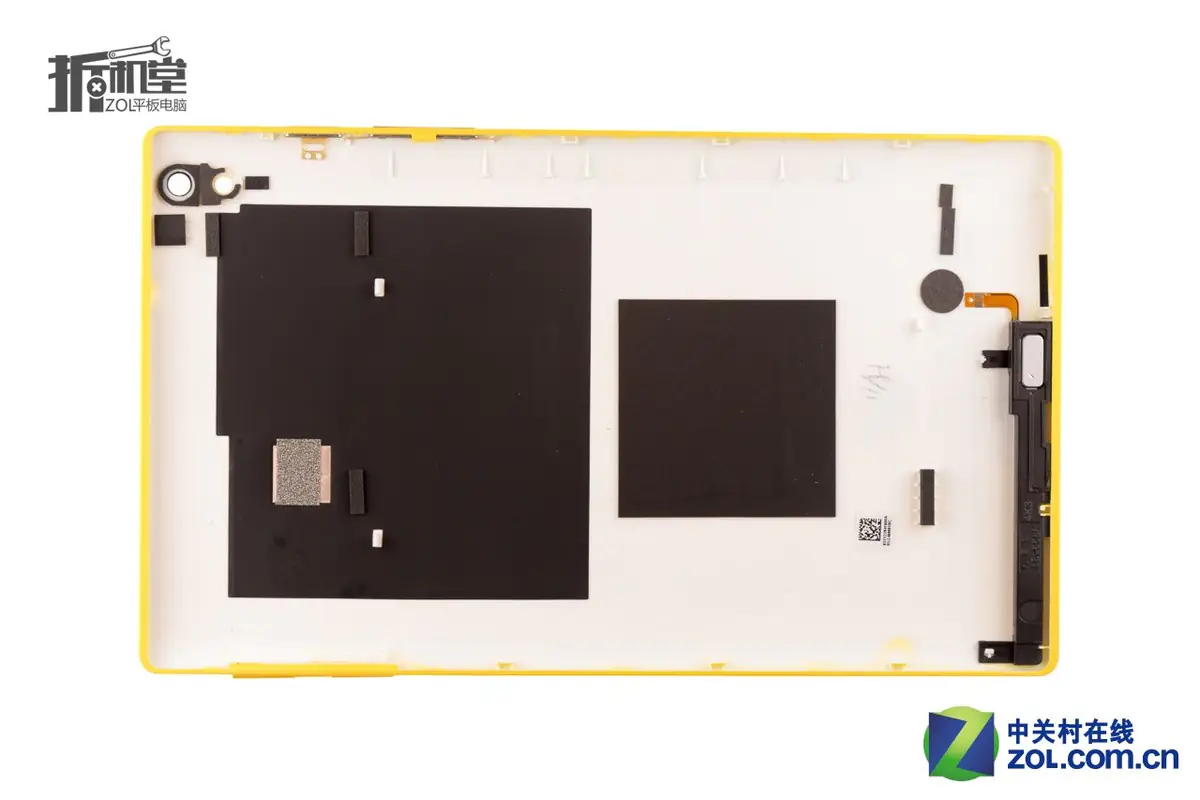

Now, the back cover was removed.
The back cover is connected to the body by thirteen snaps.

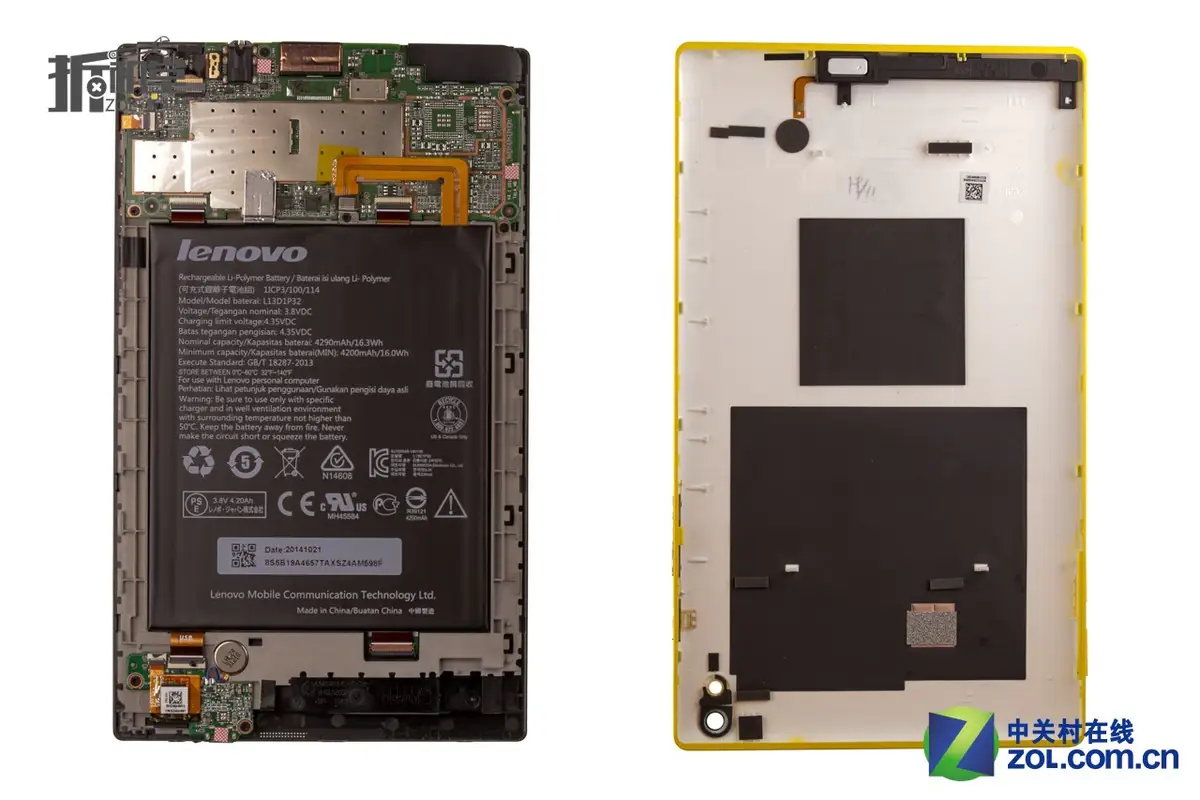

Under the back cover, you can access the internal components, including the battery, motherboard, speakers, cameras, and more.

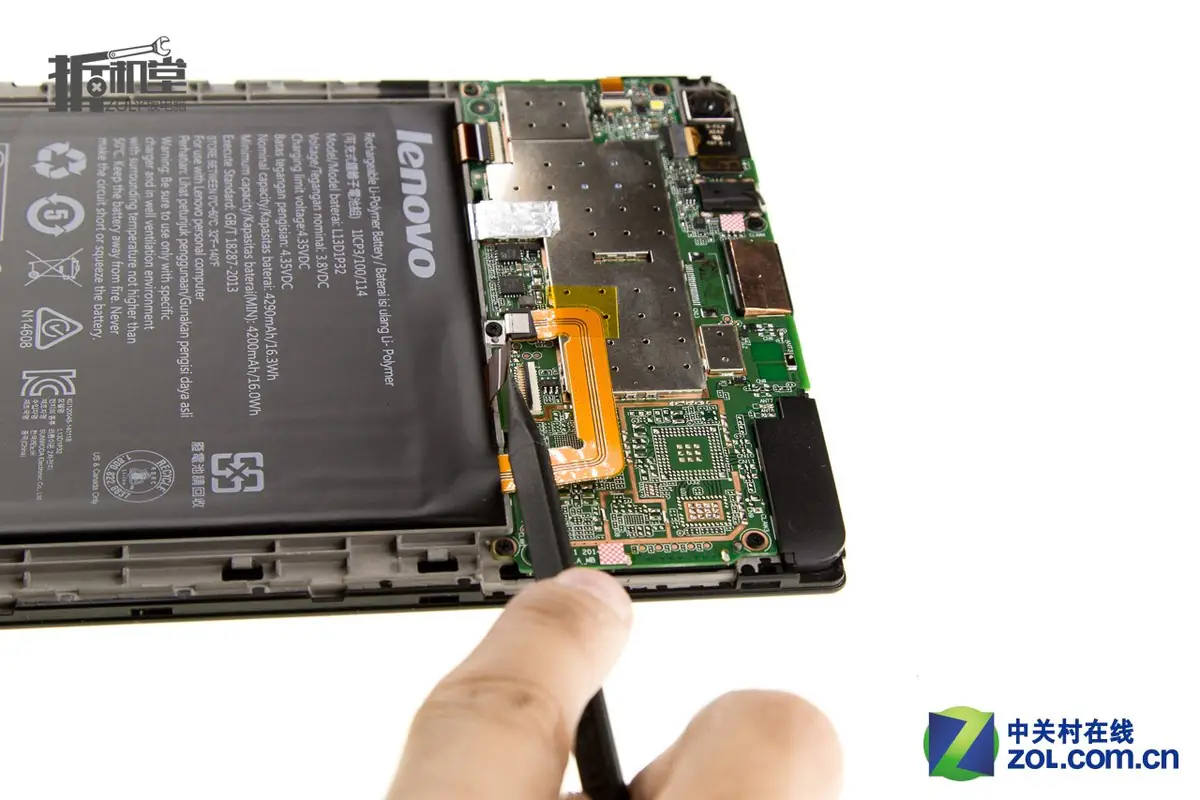

Disconnect the cable.
Disconnect this cable.

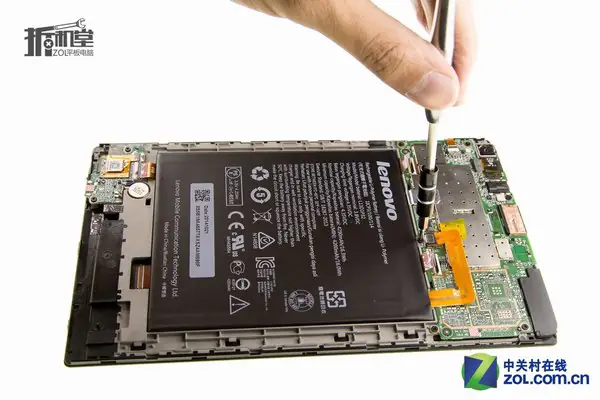

Remove the screw.
Remove the metal sheet.

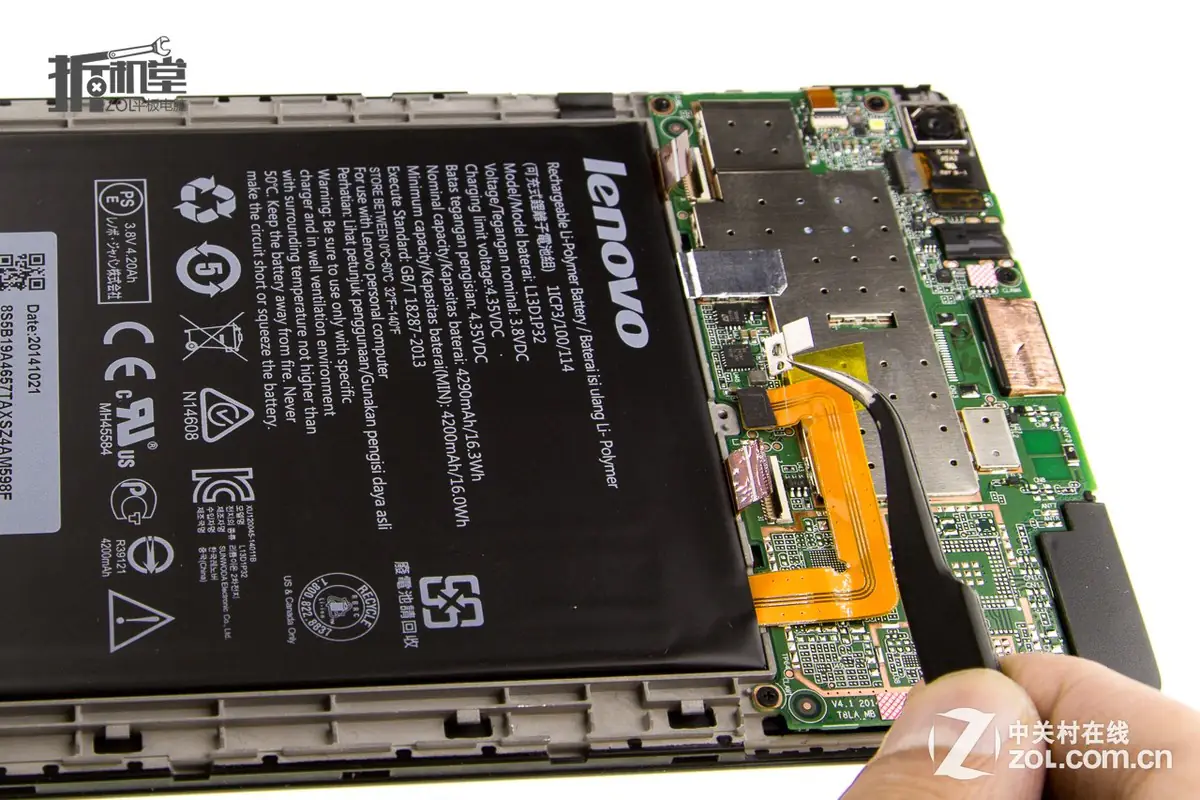

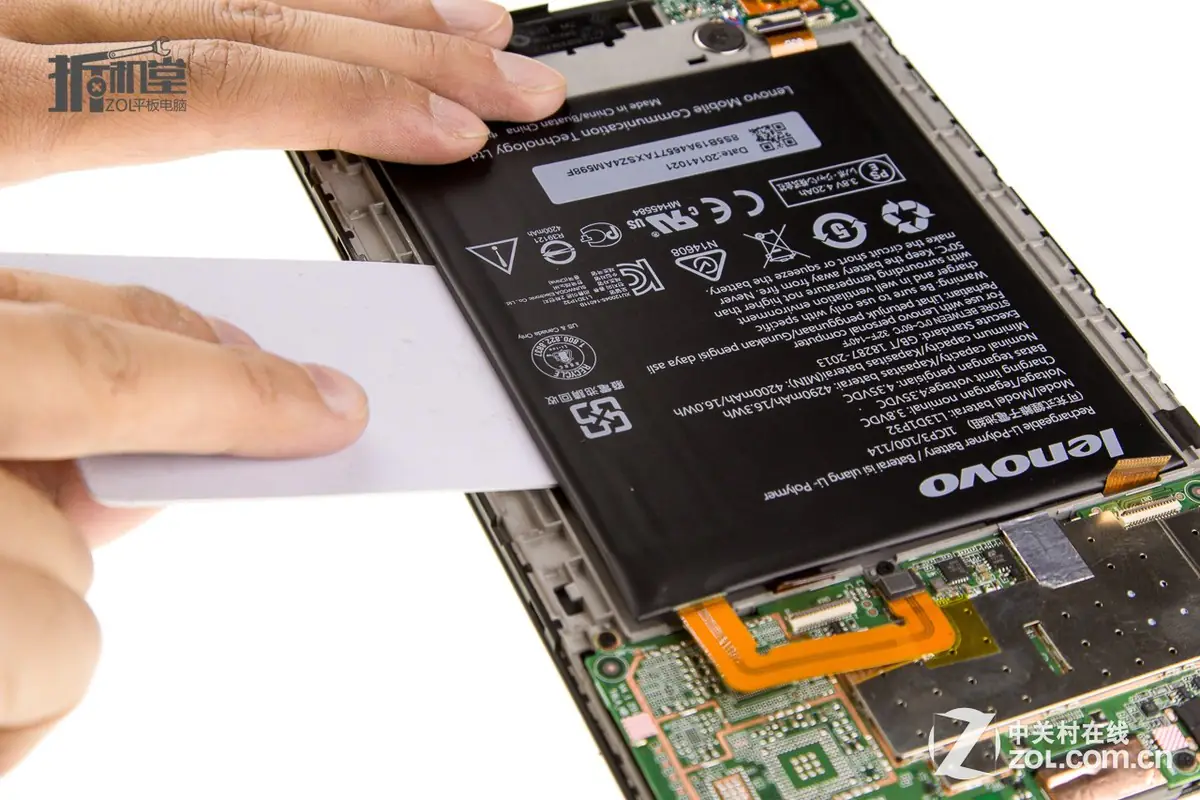

Now, remove the battery.

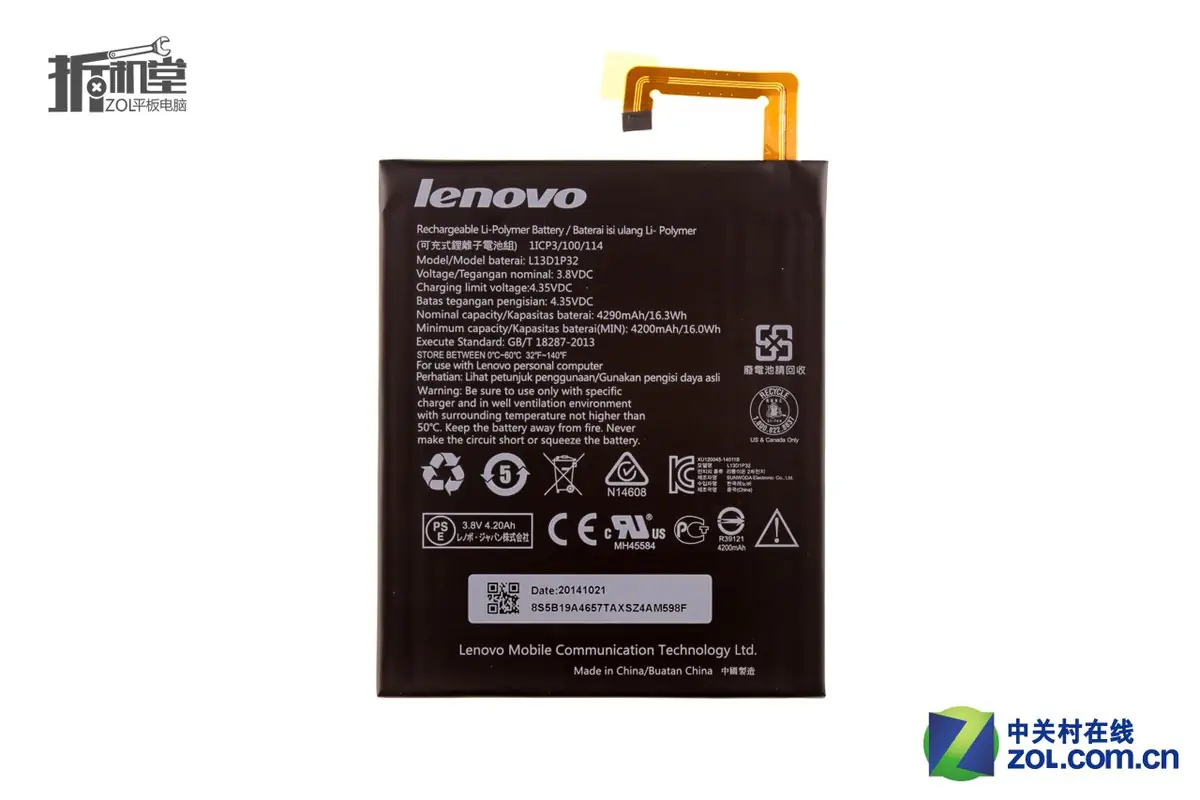

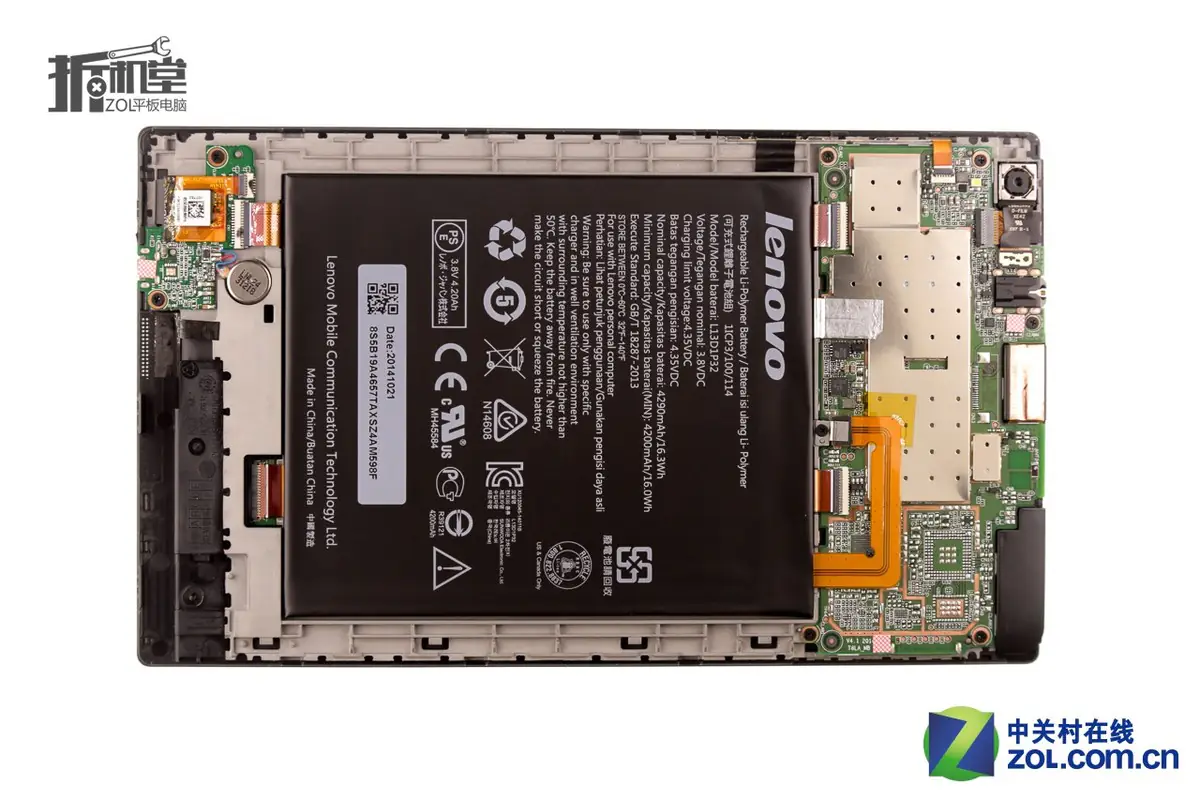

Lenovo Tab S8-50 comes with a 3.8v, 4200mah Li-polymer battery, Lenovo model: L13D1P32.

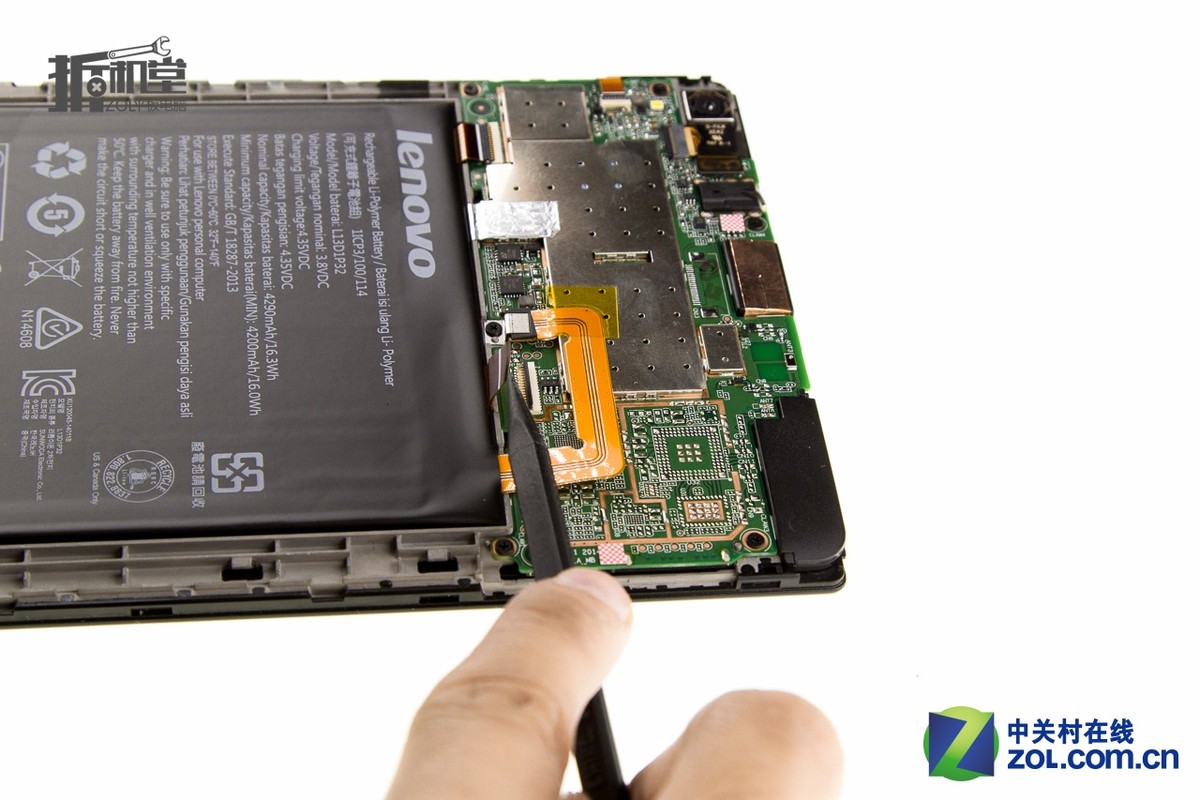

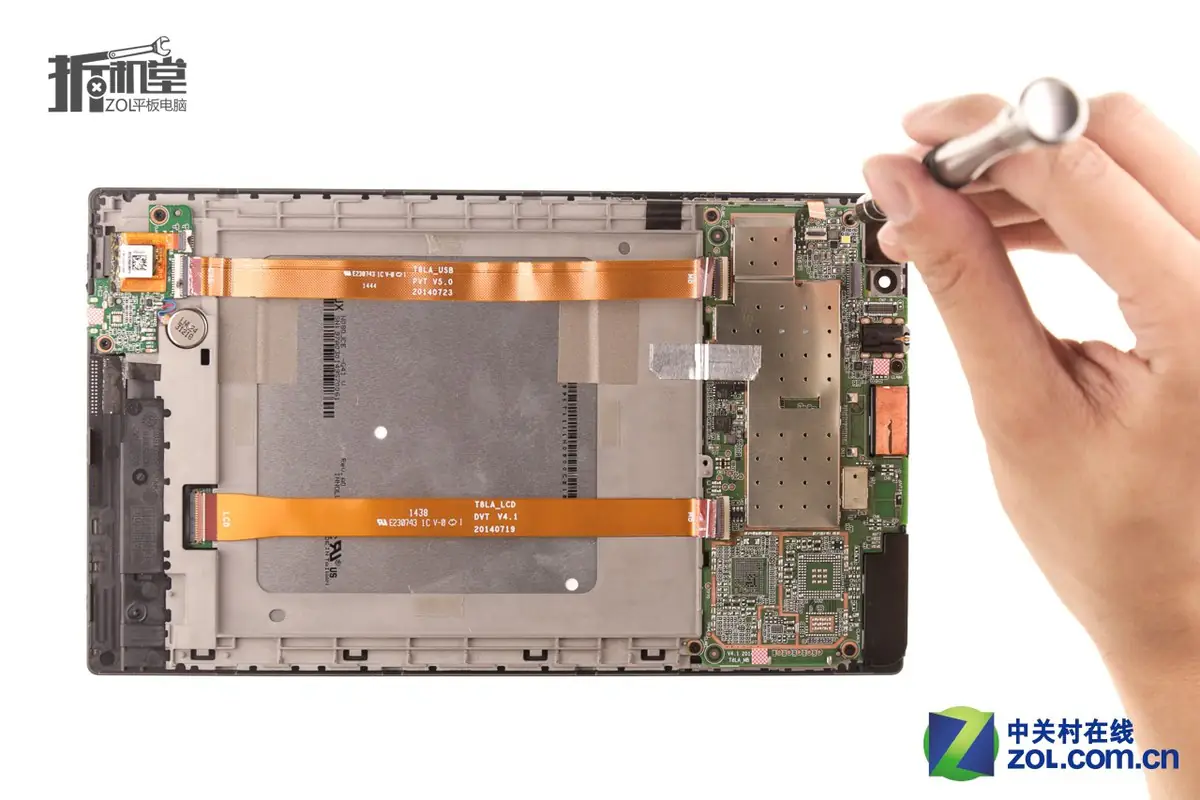

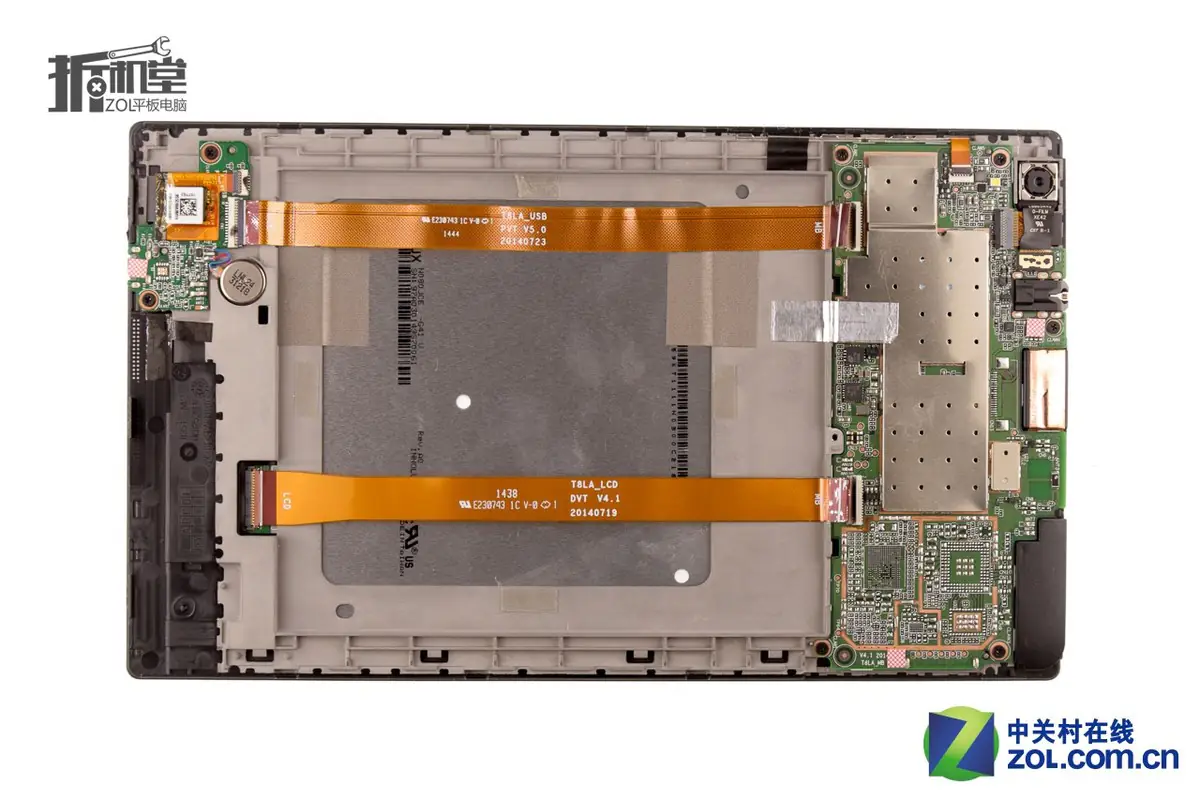

Under the battery, there is a metal roll cage and two PCB cables. One is a data transmission cable. Another is an LCD cable.

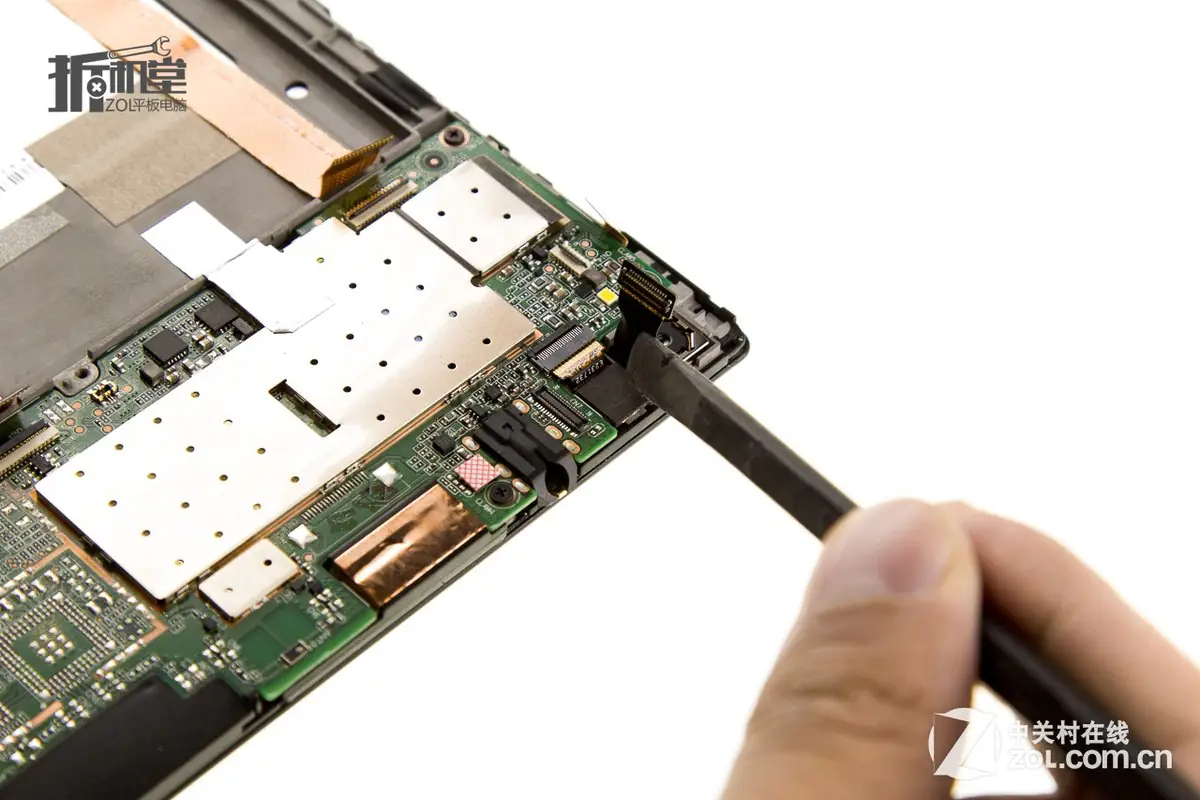

Disconnect the button cable.

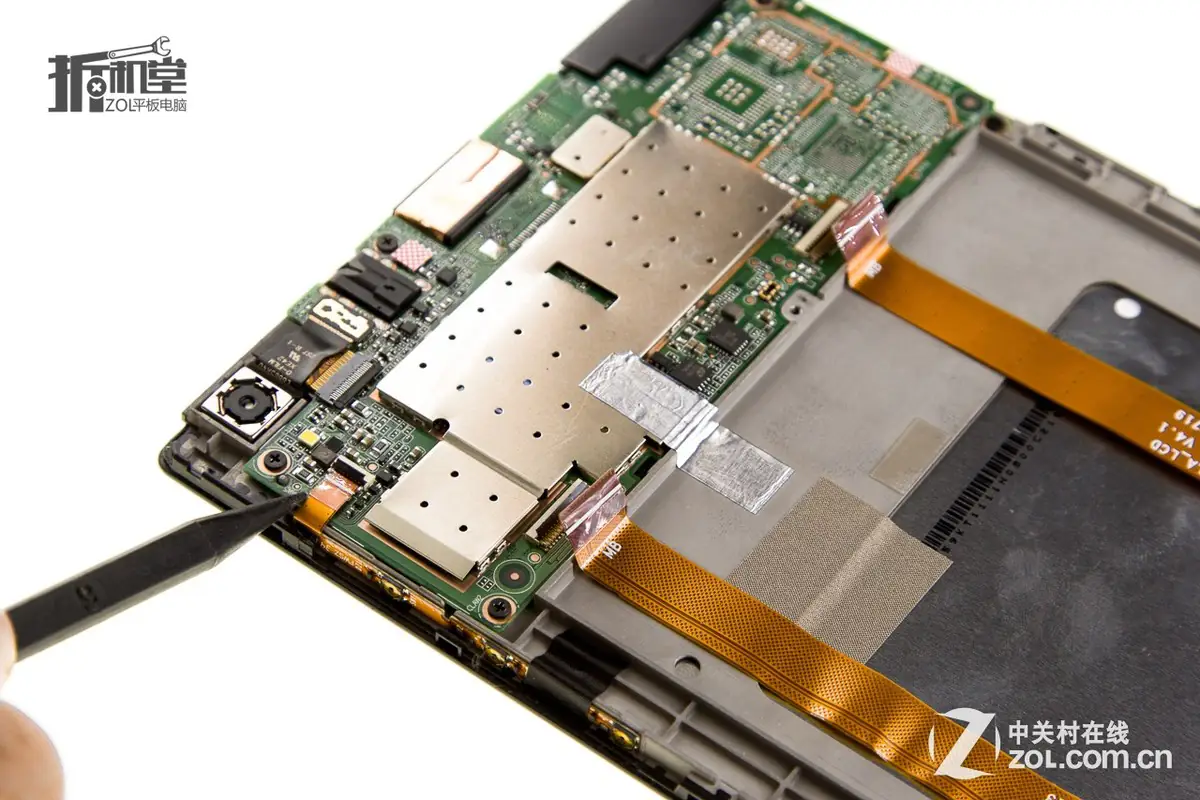

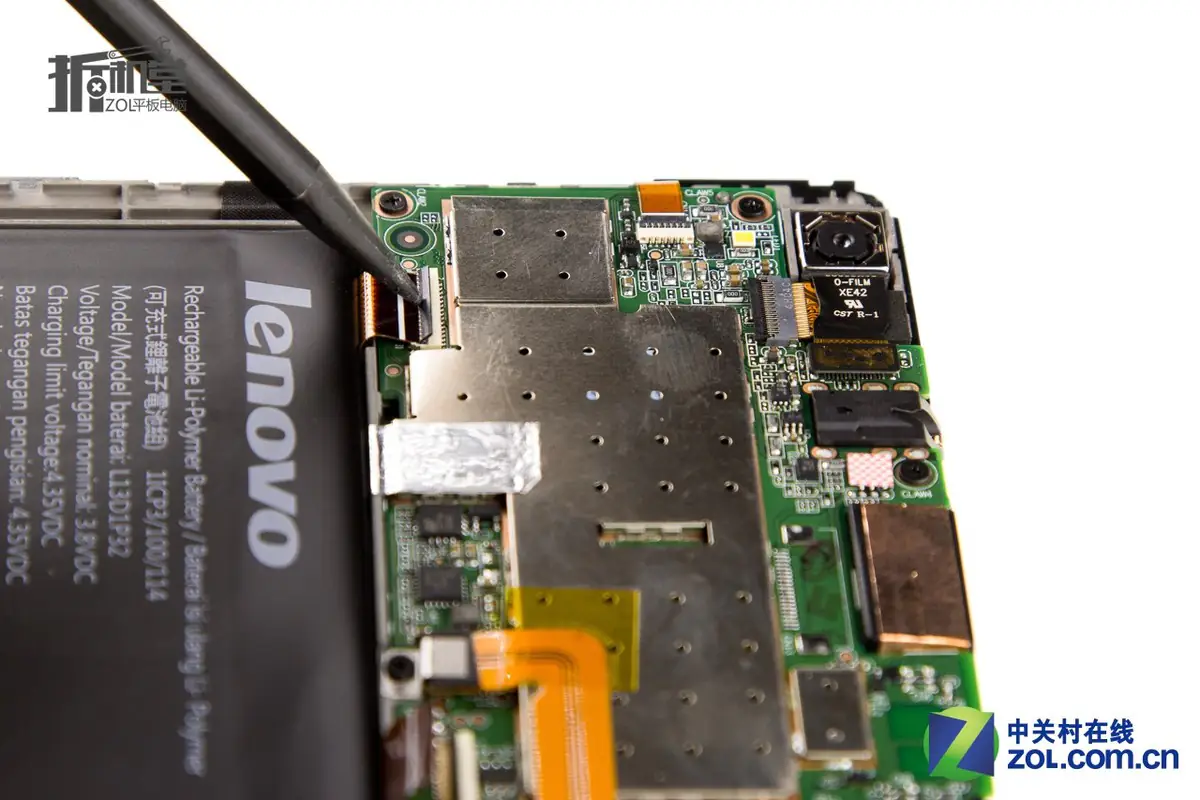

Disconnect the rear camera cable.

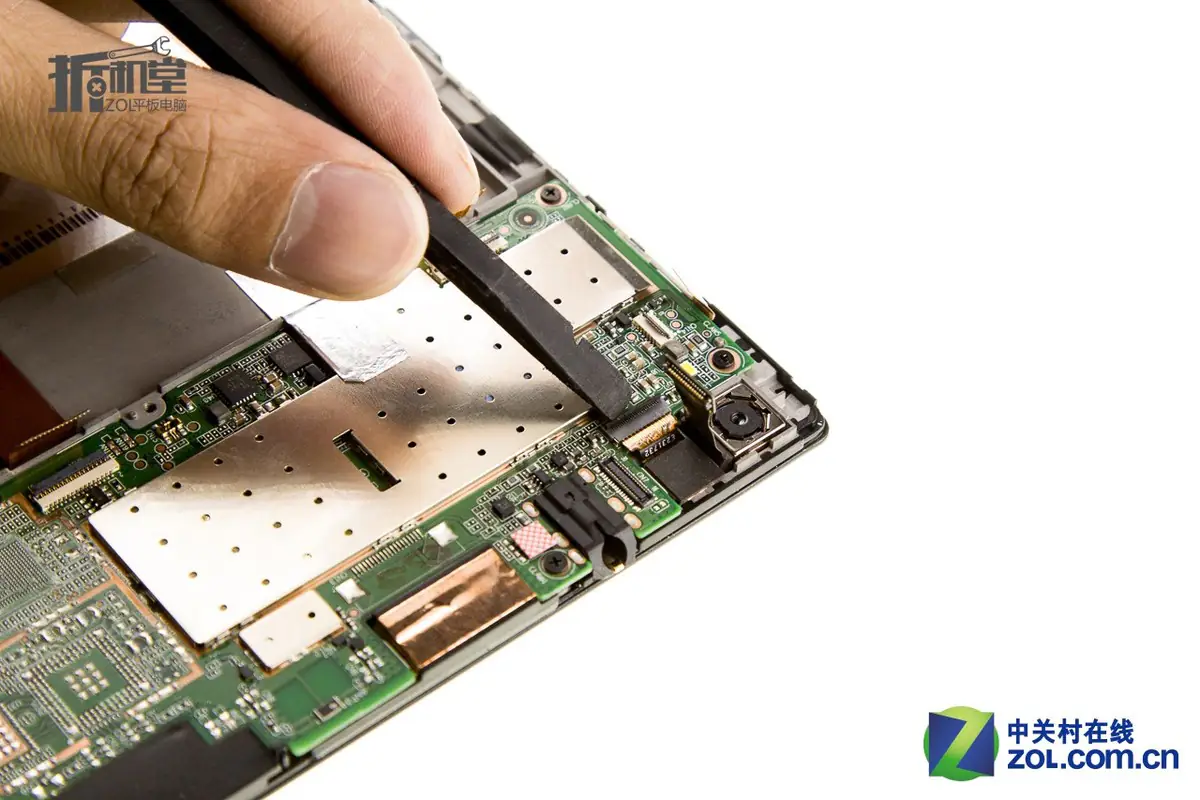

Disconnect the front camera cable.

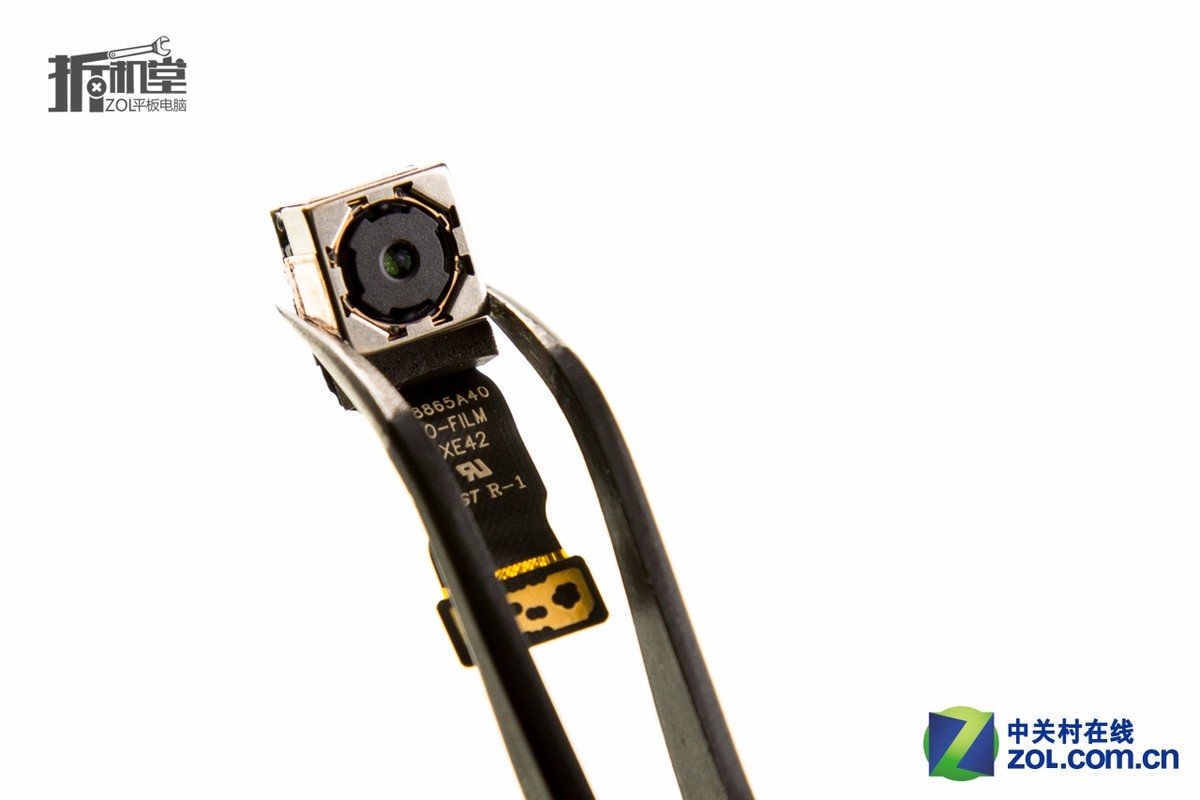

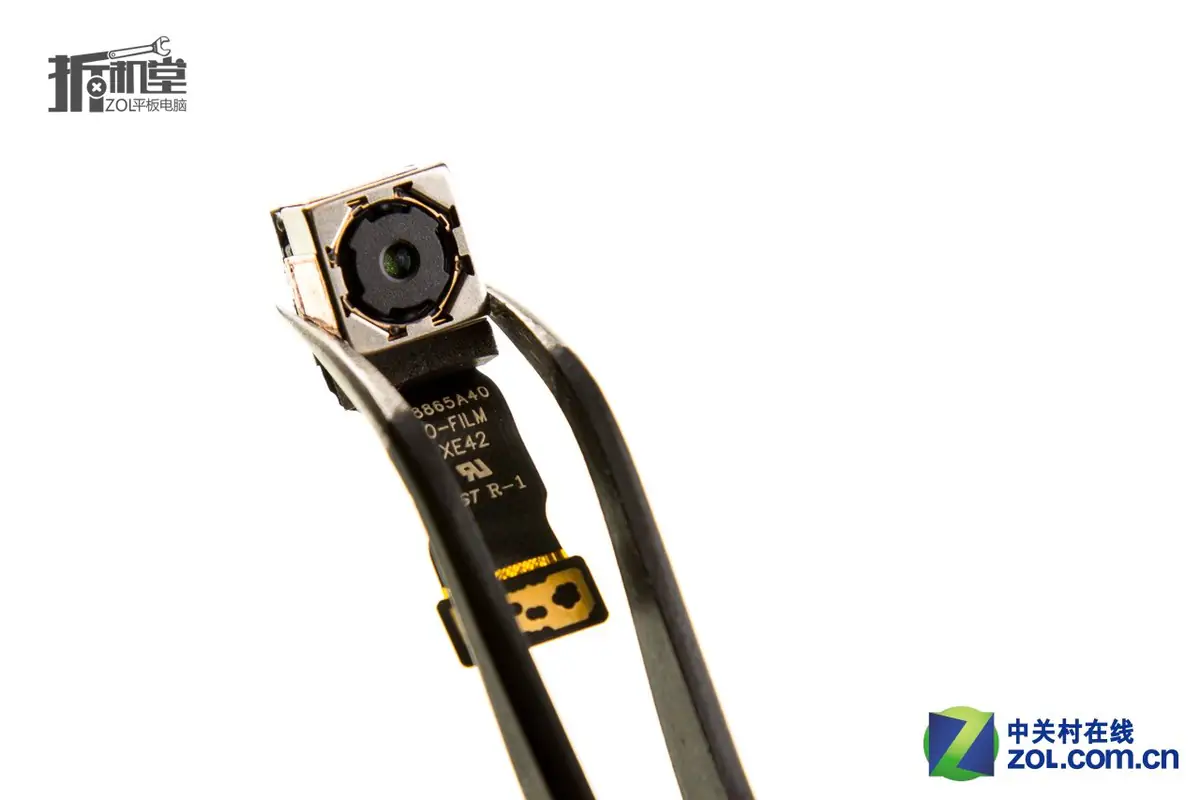

Lenovo Tab S8-50 rear camera, 8MP

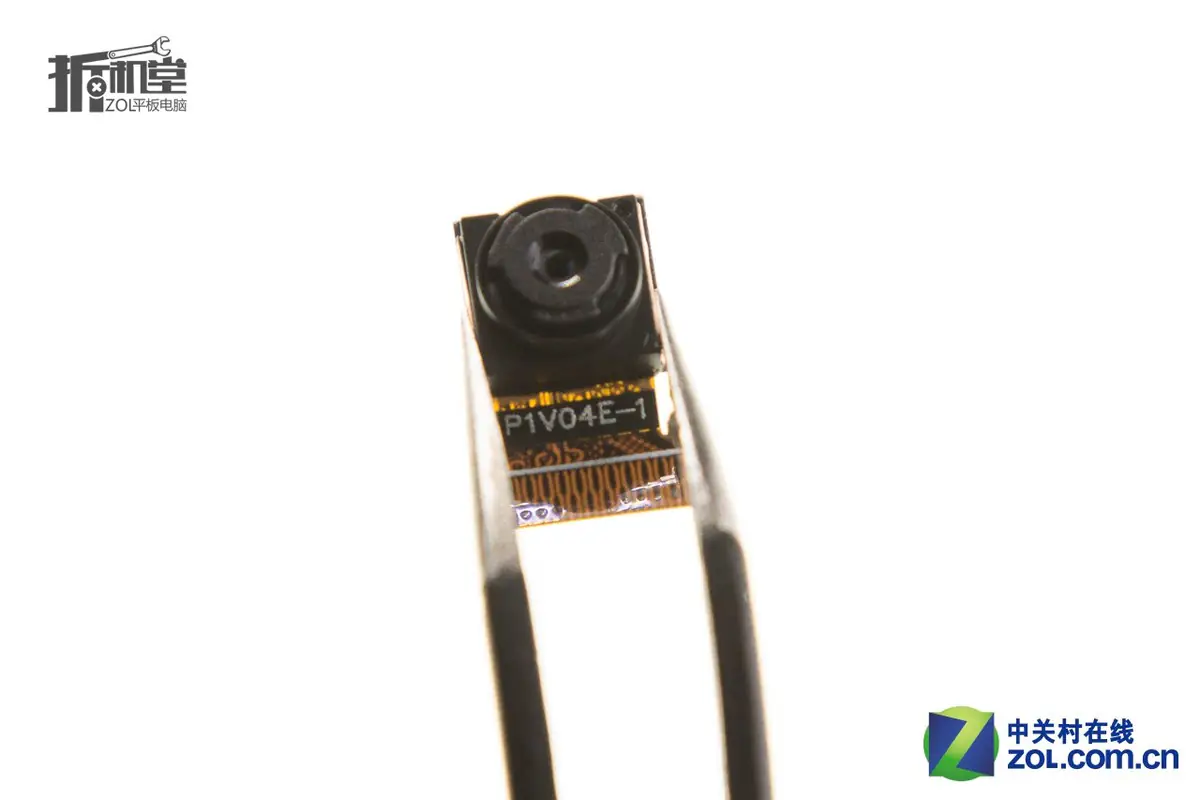

Lenovo Tab S8-50 front camera, 1.6MP

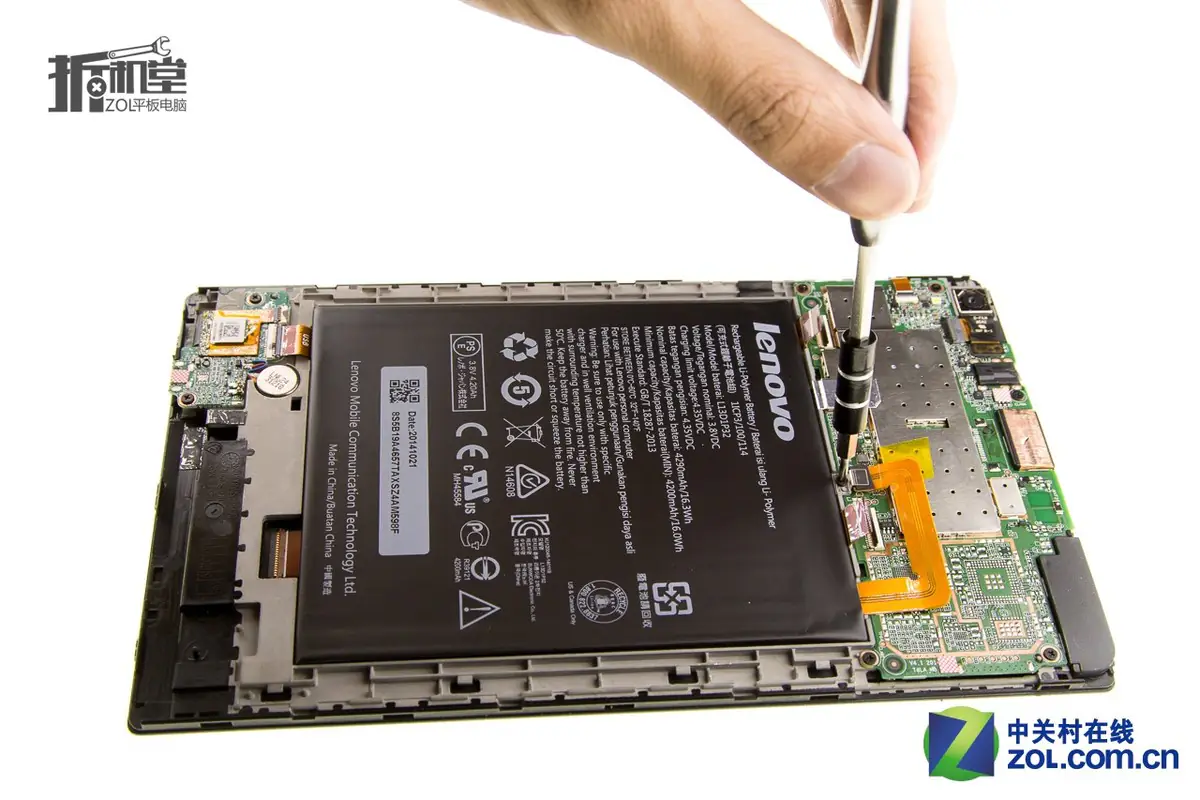

Remove five screws securing the motherboard.

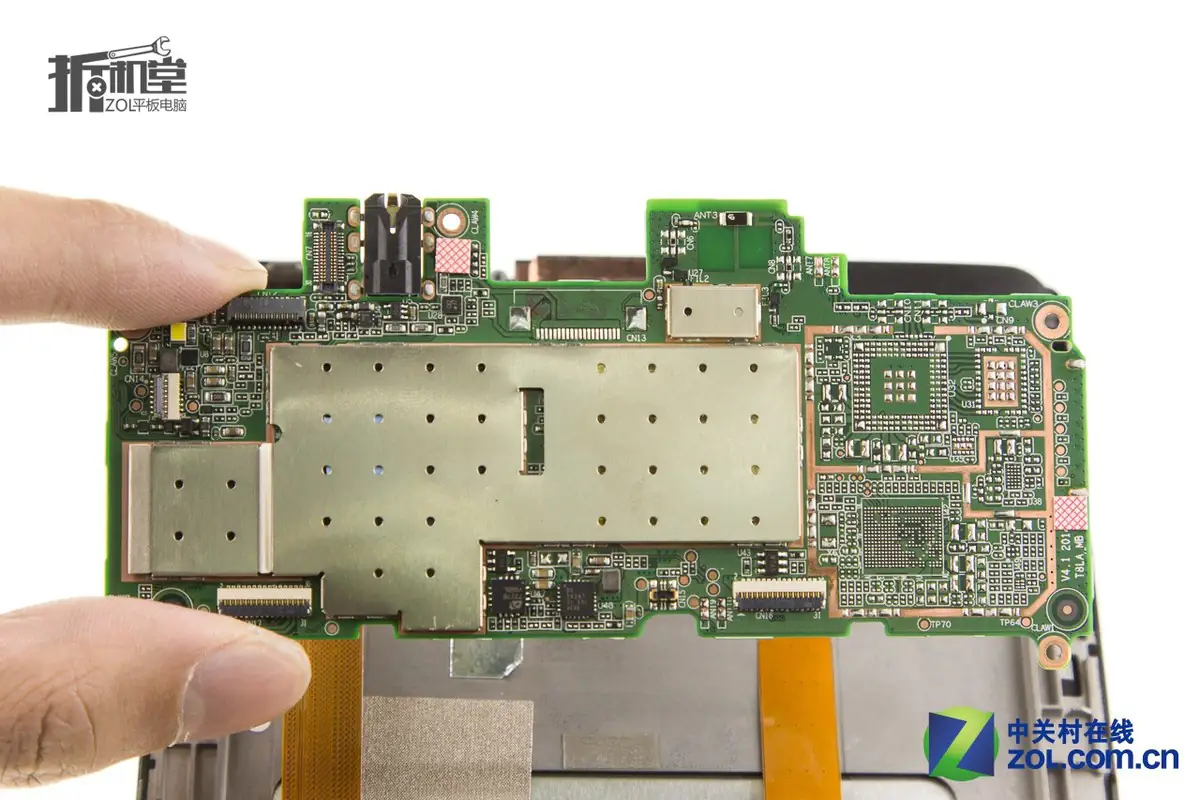

Remove the motherboard from the tablet body.

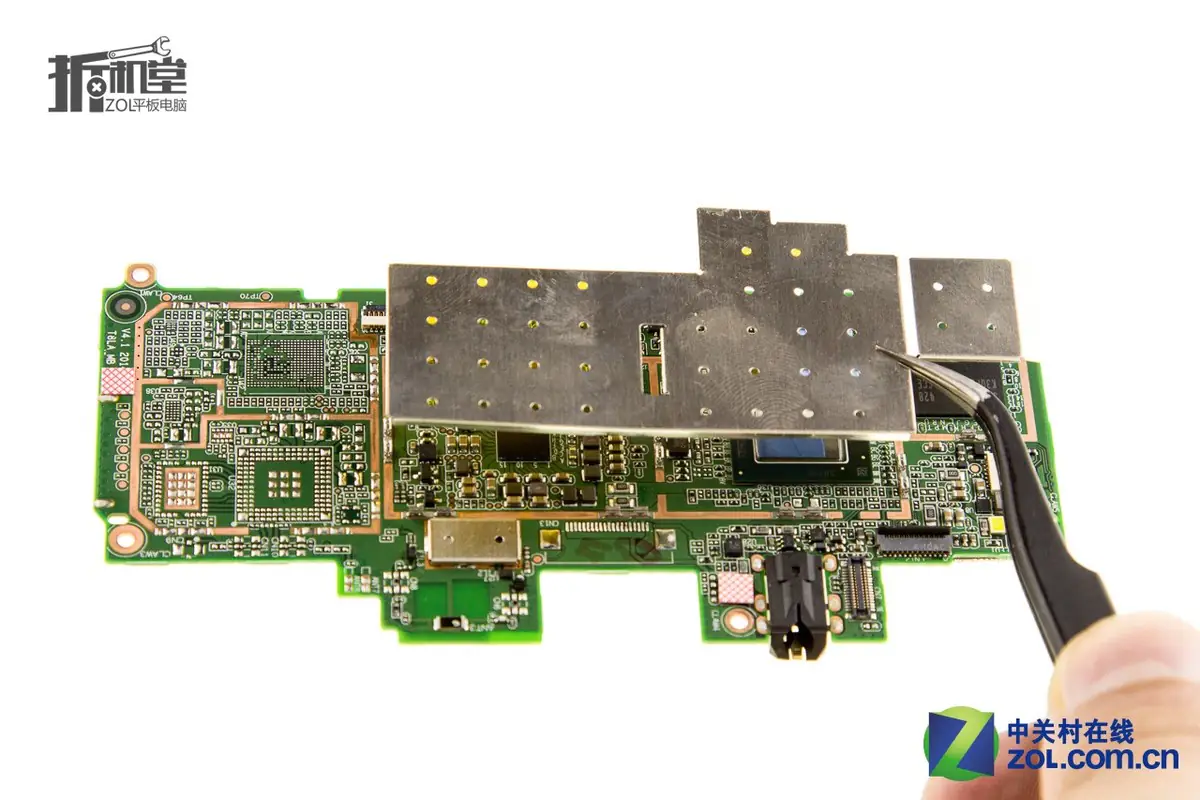

Remove the metal shield.

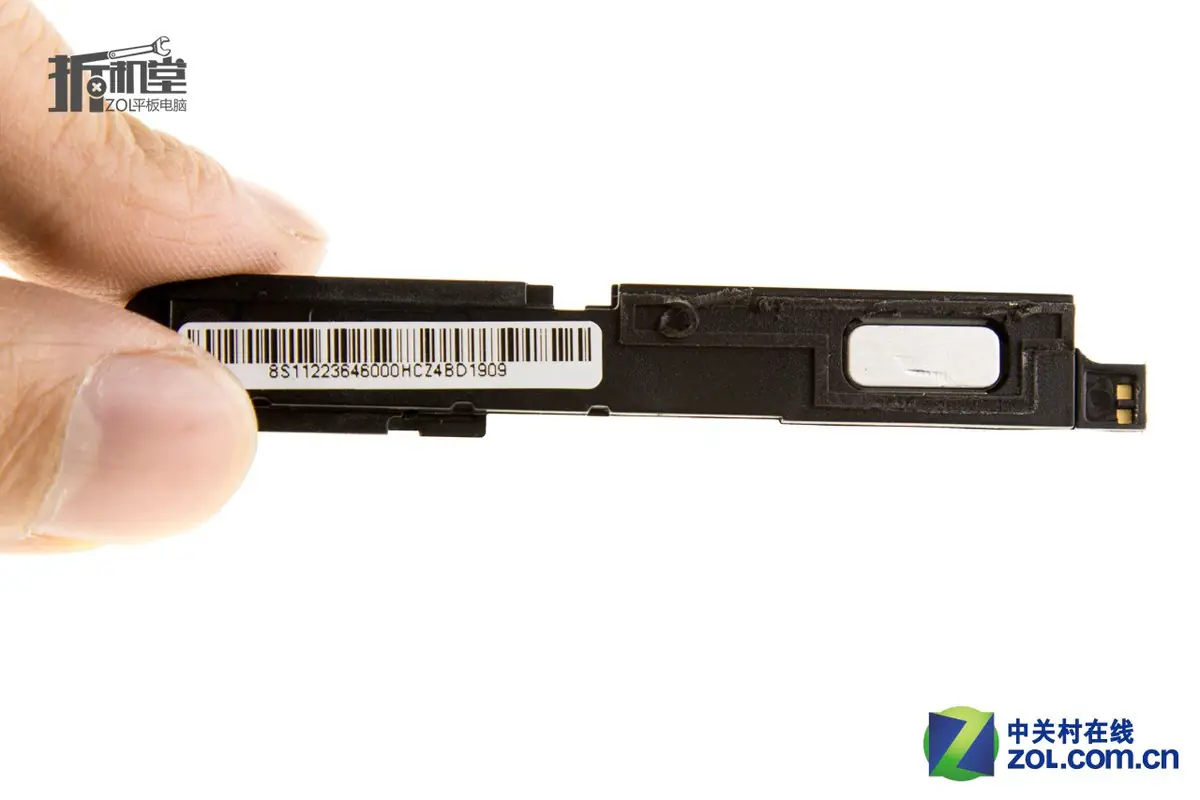

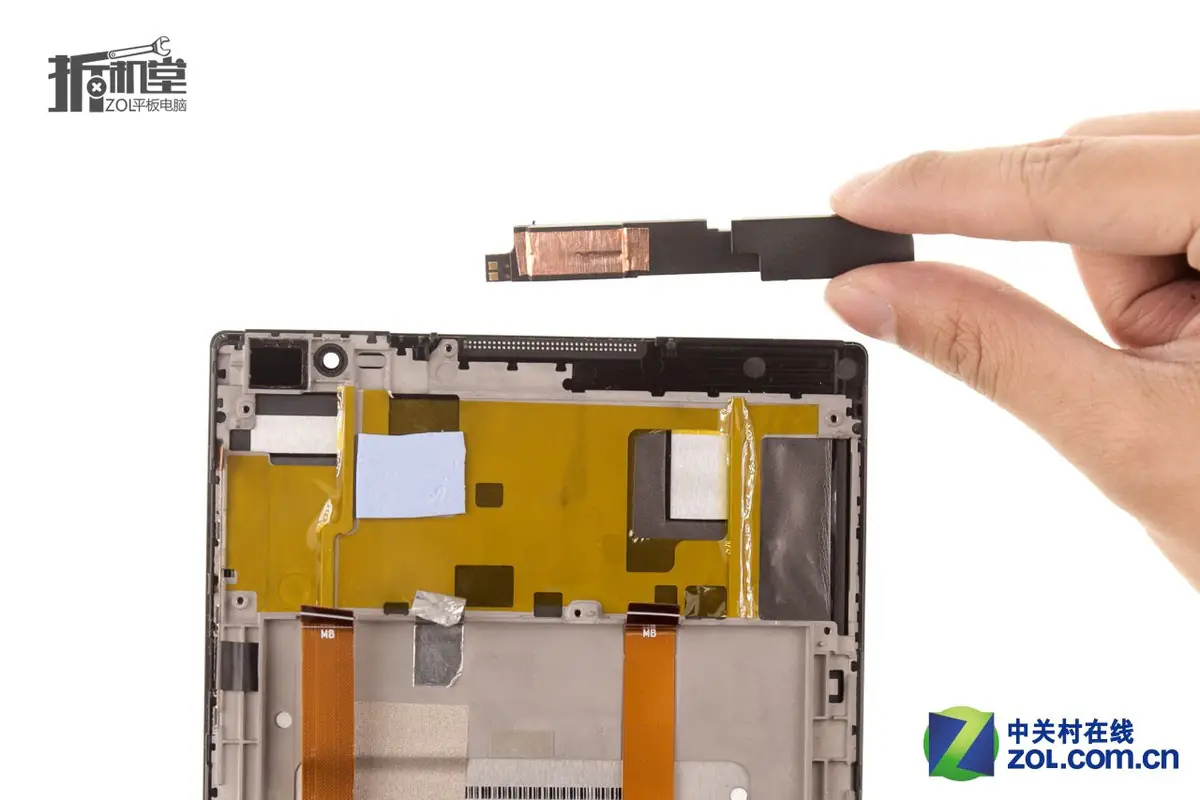

Remove the top speaker.

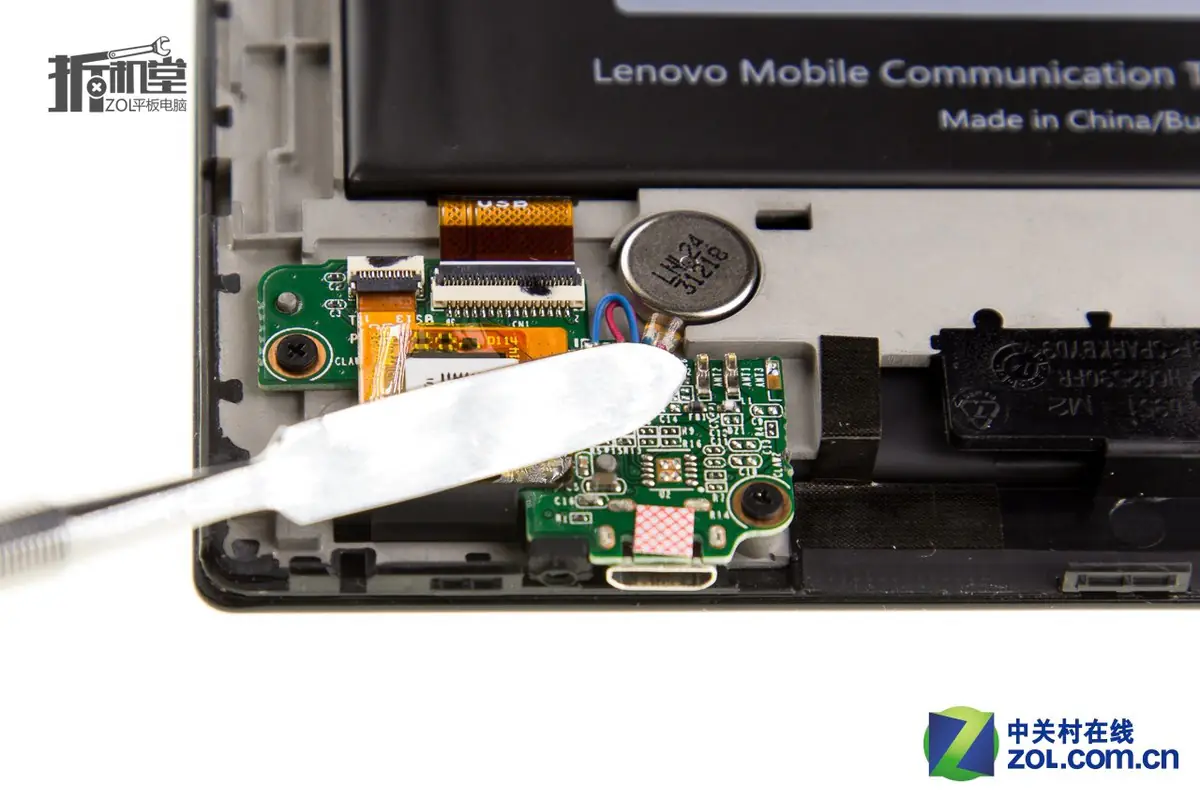

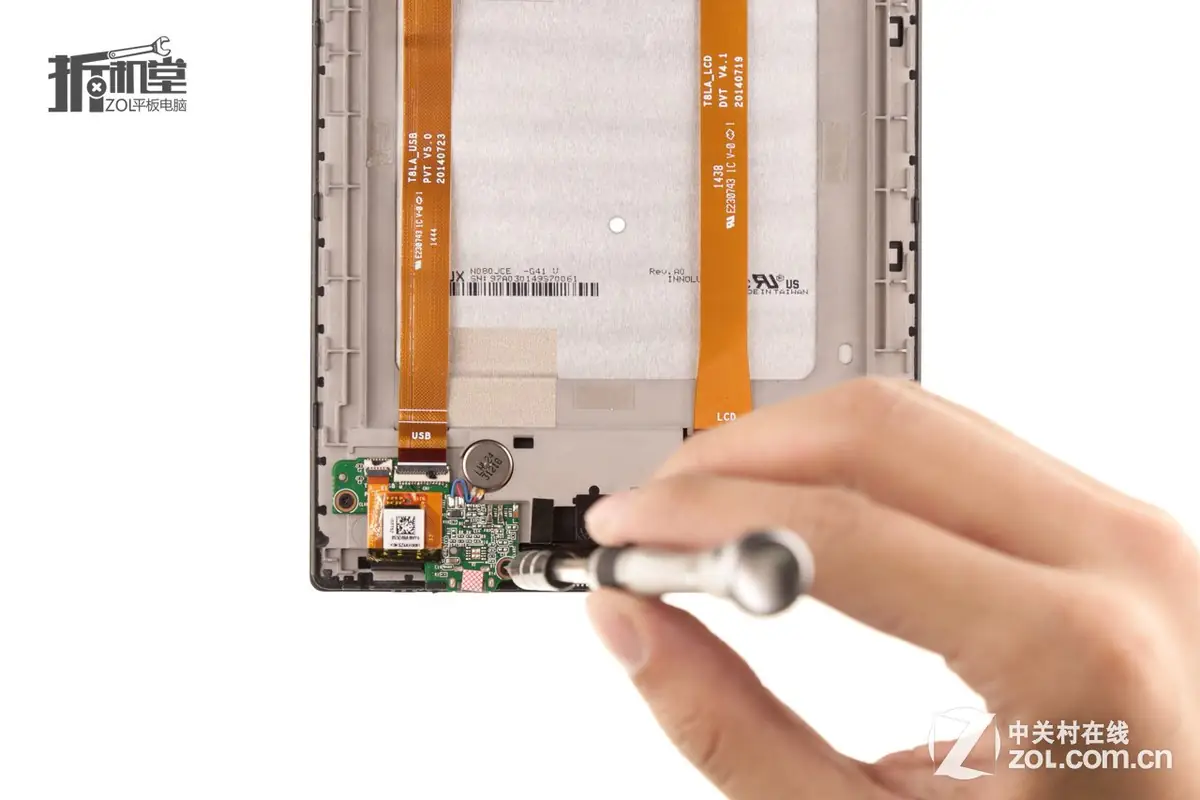

Remove two screws securing the PCB board.
Disconnect the touch cable. Remove the PCB board.

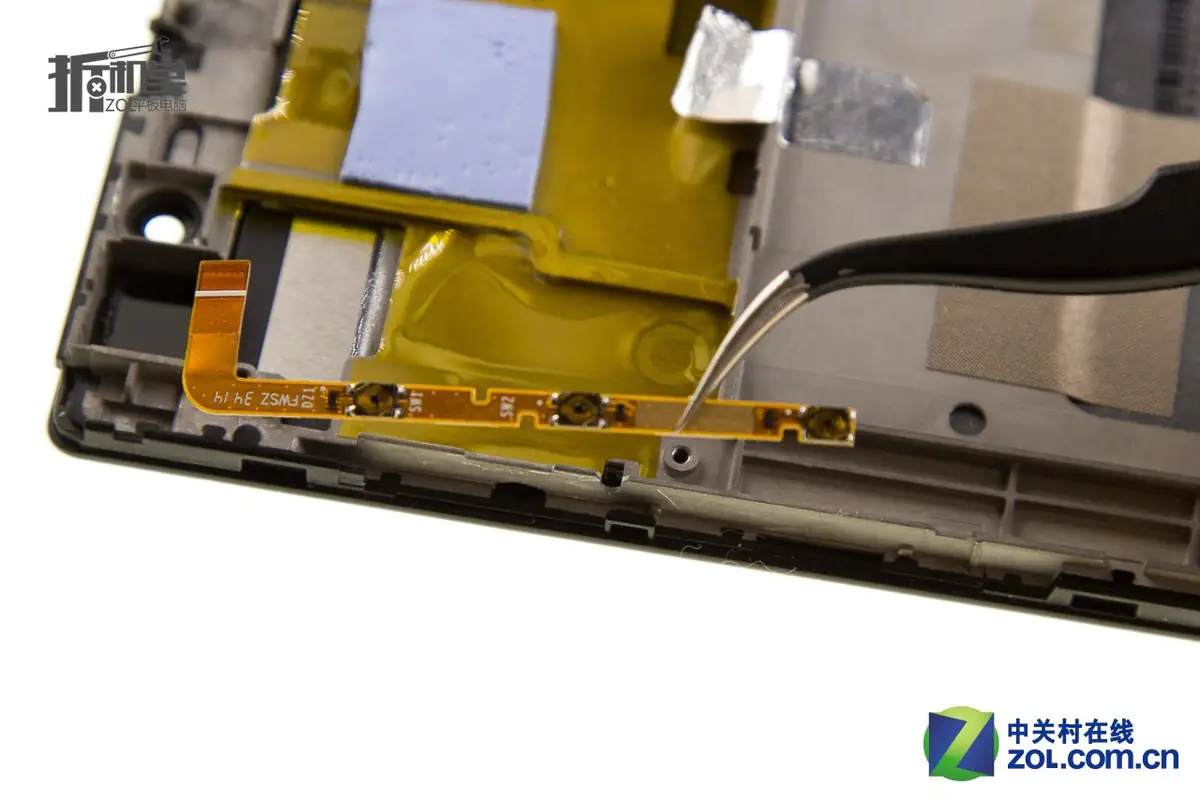

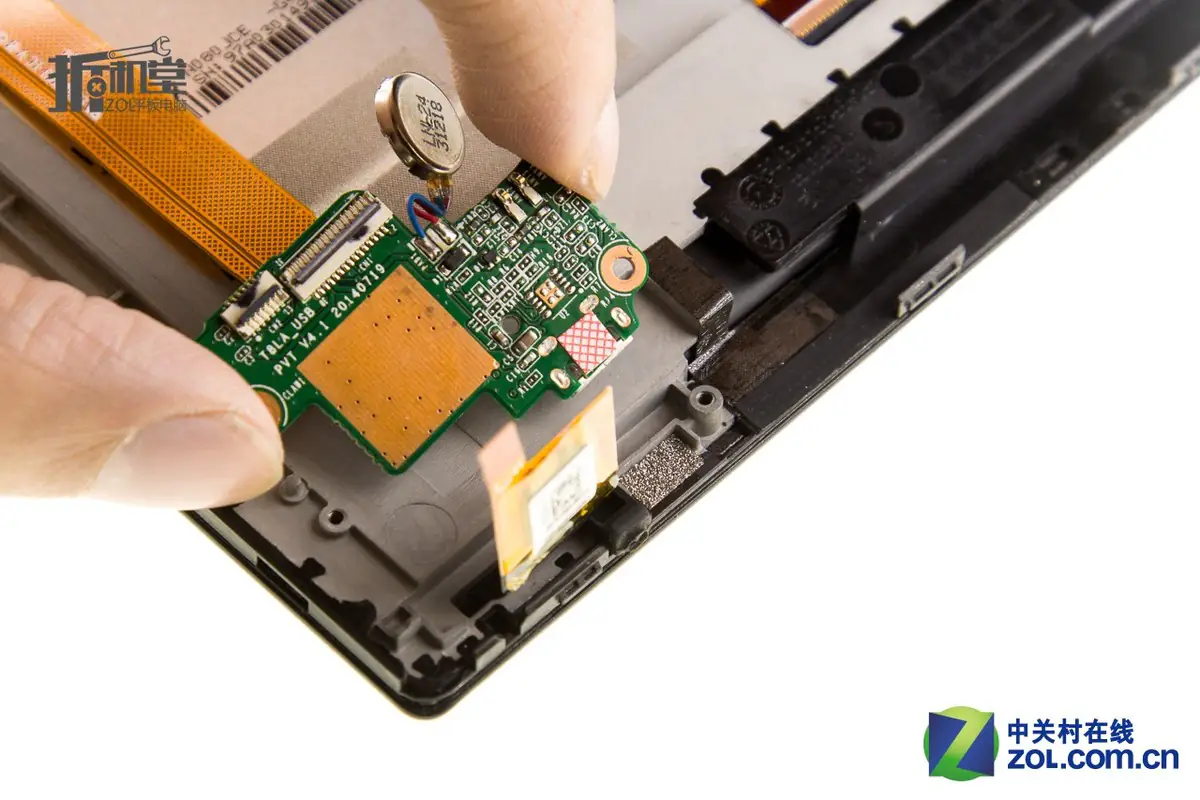

Remove the button board.

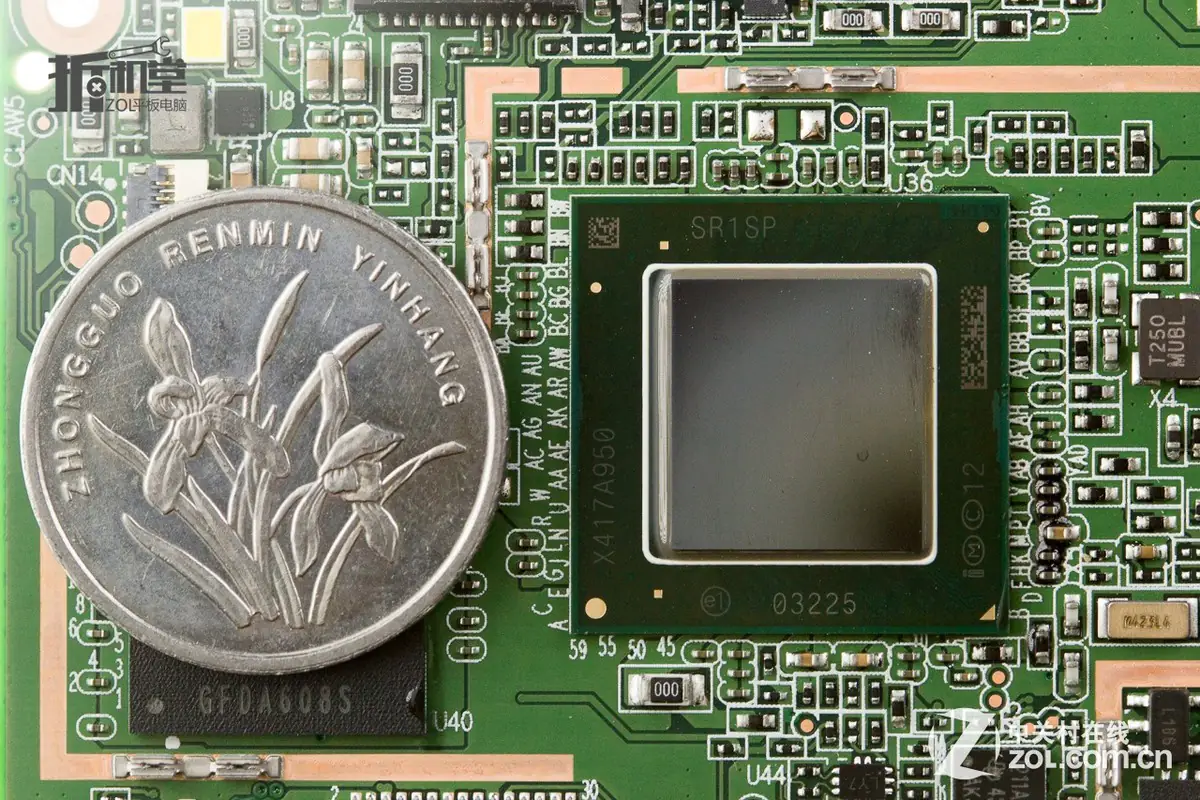

Intel Z3745 processor

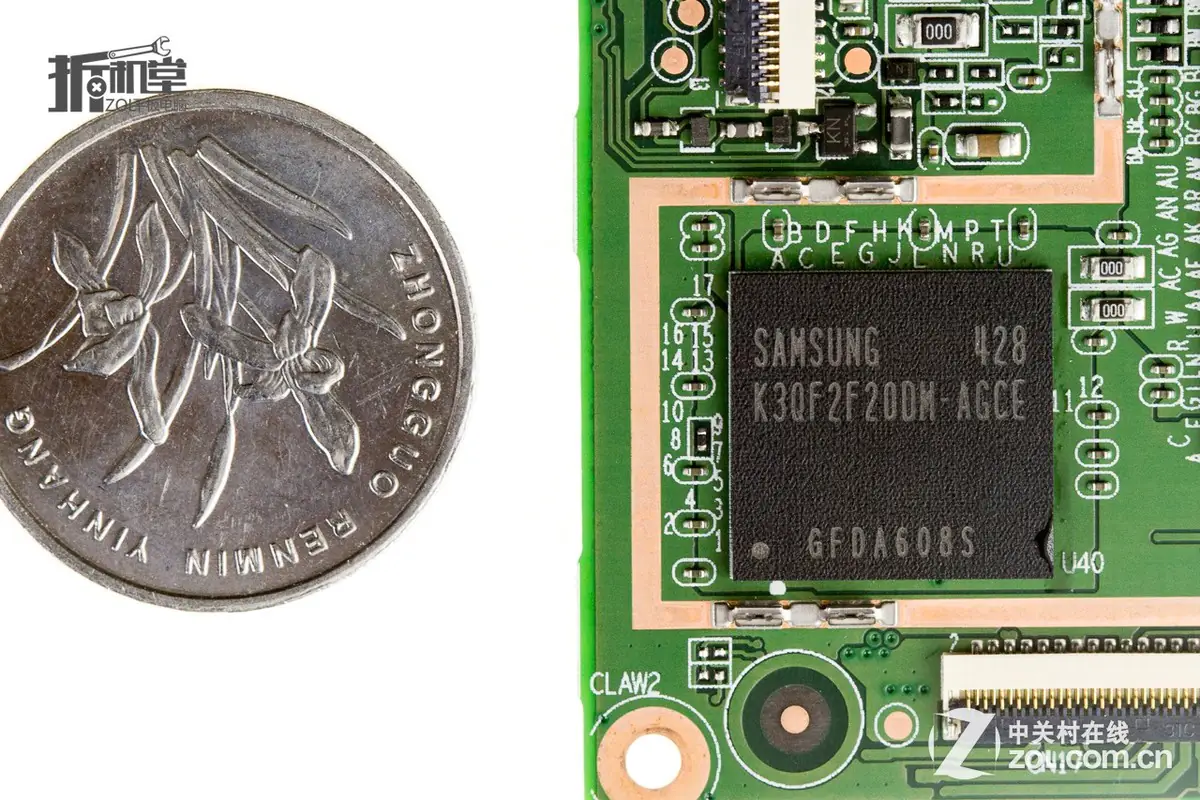

Samsung K3QF2F20DM－AGCE 2GB RAM

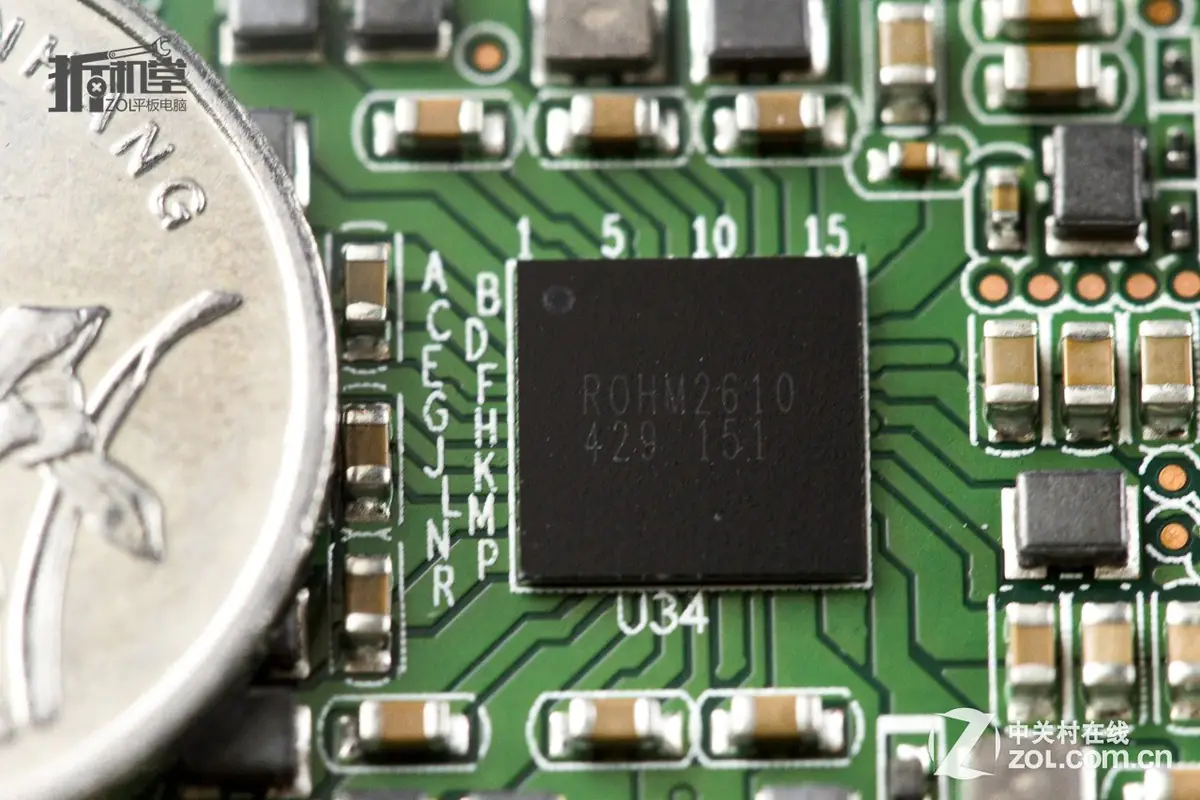

ROHM2610 power management chip

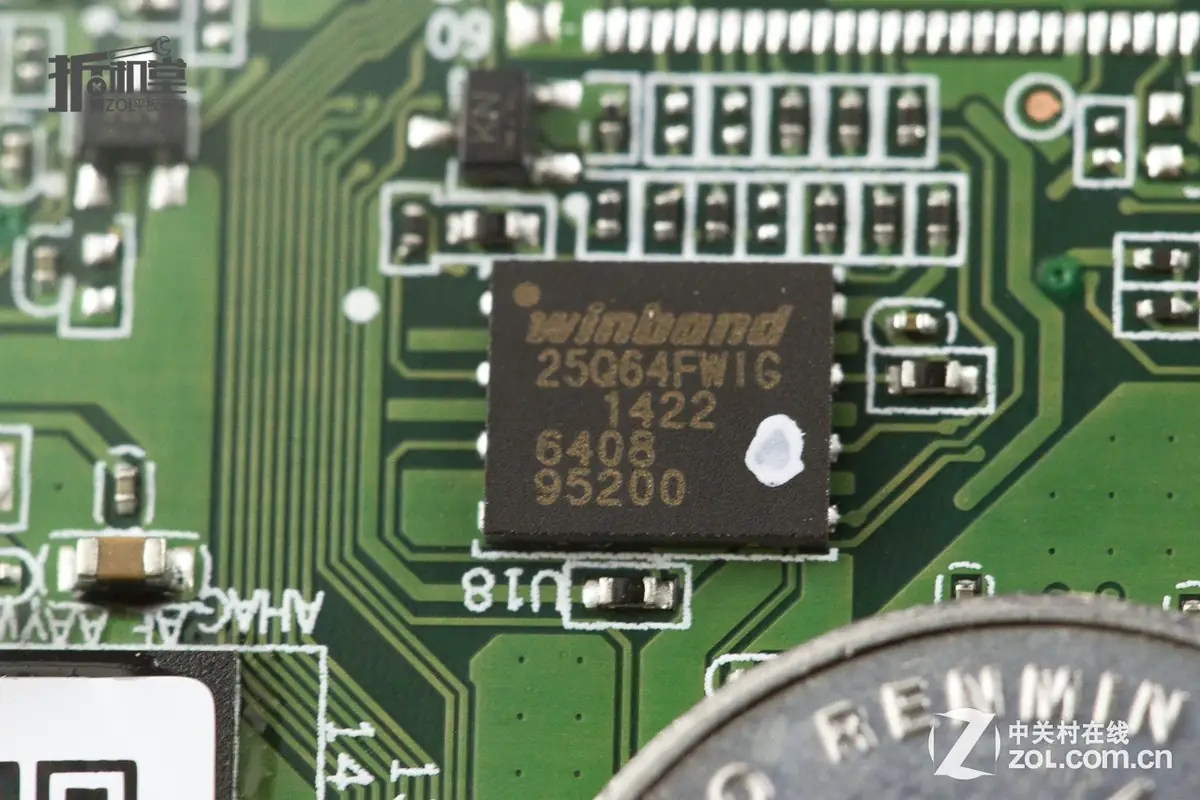

Winbond 25Q64FWIG audio decoder chip

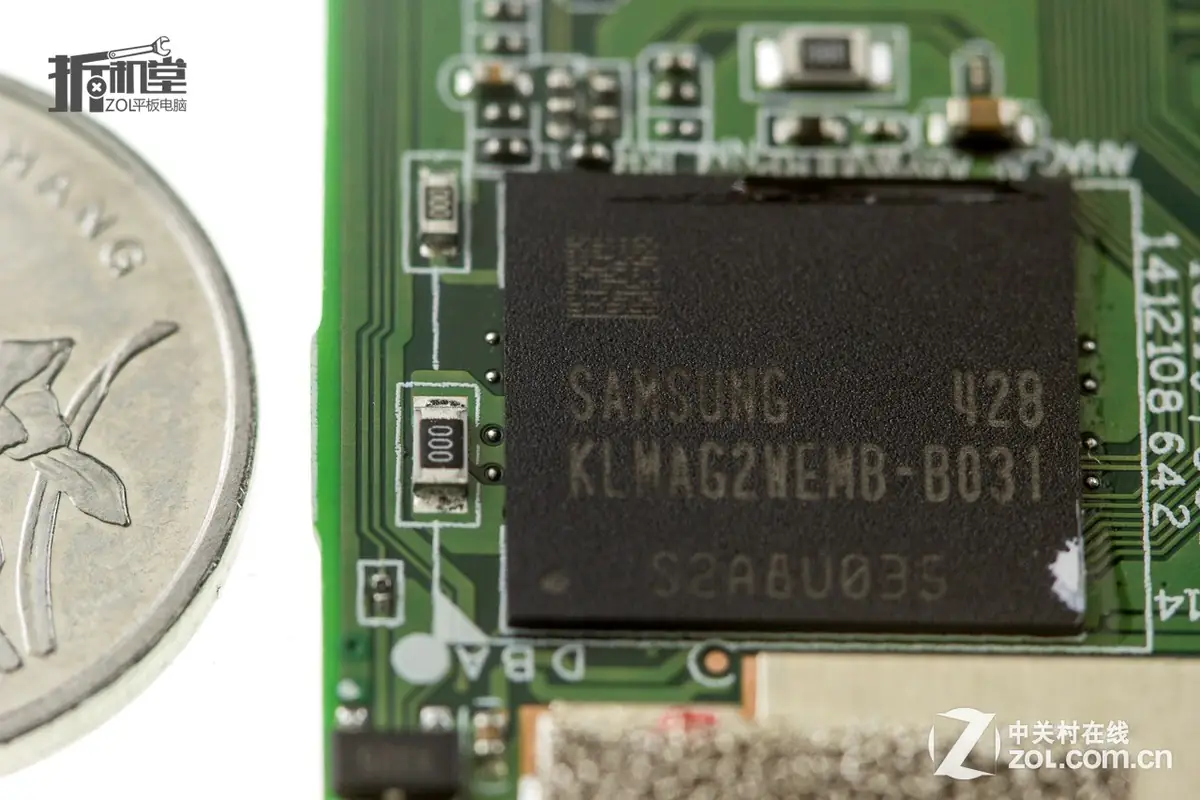

Samsung 16GB eMMC chip

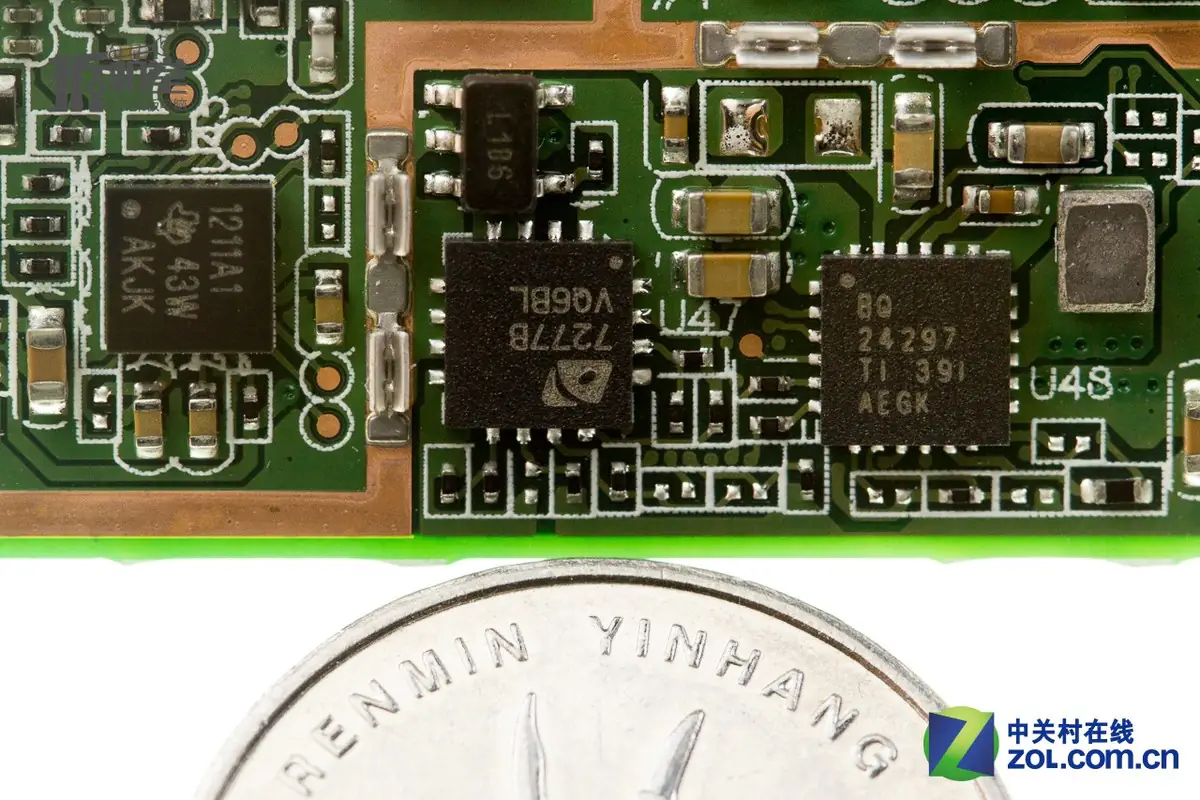

TI BQ24297 charge management chip

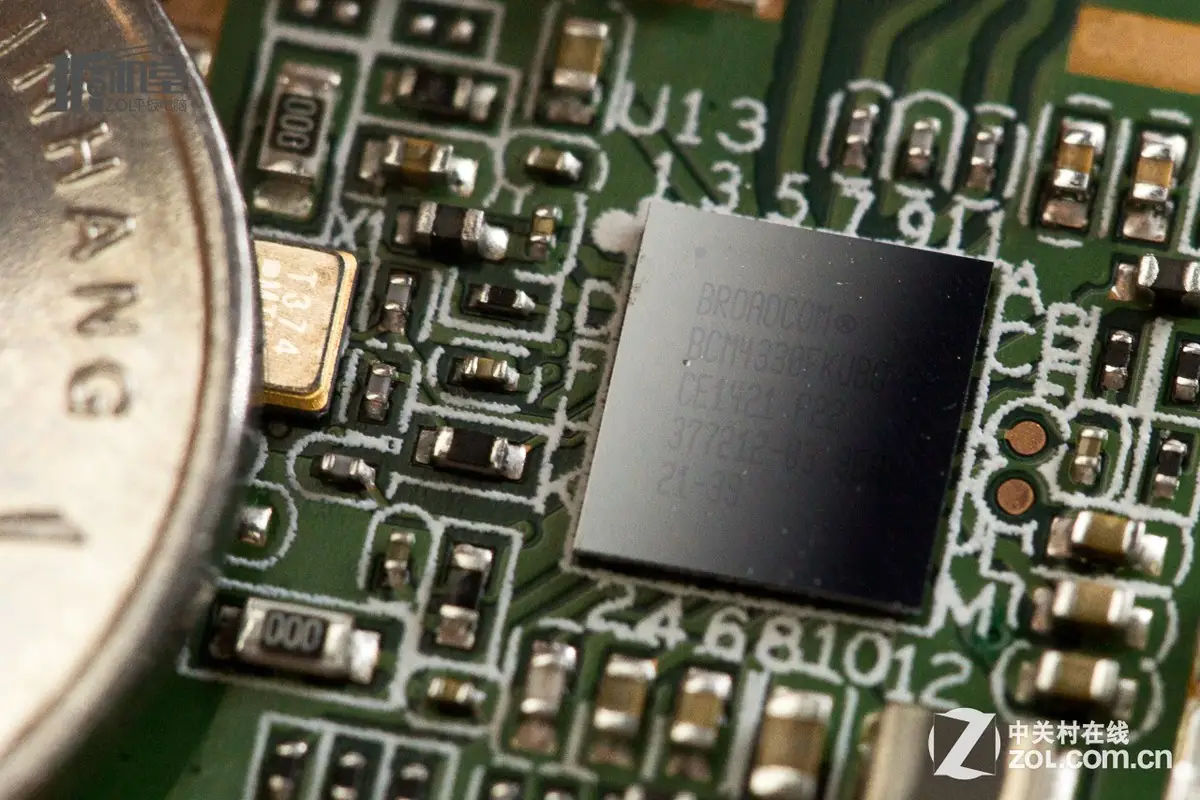

Broadcom BMC4330 wireless module
