Lenovo Thinkpad Tablet 2 Disassembly
In this guide, I’ll explain how to disassemble the Lenovo ThinkPad Tablet 2 to remove and replace the battery, back cover, camera, speakers, and motherboard.
Want to stay connected to MyFixGuide.com? Follow us on Facebook to check out the latest teardown news.

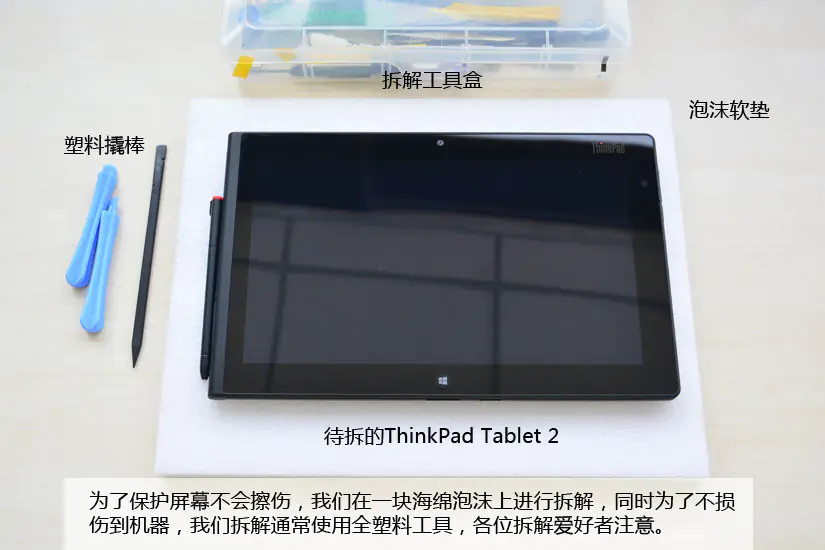

In order to protect the screen, we will disassemble the tablet on the sponge.

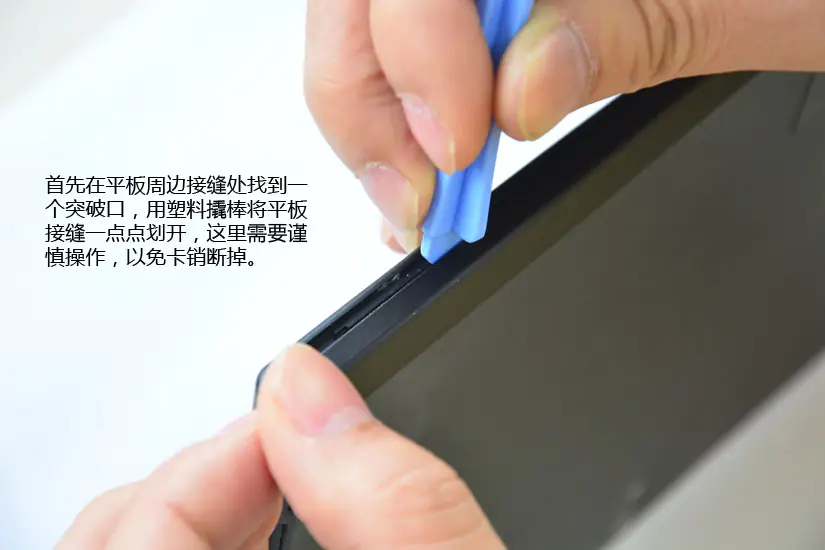

Insert the plastic pry bar. Pry up the back cover.
Be careful. There are some snaps fixed the back cover. Please do not damage the snaps.

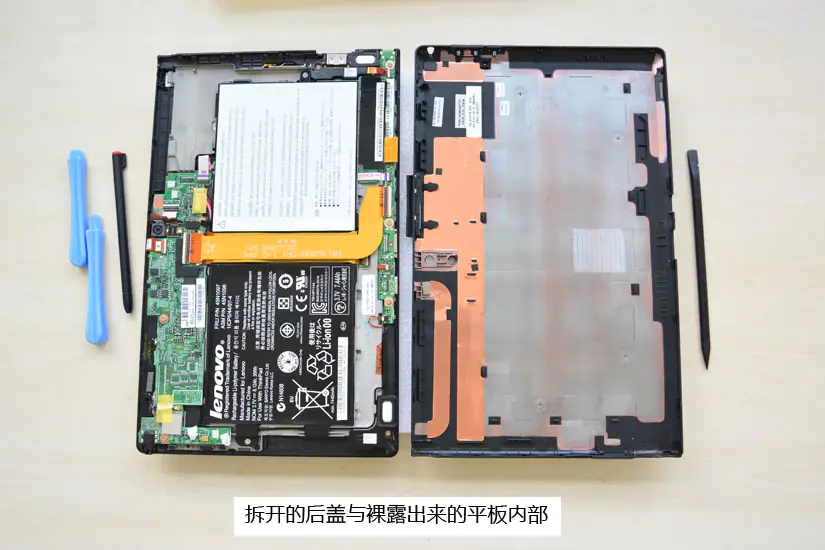

The ThinkPad Tablet 2 back cover has been removed.

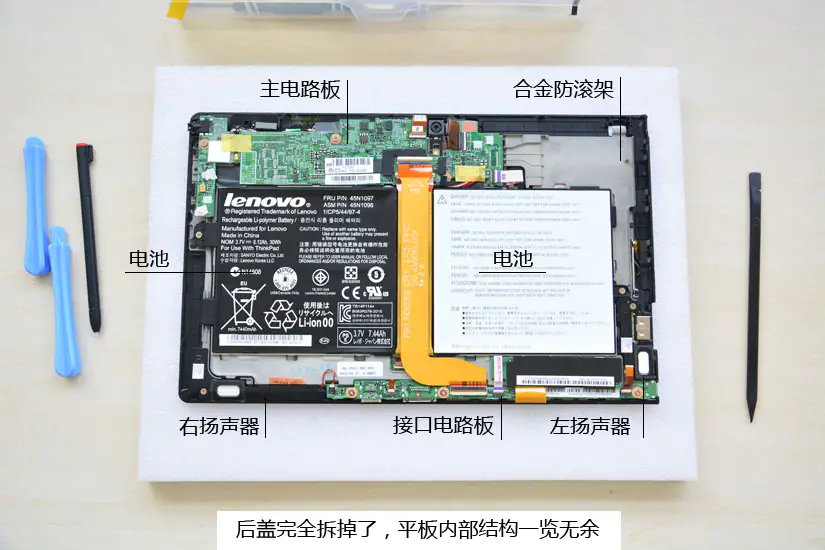

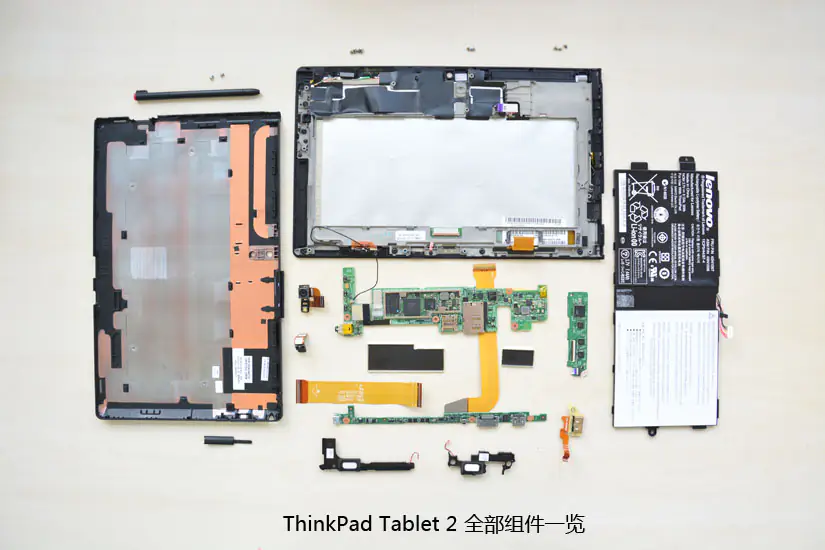

Now you can access the battery, speaker, and motherboard.

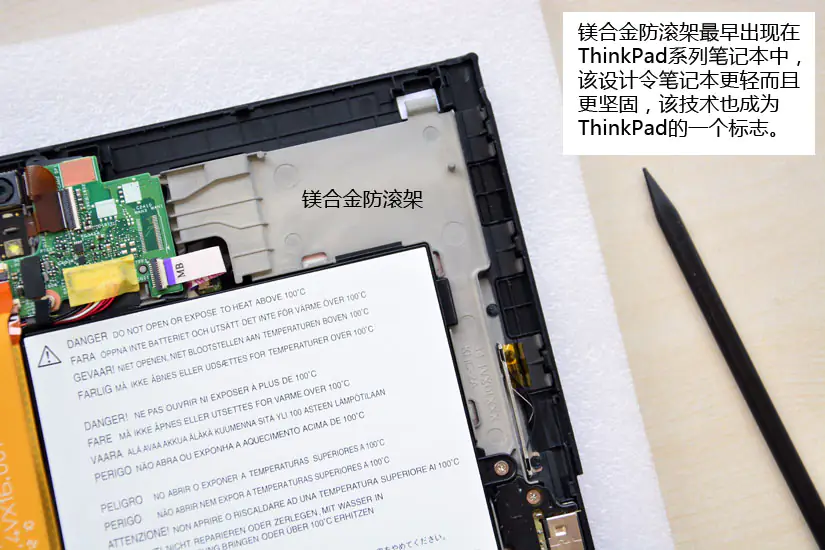

Magnesium alloy roll cage.

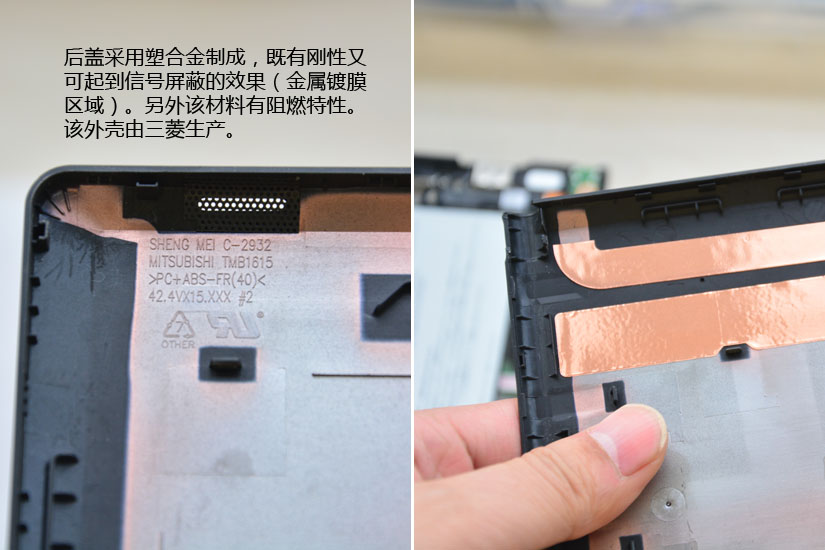

The back cover is made of plastic alloy.

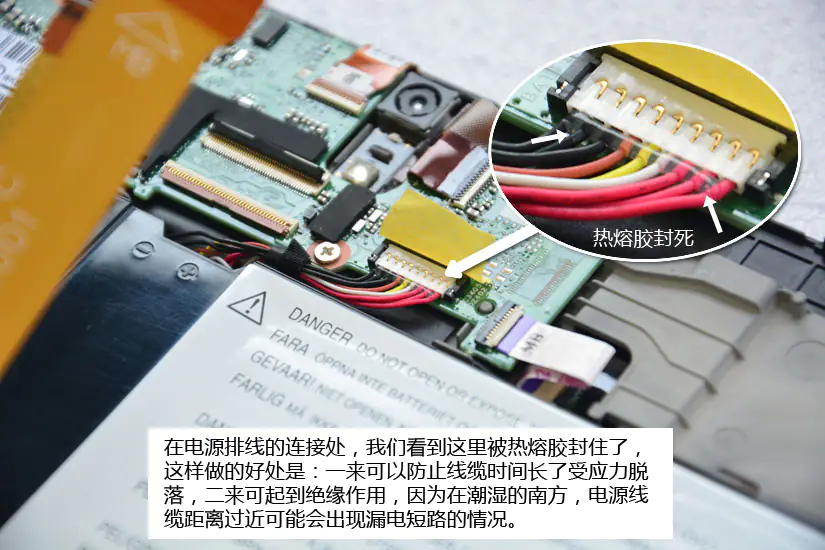

Disconnect the yellow cable; the cable is fixed with glue.

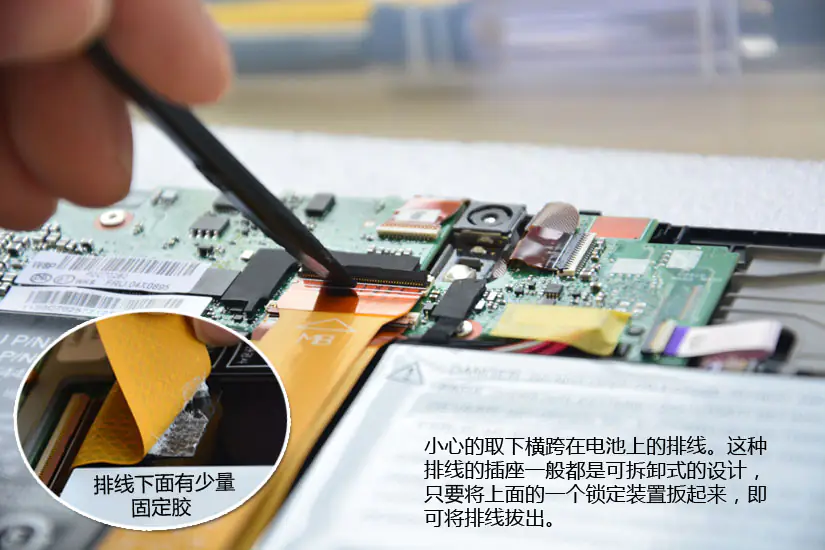

Disconnect the battery power cable and remove the screws securing the battery.

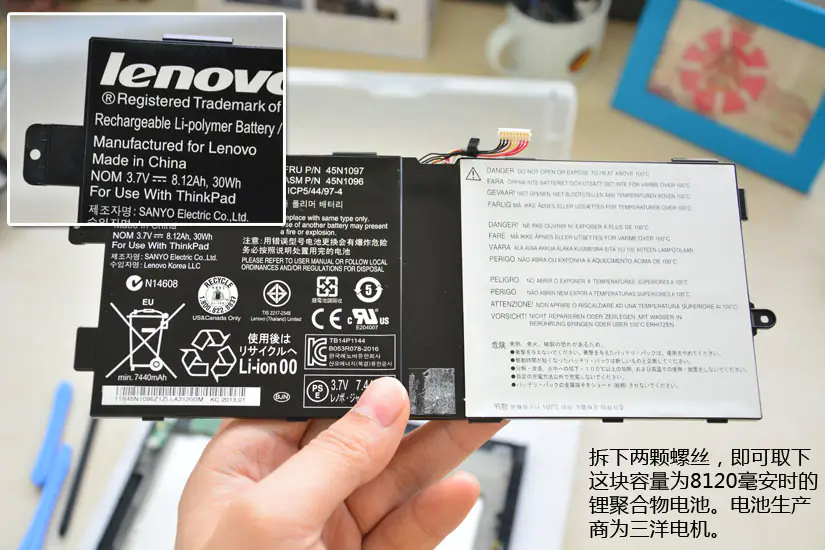

The tablet installed a 3.7v, 30wh Li-polymer battery. Lenovo model: 45N1097, 45N1096.

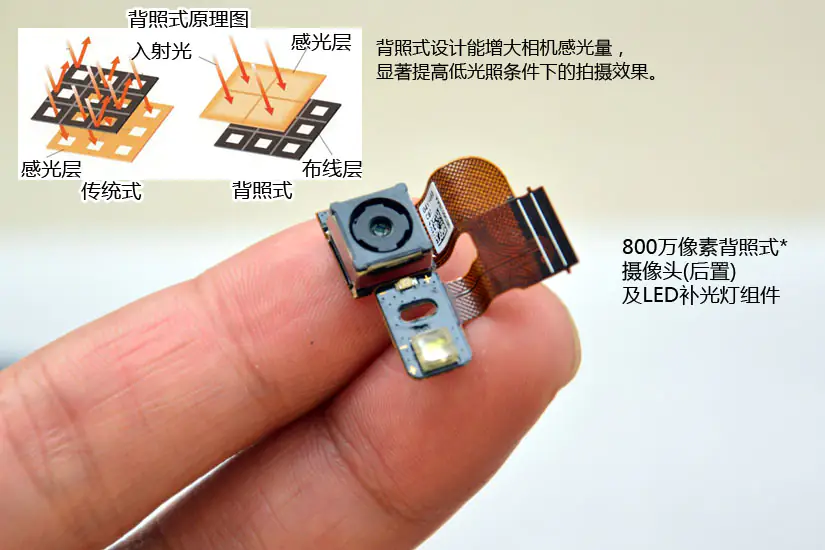

Here is the rear camera and LED fill light module.

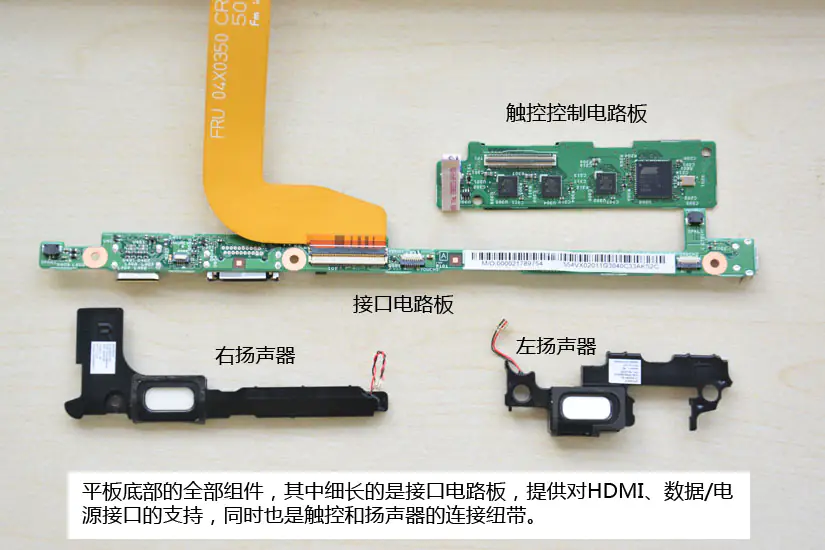

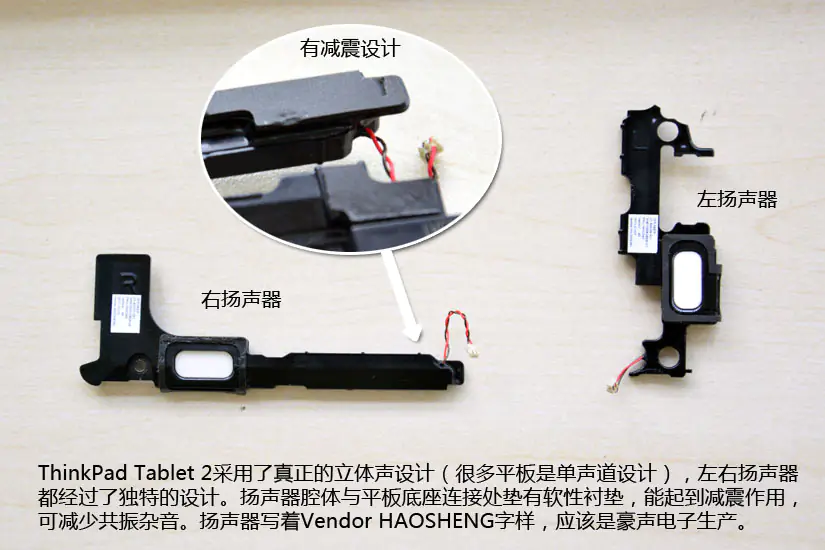

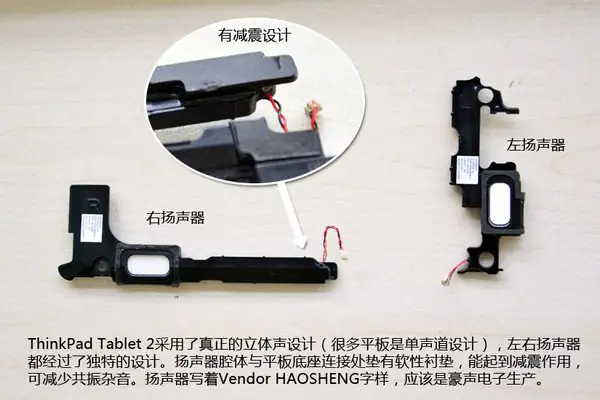

The speakers coming from Haosheng.

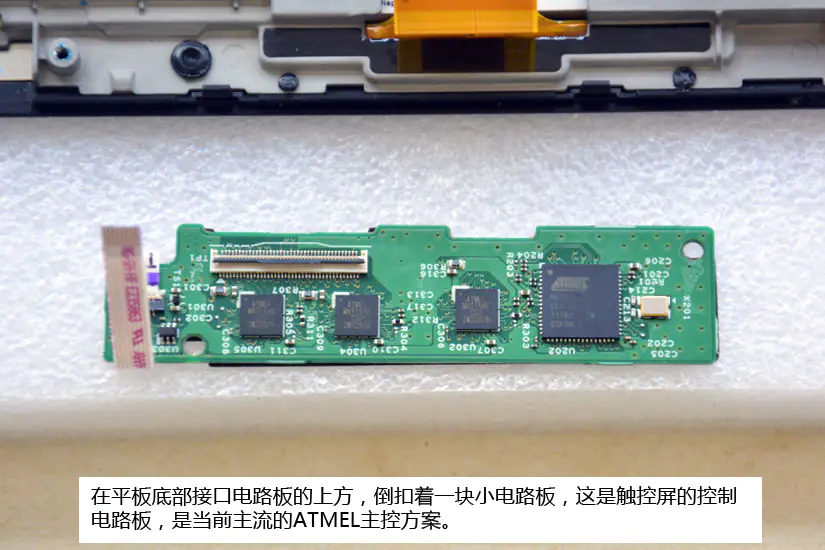

Touchscreen board

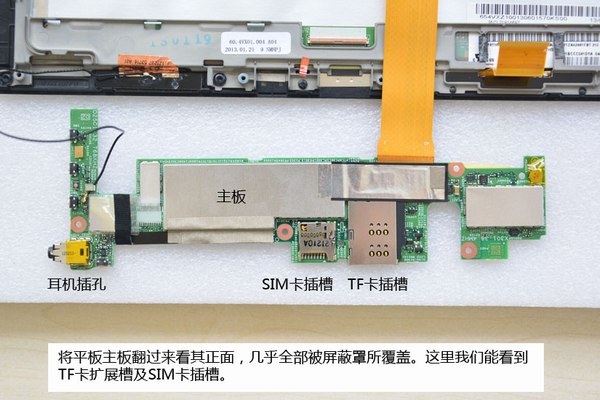

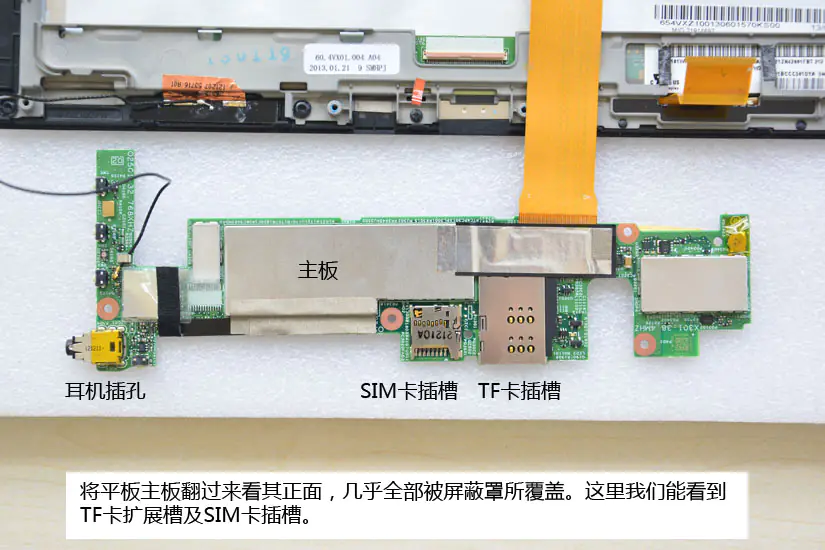

Lenovo ThinkPad Tablet 2 motherboard. There are SIM and TF card slots on the motherboard.

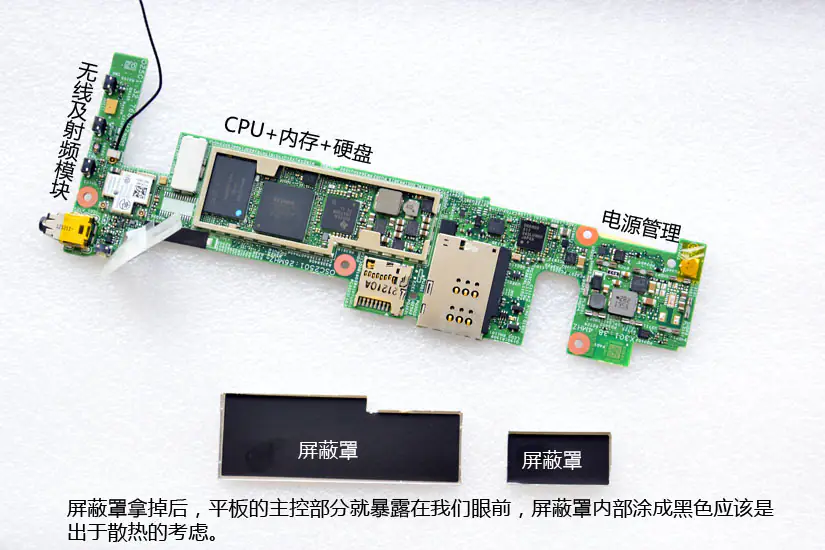

Remove the metal shield. You can find the SSD, RAM, and CPU chips.

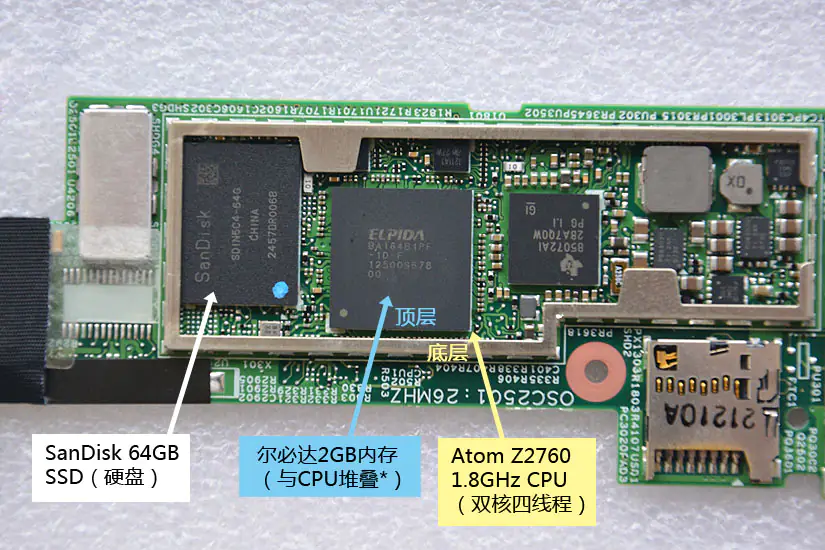

SanDisk 64GB SSD

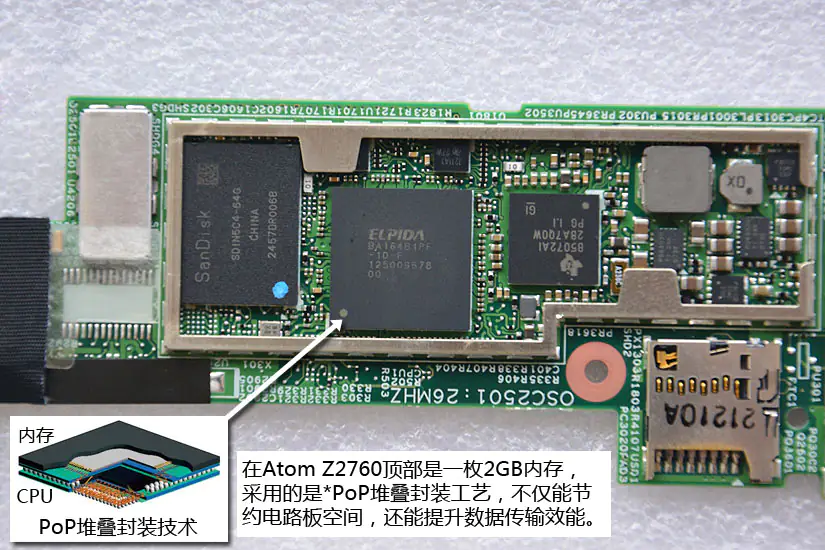

Elpida 2G ram and Intel Atom z2760 1.8GHz CPU

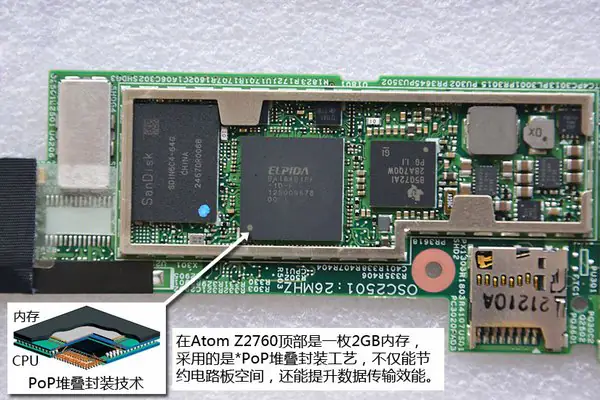

Elpida and Intel Atom z2760 package together
