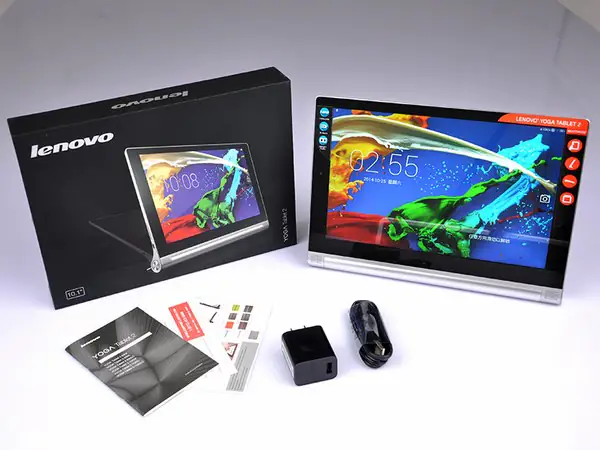

Lenovo Yoga Tablet 2 Teardown

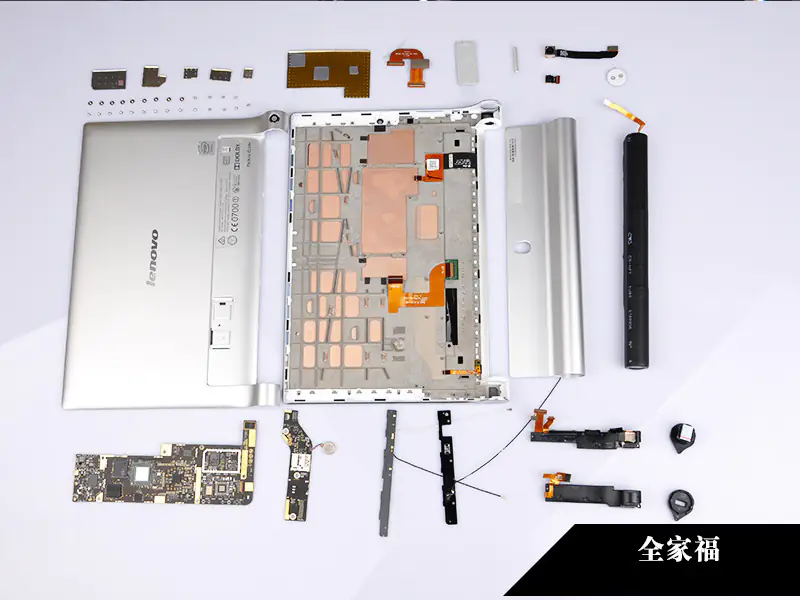

In this guide, I’ll explain how to disassemble the Lenovo Yoga Tablet 2 to remove the battery, rear camera, front camera, speakers, and motherboard.
Looking for more guides? Follow us on Facebook for all the latest repair news.
Lenovo Yoga Tablet 2 Teardown Step:

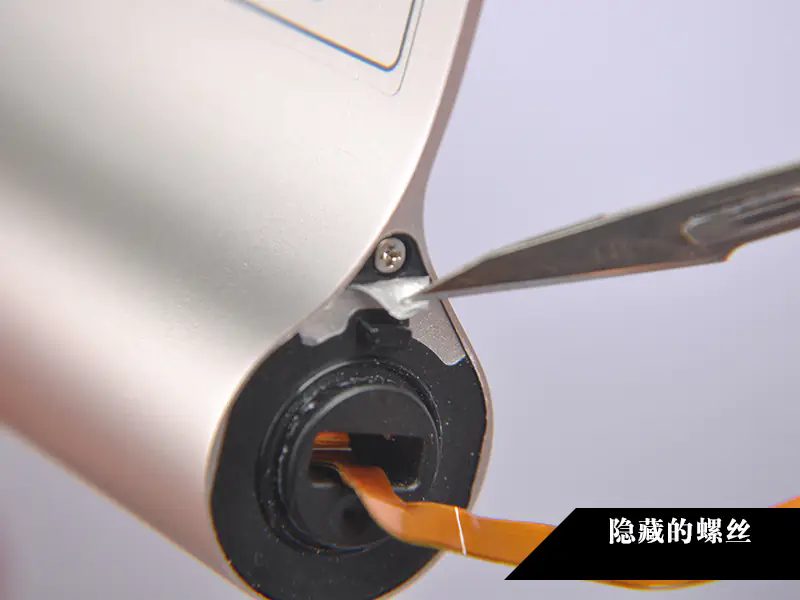

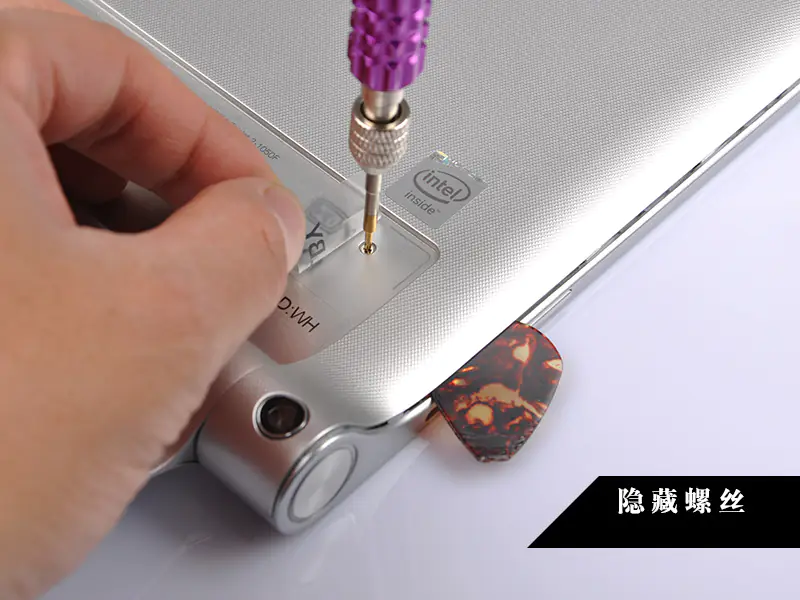

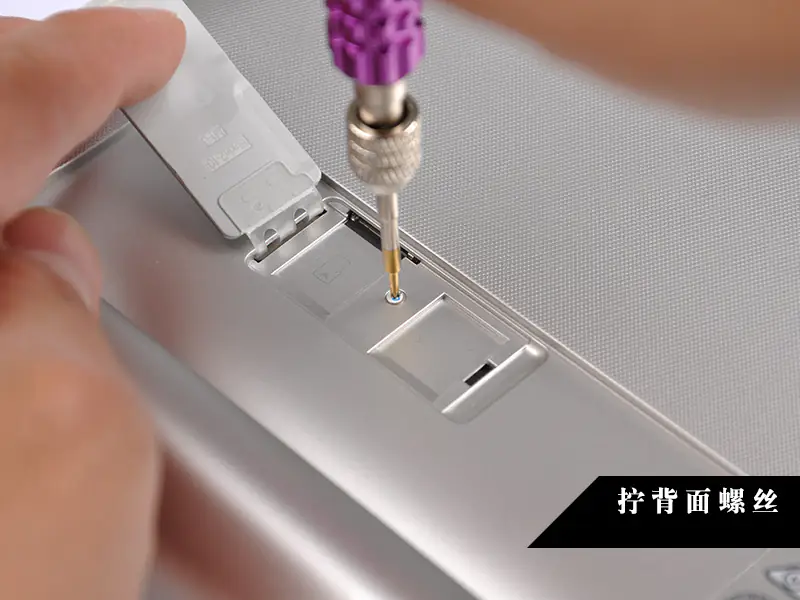

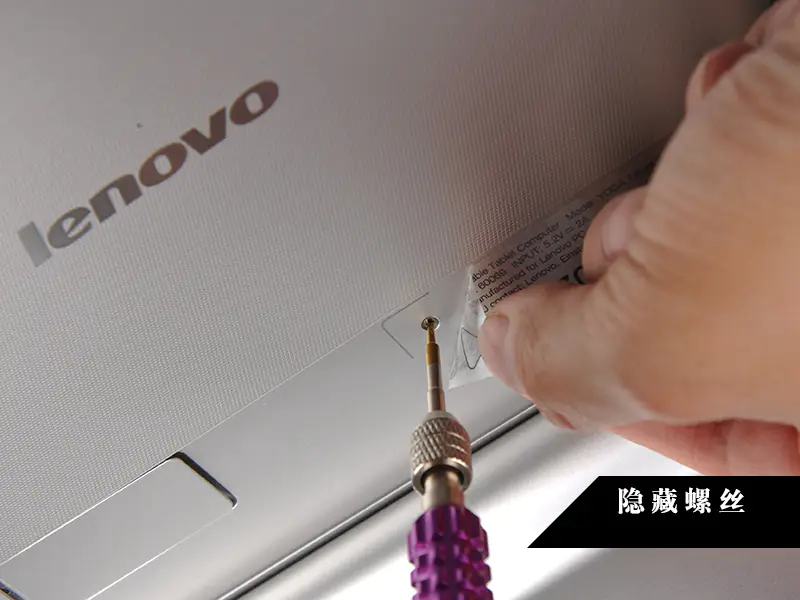

First of all, open the cover and remove the hidden screw.
Lift up the scotch tape and remove the hidden screw.
Remove this screw.

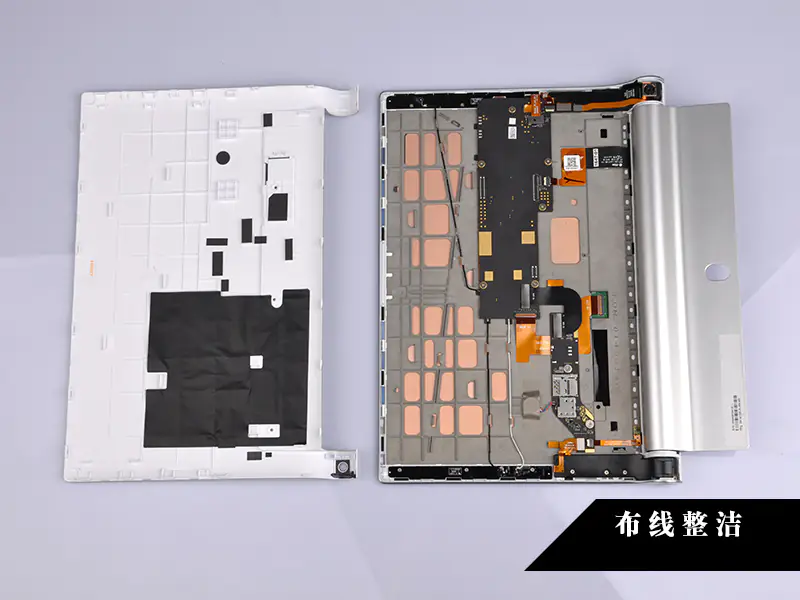

Pry up and remove the back cover.
There are some snaps on the back cover. It can strengthen the robustness of the back cover.

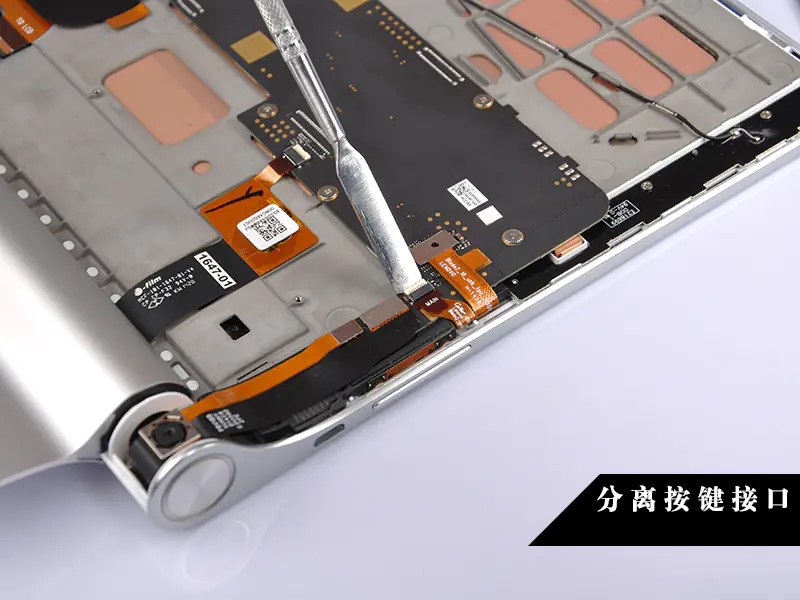

Disconnect the button cable.

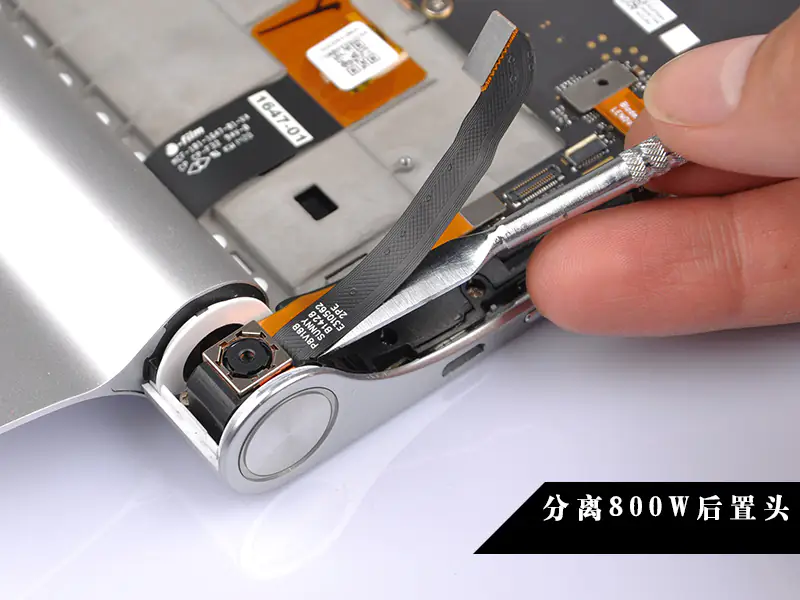

Disconnect the rear camera cable and remove the rear camera.

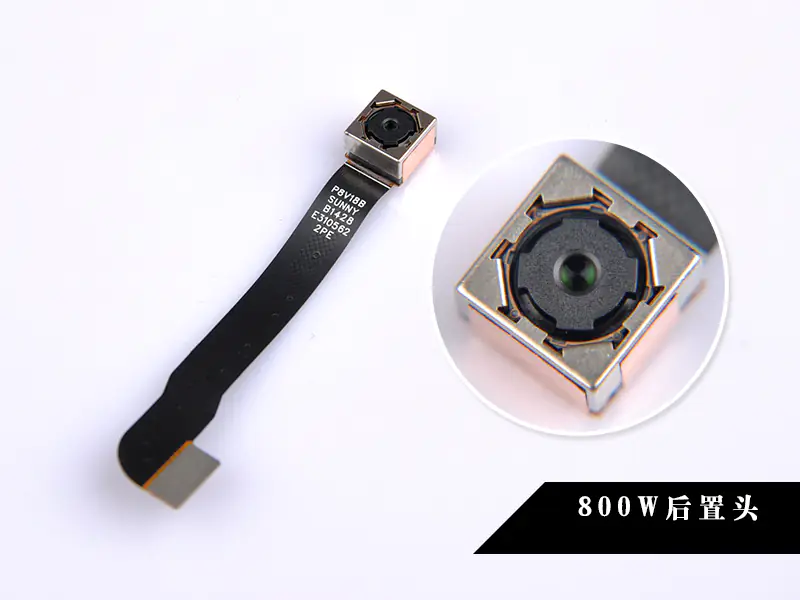

8MP rear camera

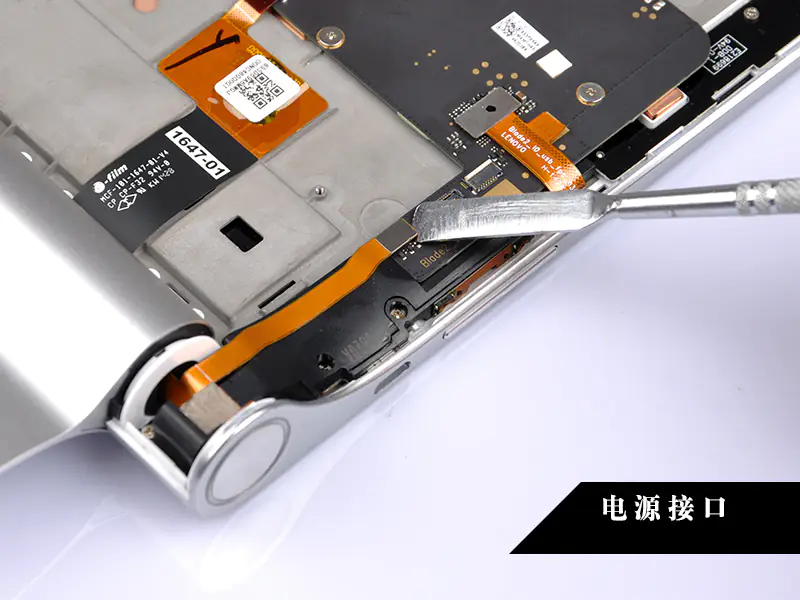

Disconnect the DC power jack cable.

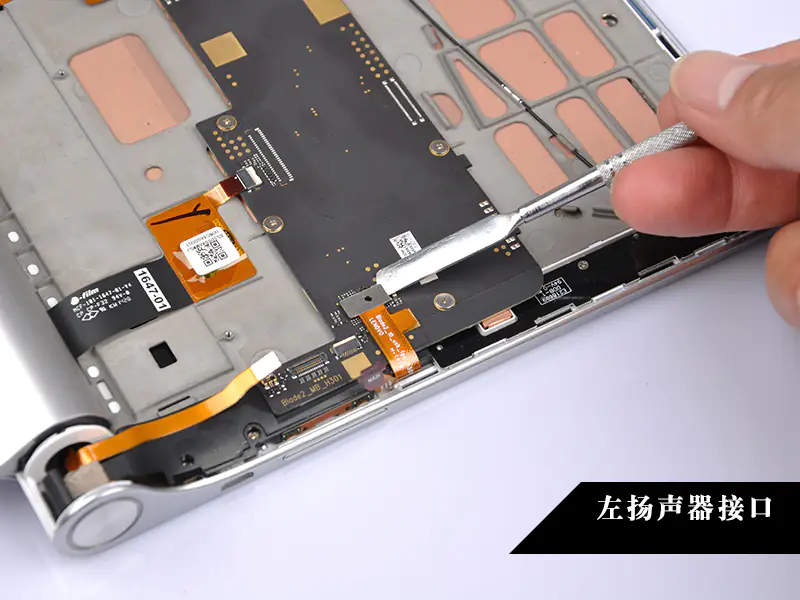

Disconnect the left speaker cable.

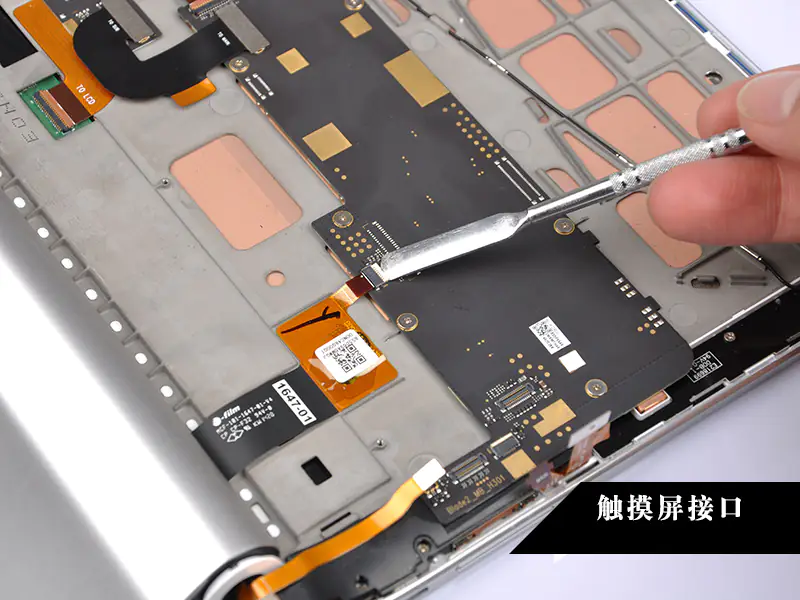

Disconnect the touchscreen cable.

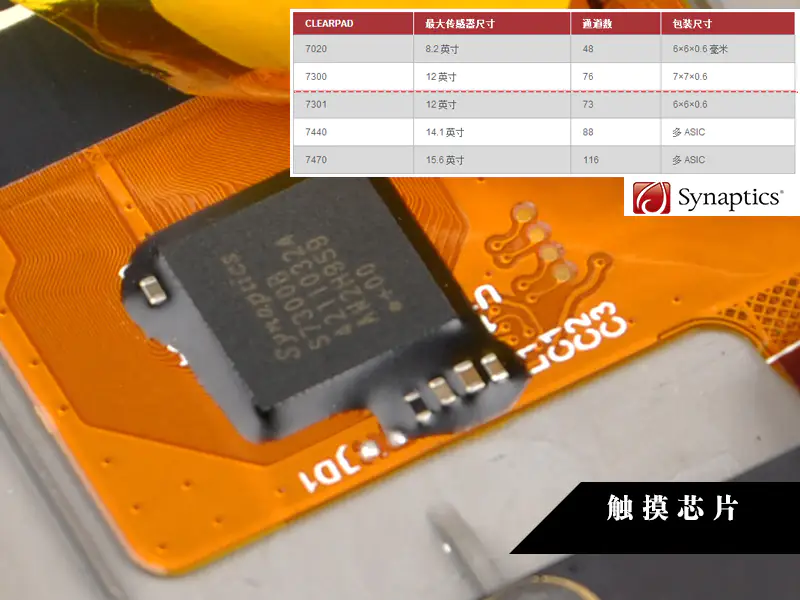

Synaptics 7300b touch chip, support for 76 channels.

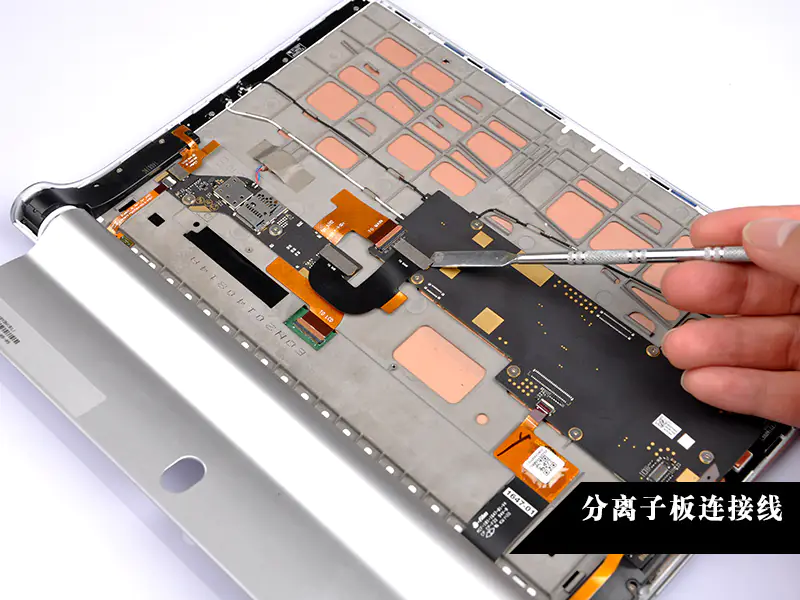

Lenovo Yoga Tablet 2 has two boards, two boards connected via a soft cable.

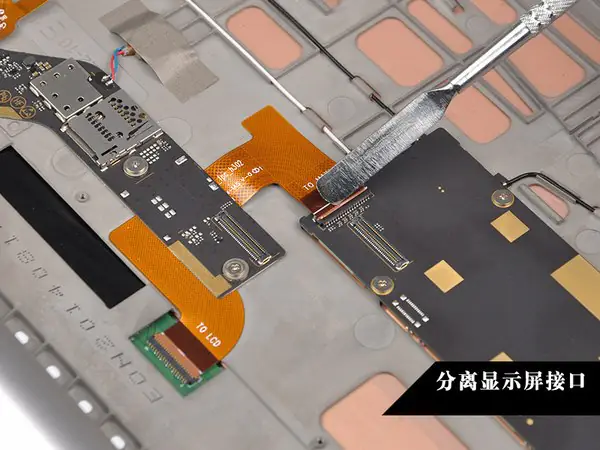

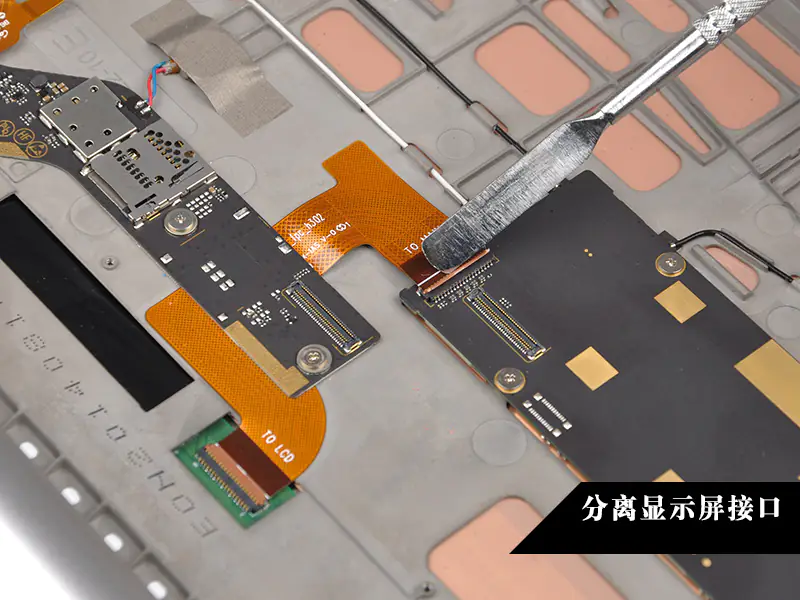

Disconnect the LCD cable.

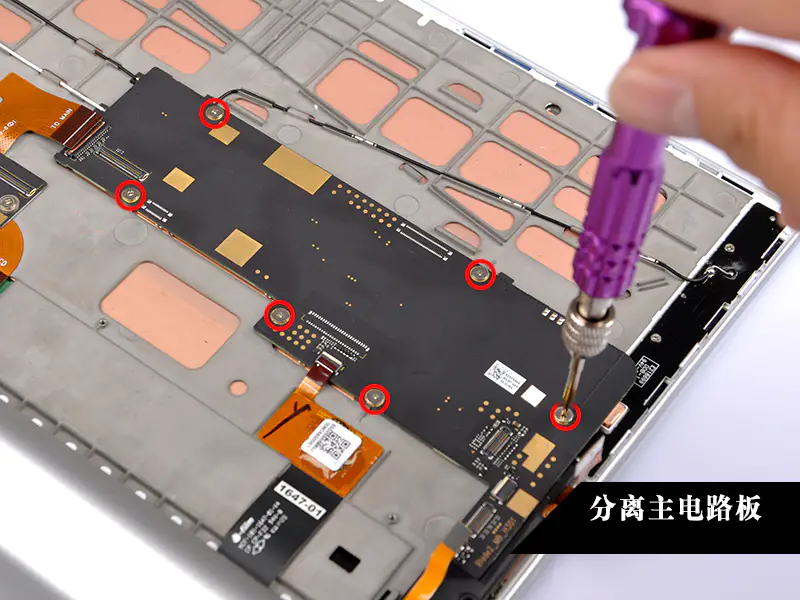

Remove six screws securing the motherboard.

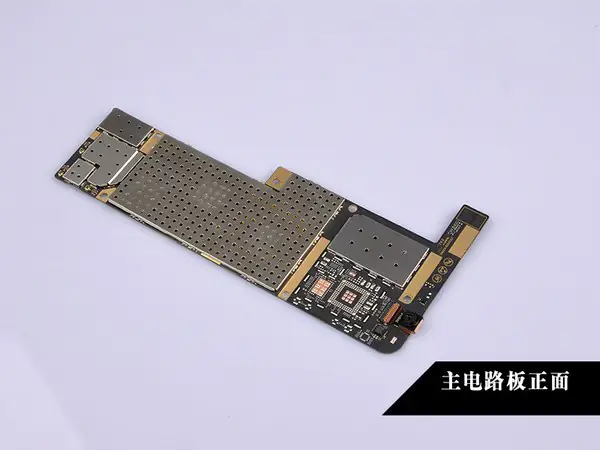

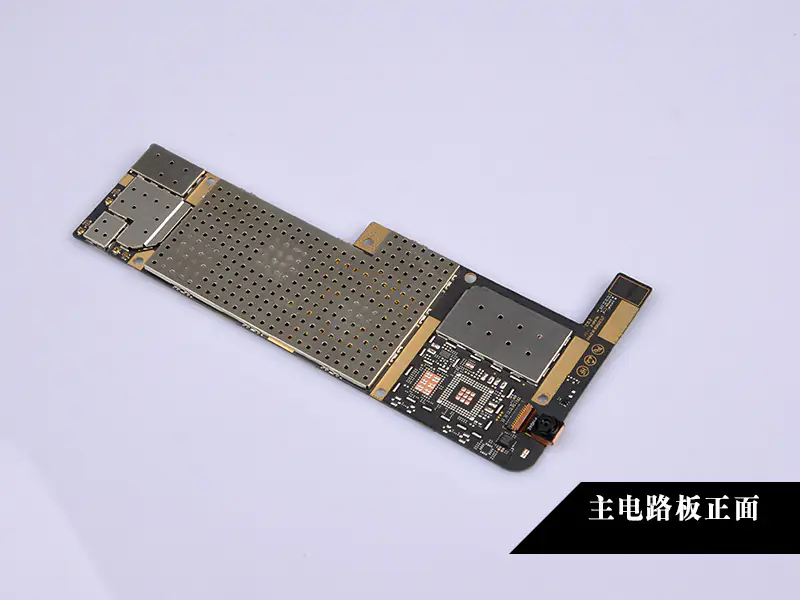

The motherboard is covered with a metal shield to prevent electromagnetic interference and ensure signal stability.

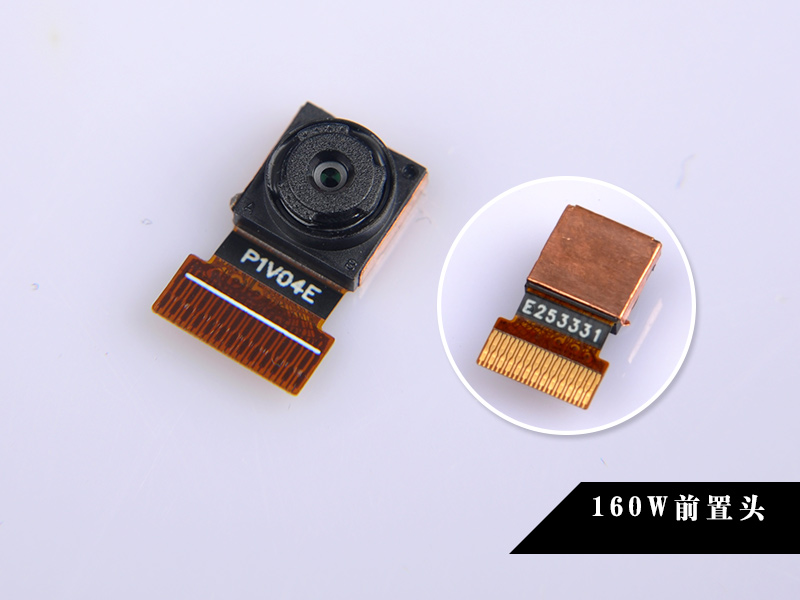

1.6MP front camera

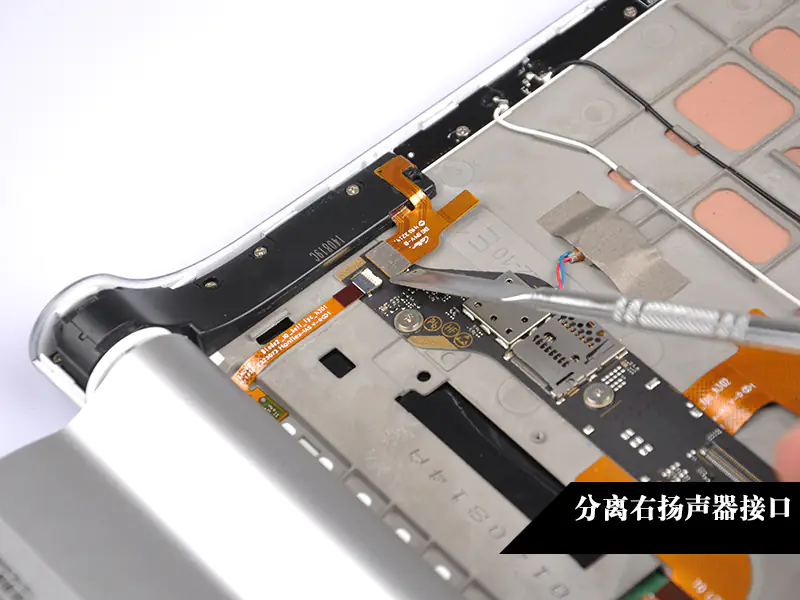

Disconnect the right speaker cable.

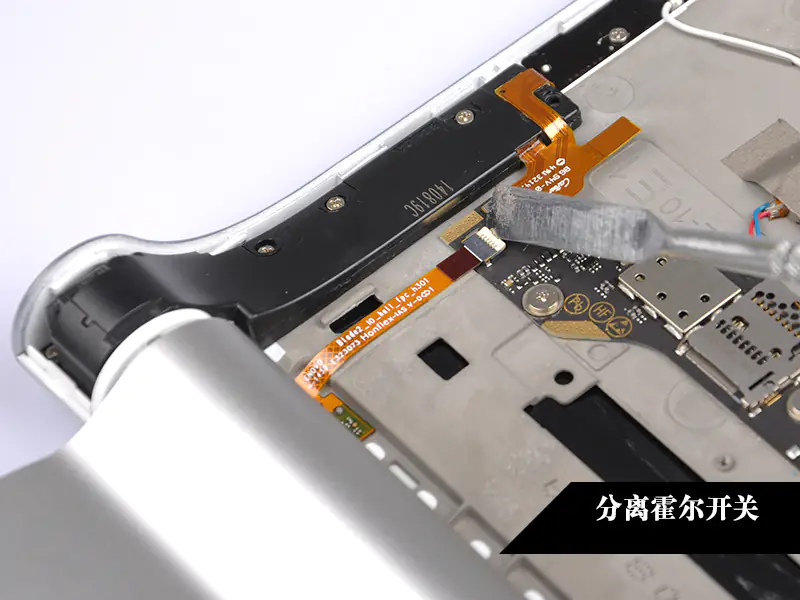

Disconnect the switch cable.

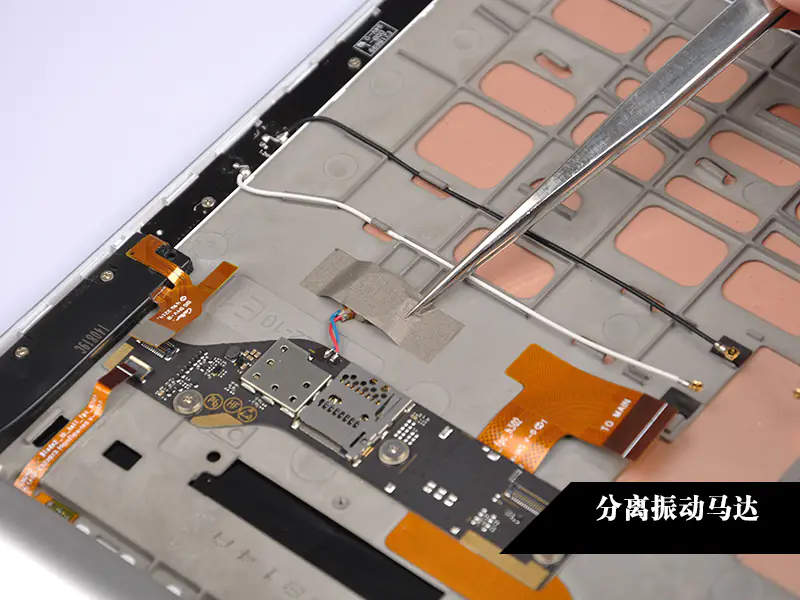

Remove the vibrator.

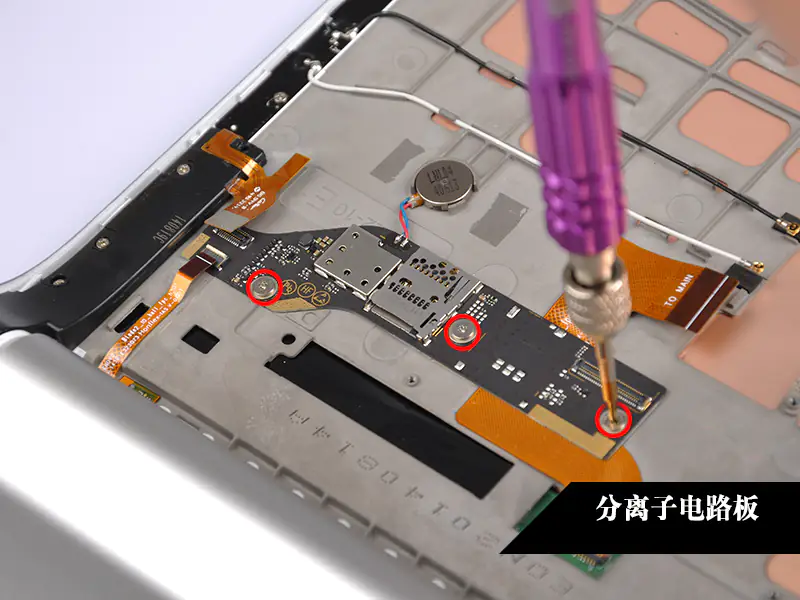

Remove three screws securing the little board.

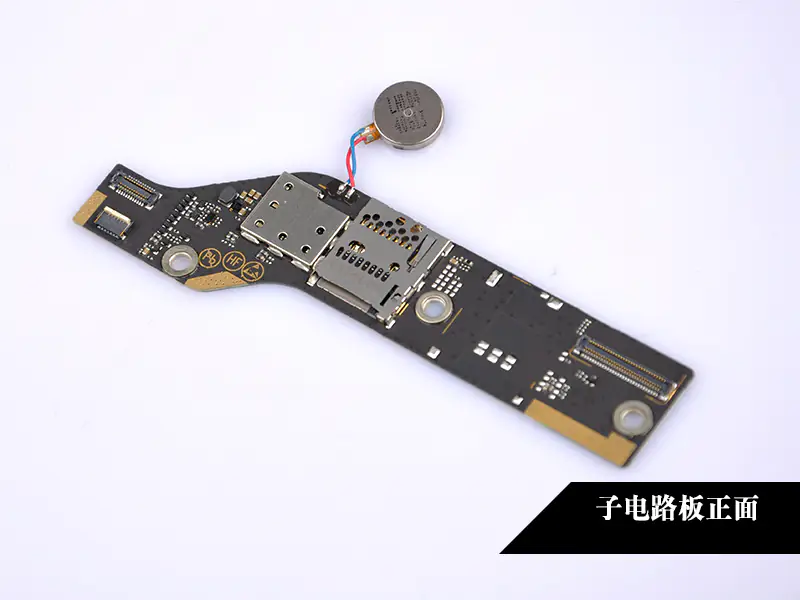

The little board

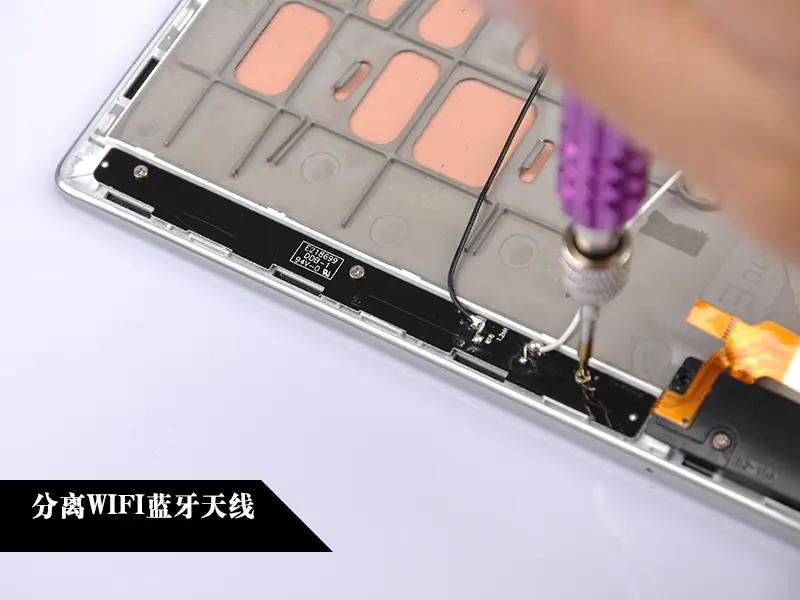

Remove three screws securing the Wi-Fi antennas.
The Wi-Fi antennas

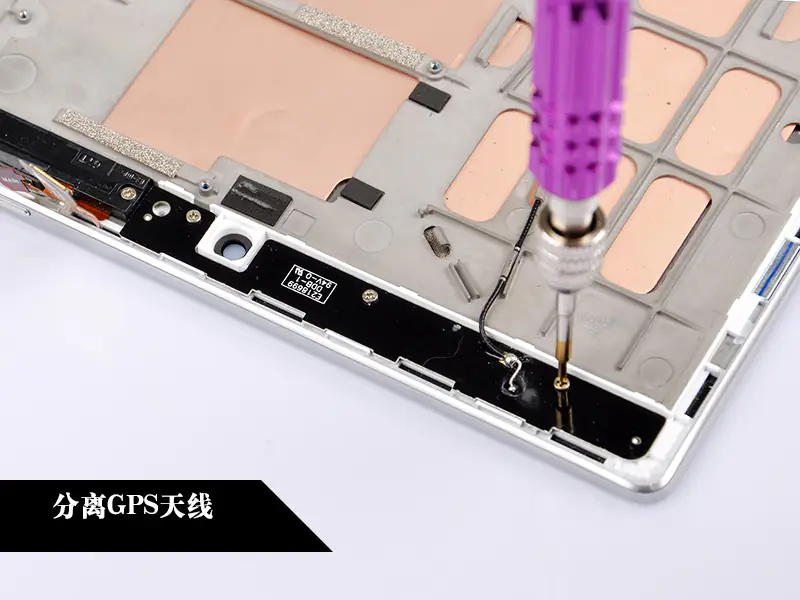

Remove three screws securing the GPS antennas.
The GPS antennas

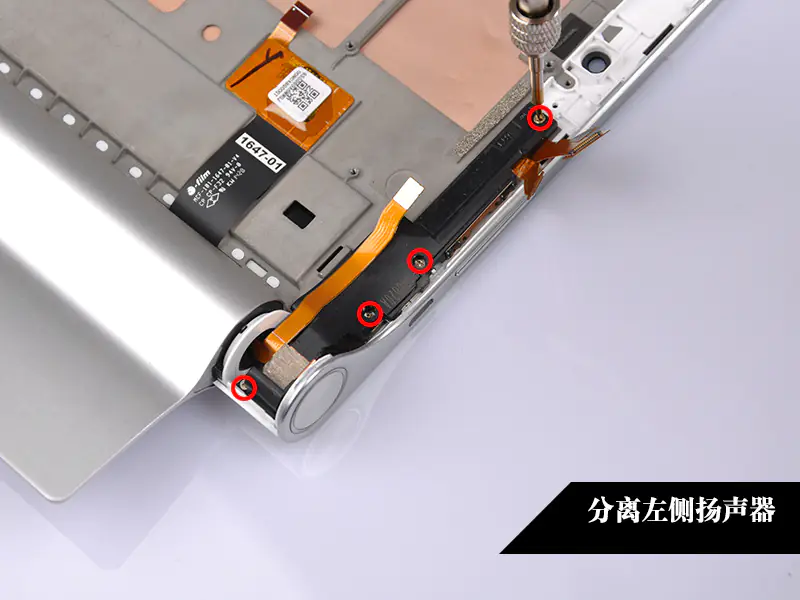

Remove four screws securing the left speaker.

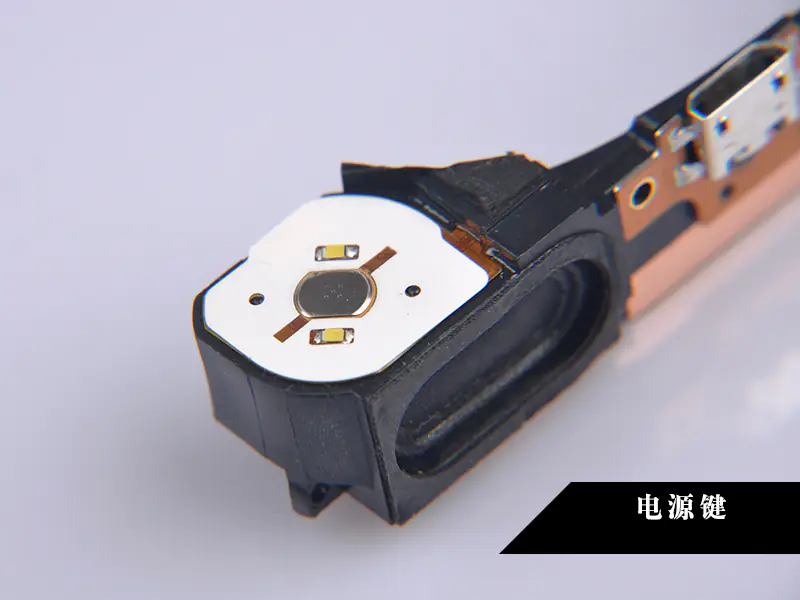

The power button

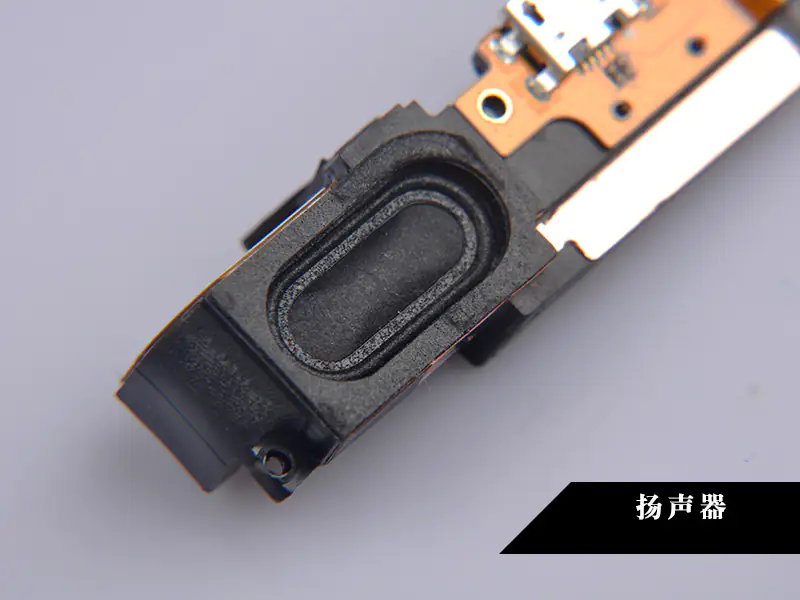

The left speaker

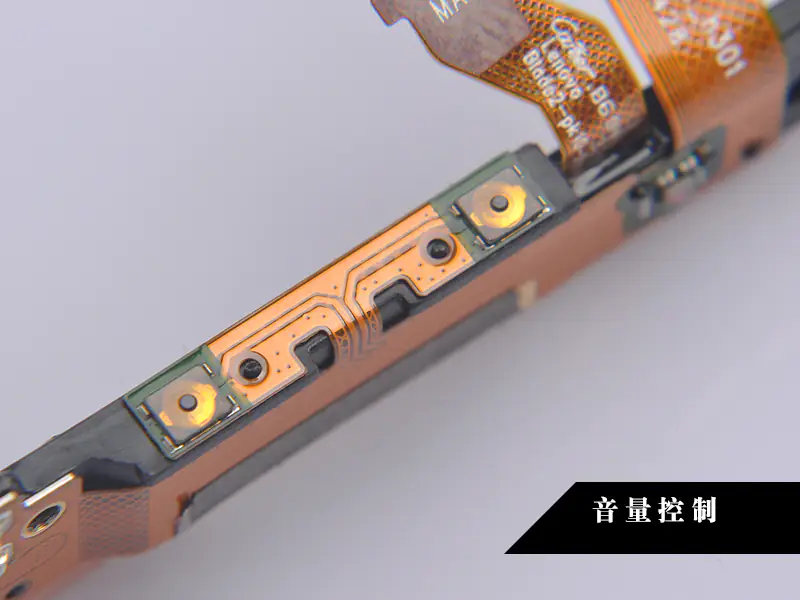

The volume button

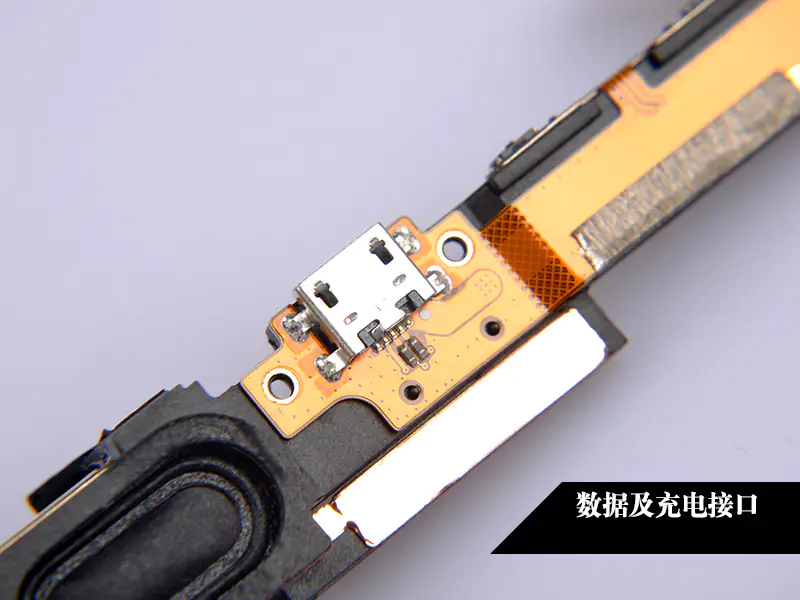

Data and charging interface

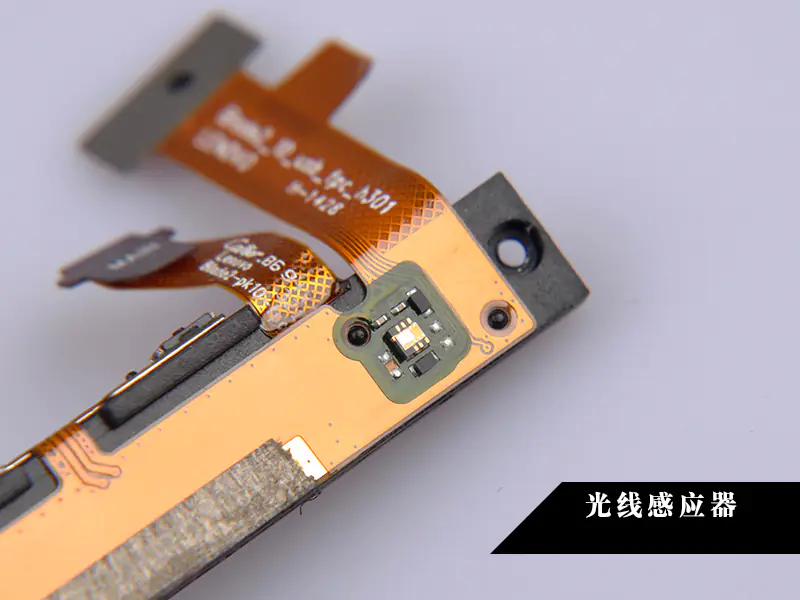

Light sensor

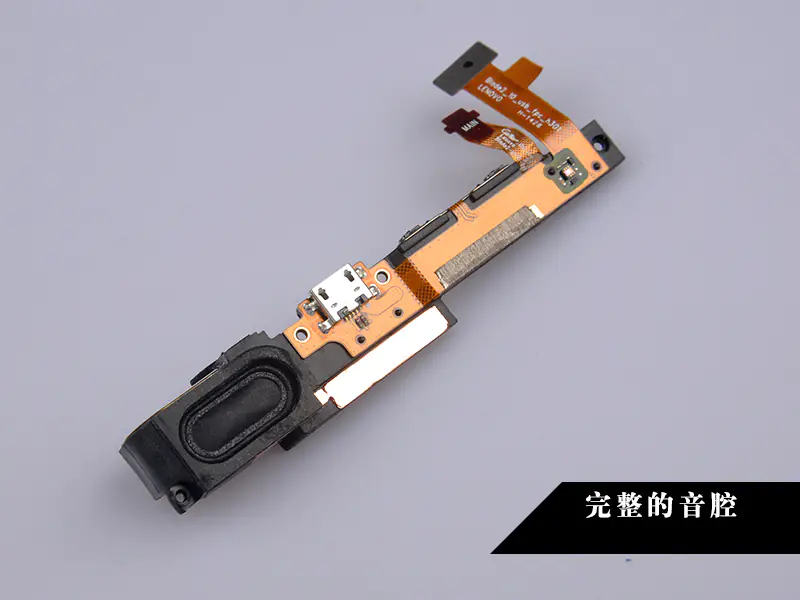

Left speaker module

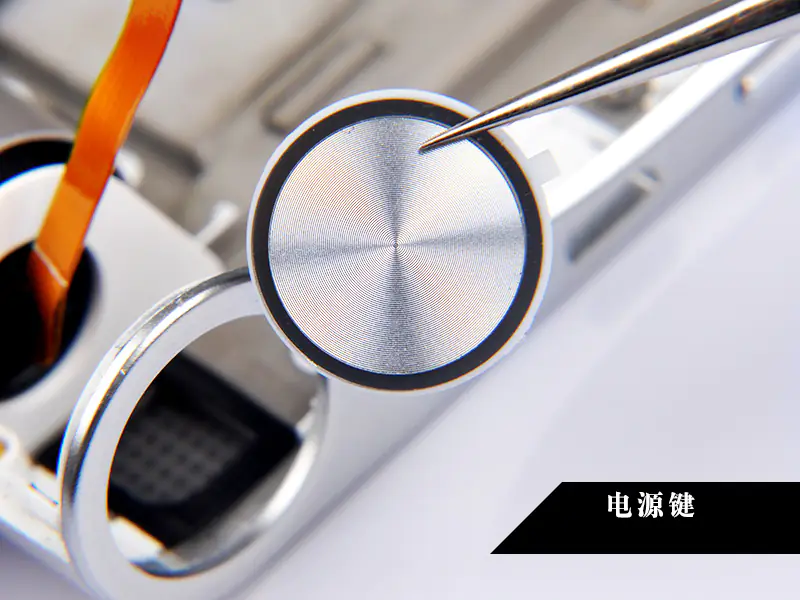

Remove the power button.

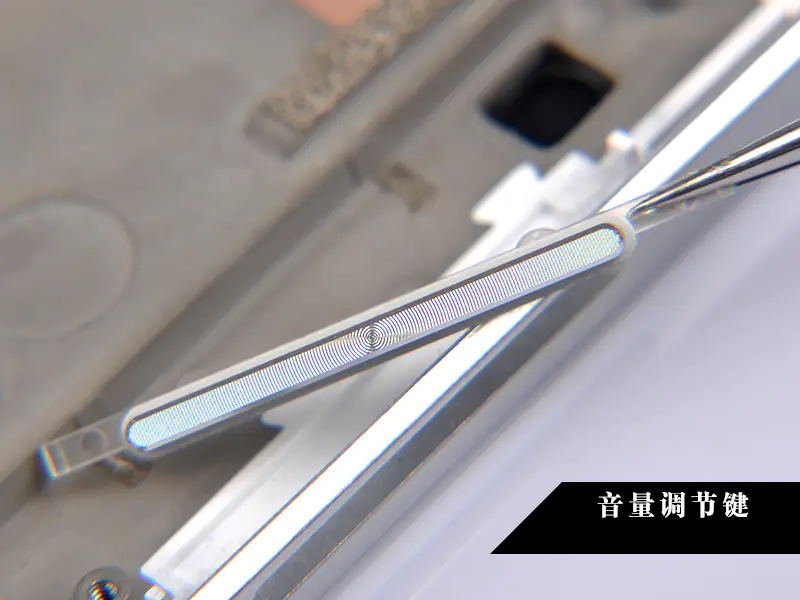

Remove the volume button.

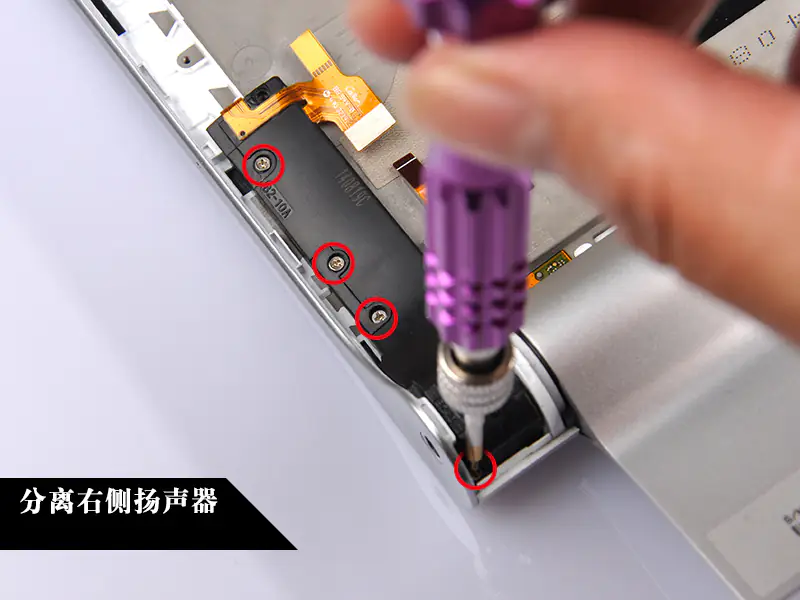

Remove four screws securing the right speaker.
Right speaker

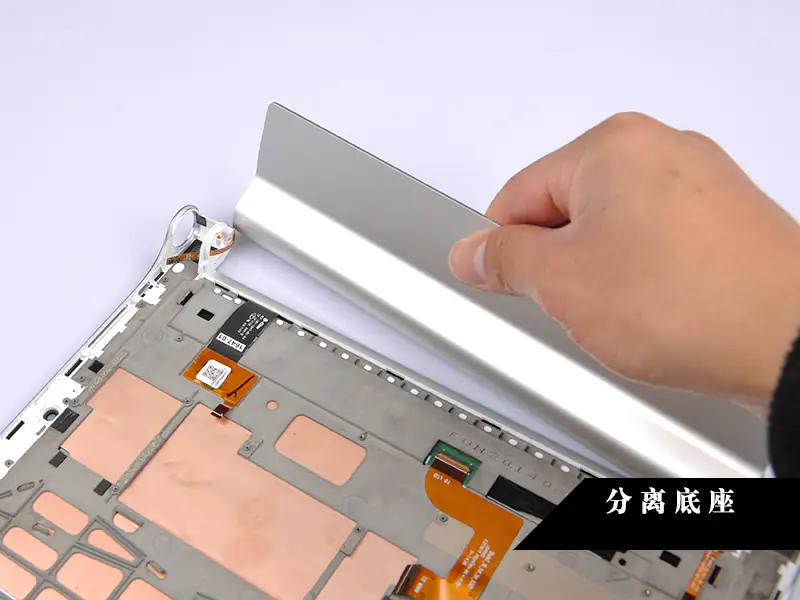

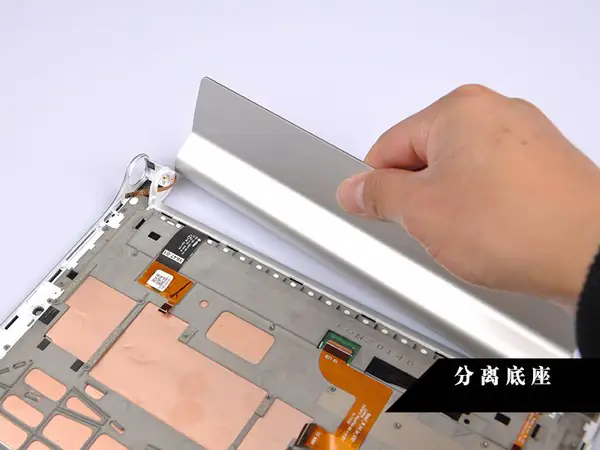

Remove the tablet base.

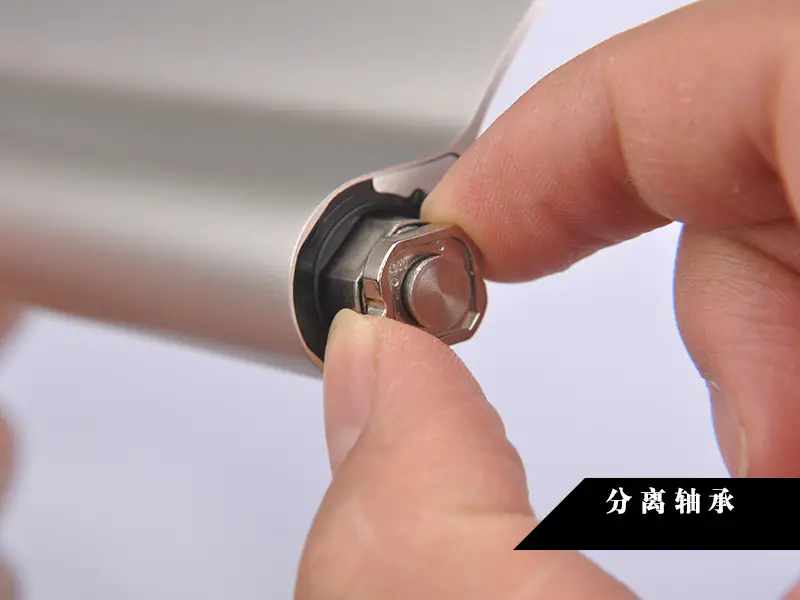

Remove the LCD hinge.

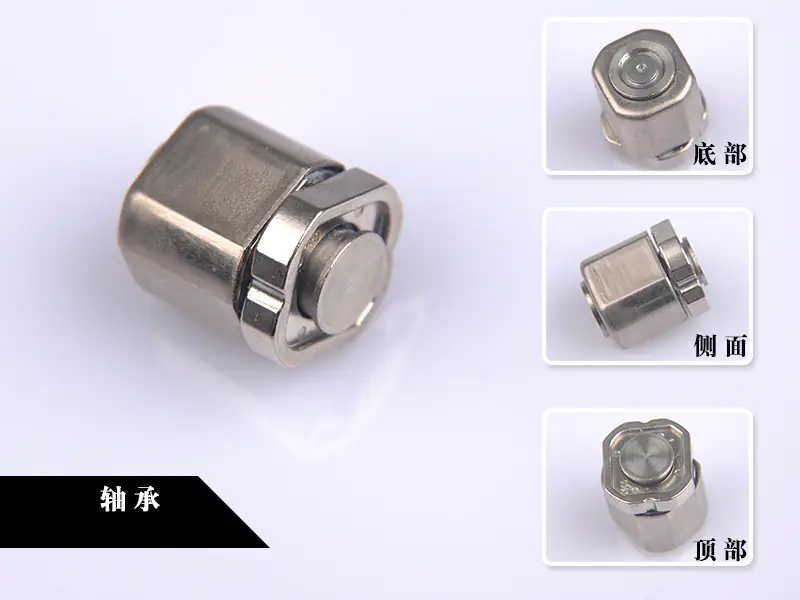

LCD hinge
The other side of the base does not find an LCD hinge.

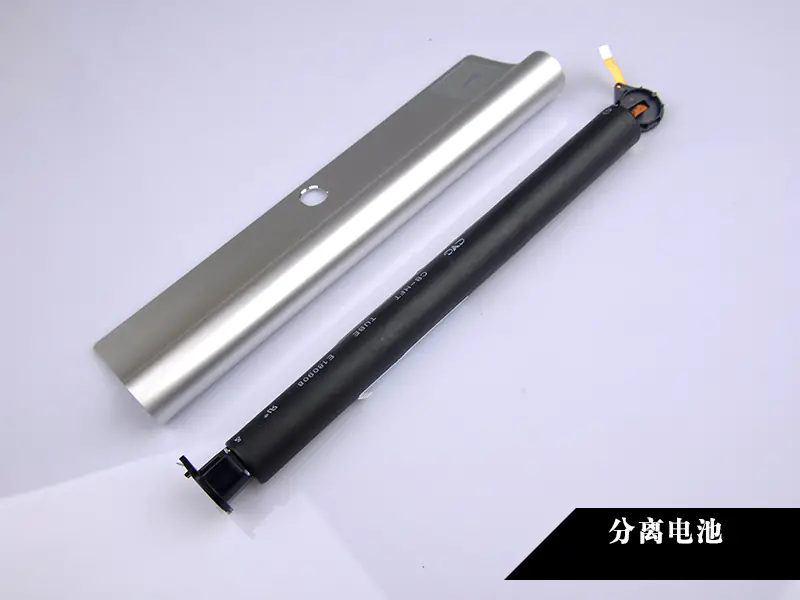

Remove the battery.
There is a magnetite on the battery.

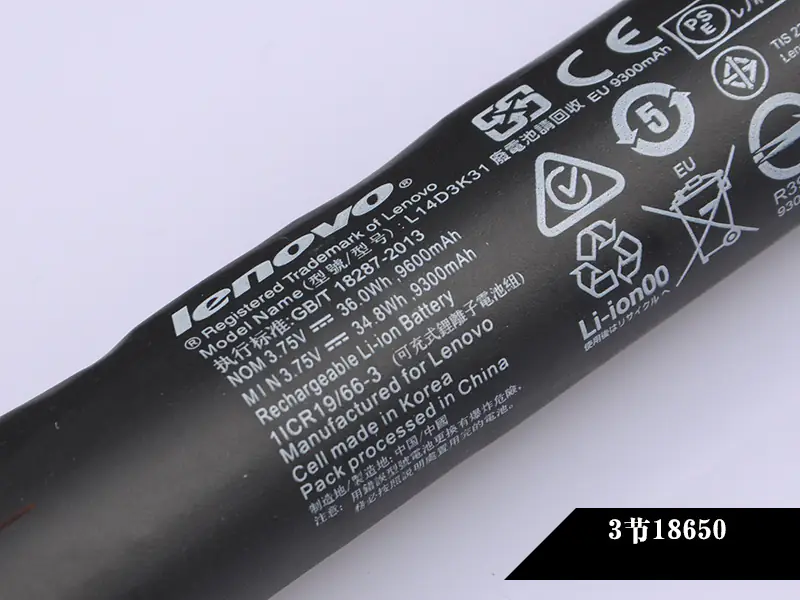

Lenovo Yoga Tablet 2 has a 3.7V, 9600mAh Li-ion battery, Lenovo model: L14D3K31.

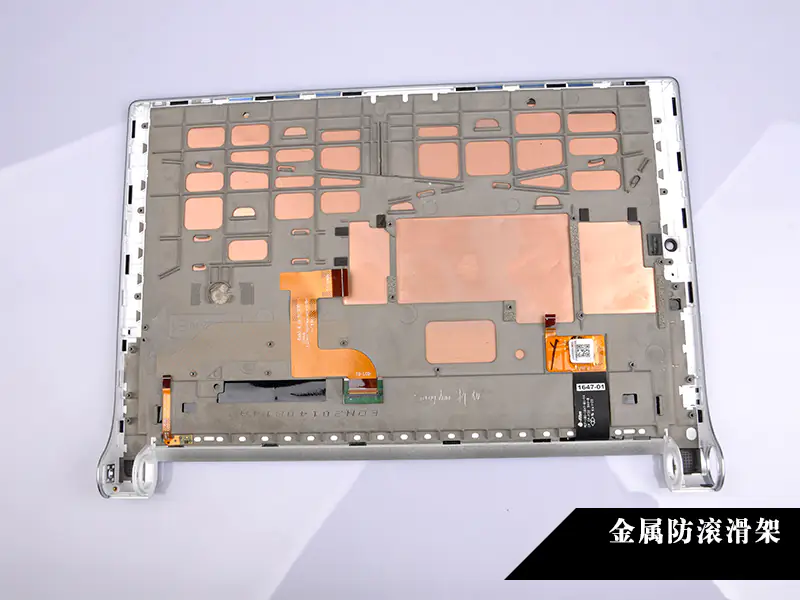

The metal roll cage

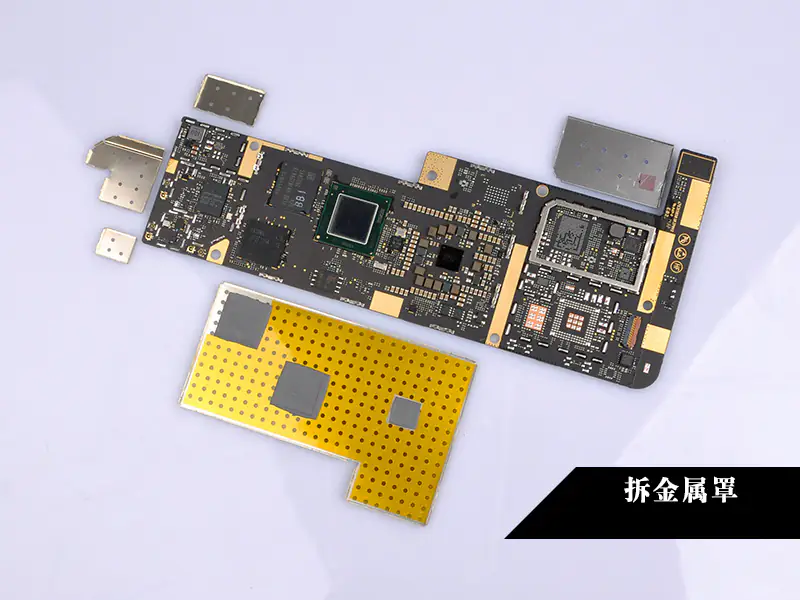

Once remove the metal shield, you can see the chips.

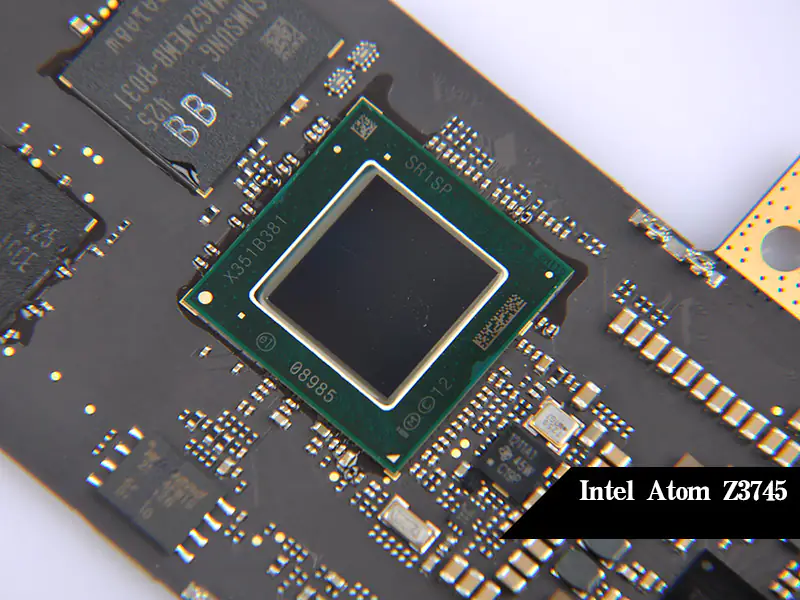

Intel Z3745 processor

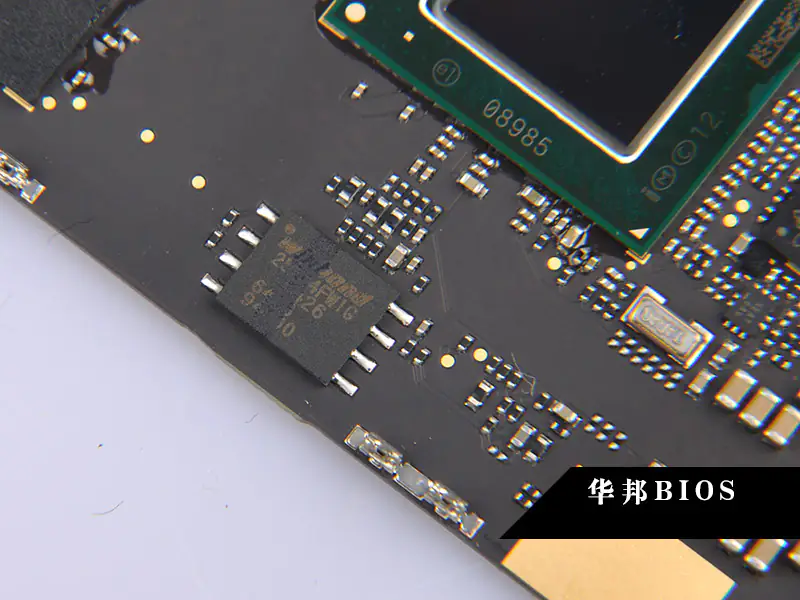

Winbond bios

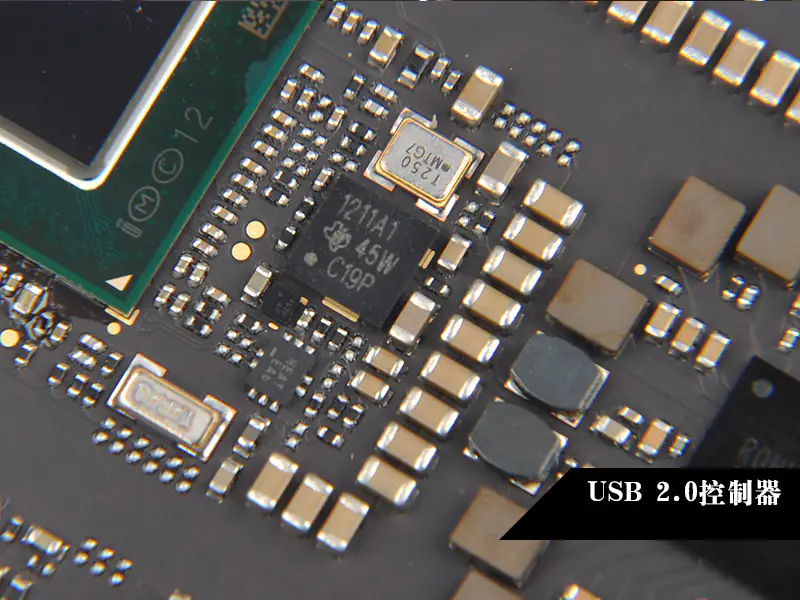

TI USB2.0 Control chip

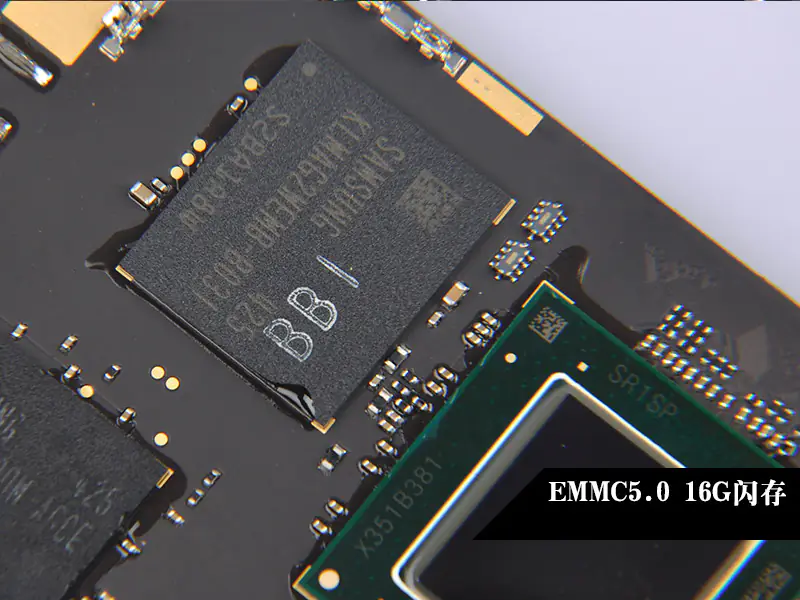

EMMC5.0 16GB ROM, read speed 170MB/S, write speed 11MB/S

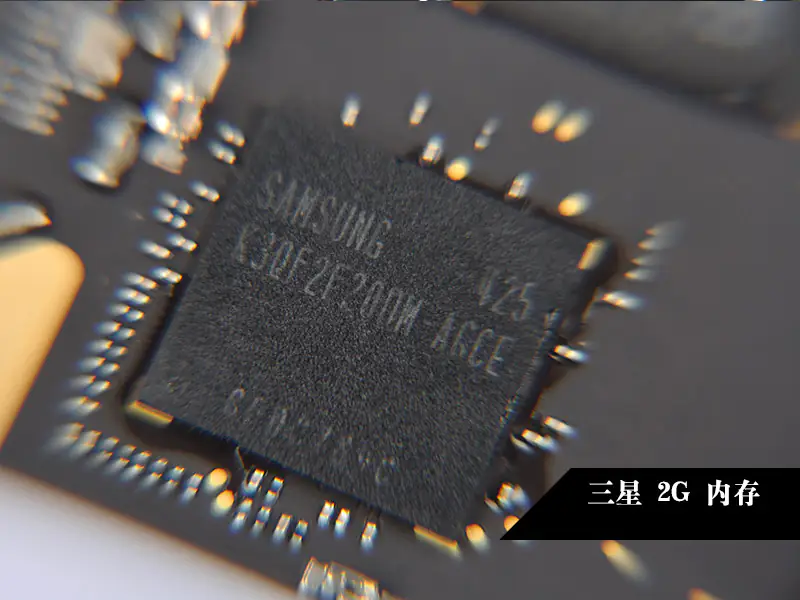

Samsung 2GB RAM

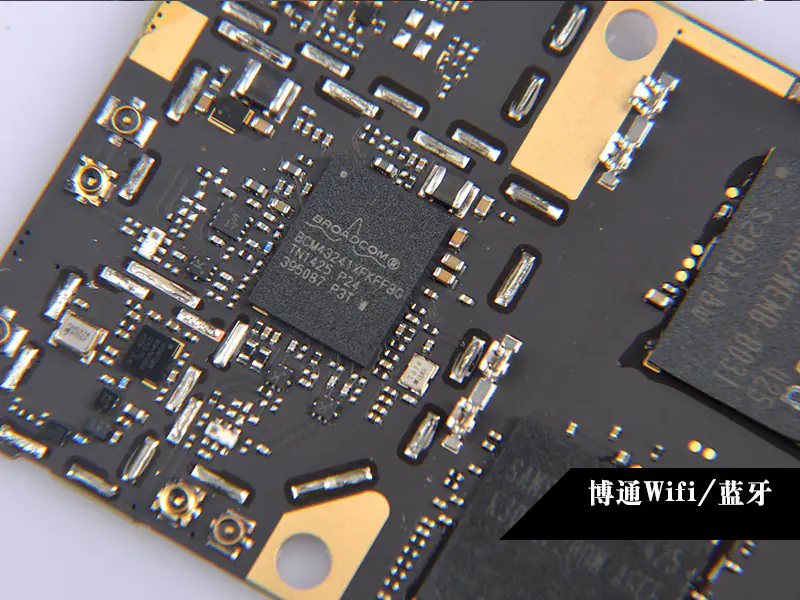

Broadcom Wi-Fi, Bluetooth chip

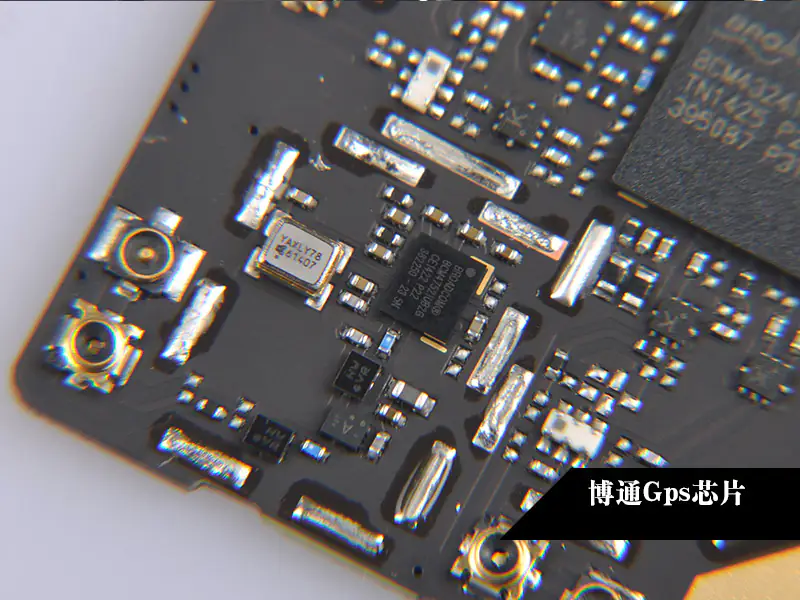

Broadcom GPS chip

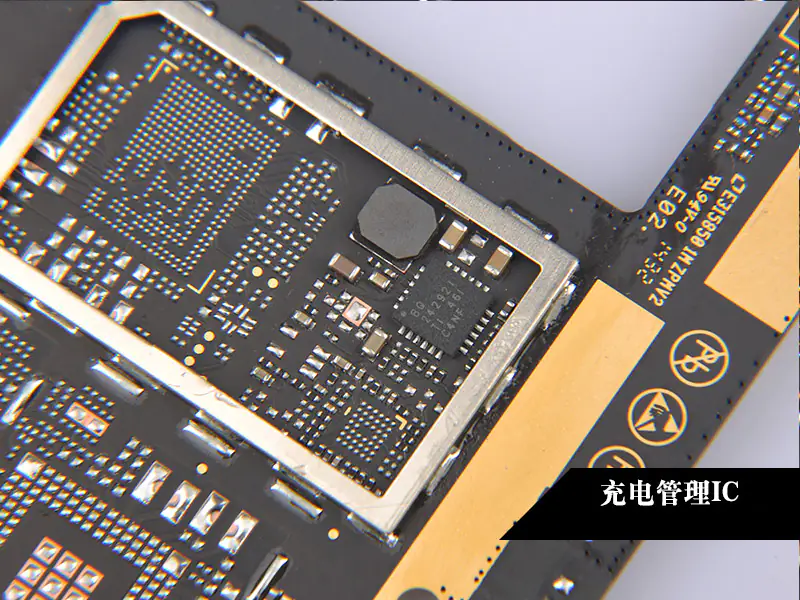

BQ242921 Power Management Chip

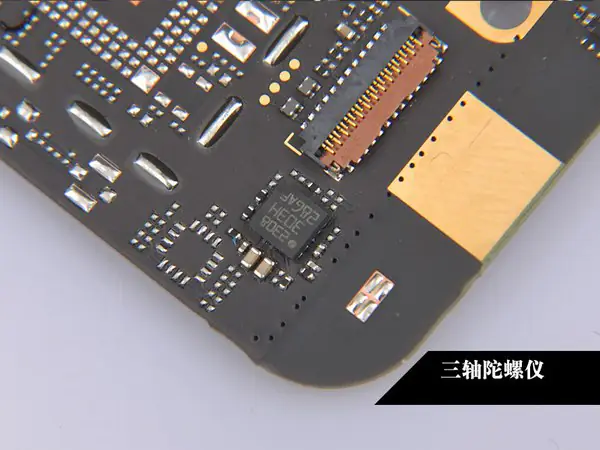

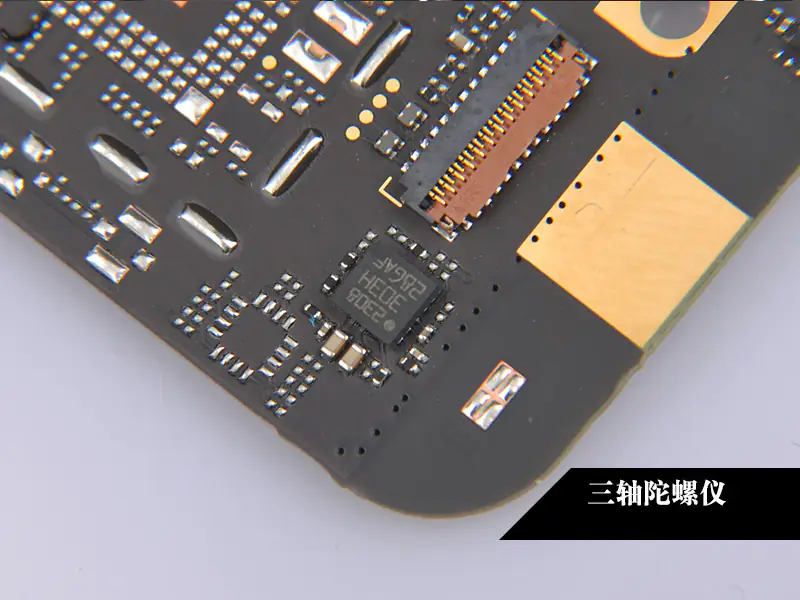

Three-axis gyroscope chip

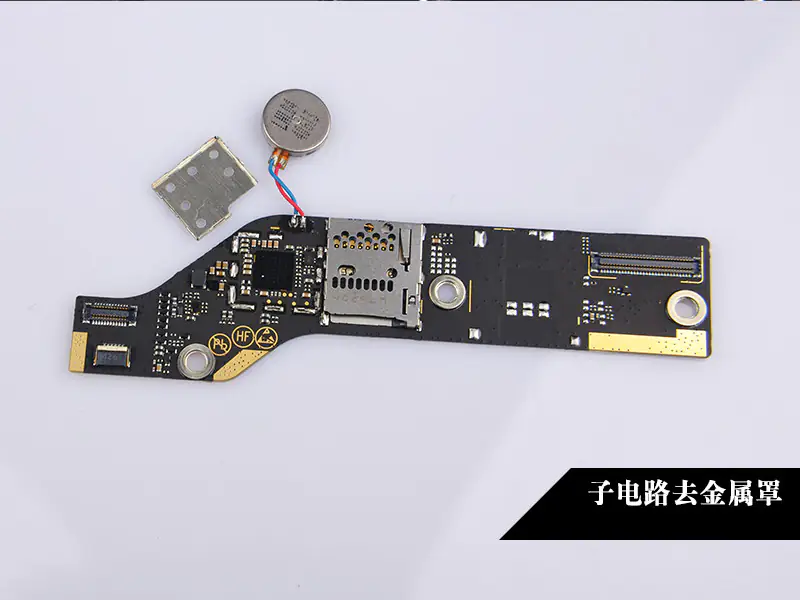

Remove the metal shield covering the little board.

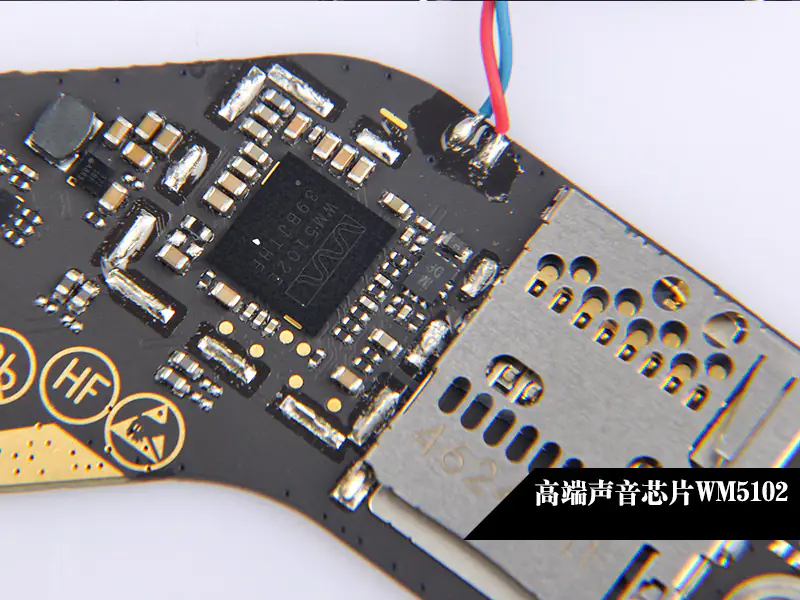

The WM5102 Audio decoder chip
