Meizu M2 Note Teardown
In this guide, I’ll explain how to disassemble the Meizu M2 Note to remove the back cover, battery, camera, and motherboard.
Follow us on Facebook for the latest updates from MyFixGuide.com.
Meizu M2 Note Specifications:
Width: 75.2mm
Height: 150.9mm
Weight: 114.9g
Battery: 3100mAh (Typical value)
Rear Camera: 13 megapixels
Front Camera: 5 megapixels
Display: 5.5-inch
Resolution: 1920 x 1080
Brightness: 450cd/m2, 2,048 adjustable brightness levels
Material: Tempered Glass
Display technology: IGZO (SHARP)
Processor: MTK MT6753, ARM® Cortex®-A53™ 1.3GHz octa-core, Mali T720 MP3/450MHz GPU
RAM: 2GB LPDDR3 800MHz RAM
Network: FDD-LTE / TD-LTE / TD-SCDMA / WCDMA / GSM

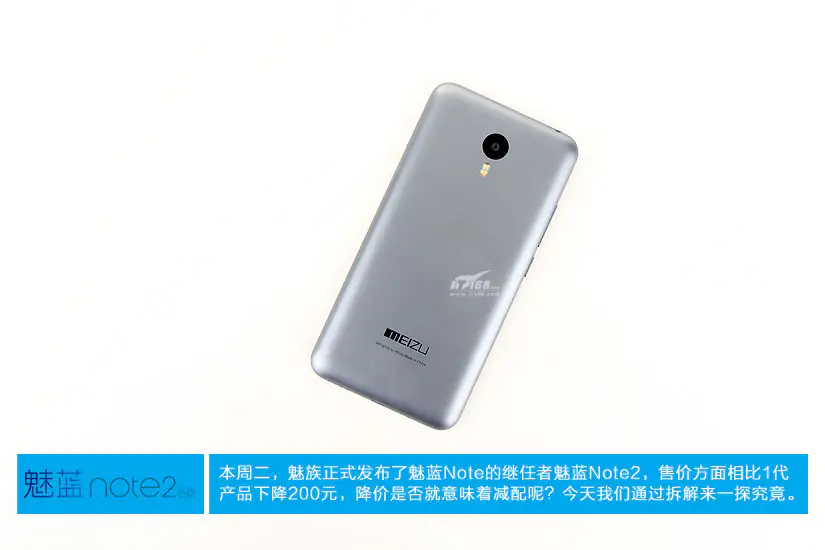

This Tuesday, Meizu officially released its Meizu M2 note. The price is only CNY 799, about $131. Today, we will disassemble the Meizu M2 note.
Meizu M2 Note has four colors to choose: gray, white, blue and pink.
Now, start to open the back cover with your fingernails from the headset jack.

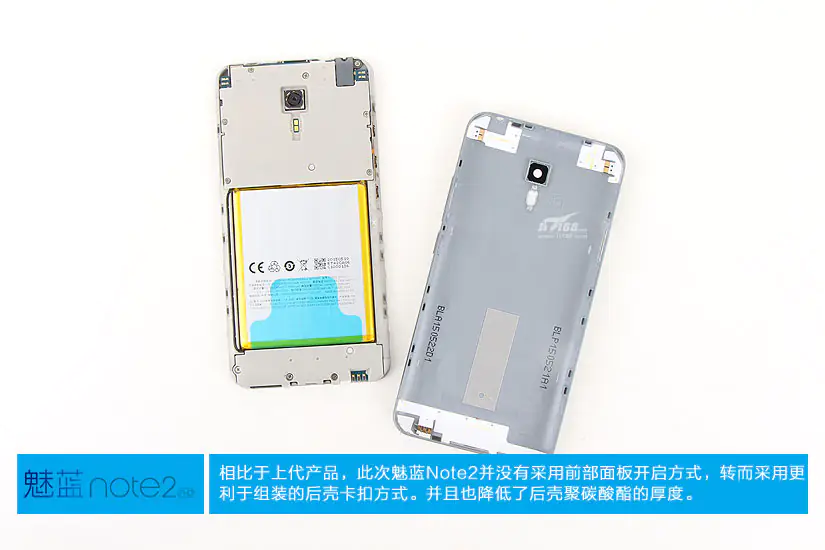

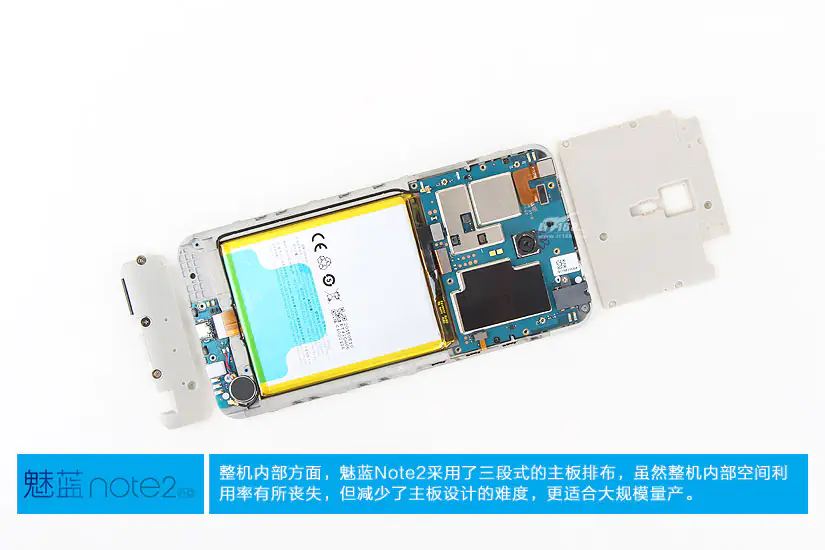

After the back cover was removed, you can see from the picture. There are two small plates covering the motherboard.

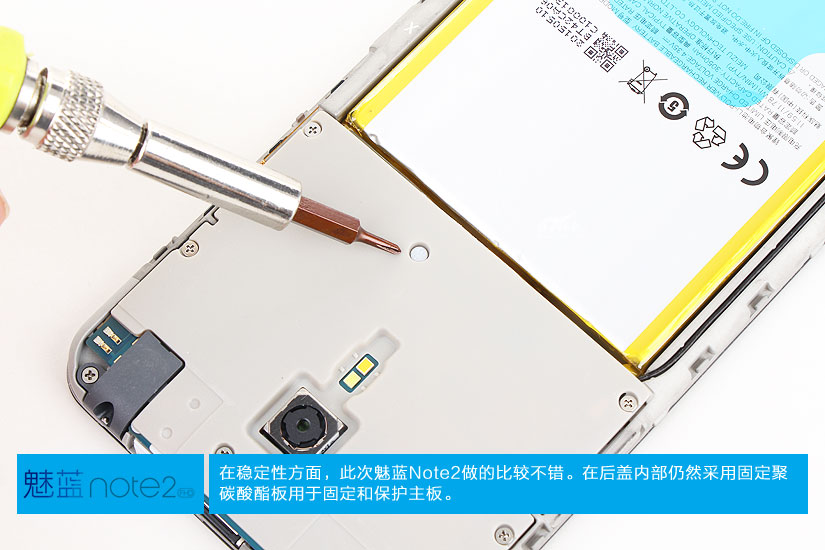

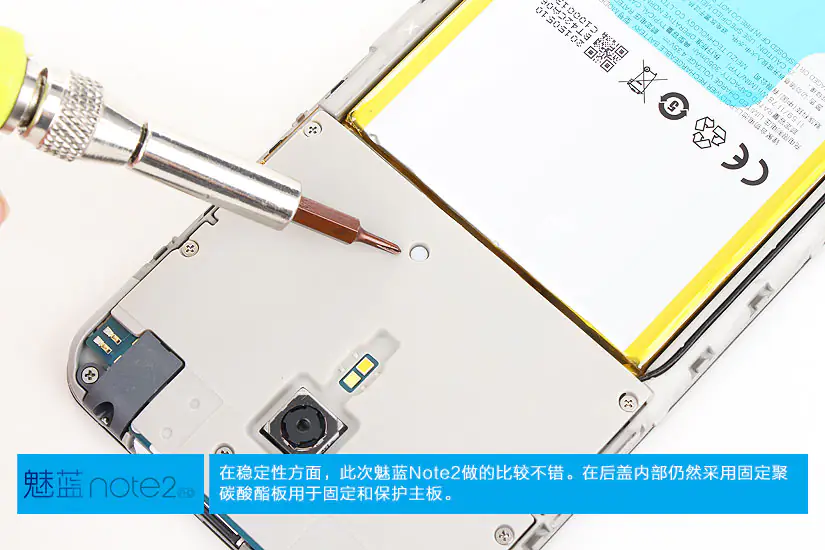

Remove all screws securing these two small plates. You can remove it.

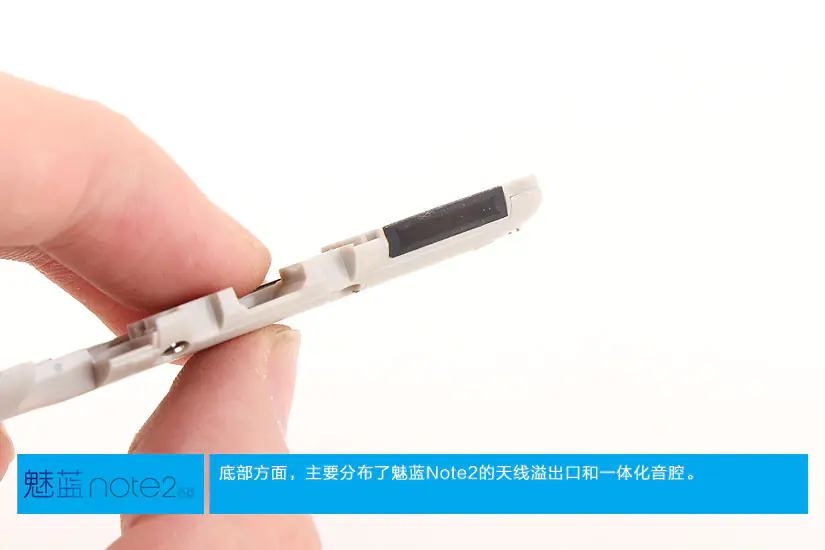

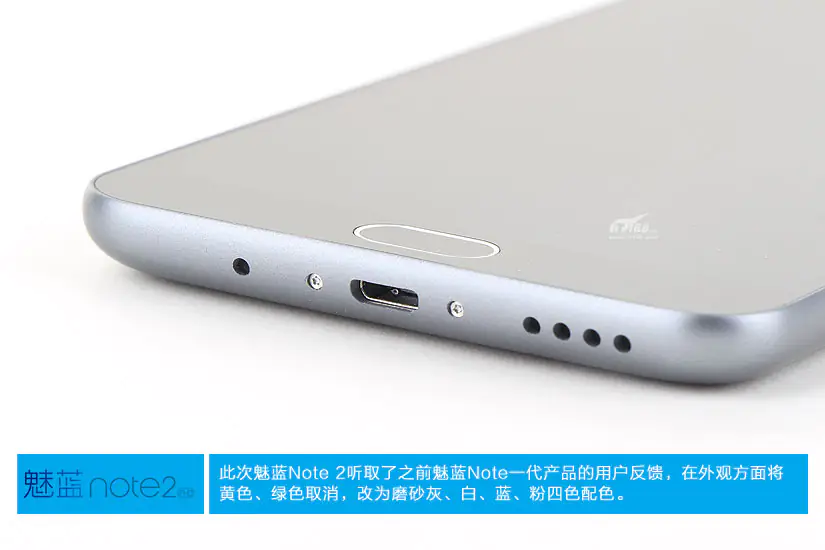

Meizu M2 note antenna overflow outlet and sound chamber.

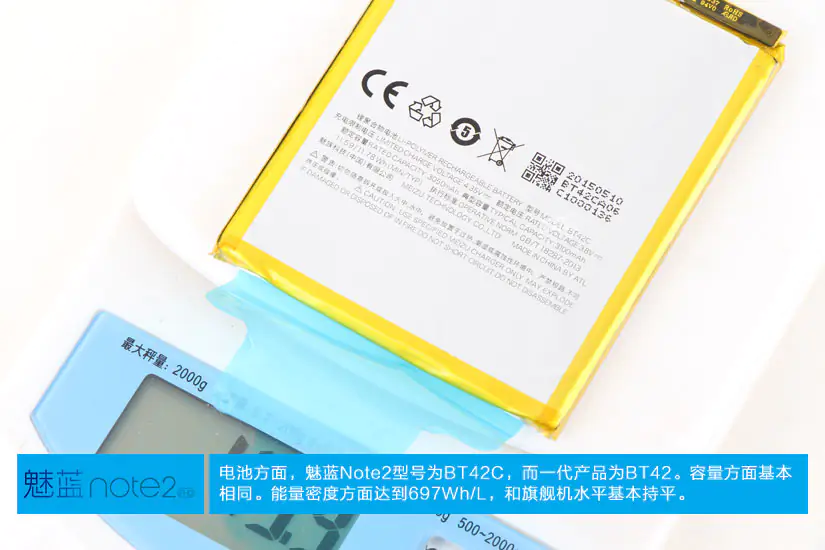

Meizu M2 Note comes with a 3100mah Li-polymer battery. Battery model: BT42CA06.

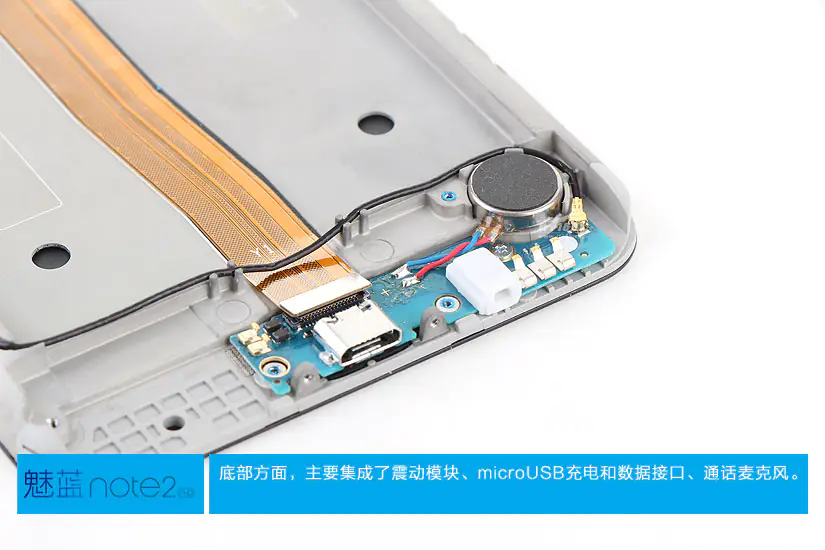

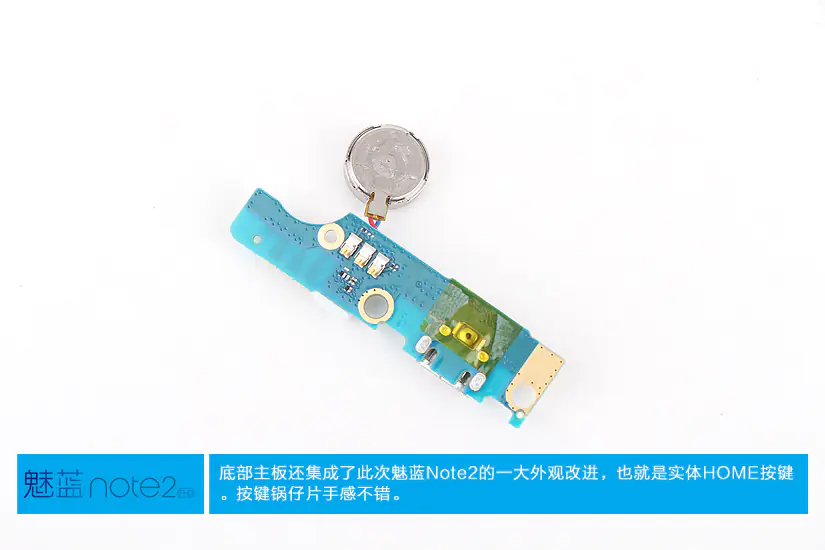

The vibrator module, micro-USB data port, and microphone module
On the back of the board, you can find the Meizu M2 Note’s Home key.

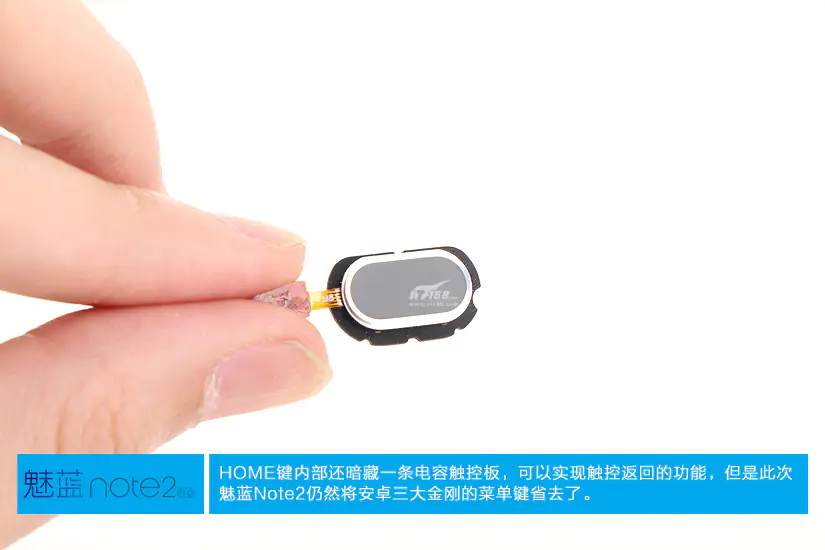

There is a capacitive touch panel inside the home key.
3.5mm headphone jack

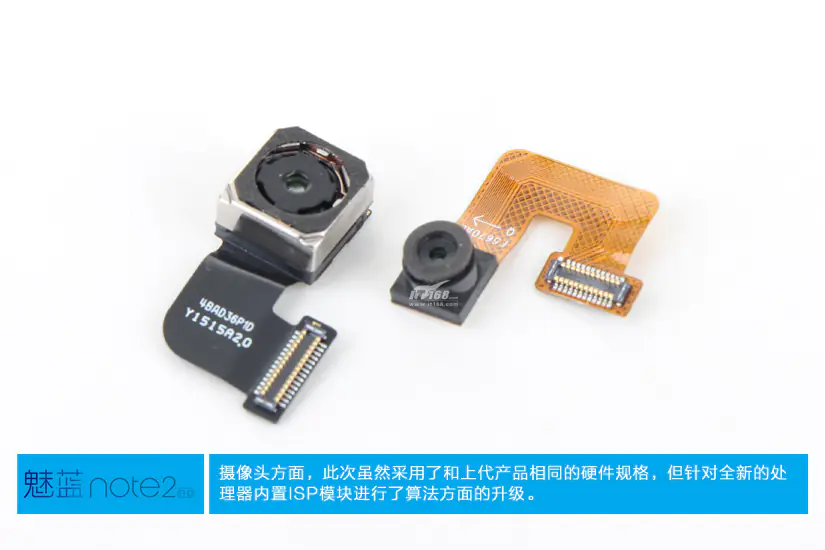

Rear camera and front camera

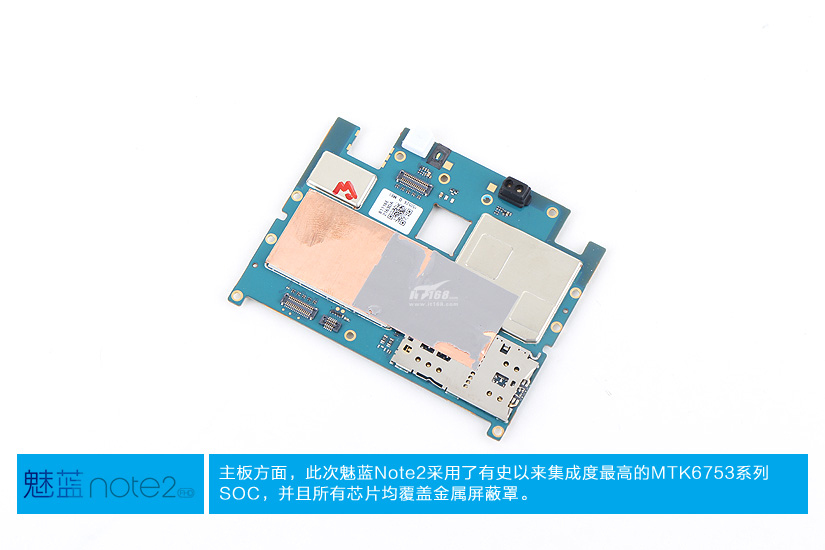

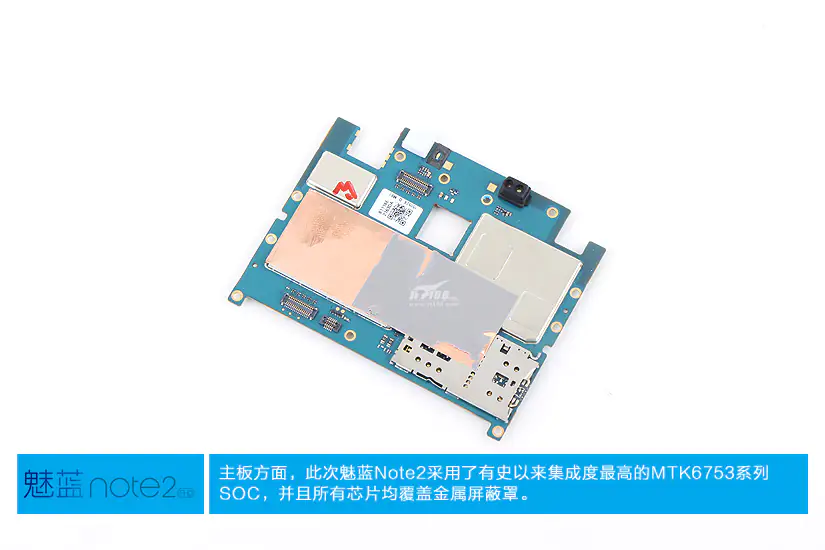

All the chips were covered by the metal shields.

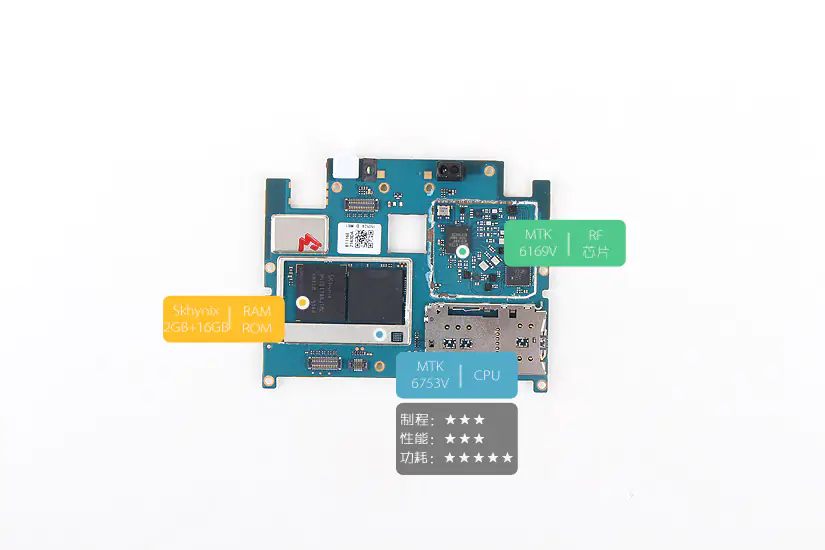

MTK6169V RF chip
MTK6753V processor
Skhynix 2GB RAM + 16GB ROM

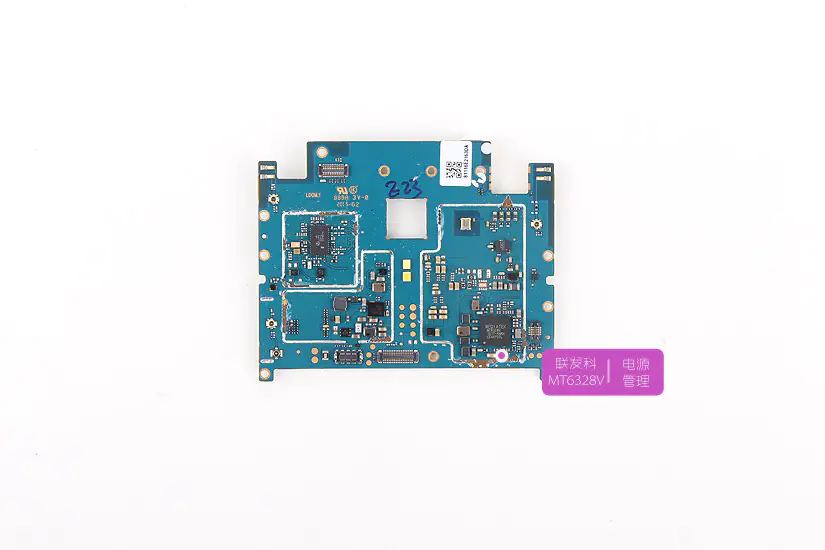

MediaTek MT6328V power management chip
Source: it168
