Meizu M2 Teardown
In this guide, I’ll explain how to disassemble the Meizu M2 to remove the back cover, speaker, camera, battery, and motherboard.
Follow us on Facebook for the latest updates from MyFixGuide.com.

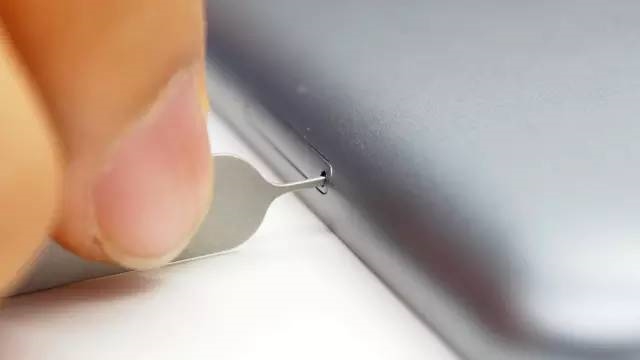

Remove the SD card tray.
Remove two screws next to the micro-USB port.
Now pry up and remove the back cover.
Remove all screws securing the middle frame and speaker module.

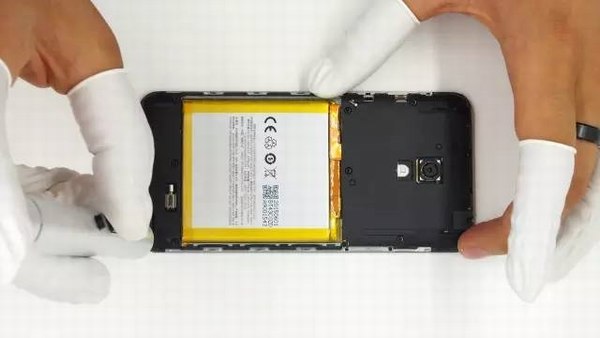

Remove the middle frame and speaker module.

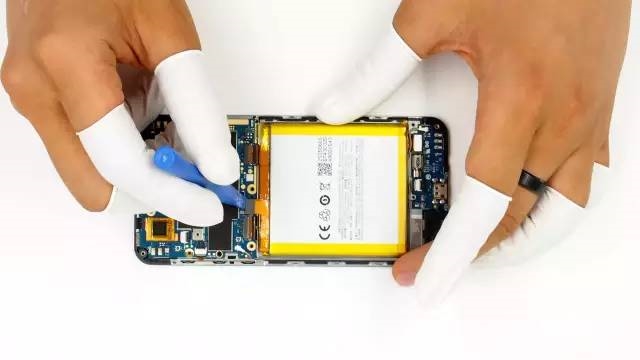

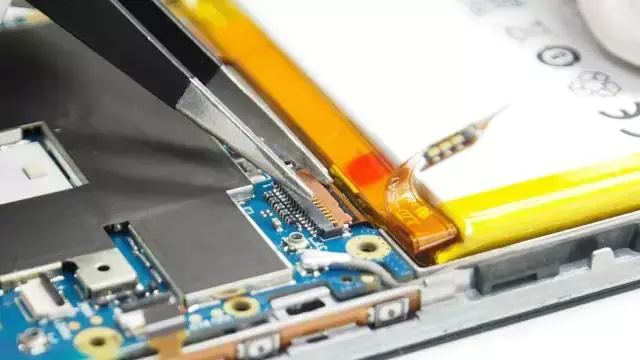

Disconnect the battery connector from the motherboard.

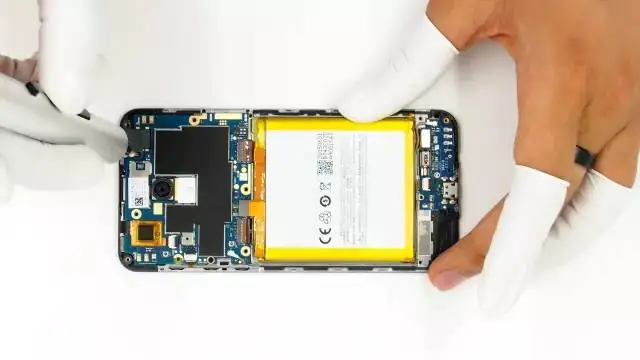

Remove all screws securing the motherboard.

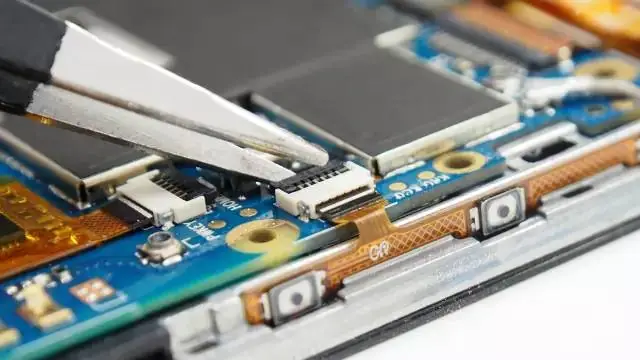

Disconnect the power button cable.
Disconnect the LCD cable.

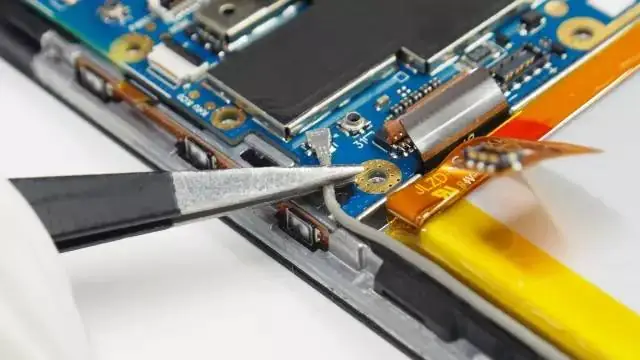

Disconnect the RF antenna cable.

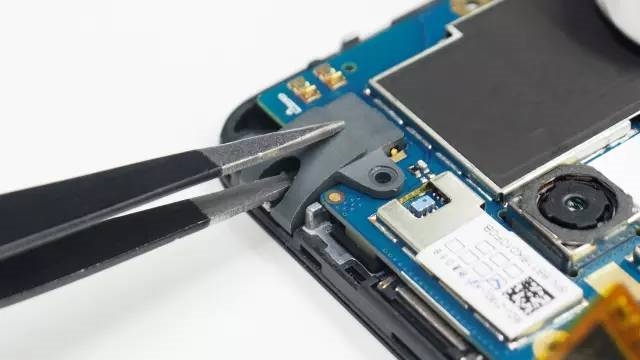

Remove the headphone jack.

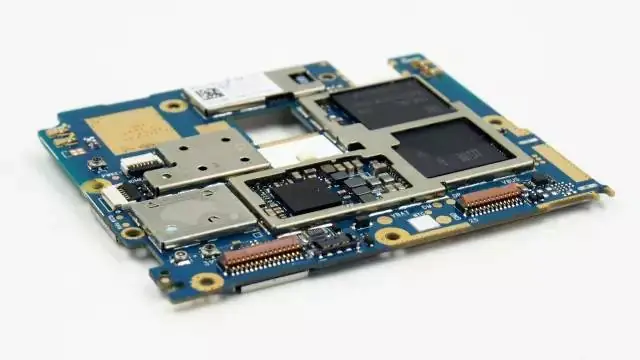

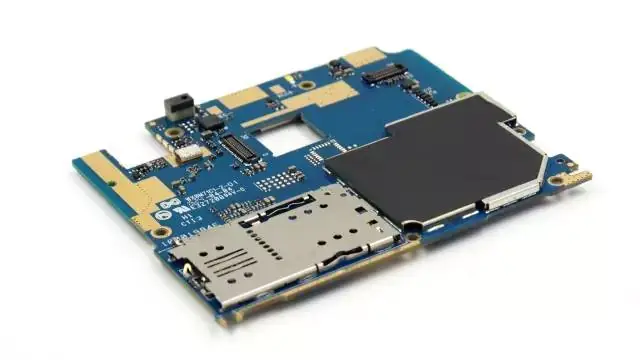

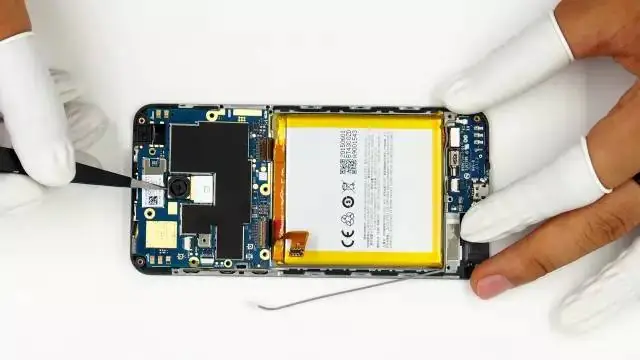

Remove the motherboard.

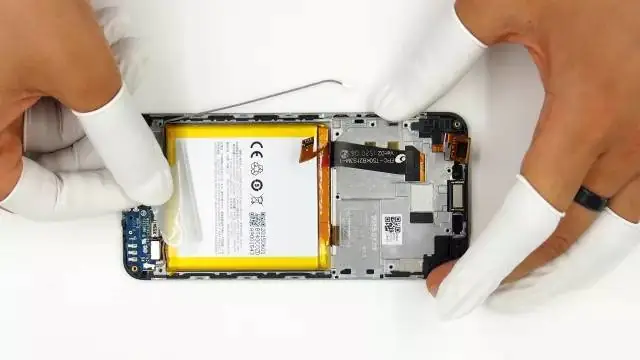

Remove the battery.

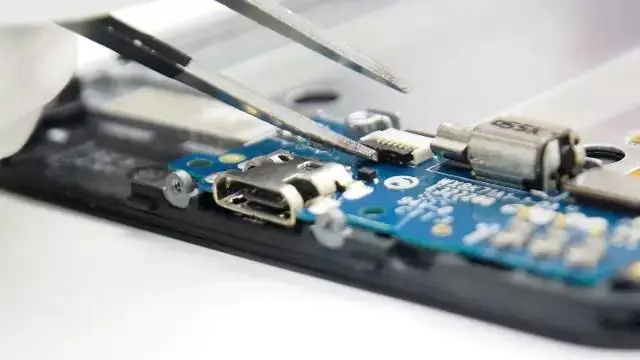

Disconnect the home button cable.
Remove the front camera.

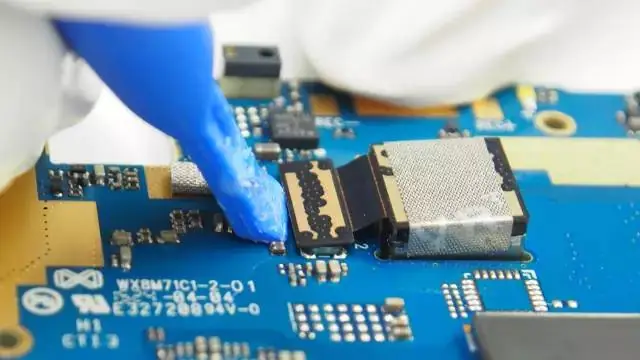

Remove the rear camera.
Remove all the metal shields from the motherboard.
My camera is not opening in Meizu M2, how to fix it? please give me a solution.
Please contact Meizu to handle this question.
Torx numbers?
It is not Torx, and it is a Pentalobe 0.8, similar to the iPhone 4,5 screws.
