Meizu MX4 Teardown
In this guide, I’ll explain how to disassemble the Meizu MX4 to remove the back cover, middle frame, battery, rear camera, front camera, and motherboard.
Want to keep in touch with us? Follow us on Facebook for more repair news.

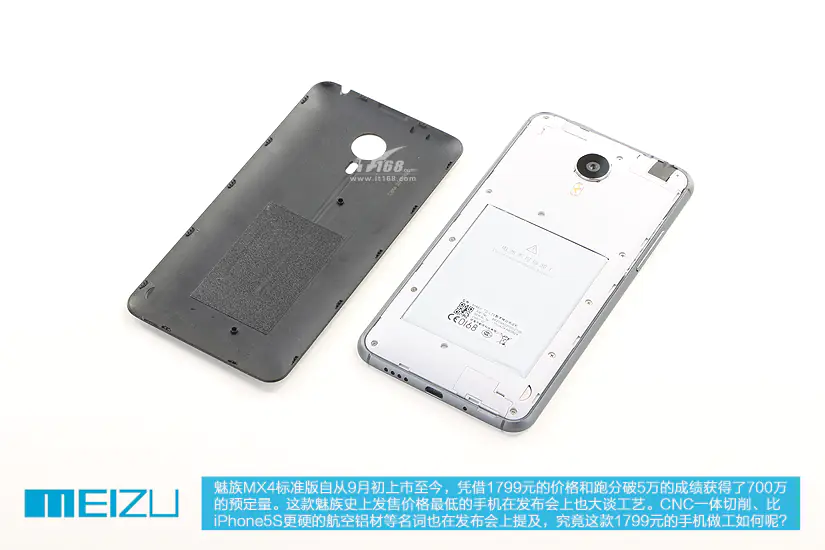

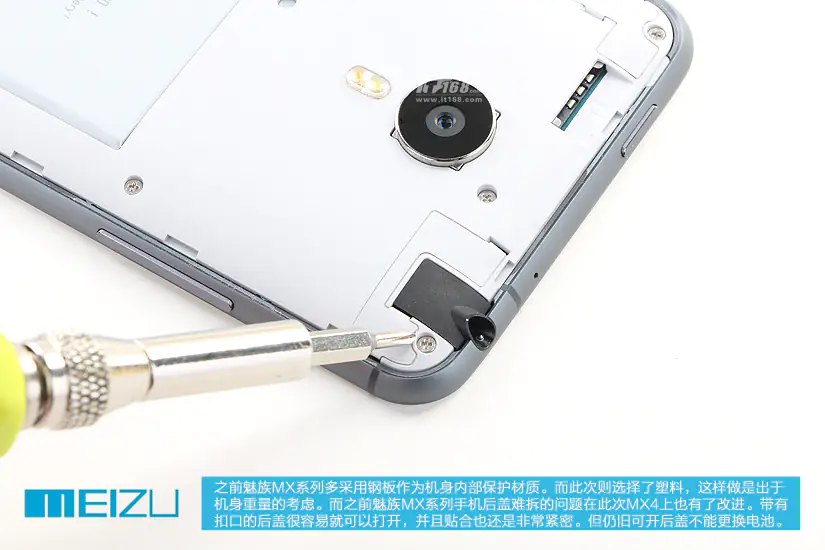

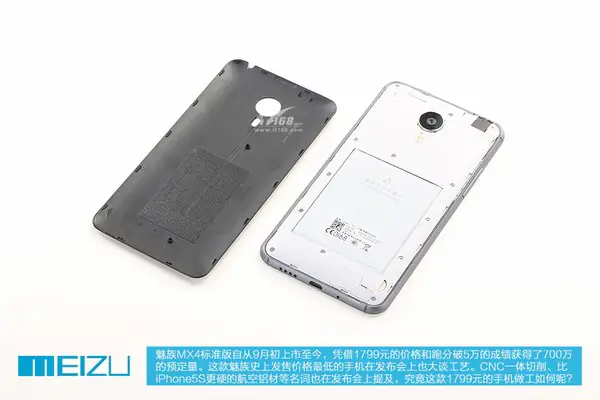

First of all, remove the back cover.
Remove all screws securing the middle frame.

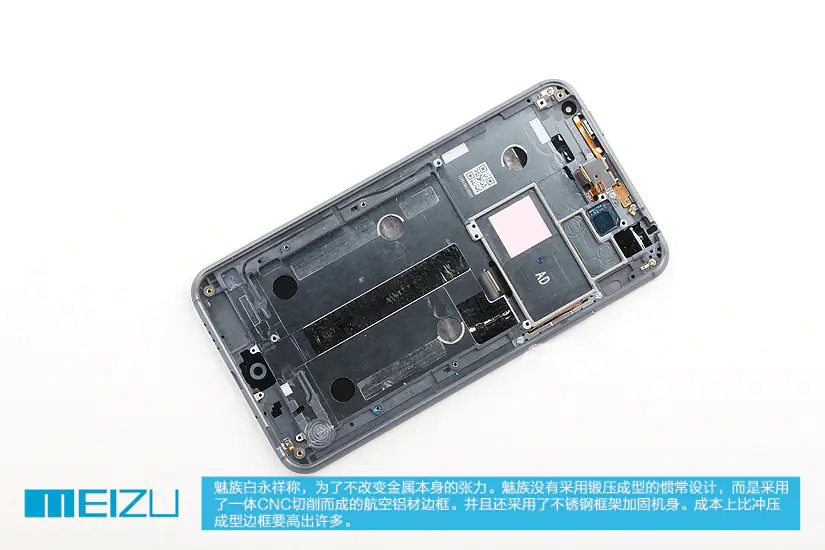

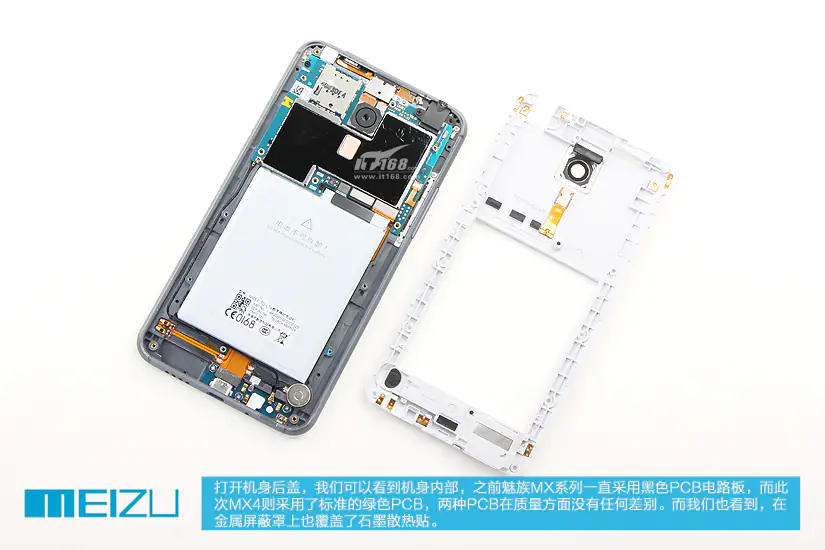

Once the middle frame is removed, you can access the internal components.

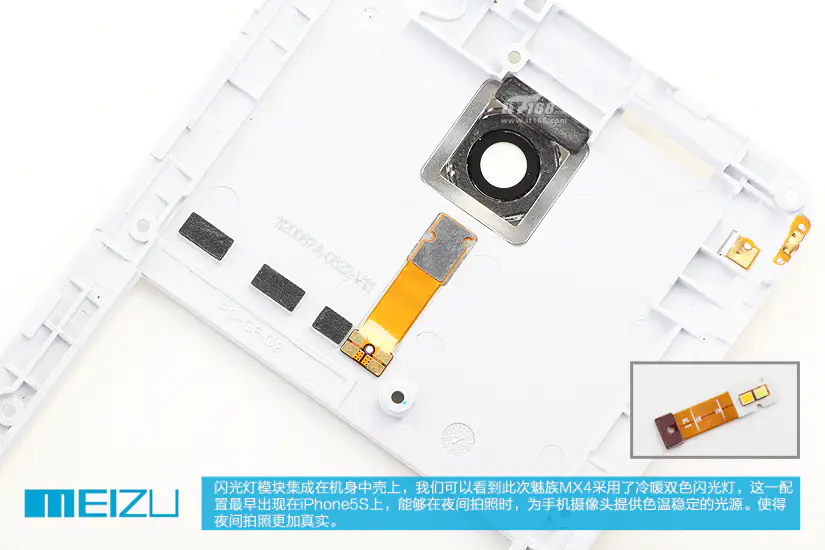

The flashlight module is integrated into the middle frame. You can see MX4 uses the dual-LED flash, which first appeared on the iPhone 5s; it can provide a stable color temperature of light and shadow for the cell phone camera, making nighttime photographs more real.
Disconnect the battery power cable and remove the battery.

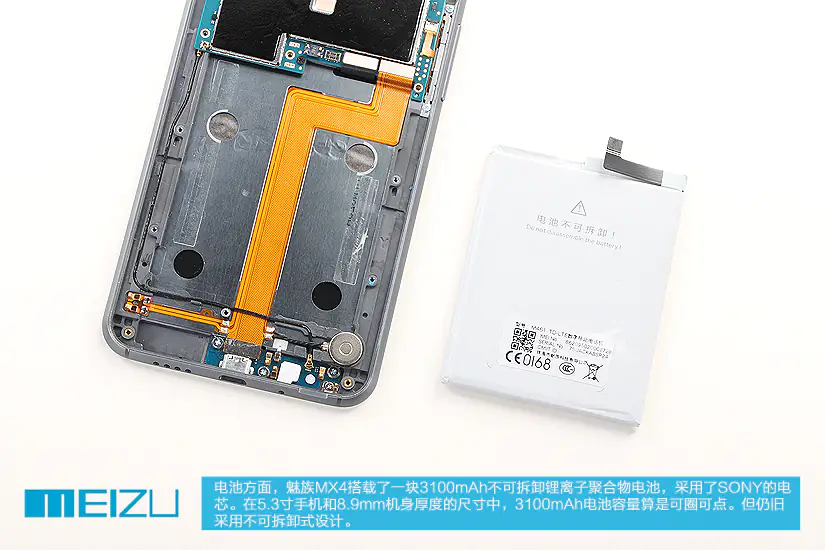

Meizu MX4 comes with a 3100mah battery and battery cells from Sony.

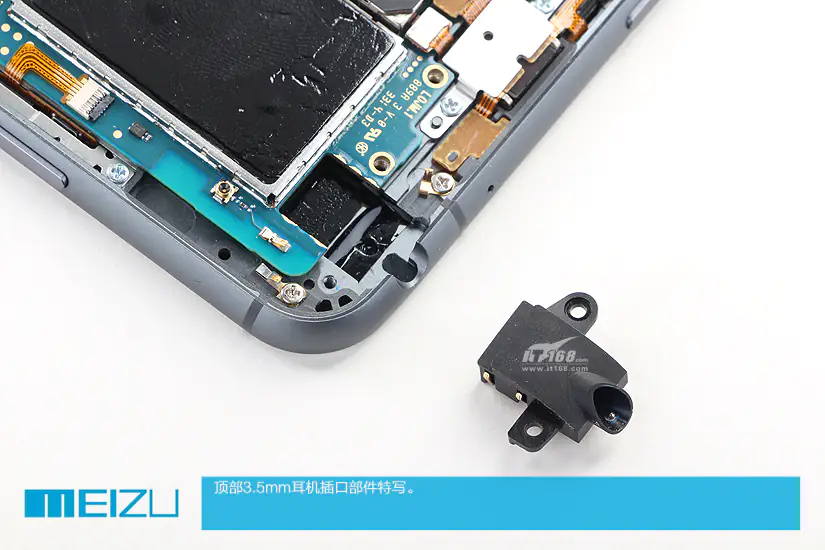

3.5mm headphone jack

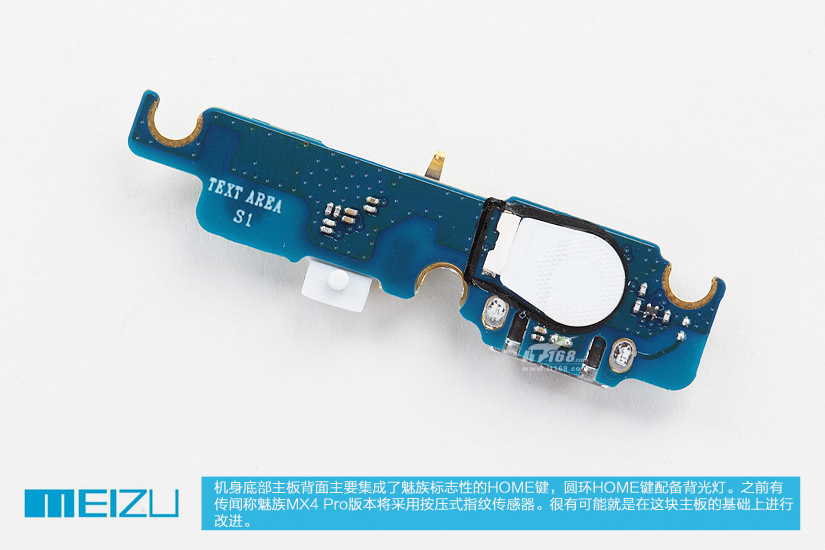

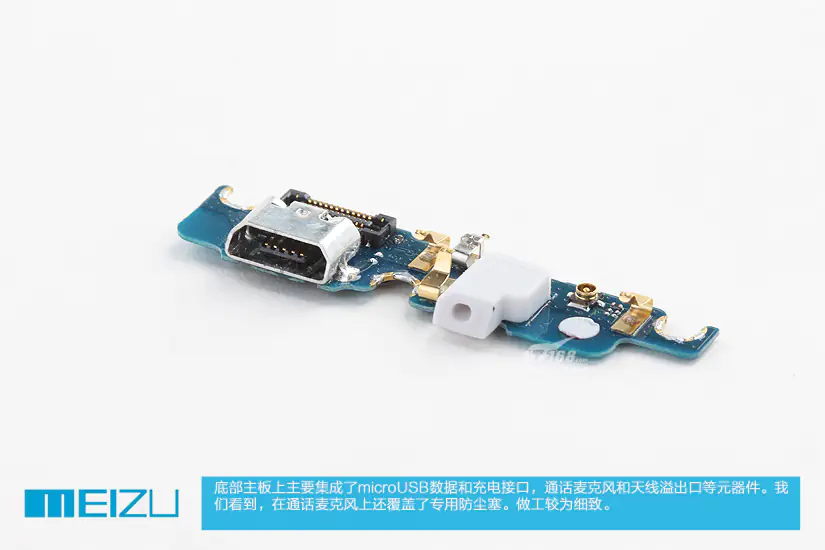

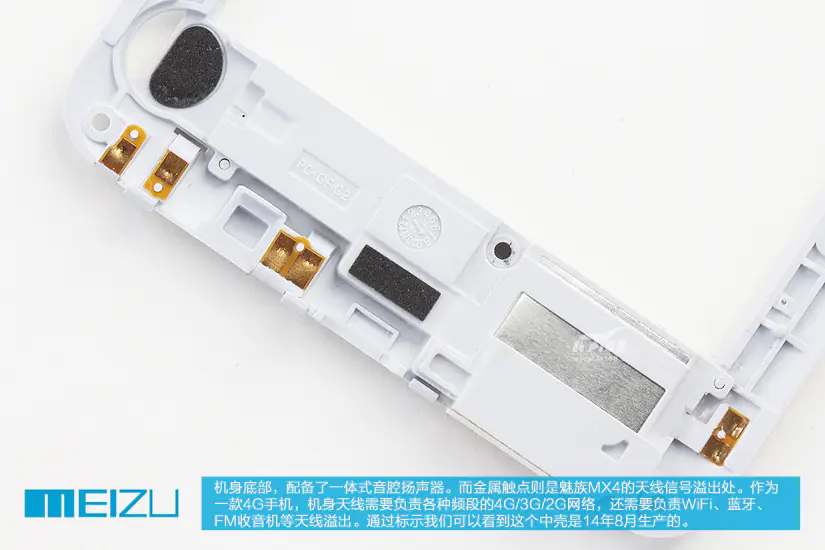

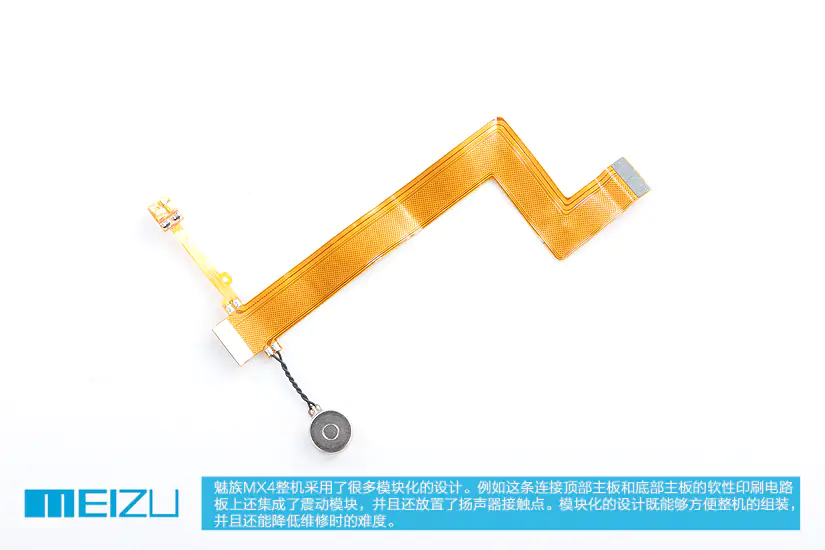

The little motherboard is integrated with the micro USB charging port, microphone, and antenna overflow outlet.

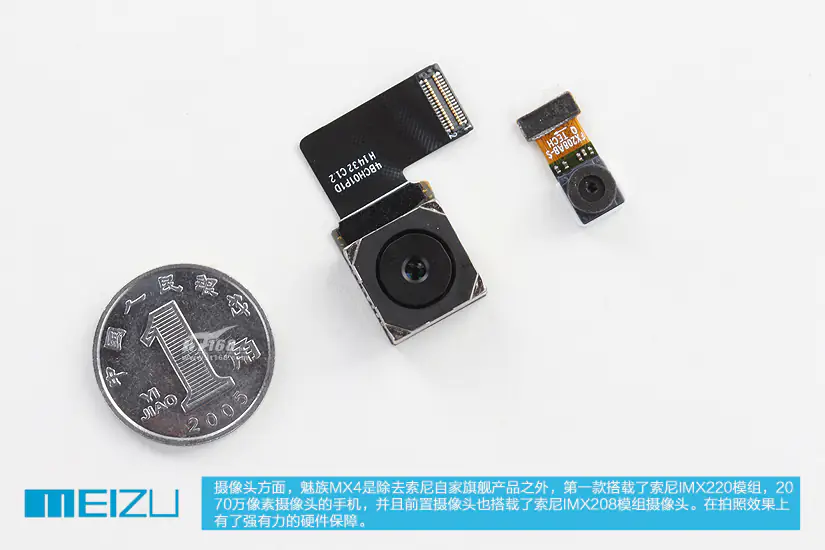

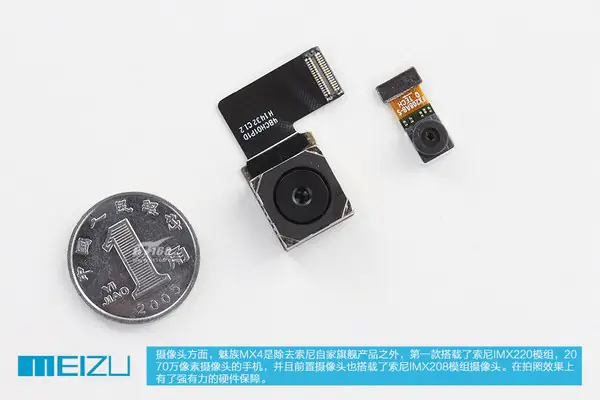

Sony IMX220 rear camera and Sony IMX208 front camera

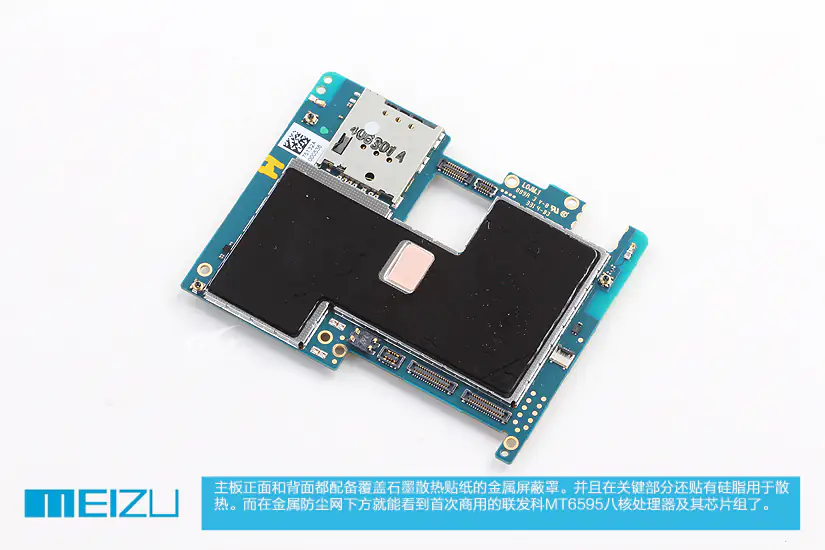

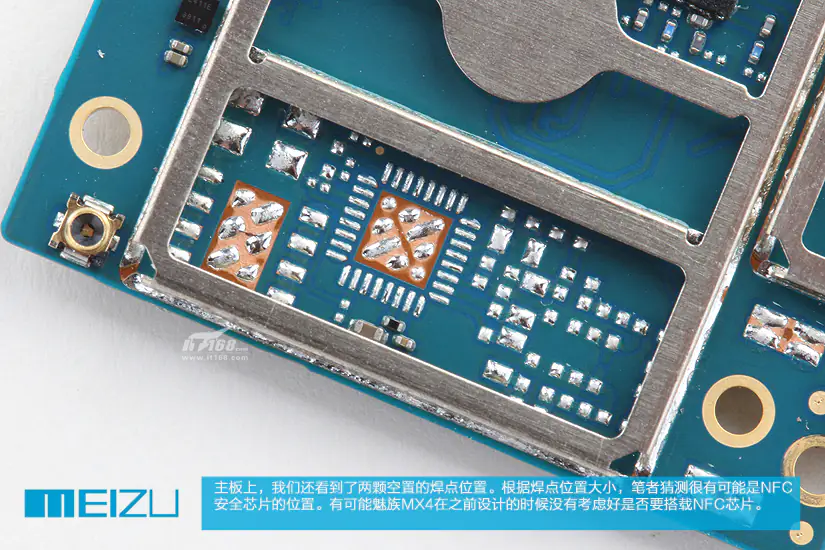

MediaTek MT6595 eight-core processor was covered by a metal shield.

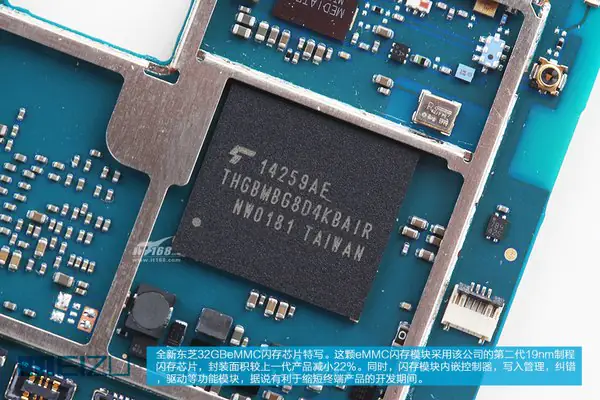

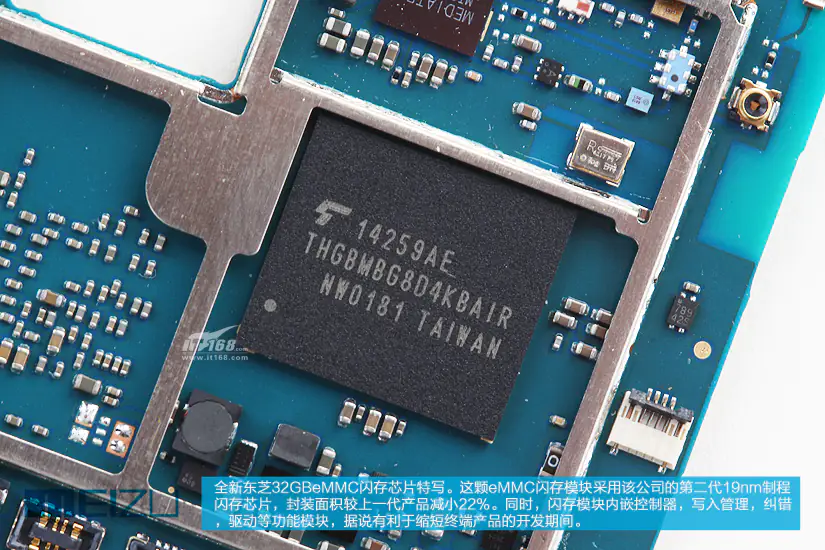

Toshiba 32GB eMMC memory chip

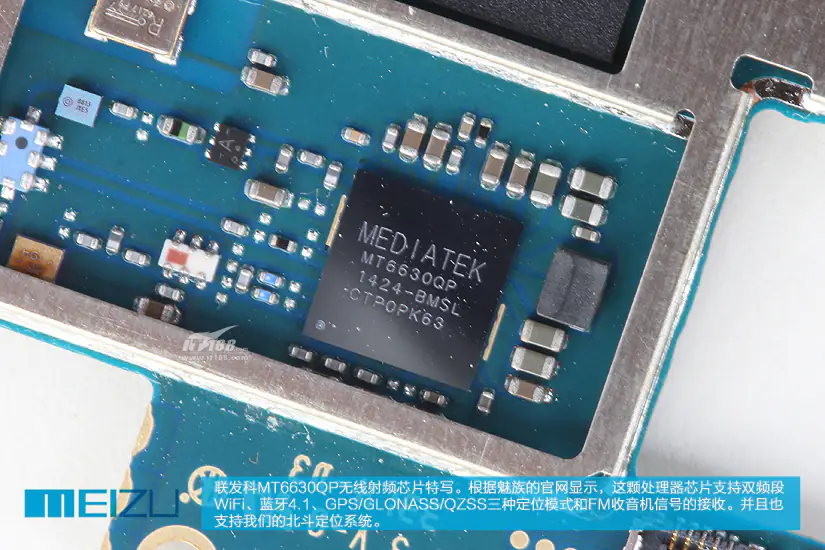

The MediaTek MT6630QP RF chip supports dual-band Wi-Fi, Bluetooth 4.1, GPS / GLONASS / QZSS, and FM signal reception.
Skyworks 77621-11 RF module supports GSM / GPRS / EDGE / WCDMA / TD-SCDMA and 4G networks.

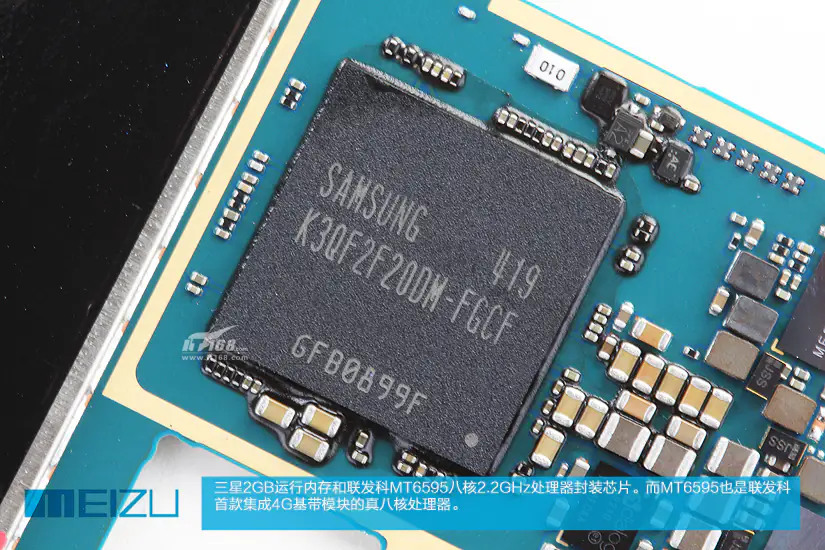

Samsung 2GB ROM

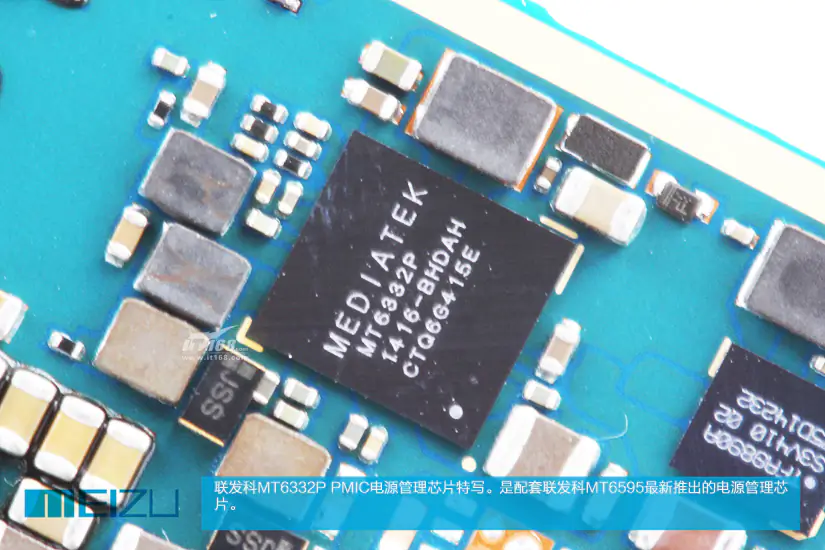

MediaTek MT6332P power management chip

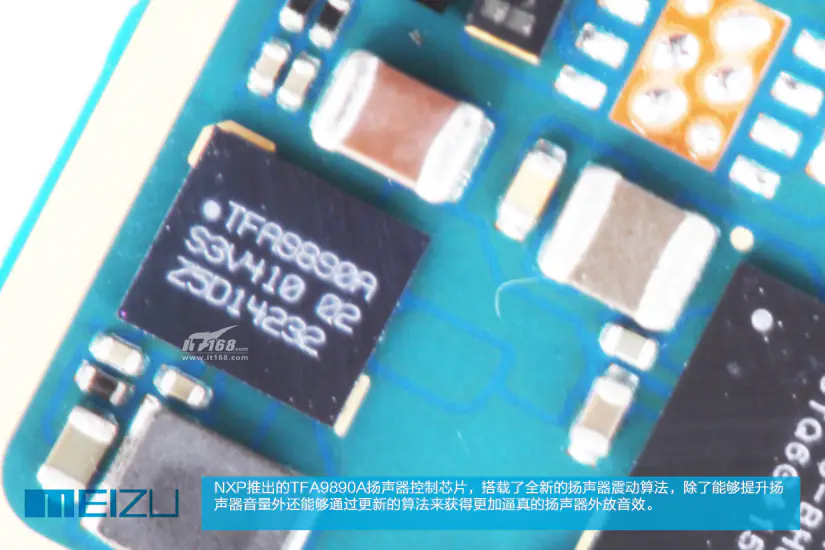

MXP TF9890A speaker control chip

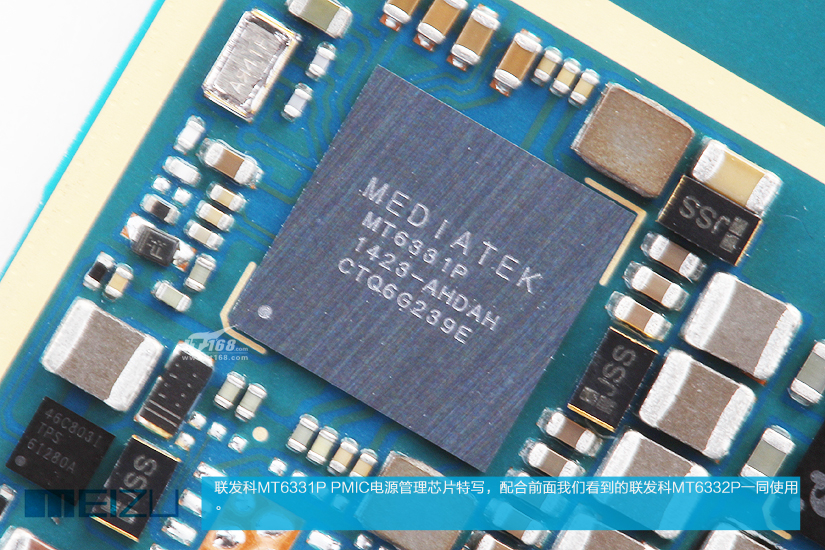

MediaTek MT6331P power management chip

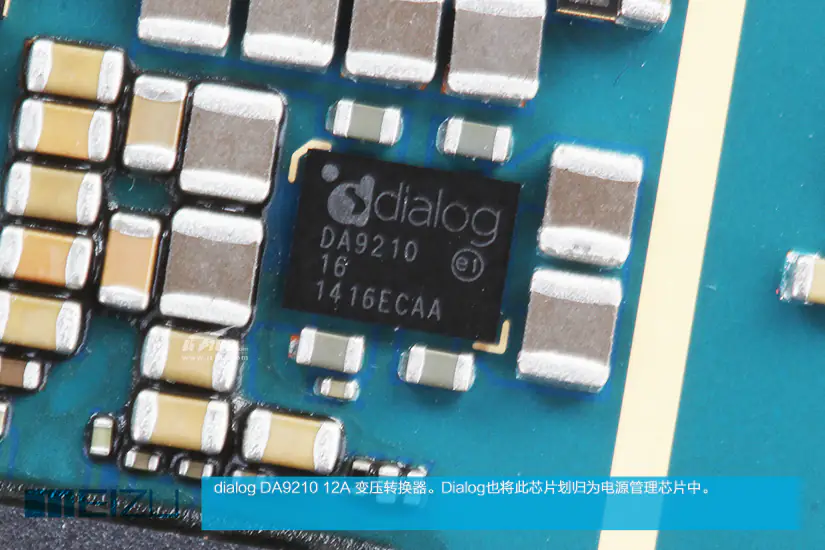

Dialog DA9210 12A converter transformer

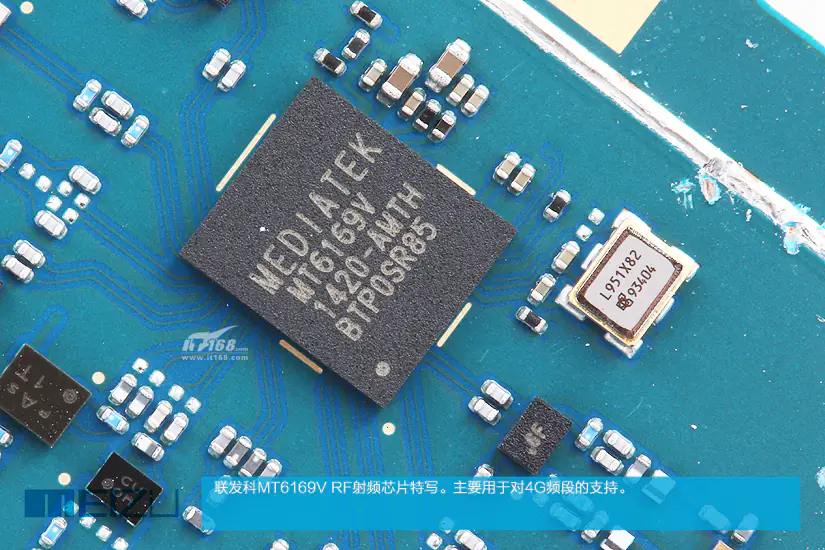

The MediaTek MT6169V RF chip is mainly used to support 4G.
