MSI GS60MSI Laptop
MSI GS60 Disassembly

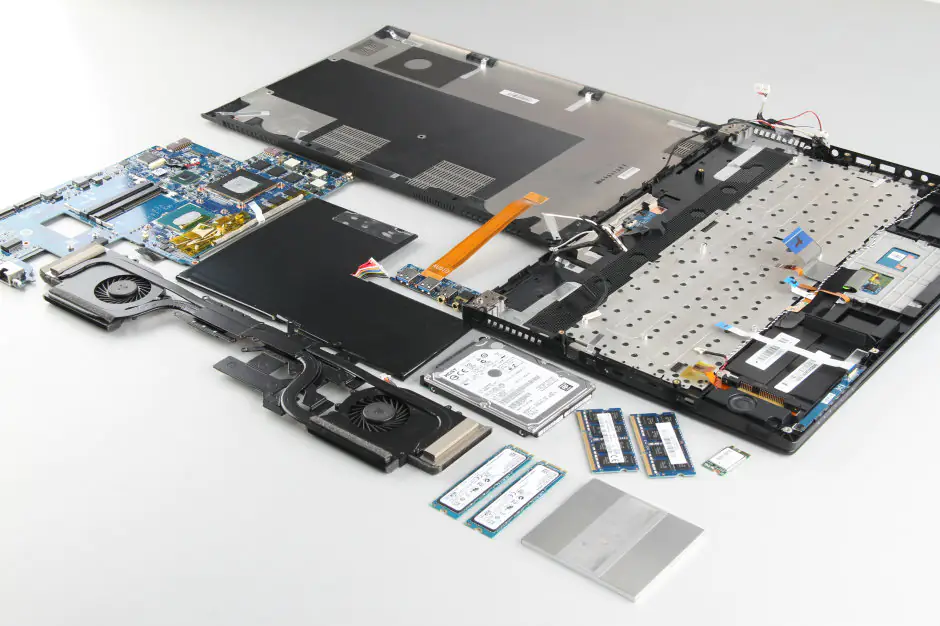

In this guide, I’ll explain how to disassemble the MSI GS60. I will remove the battery, RAM, SSD, hard drive, wireless card, keyboard, heat sink, cooling fan, and motherboard.
Looking for more funny teardown? Follow us on Facebook for all the latest repair news.

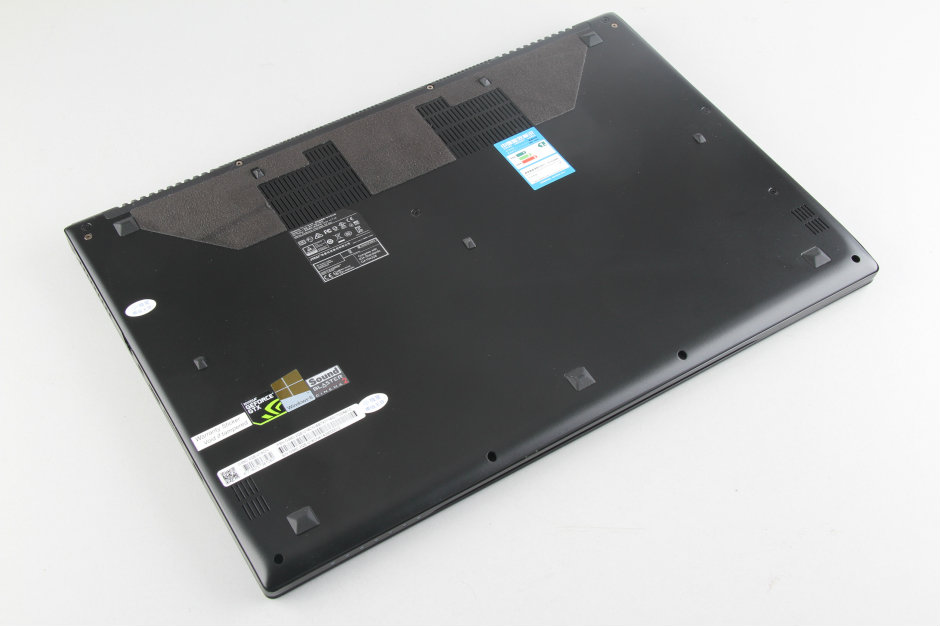

Remove all screws from the bottom case.
Pry up and remove the bottom case.

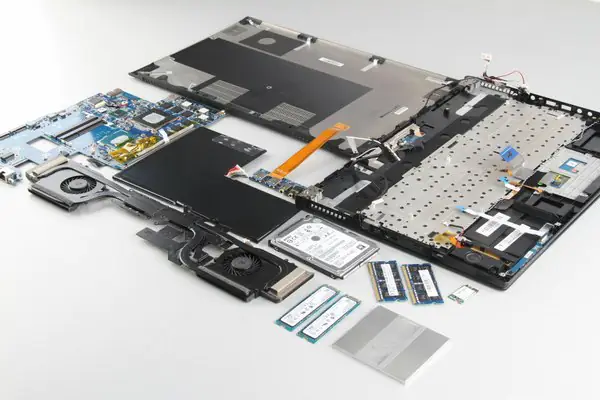

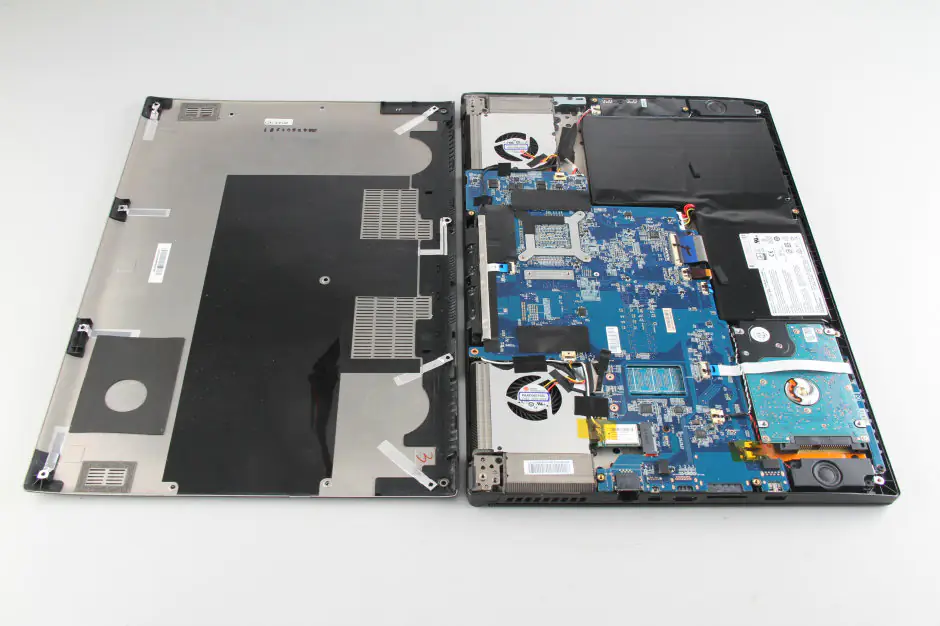

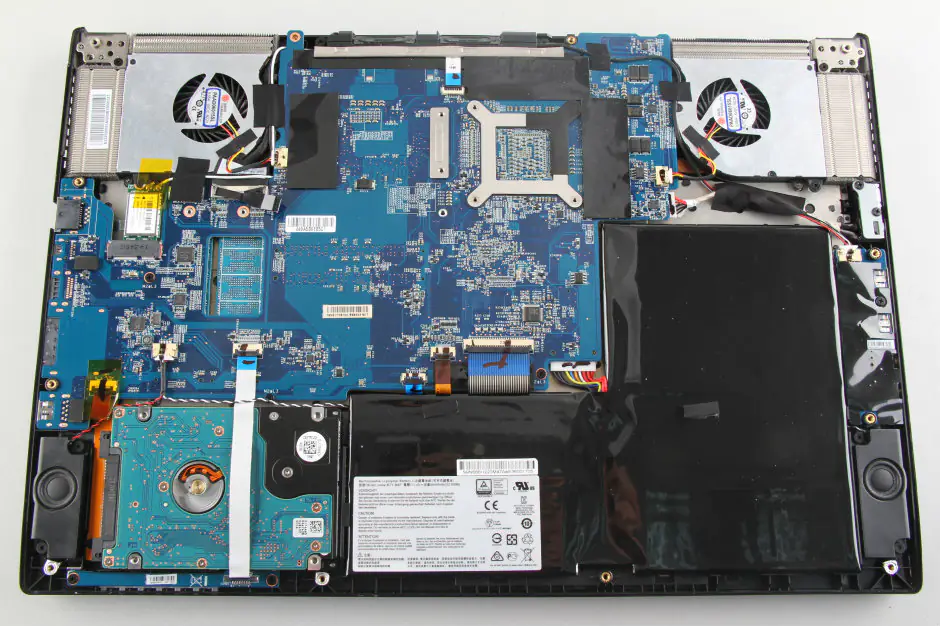

When the bottom case was removed, you could access the battery, hard drive, speakers, wireless card, heat sink, and cooling fan.

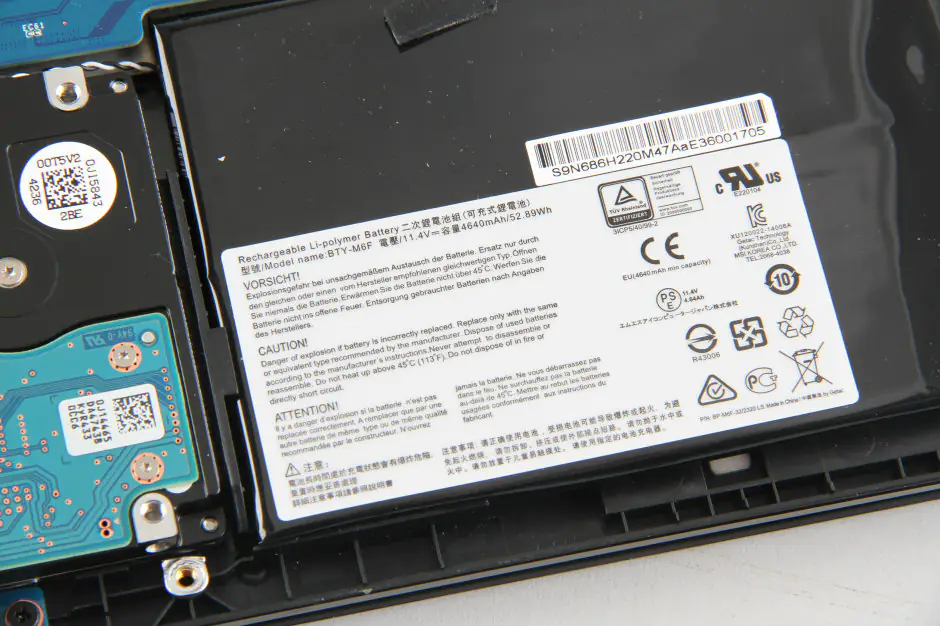

MSI GS60 comes with an 11.4v, 4640mah Li-polymer battery. MSI model: BTY-M6F.

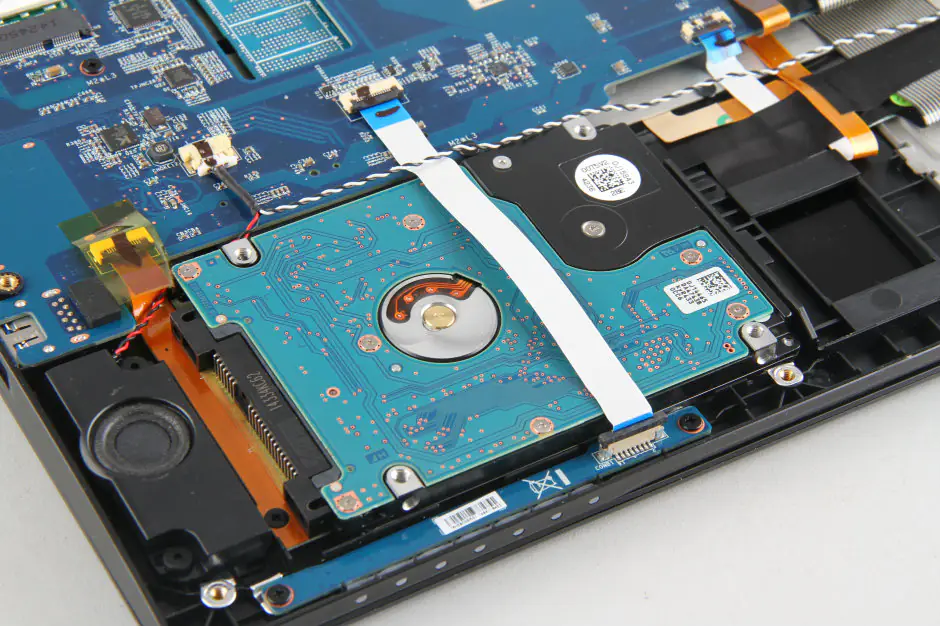

Disconnect the white cable and remove the hard drive.

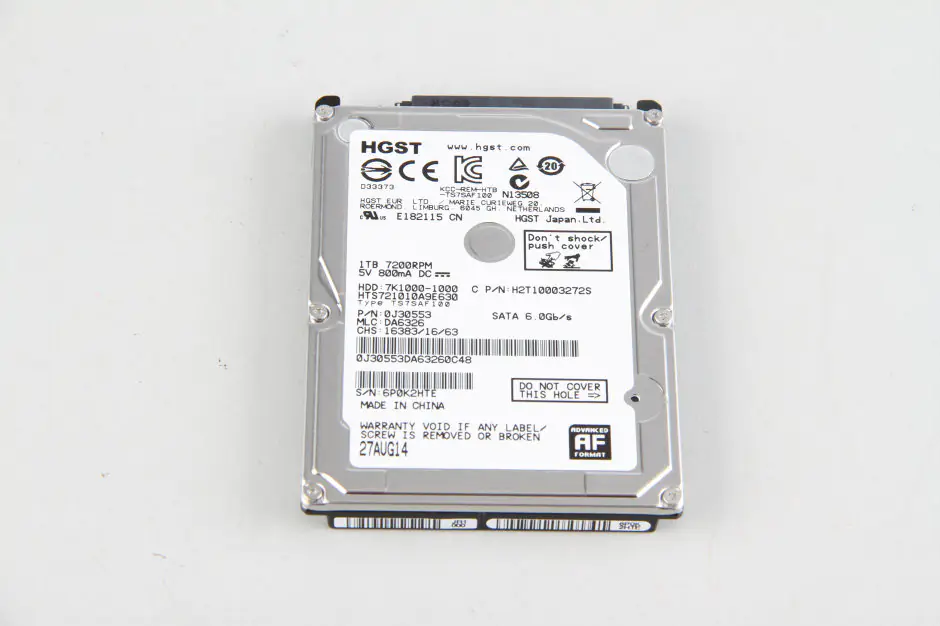

The MSI GS60 features an HGST 1TB 7200RPM hard drive.

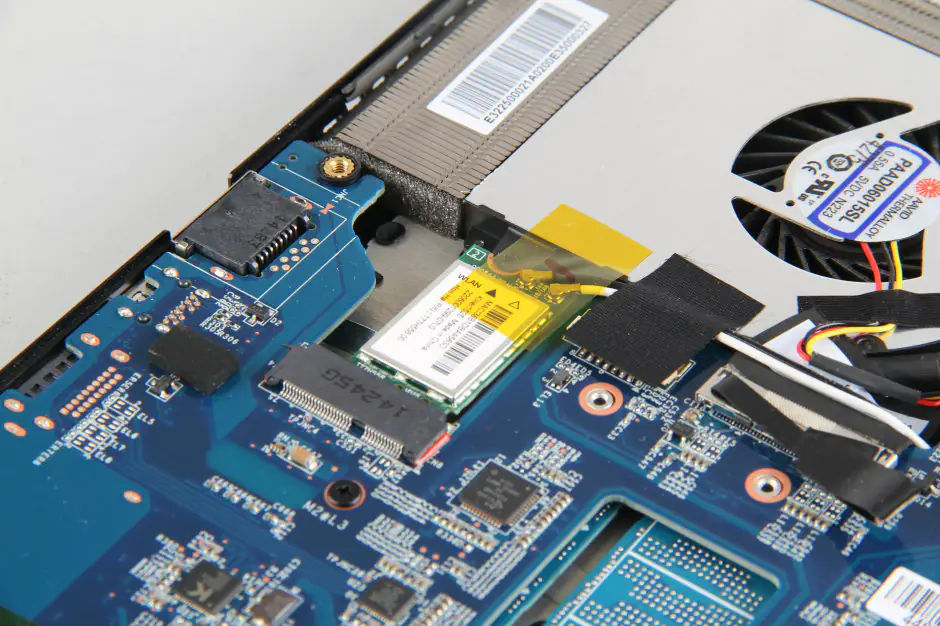

Disconnect two antennas and remove one screw. Remove the wireless card.
The wireless card

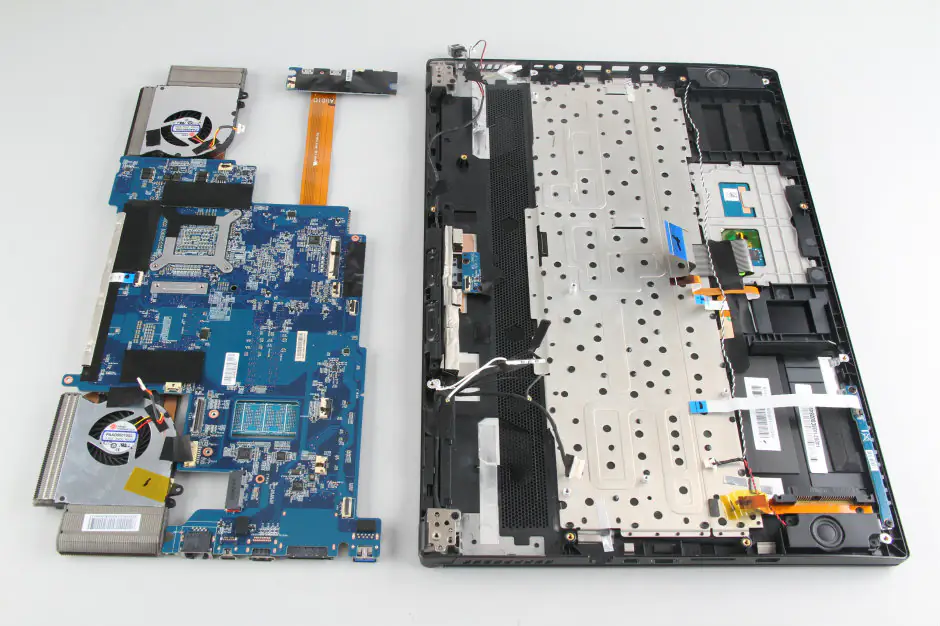

After the motherboard is removed, you can access the keyboard and touchpad.

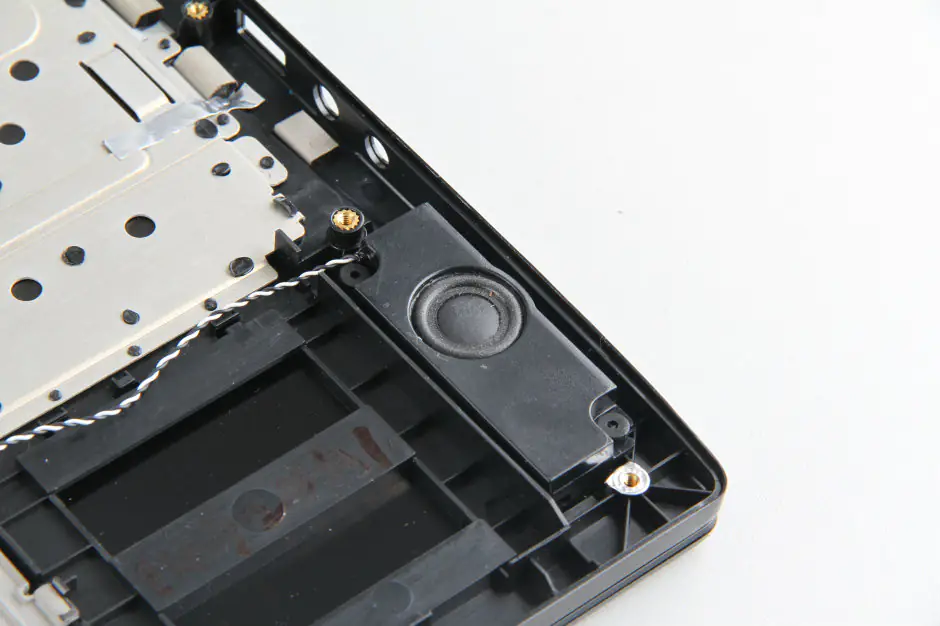

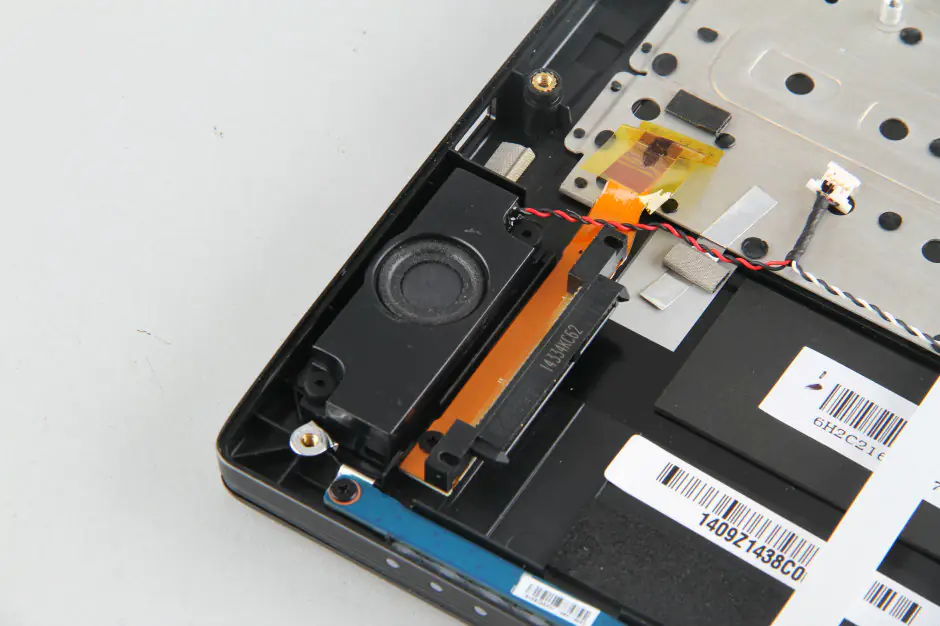

Right speaker

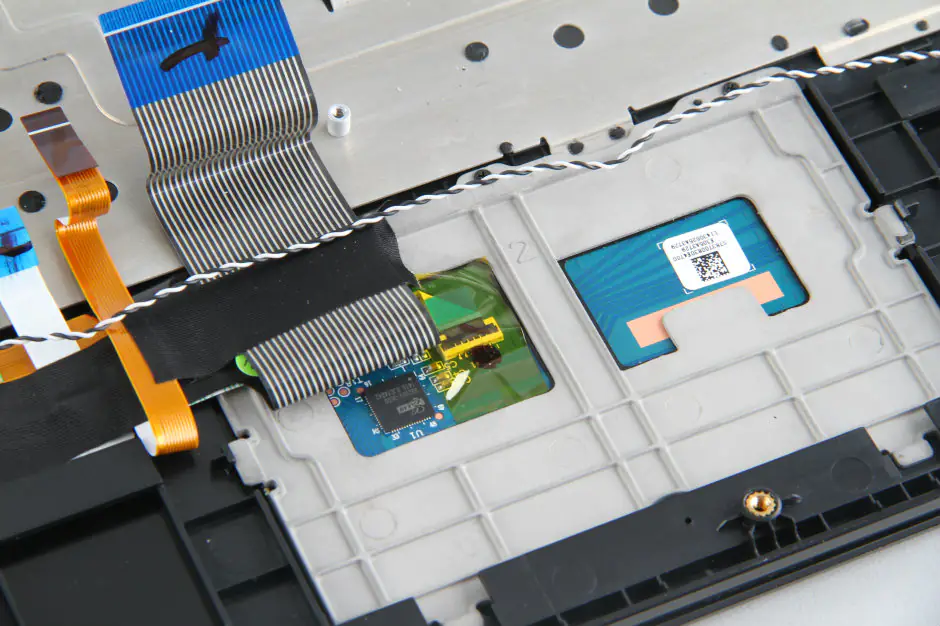

Touchpad
Left speaker

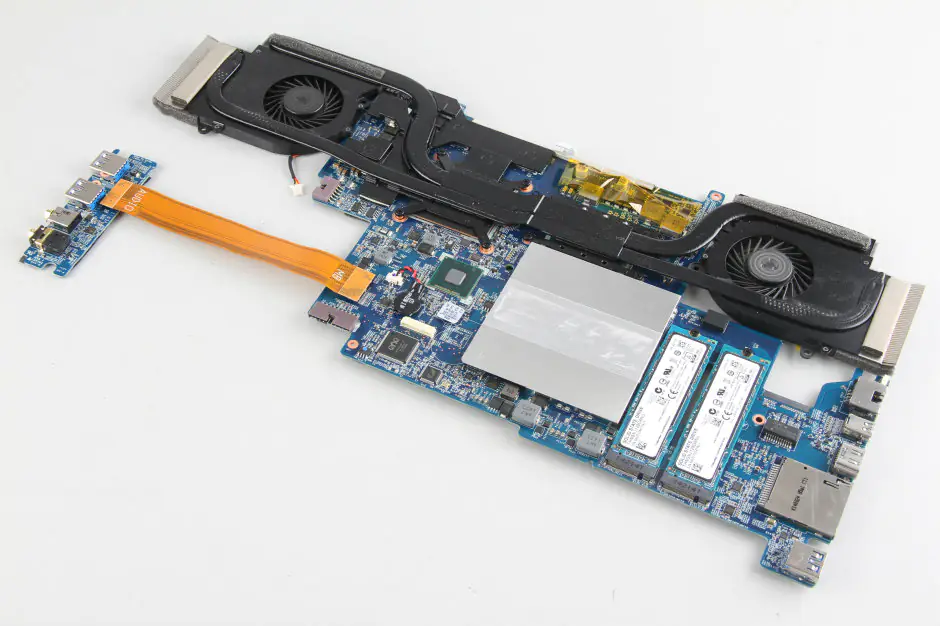

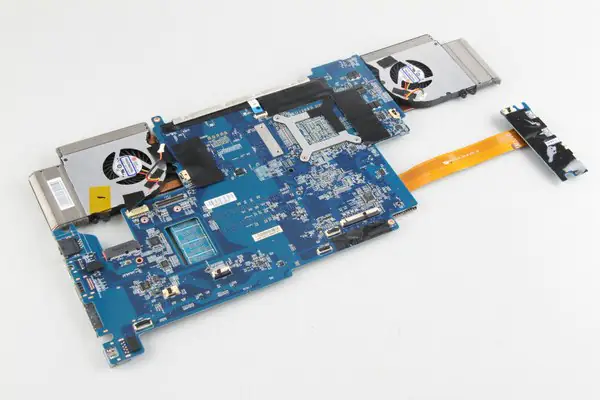

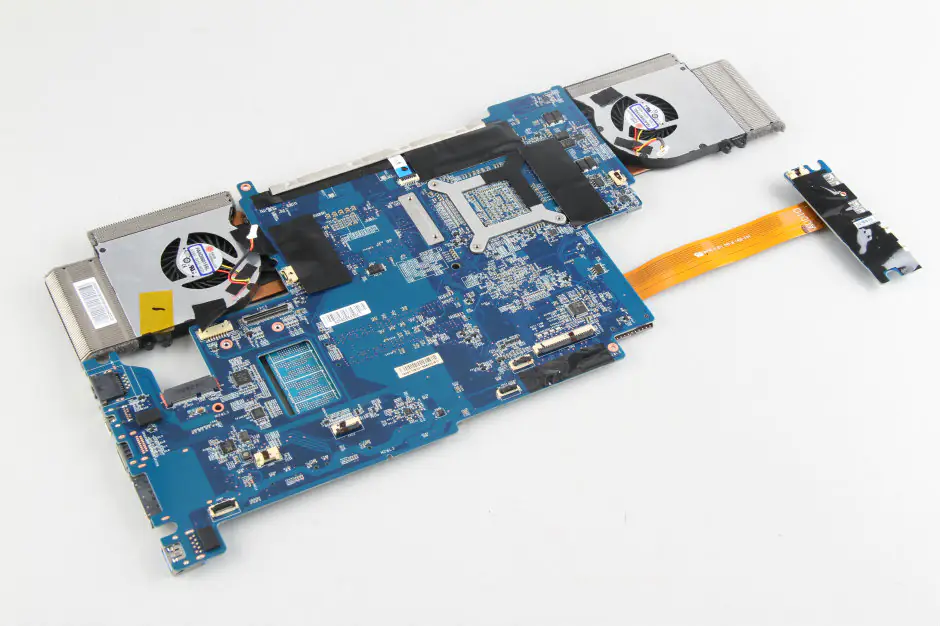

MSI GS60 motherboard

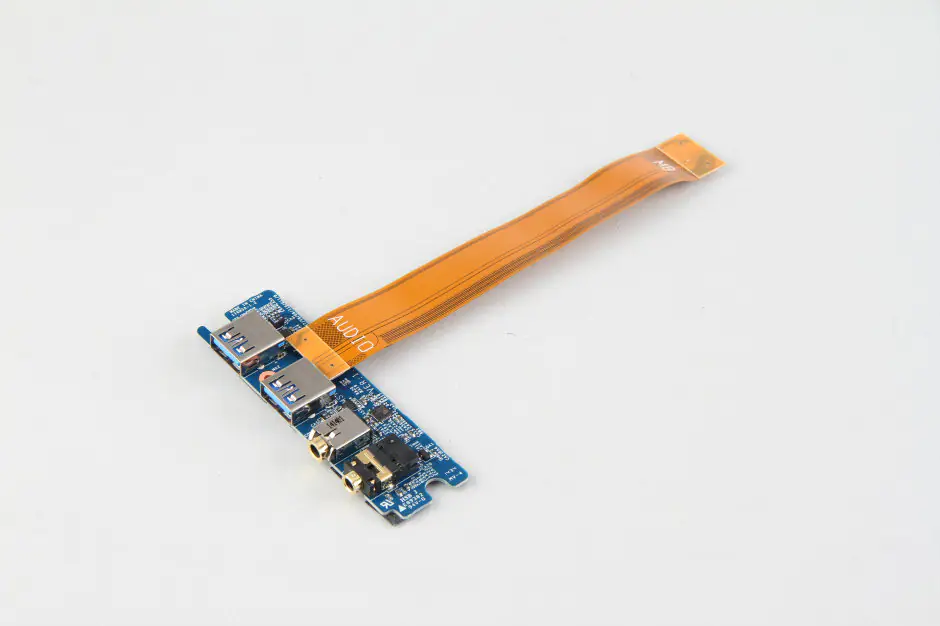

The i/o board is connected to the motherboard via a soft cable.
Remove the screws securing the SSD and remove two M.2 NGFF SSD.

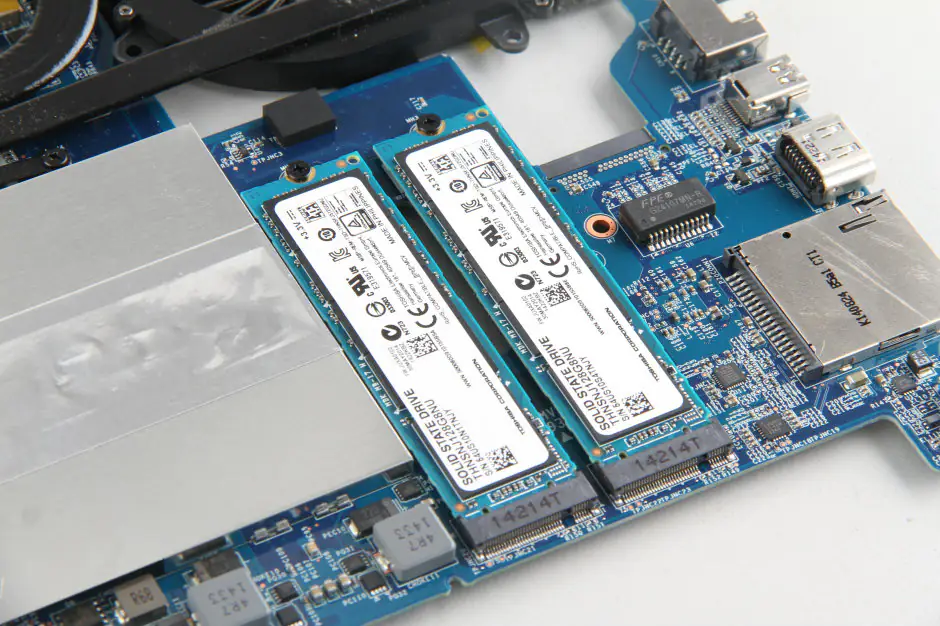

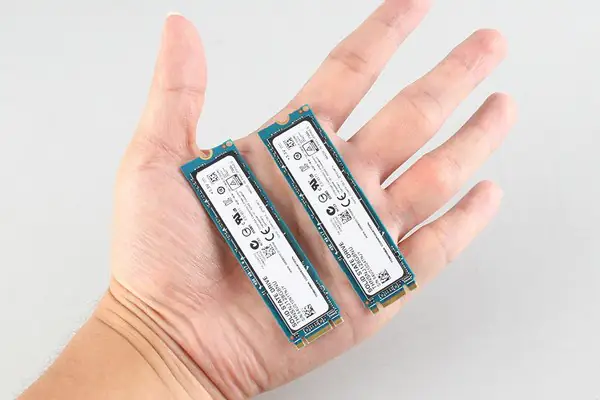

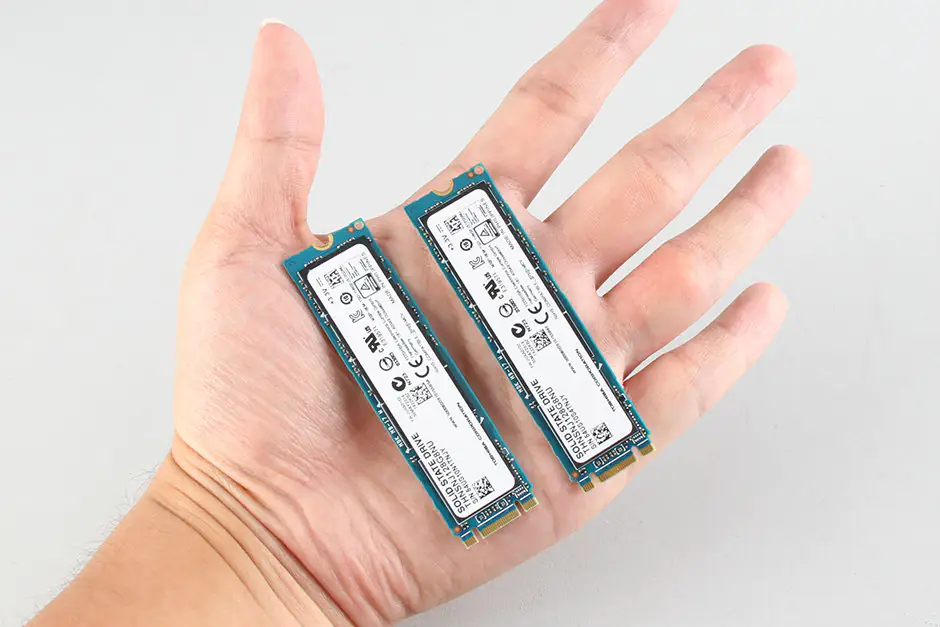

Two Toshiba 128GB M.2 NGFF SSD
Remove the heat sink and cooling fan.

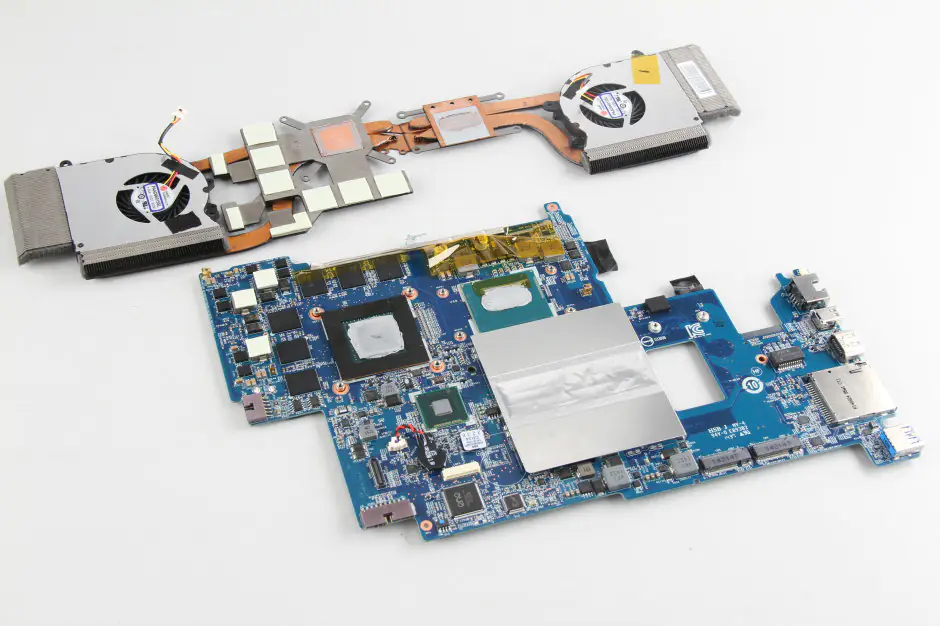

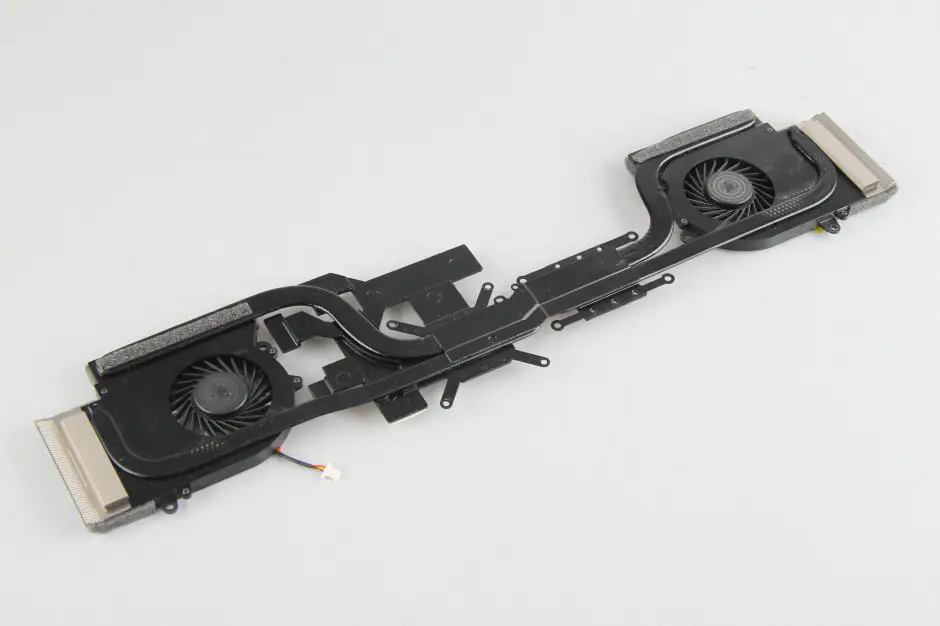

MSI GS60 heat sink and cooling fan

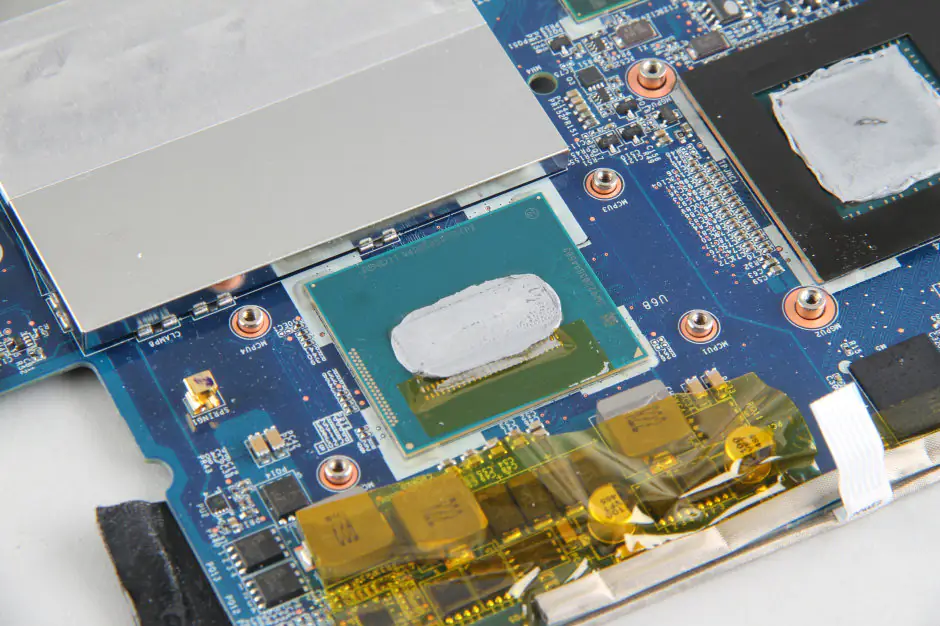

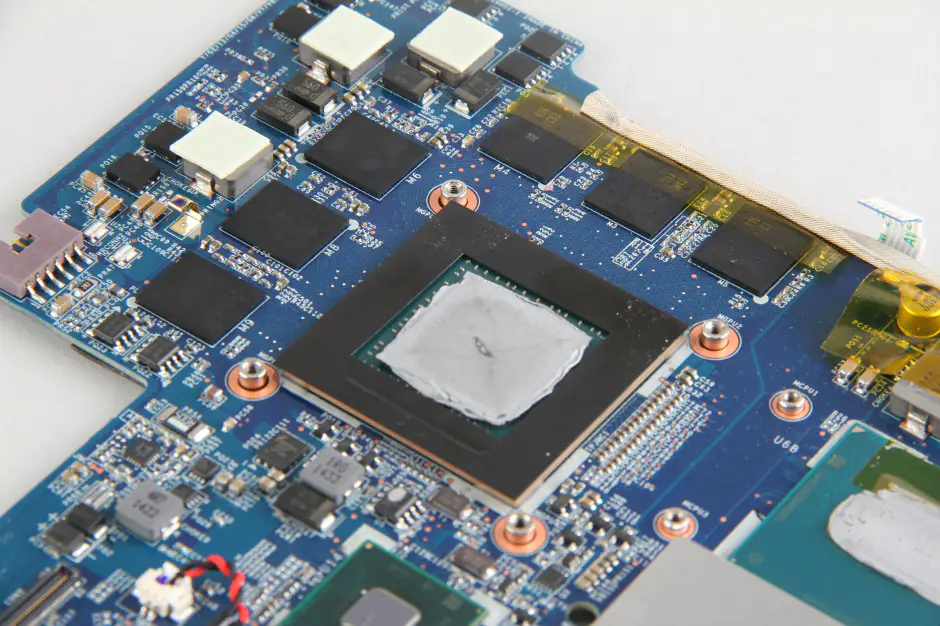

NVIDIA GeForce GTX 970M graphics card
Remove the cooling sticker. You can find two 8GB RAM.

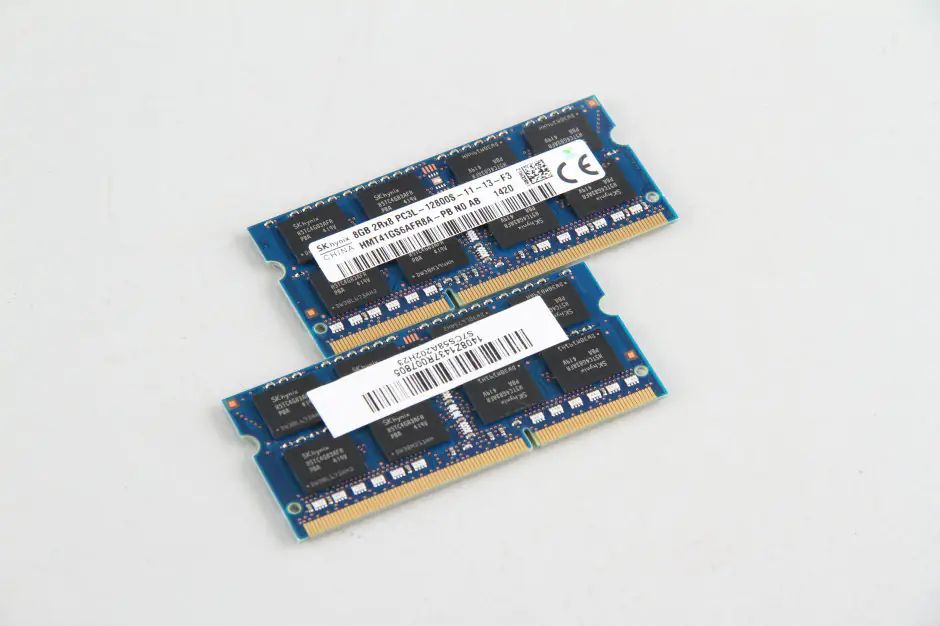

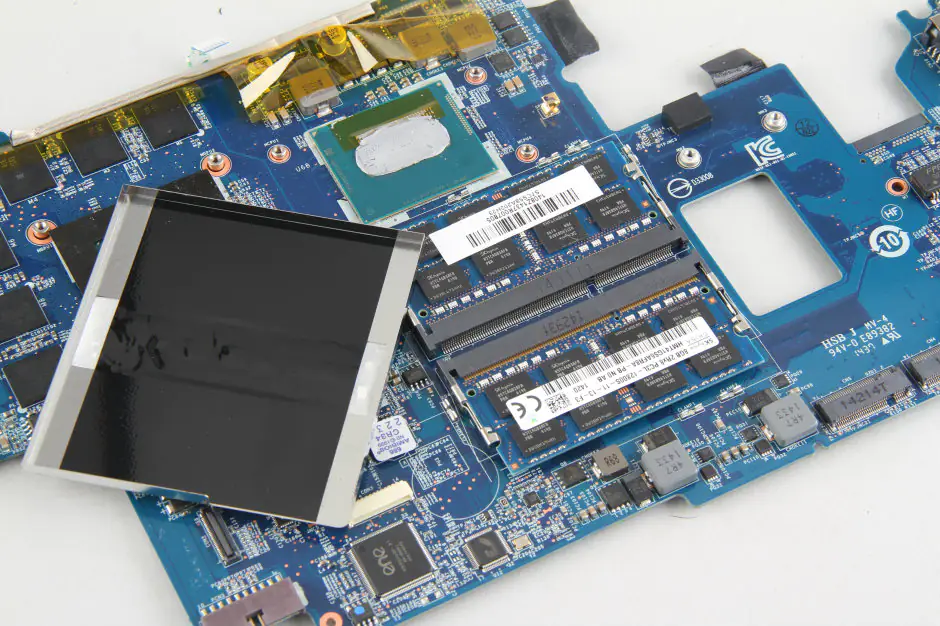

Two SK Hynix 8GB PC3L-12800S RAM
