Xiaomi Mi Power Bank Teardown (20000mAh)
On October 11th, Xiaomi announced the 20000mah power bank, and today, we’re going to disassemble it to explore its internals.

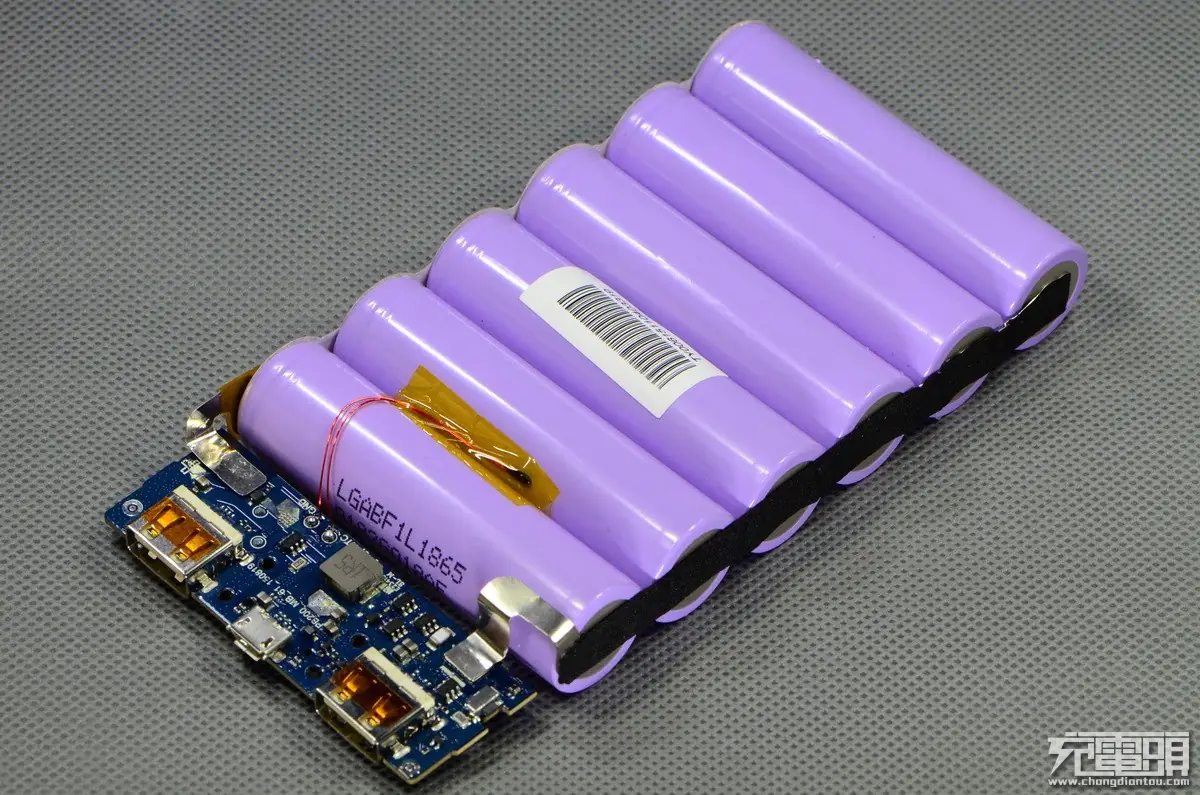

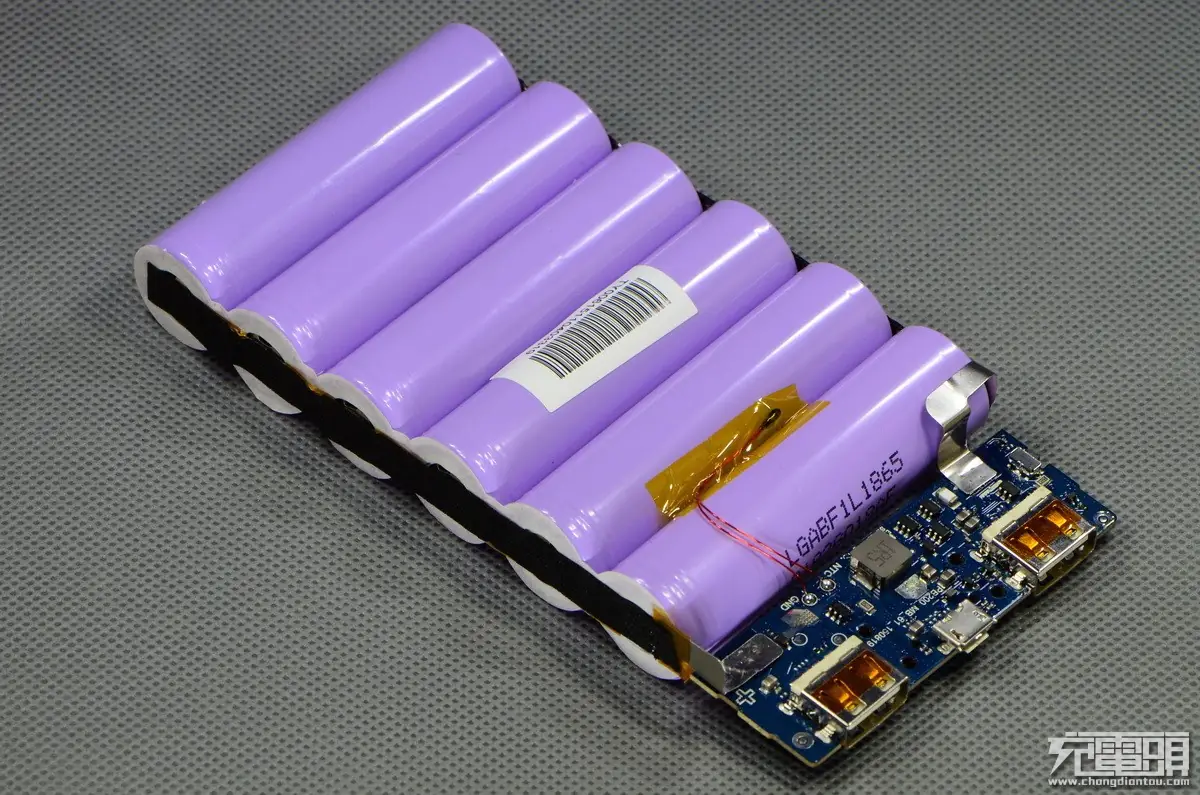

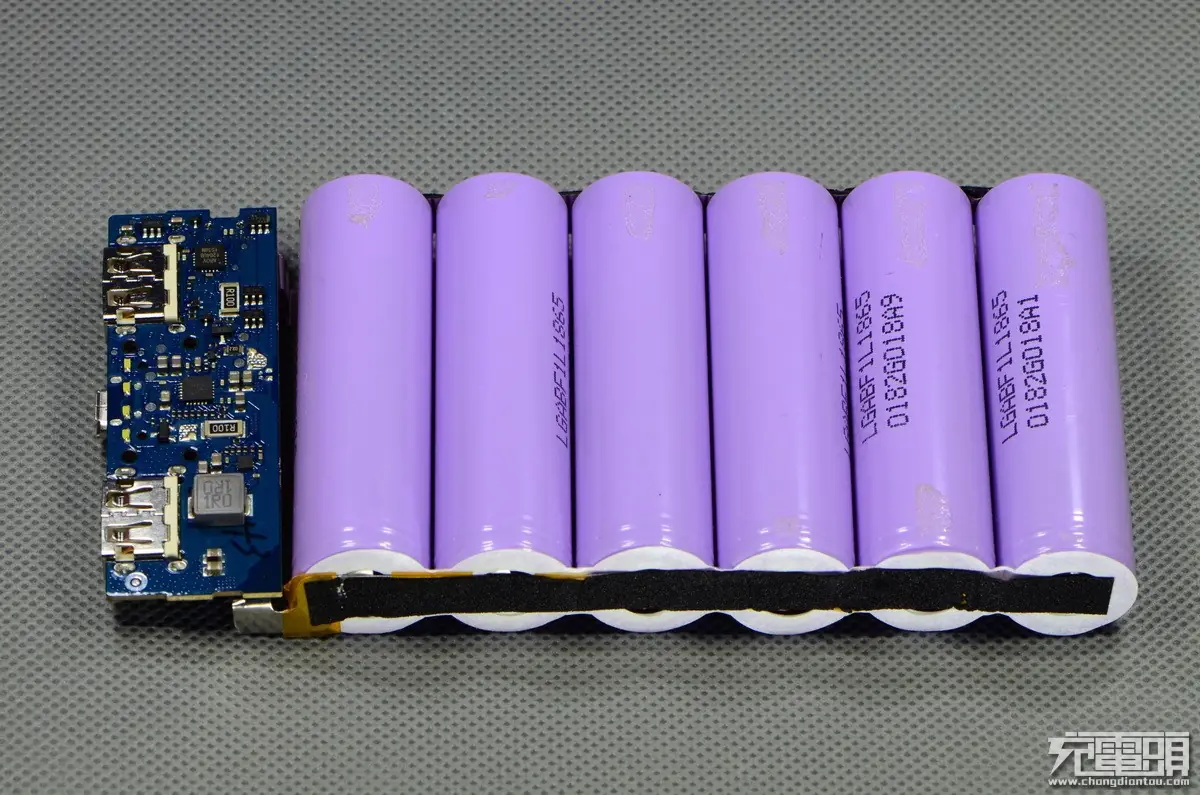

It consists of six LG 18650 batteries (each with a capacity of 3350mAh and 20,000mAh when connected in parallel.) There is a temperature sensor that shuts off the output when the temperature is abnormal. The anode of the battery is covered with a black sponge.
Overall, this 20000mAh power bank is well made, and its internal batteries are covered with a cushioning material on the positive and negative terminals, which makes the contact between the cells and the case tighter.
Looking for more guides? Follow us on Facebook for all the latest repair news.

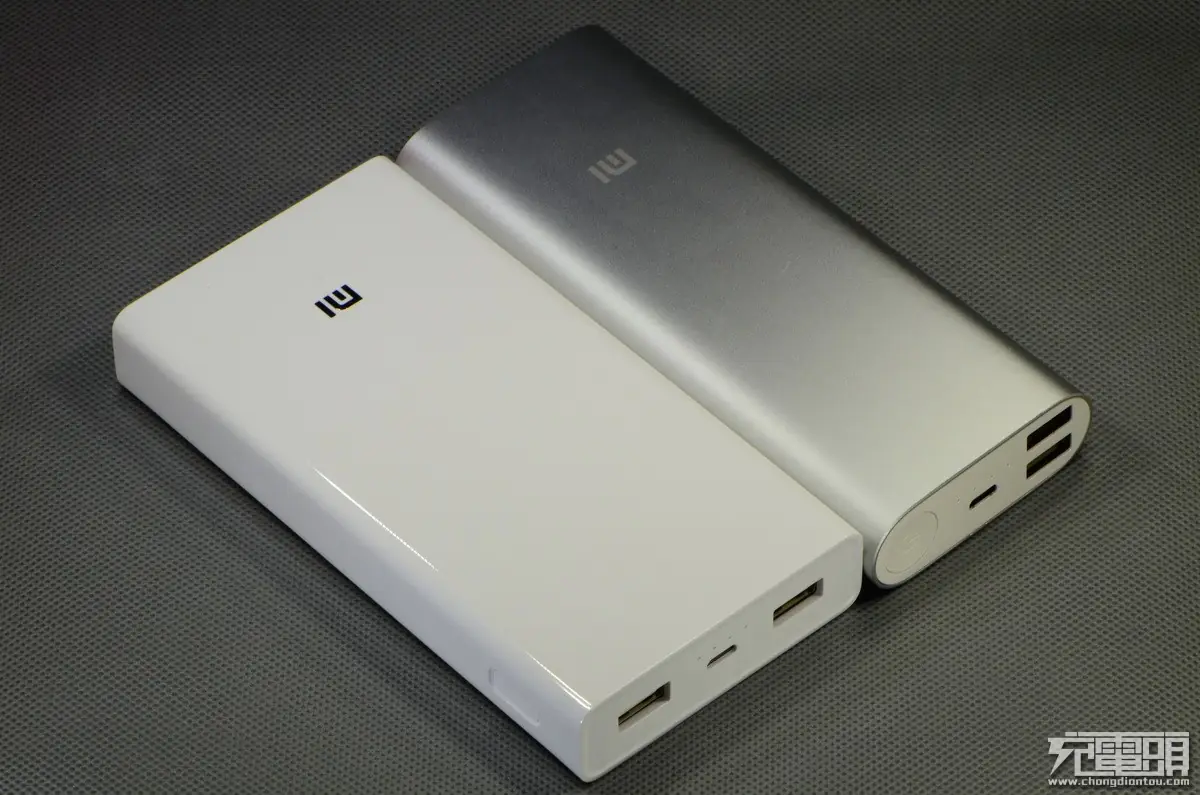

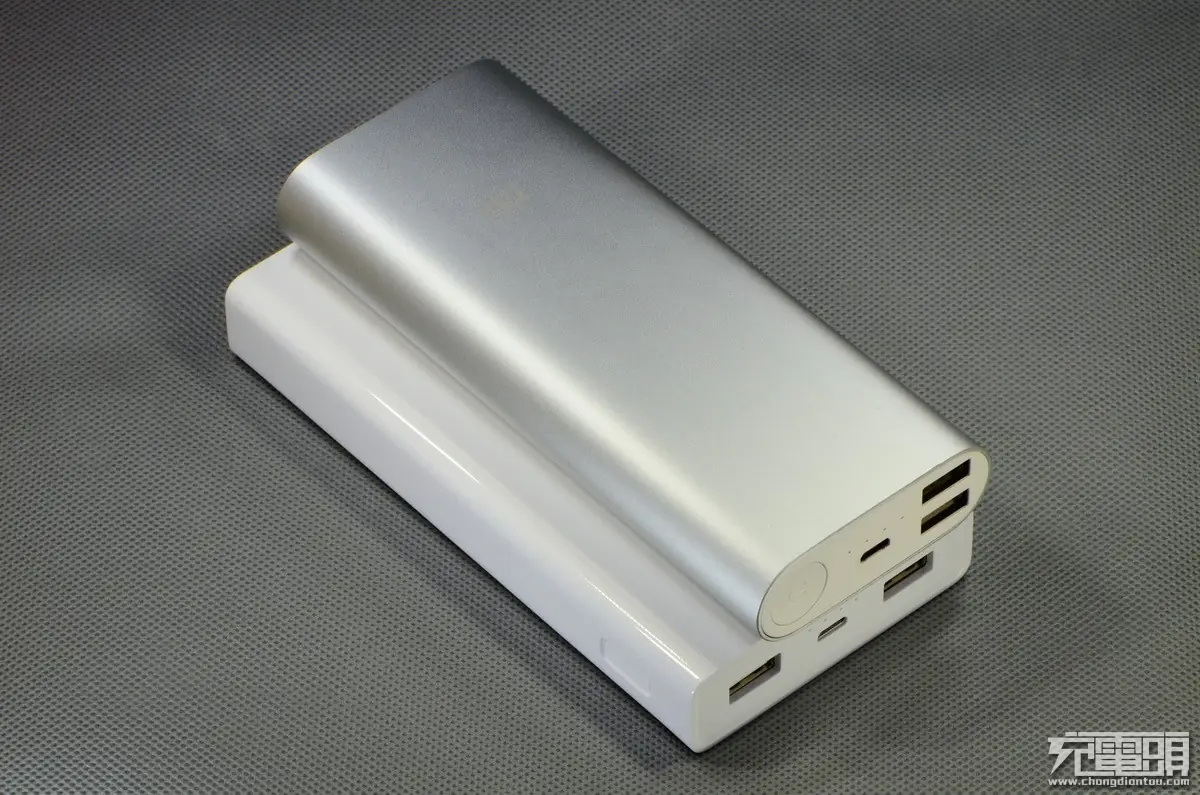

Compared to Xiaomi’s 16000mAh power bank.

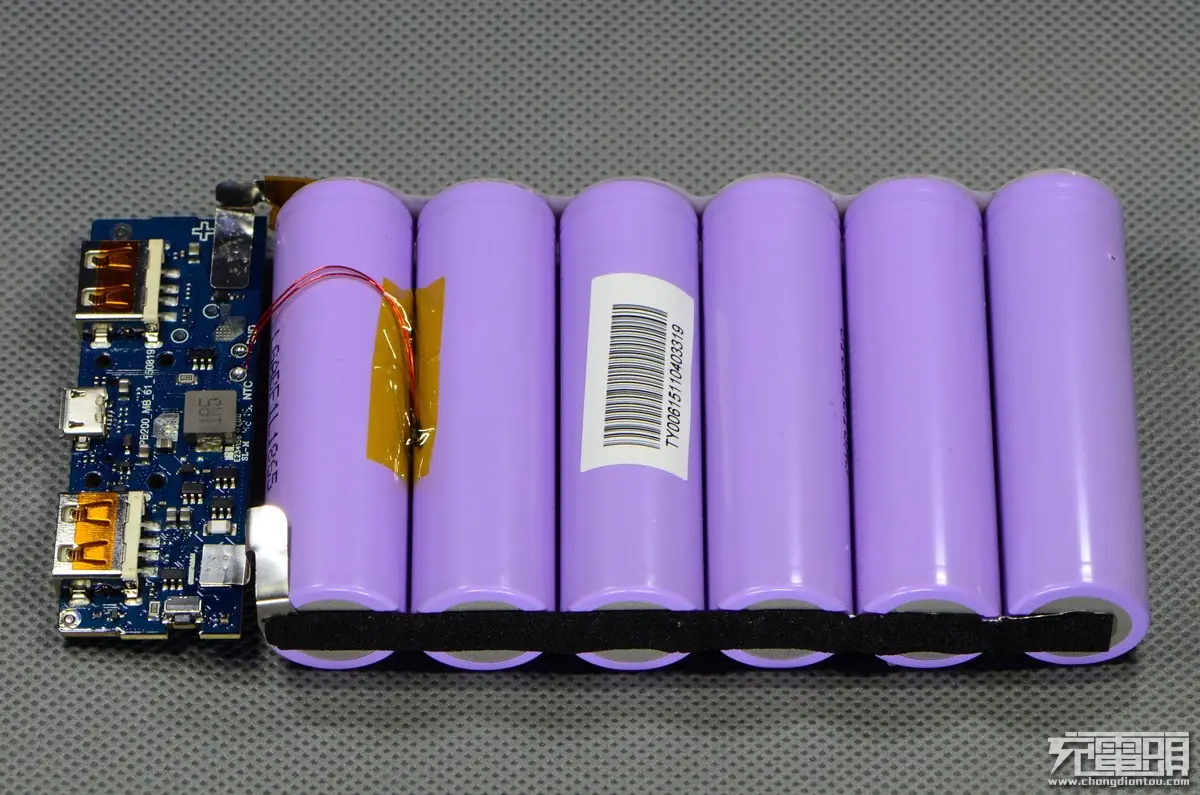

The temperature probe was fixed by Mylar film between 1-2 batteries.

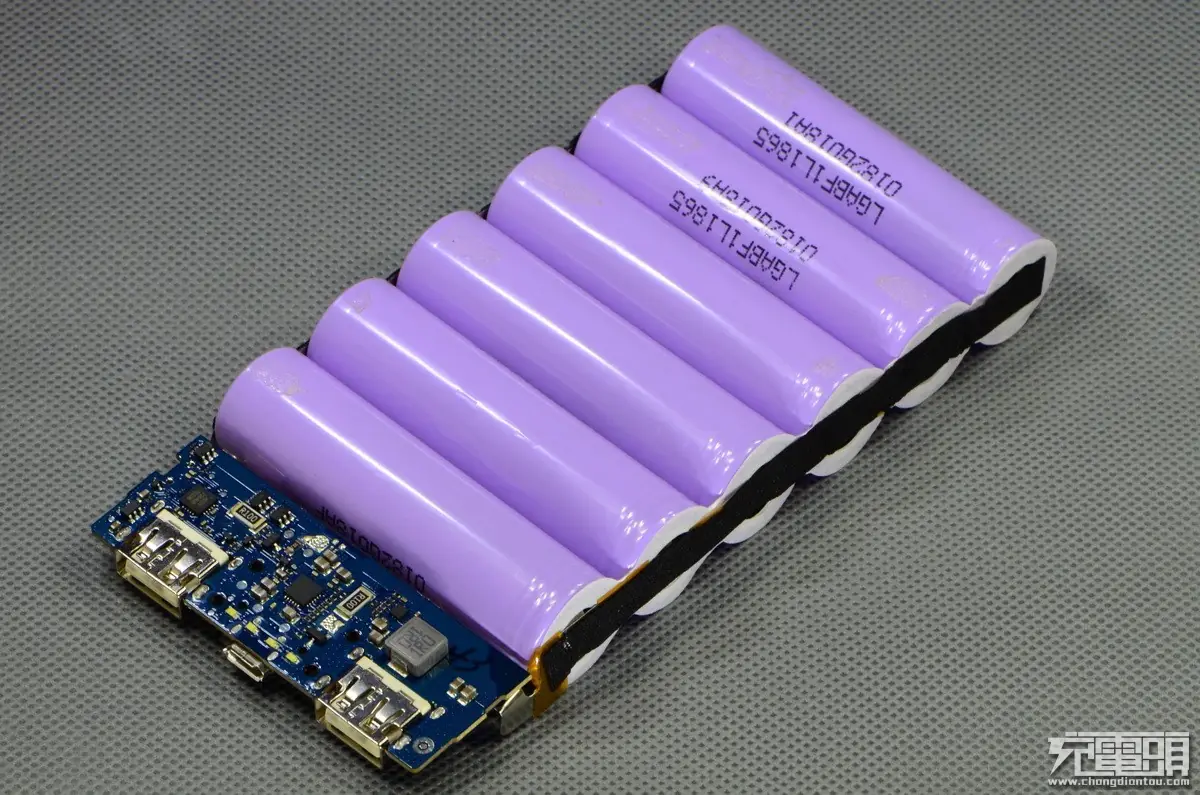

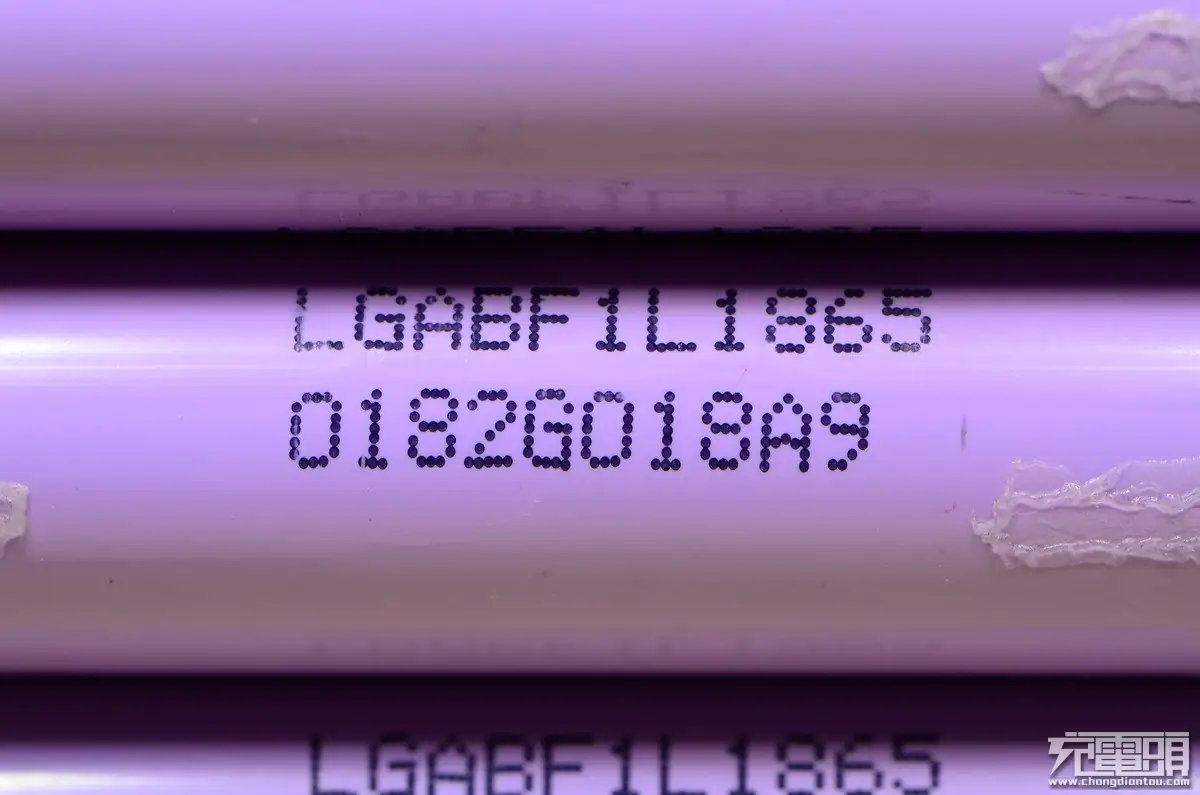

Battery model: LGABF1L1865, from South Korea’s LG Chemical, has a capacity of 3350mAh and a voltage of 4.2V, and Xiaomi’s 10000mAh power bank uses the same batteries.

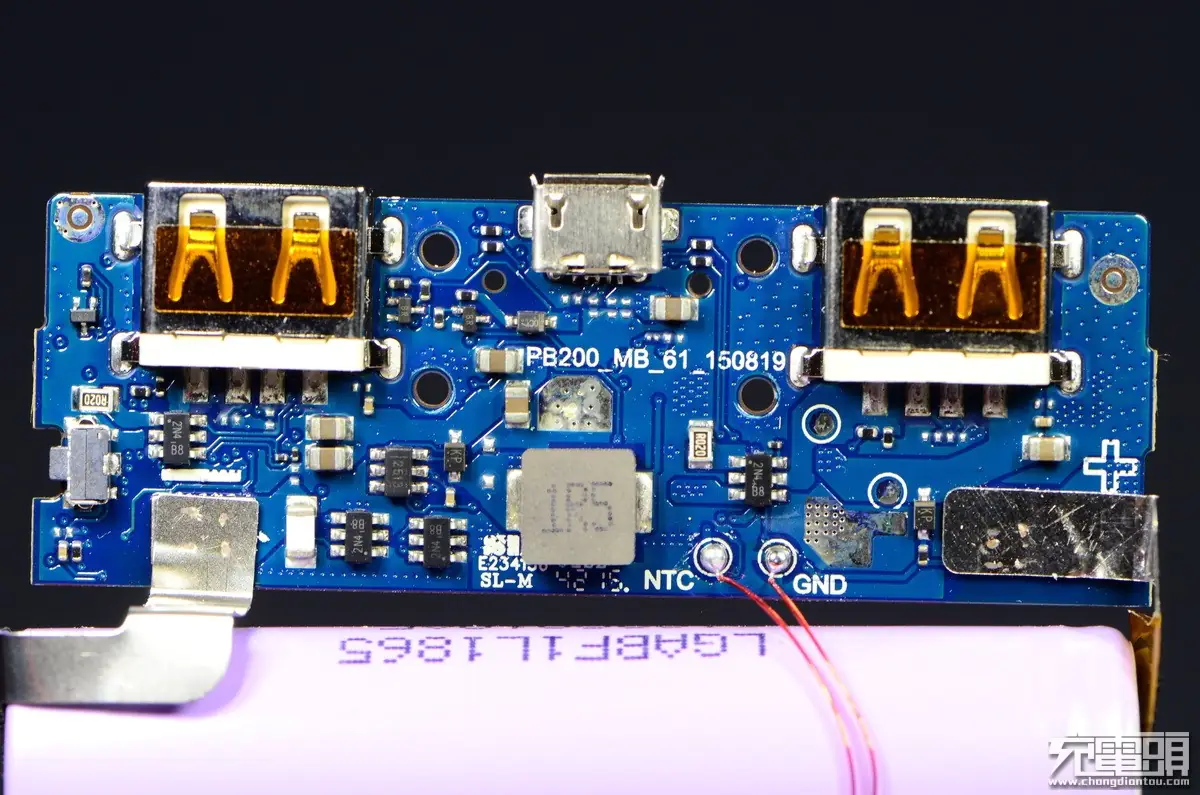

Here’s the front facing of the circuit board; PCB’s internal number is PB200_MB_61_150819.

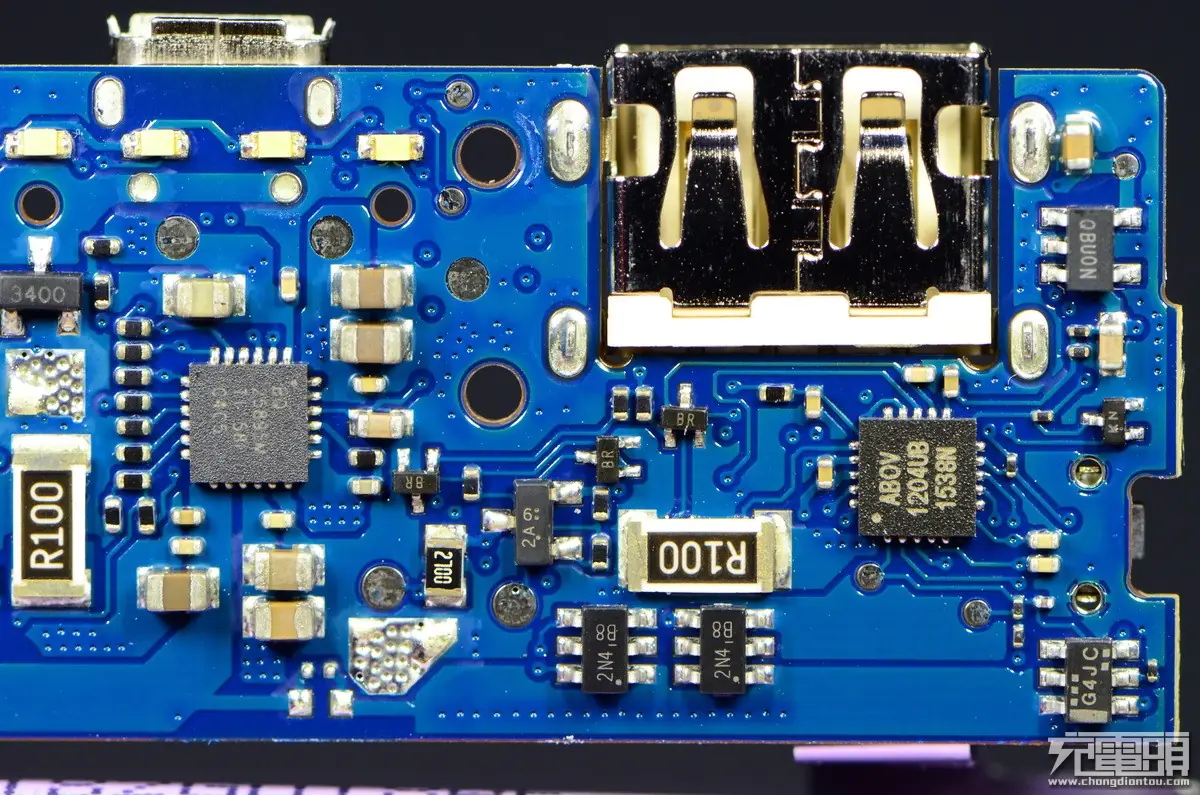

The USB port chip TPS2513 is dual intelligent identification chip, and it supports two USB outputs intelligent identification, Apple and Android phones can reduce charging compatibility issues; Two R020 resistors of the output current sampling resistor; close to two USB output have a 2N4B8MOS, each responsible for all the USB output overload shutdown.

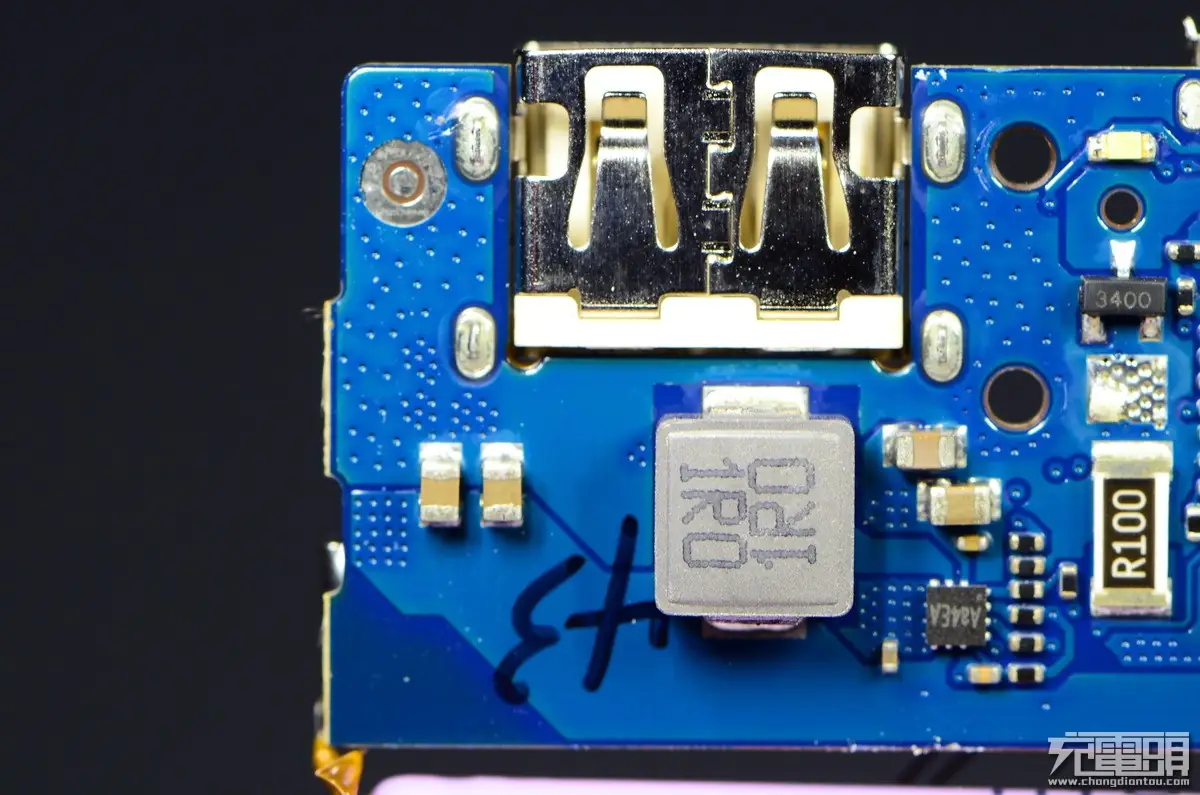

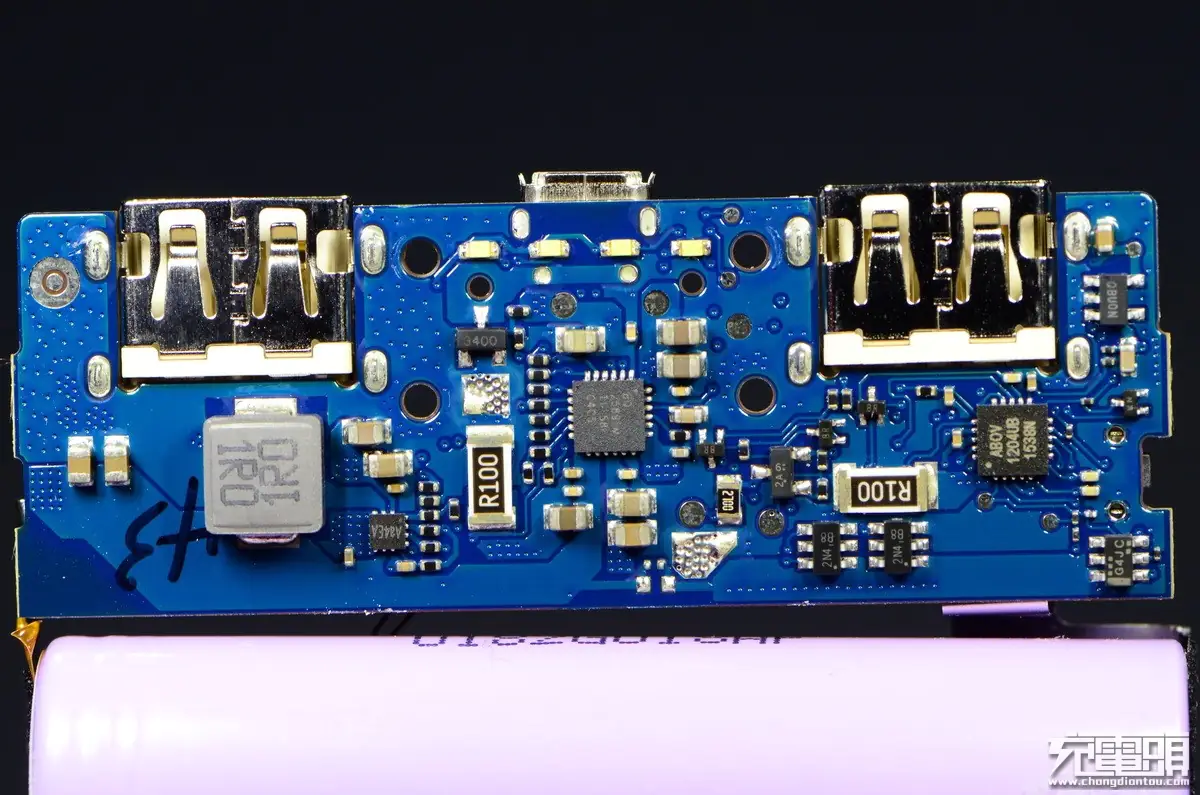

Another side of the board

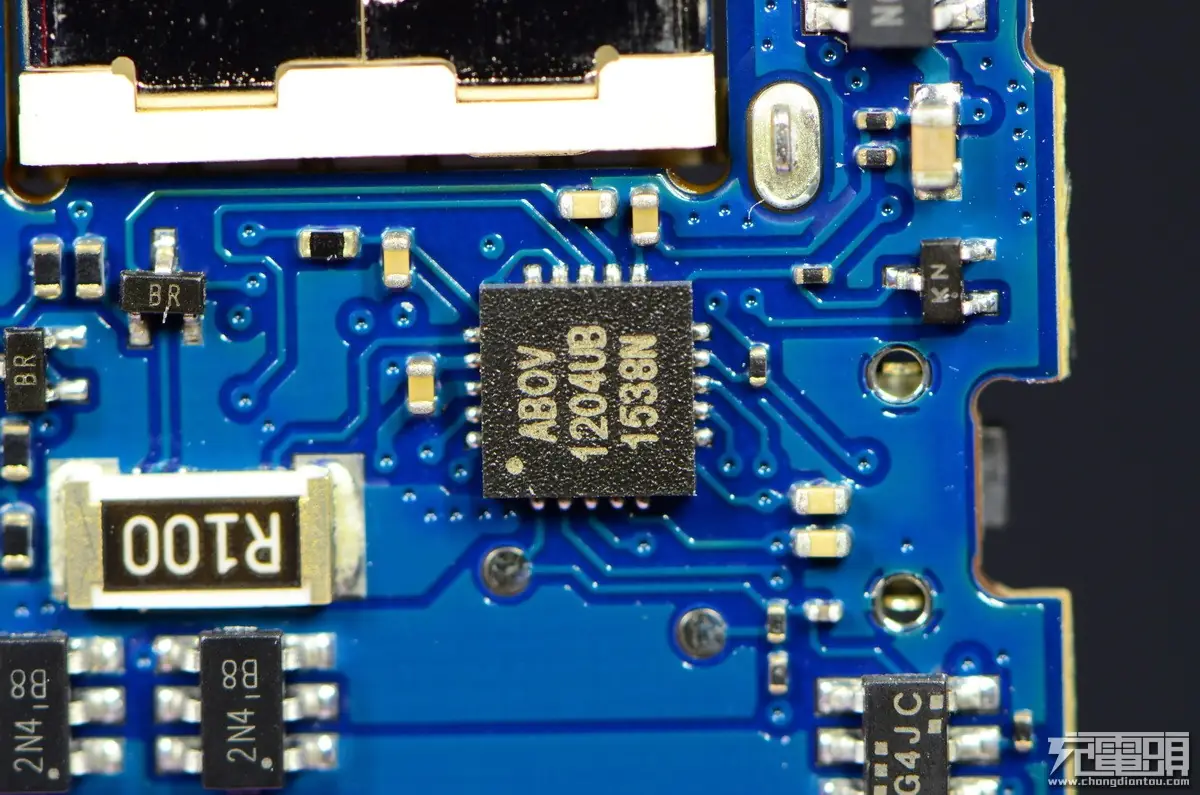

Protection chip: G4JC
Regulated power supply chip: QBUON

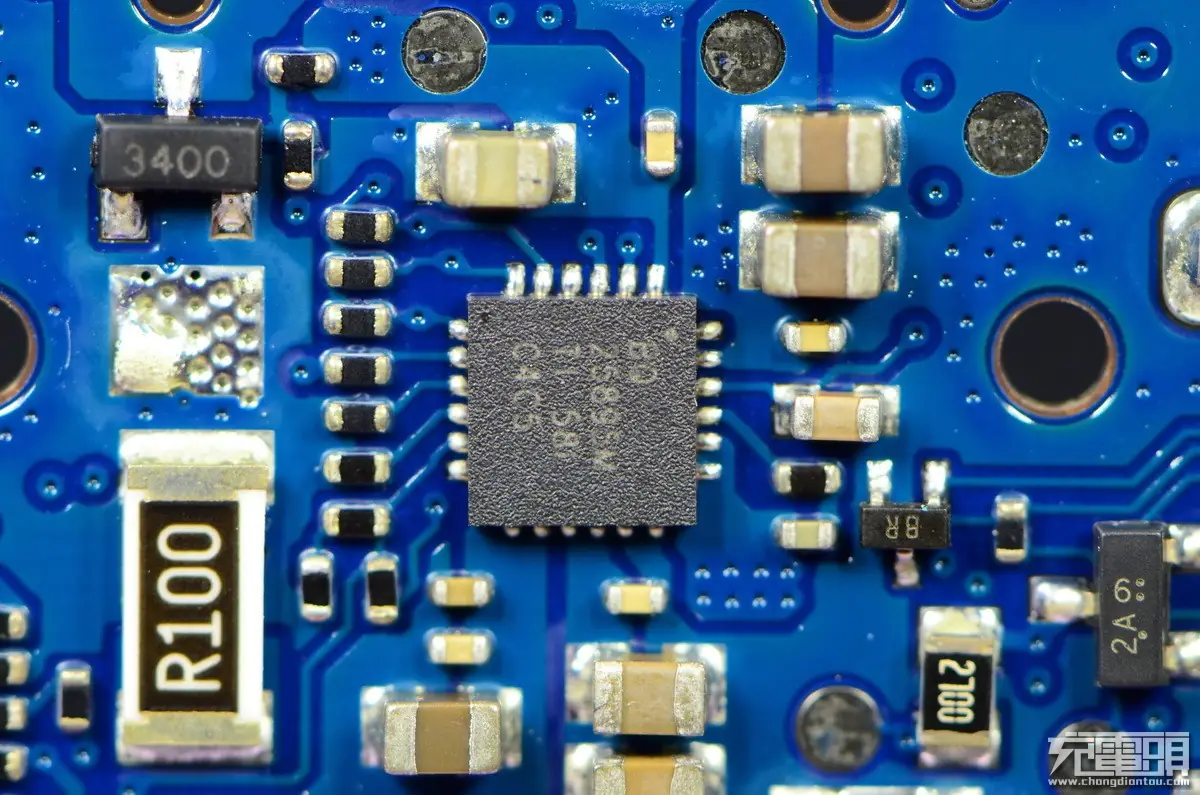

The TI chip model is BQ25895. Input voltage up to 14V, compatible with Qualcomm Quick Charge 2.0 of 9V, 12V voltage, is also compatible with MTK Pump Express of 7V, 9V, 12V.

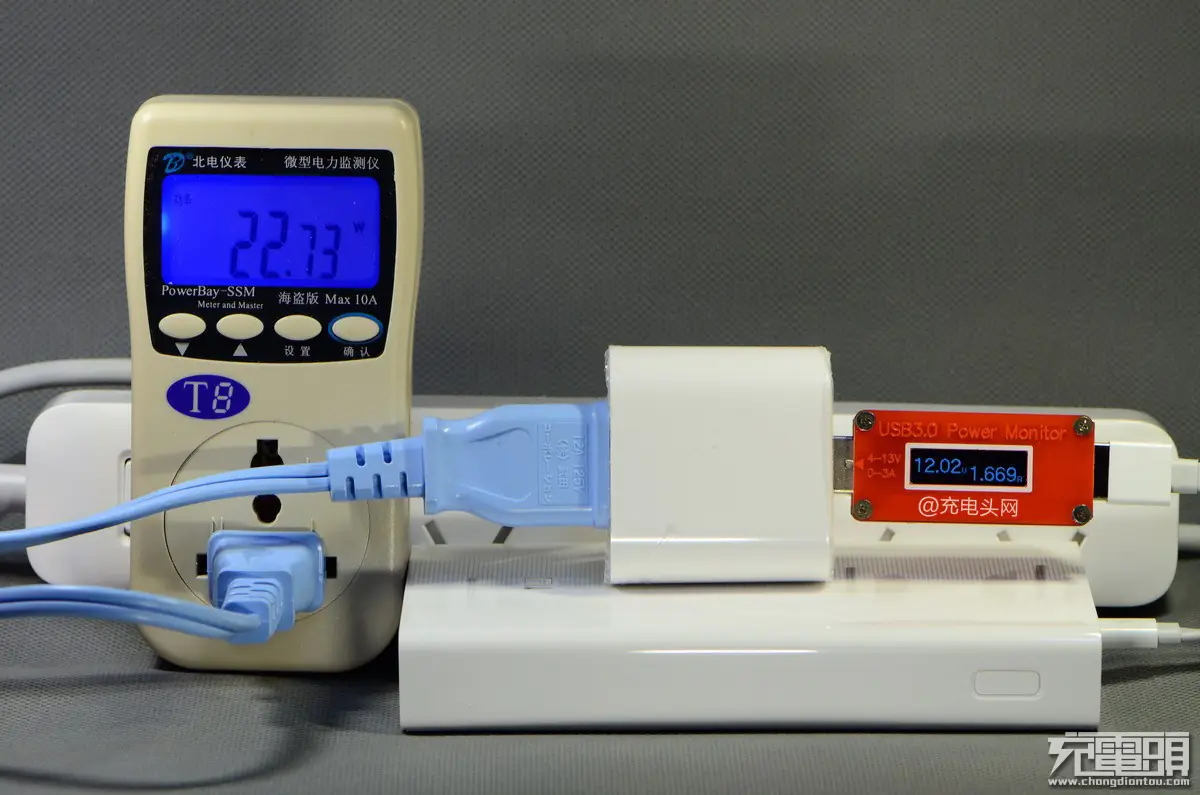

Voltage and current are up to 12.02V, 1.669A, a total power of 20.06W, more than the nominal 18W.
