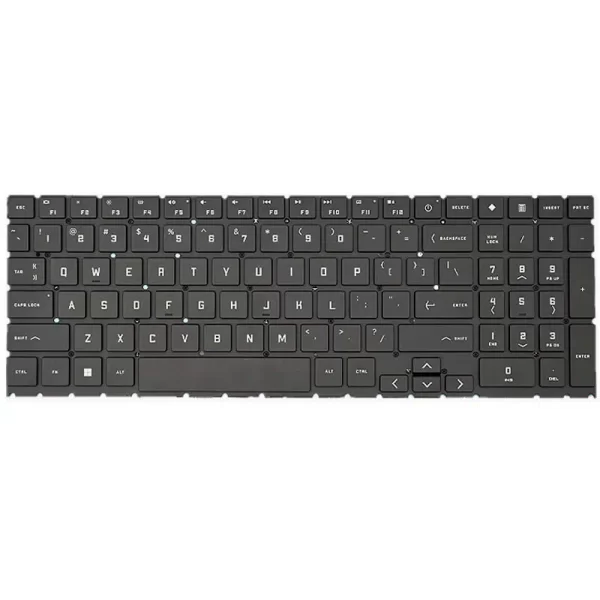

New Backlit Keyboard for HP Omen 16-xf0033dx 16-xf0087nr 16-xf0057ax 16-xf0068ax 16-xd0000ca 16-xd0008ca 16-xd0010ca N56102-001 N56101-001

This is a new keyboard for HP Omen 16-xf0000 and Omen 16-xd0000 laptops. It has a US layout and backlight.

Note:
1. The keyboard for the HP Omen 16-xf has white backlit and 4-zone RGB backlit, and they are not compatible with each other. Please check your backlit type before placing your order.
2. The keyboard for the HP Omen 16-xf has two versions: with numeric keys and no numeric keys. Please select the one you want in the drop-down menu.

Features:
1. This is a US English keyboard. It is compatible with keyboards with EU layouts (UK, SP, IT, DE, LA, FR, and more).
2. If you have any questions or need a UK, German, Spanish, Italian, French, Nordic, or Latin keyboard, please click Ask a Question to submit your question.

Compatible Part Numbers
N56101-001
N56102-001
N45347-001

Specifications
Layout: US
Color: Black
Backlit: 4-zone RGB
Condition: New, Original
Warranty: One Year

Compatible Laptops
Omen 16-xd0000ca
Omen 16-xd0008ca
Omen 16-xd0010ca
Omen 16-xf0000ca
Omen 16-xf0002na
Omen 16-xf0033dx
Omen 16-xf0087nr
Omen 16-xf0057ax
Omen 16-xf0068ax
and all Omen 16-xf xd series laptops

Replacement Tips:
1. Please verify that the part number, description, and images match your existing keyboard.
2. This laptop comes with a built-in keyboard. You have to remove your keyboard from the palm rest and then install this keyboard on your existing palm rest.
3. You must first remove the built-in battery to avoid damaging the laptop when replacing the keyboard.
4. If you want to replace the keyboard yourself, please download the hardware maintenance manual from HP’s official website and follow the steps in the manual.
5. This keyboard is perfectly compatible with your existing palm rest.
6. To replace the keyboard, you have to remove the bottom cover, battery, SSD, Wi-Fi card, heatsink, motherboard, and all components covering the keyboard.
