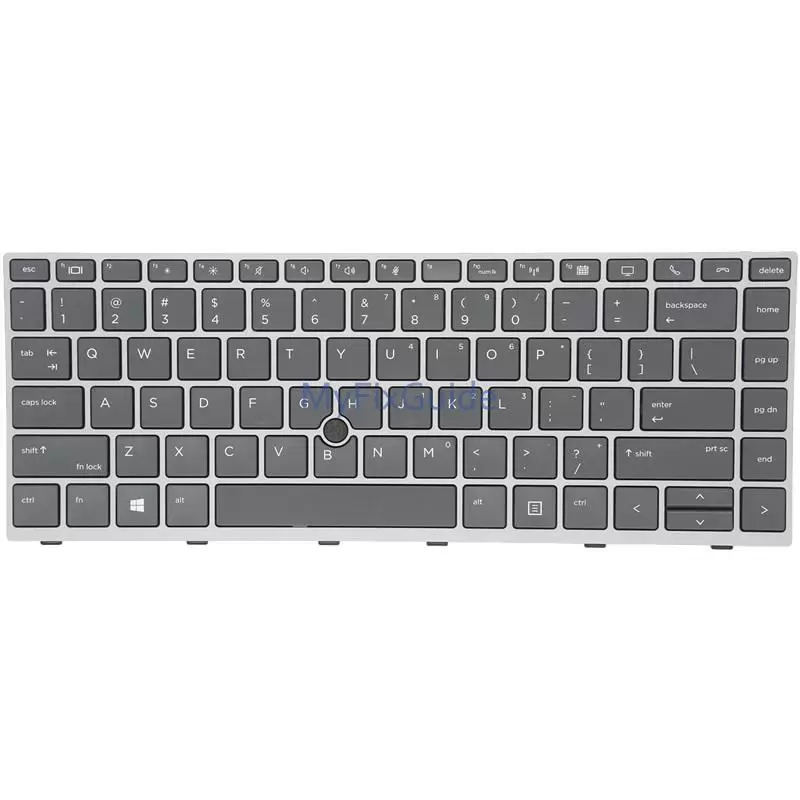

New Backlit Keyboard for HP ZBook 14u G6 L15540-001 L15541-001 L15542-001

This is a new keyboard for HP ZBook 14u G6 mobile workstation. The keyboard is available in non-backlit and backlit, and we have both keyboards in stock; please select the right model according to your need in the options area.

If your mobile workstation comes with a non-backlit keyboard, you can also buy a backlit keyboard to replace it for a better input experience In dark or low-light conditions.

Compatible Laptop:
ZBook 14u G6

Part number:
L15540-001
L15541-001
L15542-001

Specifications:
Layout: US
Color: Black keycaps with silver frame
Backlit: Yes or No
Condition: New, original
Warranty: One (1) Year

Replacement Tips:
1. Replacing this keyboard is very simple; you can replace it with the following steps.
2. Turn off your laptop and disconnect all external devices. Loosen the eight screws that secure the bottom cover. Pry the bottom cover off with a plastic tool or an old card.
3. Disconnect the battery connector from the motherboard to avoid hardware damage caused by the short circuit.
4. Remove the two screws that secure the keyboard to the system board.
5. Insert a screwdriver or similar tool into the hole near the cooling fan, and then press on the back of the keyboard until it releases from the palmrest.
6. Place the keyboard on the palmrest, disconnect the keyboard cable and backlit cable from the motherboard, and now you can remove the keyboard.
