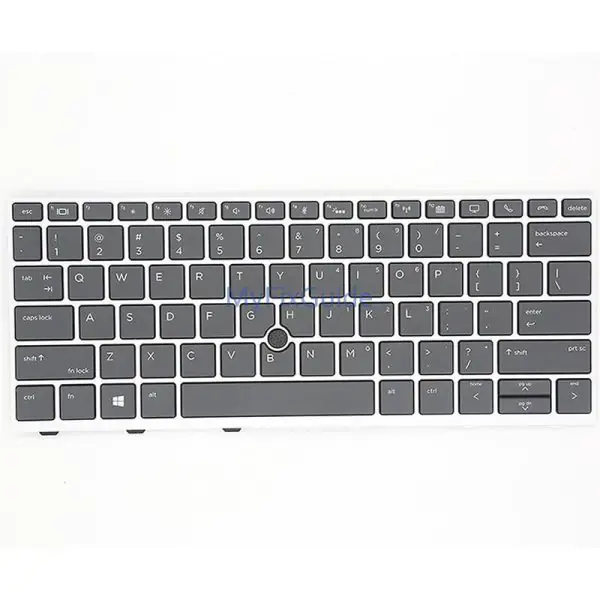

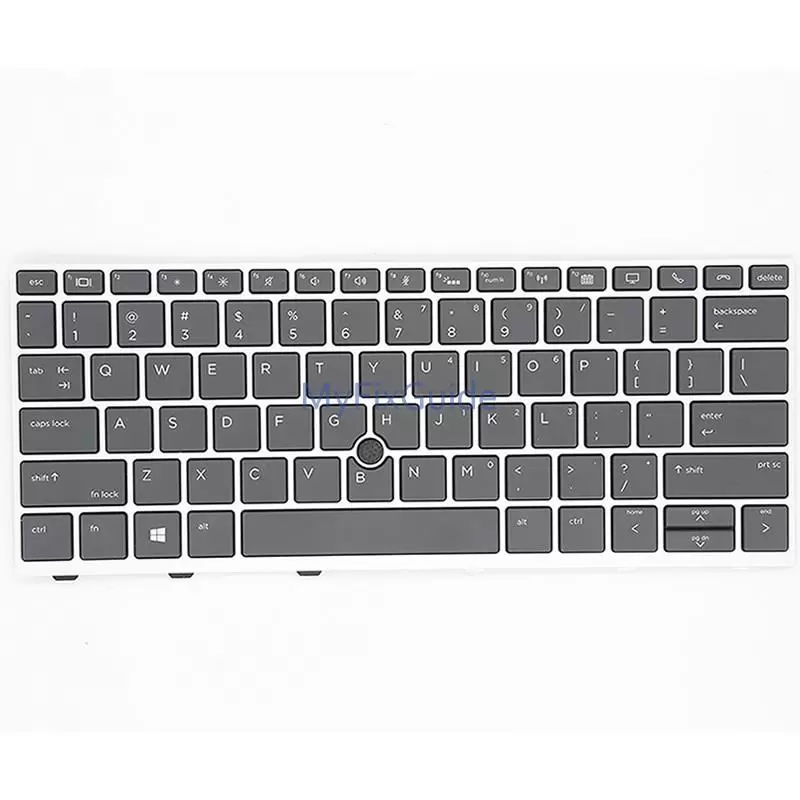

New keyboard for HP EliteBook 830 G5, EliteBook 735 G5 L13698-001 L13697-001

This is a new keyboard for HP EliteBook 830 G5 and EliteBook 735 G5. The keyboard has a backlit version and a non-backlit version, if your laptop comes with a non-backlit keyboard, you can upgrade it to a backlit keyboard.

Compatible laptop:
EliteBook 735 G5
EliteBook 830 G5

Part Number:
L13698-001 (non-backlit)
L13697-001 (backlit)

Specifications
Layout: US
Backlit: Yes or No
Color: Black keycap and silver frame
Condition: Original, Brand New
Warranty: One (1) Year

Replacement Tips
1. Shut down the laptop and disconnect all external devices connected to the laptop.
2. Loosen the seven captive screws that secure the bottom cover.
3. Use a thin plastic case opener to separate the bottom cover from the palmrest assembly. The bottom cover has many hidden latches fastening it to the palmrest. You need to move the case opener along the side and unfasten all latches.
4. Disconnect the battery cable from the motherboard.
5. Remove the two Phillips M2.0×3.0 screws that secure the keyboard to the laptop.
6. Insert a screwdriver into the hole near the cooling fan, and then press on the back of the keyboard until it disengages from the laptop.
7. Place the keyboard on the front side down on the palmrest, and then disconnect the keyboard cable and backlit cable from the motherboard.
