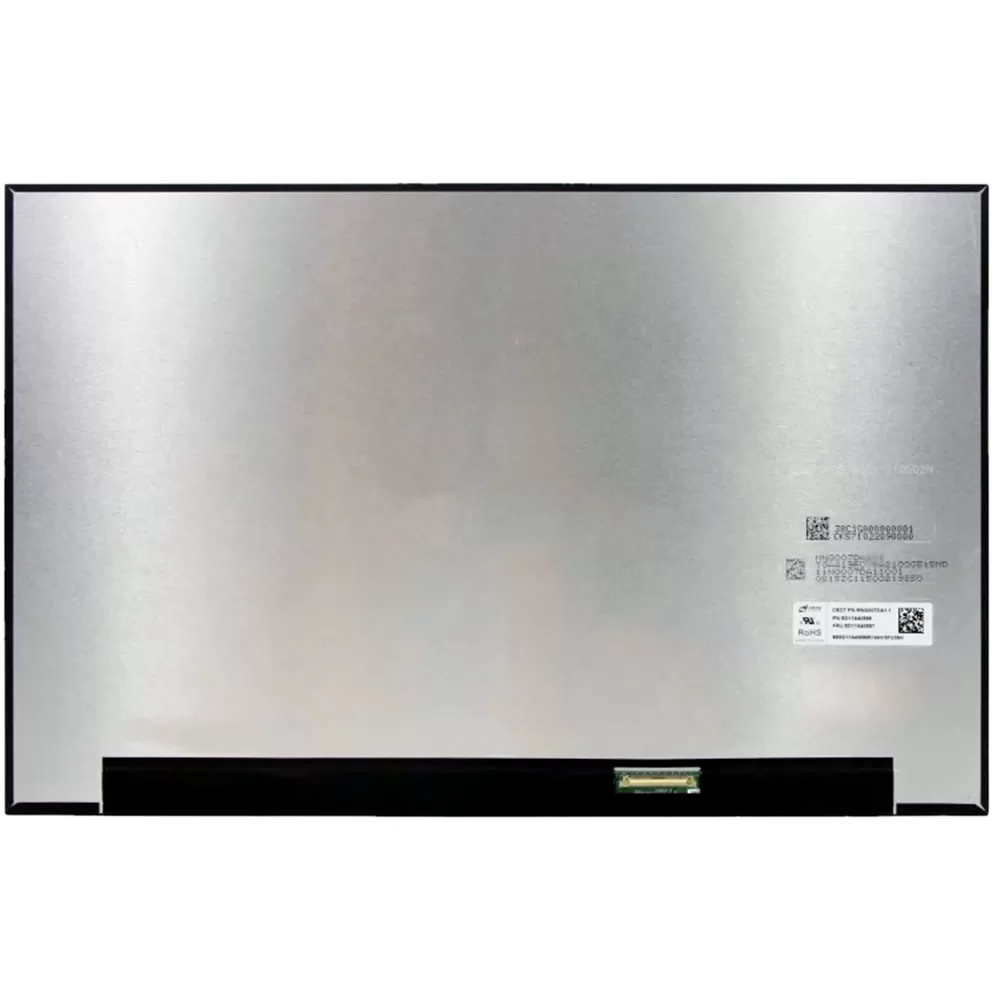

New 16″ WUXGA WQXGA Screen for Lenovo Legion Slim 5 16APH8 16IRH8

This is a new screen for Lenovo Legion Slim 5 16APH8 16IRH8. The screens of the laptop have multiple specifications. Their resolution, brightness, and color gamut are different; please choose the screen with the same specifications as your original screen in the drop-down menu.

Identify your original screen specification at https://www.myfixguide.com/store/screen-specification-for-lenovo-legion-gen-8/

Features:
1. The screen is a 100% new screen.
2. This screen has the same specifications as your original screen.
3. Each screen is rigorously tested to ensure that it has no bad pixels.

Specifications:
Legion Slim 5 16APH8
16″ 1920×1200 IPS 300nits 144Hz 45% NTSC Anti-glare G-SYNC
16″ 2560×1600 IPS 300nits 165Hz 100% sRGB Anti-glare G-SYNC
16″ 2560×1600 IPS 500nits 240Hz 100% sRGB Anti-glare G-SYNC

Legion Slim 5 16IRH8
16″ 1920×1200 IPS 300nits 144Hz 45% NTSC Anti-glare G-SYNC
16″ 2560×1600 IPS 300nits 165Hz 100% sRGB Anti-glare G-SYNC
16″ 2560×1600 IPS 500nits 240Hz 100% sRGB Anti-glare G-SYNC

Aspect Ratio: 16:10
Condition: New, no dead pixels
Warranty: One (1) Year

Replacement Tips:
1. Please make sure the part number, specifications, and image match the original screen on your laptop.
2. To replace your screen, you have to remove the battery or disconnect the battery cable from the motherboard. This is to protect your laptop from being damaged by static electricity.
3. Insert the old card between the screen bezel and the display back cover. Pry up the screen bezel and start separating it from the back cover.
4. Slowly pull out the easy-stretch adhesive under the screen, and you can easily remove the screen.
5. Place the LCD screen on the keyboard, disconnect the display cable from the LCD screen to remove the old LCD screen, and then you can install the new screen on your laptop.
6. You can first connect the LCD cable to your screen, then start the laptop to check that your LCD screen is working properly, then fix the screen on the back cover and install the LCD bezel on your laptop.
